Removal Procedure

Important:  Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

1. Open the hood.
2. Remove the windshield wiper arms. Refer to WIPER ARM REPLACEMENT (LHD) or WIPER ARM REPLACEMENT (RHD) in Wipers/Washer Systems.
3. Remove the air inlet grille. Refer to AIR INLET GRILLE PANEL REPLACEMENT (LHD) or AIR INLET GRILLE PANEL REPLACEMENT (RHD) in Body Front End.
   CAUTION: If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
4. Cover to protect the following parts from broken glass:
   • Upper dash pad
   • Defroster outlets and A/C outlets
   • Seats and carpeting
5. Remove the windshield side reveal moldings. Refer to WINDSHIELD SIDE REVEAL MOLDING REPLACEMENT  .
6. Remove the rearview mirror. Refer to REARVIEW MIRROR REPLACEMENT (UE1)  or REARVIEW MIRROR REPLACEMENT (DD7,DD8)  .
7. Disconnect the coaxial antenna connector.
8. Remove the interior windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR in Interior Trim.

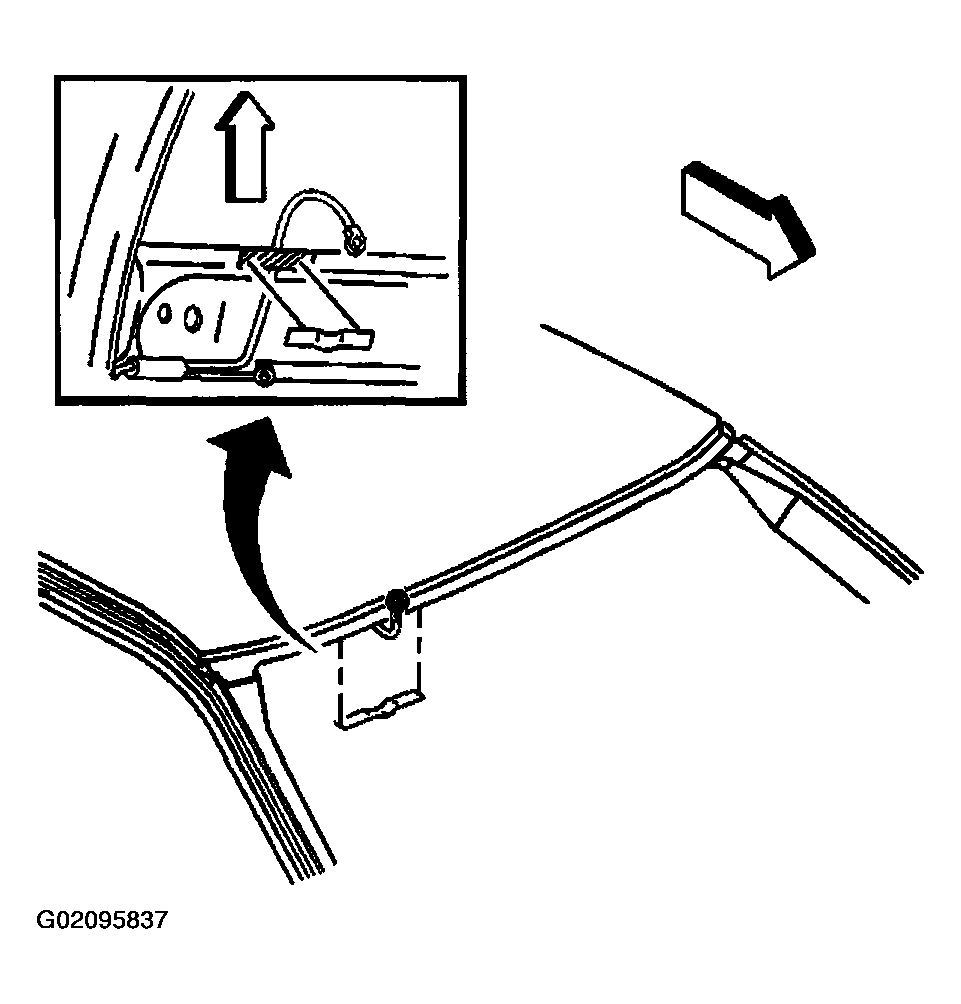

   Fig 1: Disconnecting Coaxial Antenna Connector

   Courtesy of GENERAL MOTORS CORP.
   CAUTION: Refer to GLASS & SHEET METAL HANDLING CAUTION in Cautions and Notices.

   Important:  The upper windshield reveal molding is a one piece molding and fills the cavities between the body and windshield.

   If the upper windshield reveal molding is stretched or damaged it can not be reused.

9. Using a utility knife, carefully cut the upper flap (1) of the windshield reveal molding in order to access the urethane adhesive bead.
10. Apply 2 layers of masking tape on the body next to the windshield edge, prior to cutting the urethane adhesive bead.

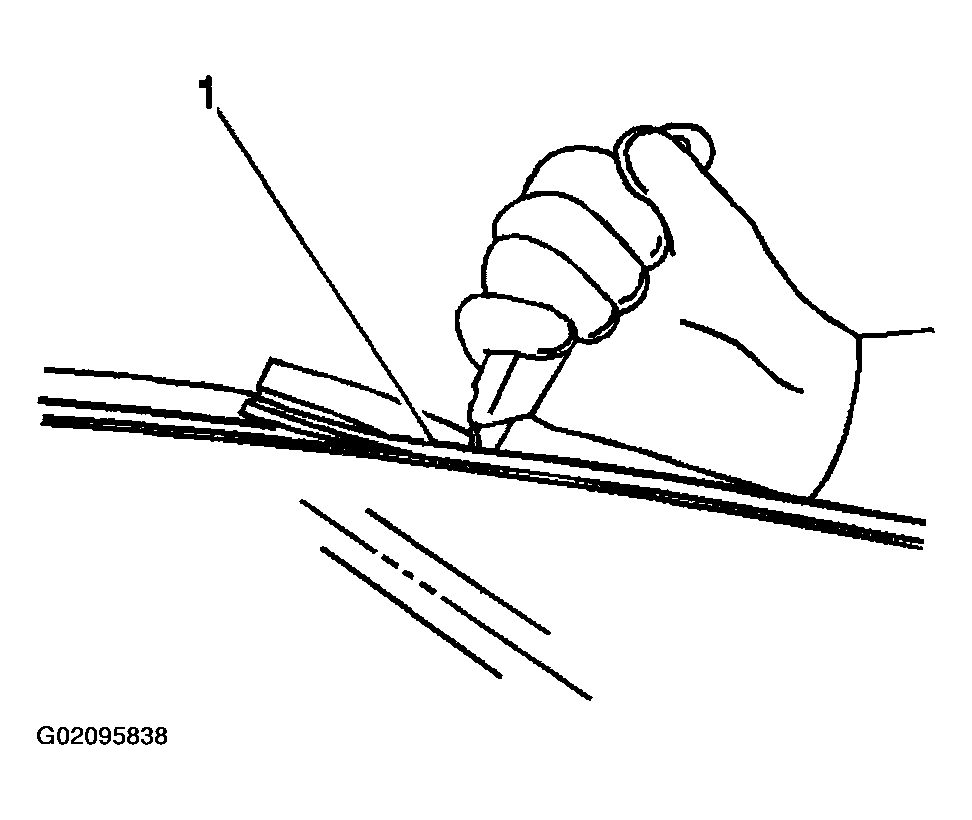

    Fig 2: Cutting Upper Flap Of Windshield Reveal Molding

    Courtesy of GENERAL MOTORS CORP.

    Important:  Keep the cutting edge of the tool against the window.

11. This will allow the urethane adhesive to be separated from the window.
    • Leave a base of urethane on the pinchweld flange.
    • The only suitable lubrication is clean water.
    • Use J 24402-A, J 39032  or equivalent in order to remove the window.

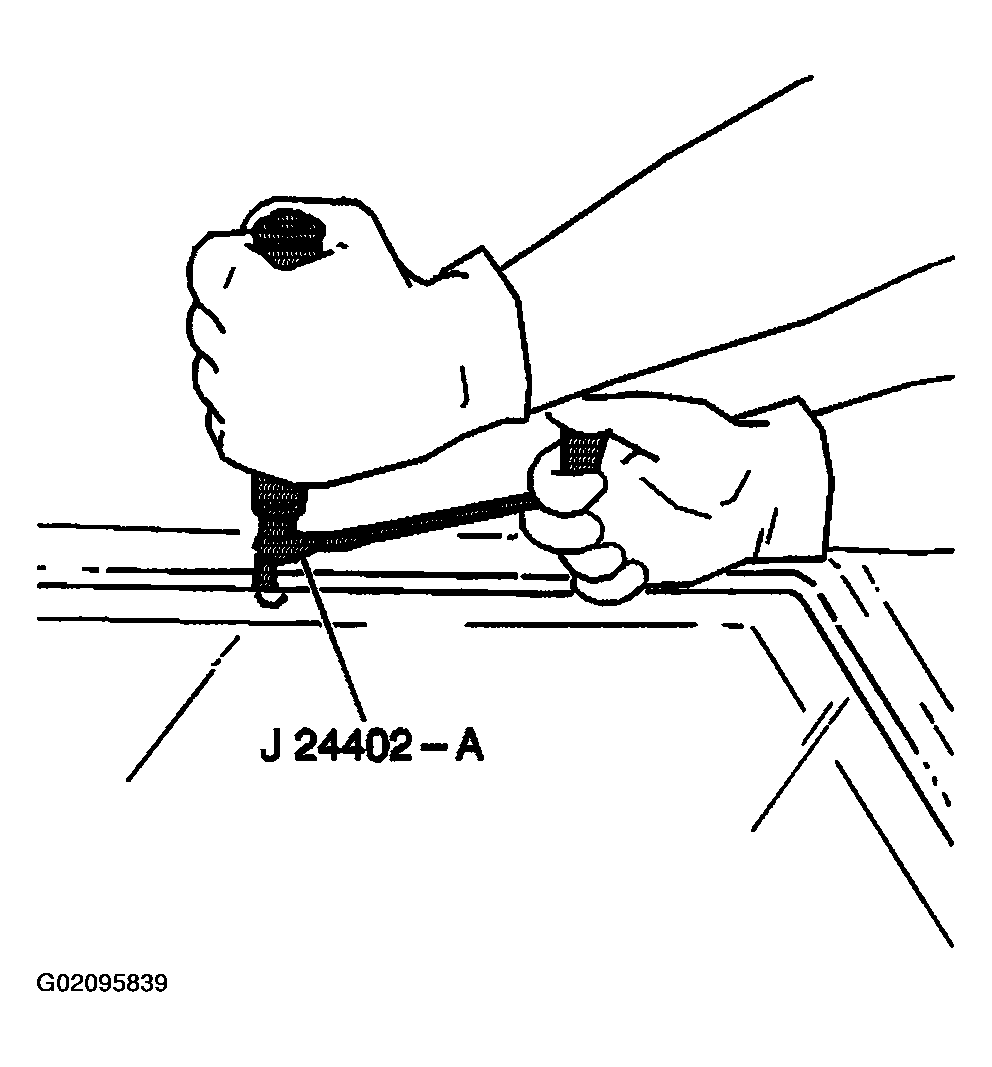

    Fig 3: Using J 24402-A, J 39032 In Order To Remove Window

    Courtesy of GENERAL MOTORS CORP.
12. Remove the bottom of the window from the urethane adhesive using a long utility knife or similar tool. Keep the cutting edge of the utility knife against the glass. Do this from inside the vehicle.

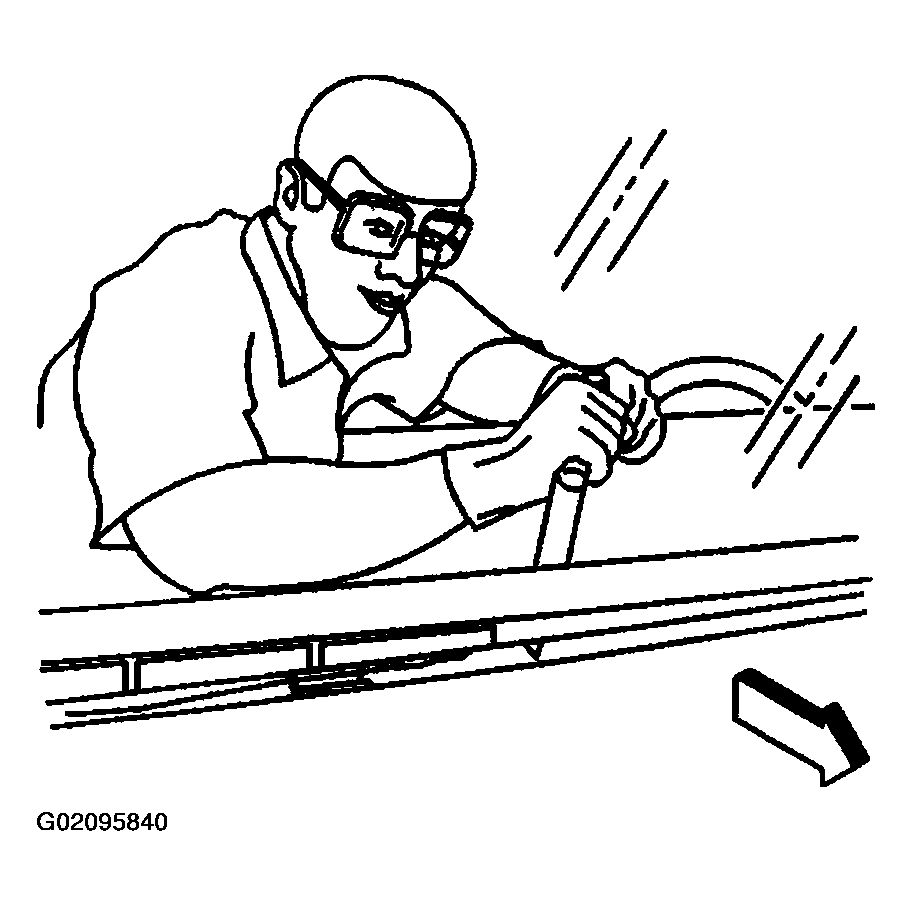

    Fig 4: Removing Bottom Of Window From Urethane Adhesive

    Courtesy of GENERAL MOTORS CORP.
13. Remove the windshield (1) from the vehicle with the aid of an assistant.

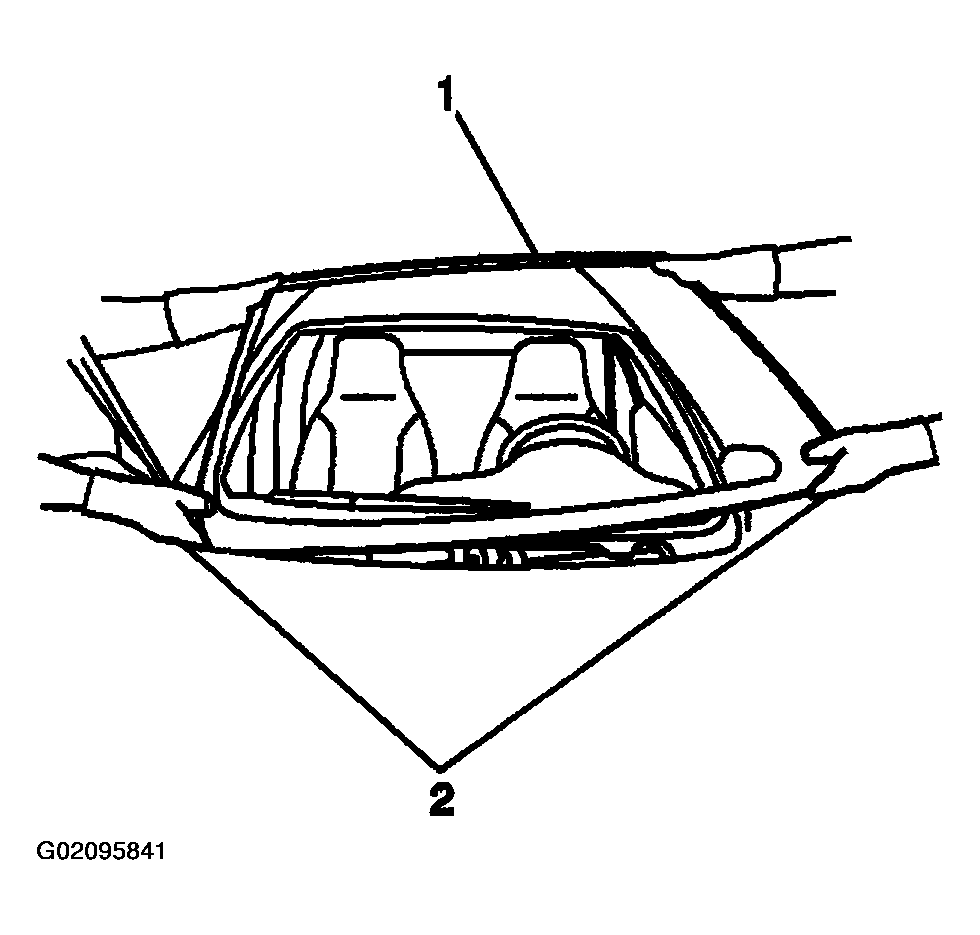

    Fig 5: Removing Windshield From Vehicle With Aid Of An Assistant

    Courtesy of GENERAL MOTORS CORP.
