Component Locations

COMPONENT LOCATIONS

Component

Locations

Engine Control Module (ECM)

In Engine Compartment, In Right Front Corner

STARTER Fuse

In Underhood Fuse Block

Starter Motor ⁽¹⁾

In Engine Compartment, On RR Side Of Engine

STARTER Relay

In Underhood Fuse Block

Starter Solenoid ⁽¹⁾

In Engine Compartment, On RR Side Of Engine, On Top Of Starter

⁽¹⁾	For view of starter components, see Fig 1 .

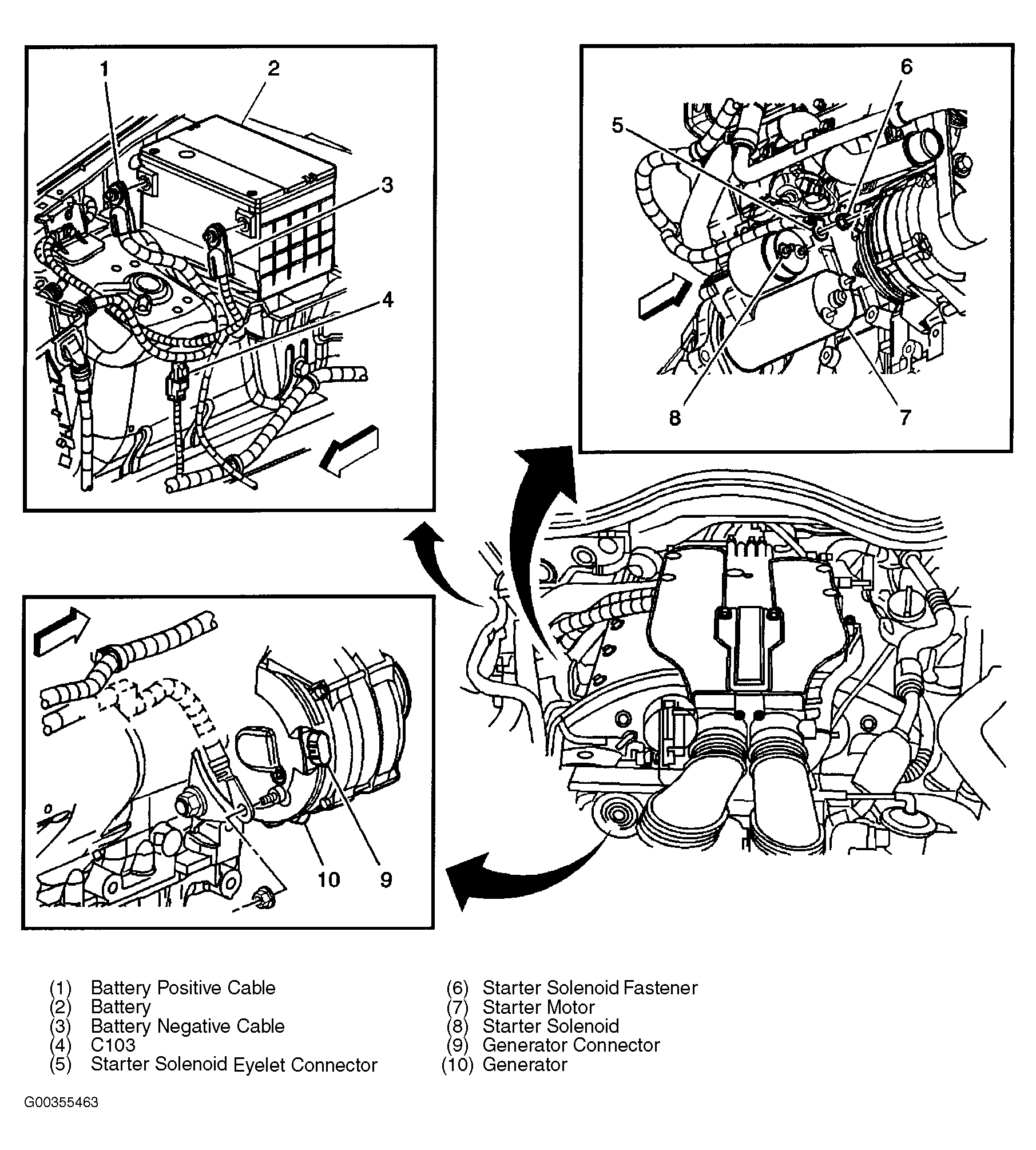

Fig 1: Locating Starter Components

Courtesy of GENERAL MOTORS CORP.
