Diagnostic Procedures

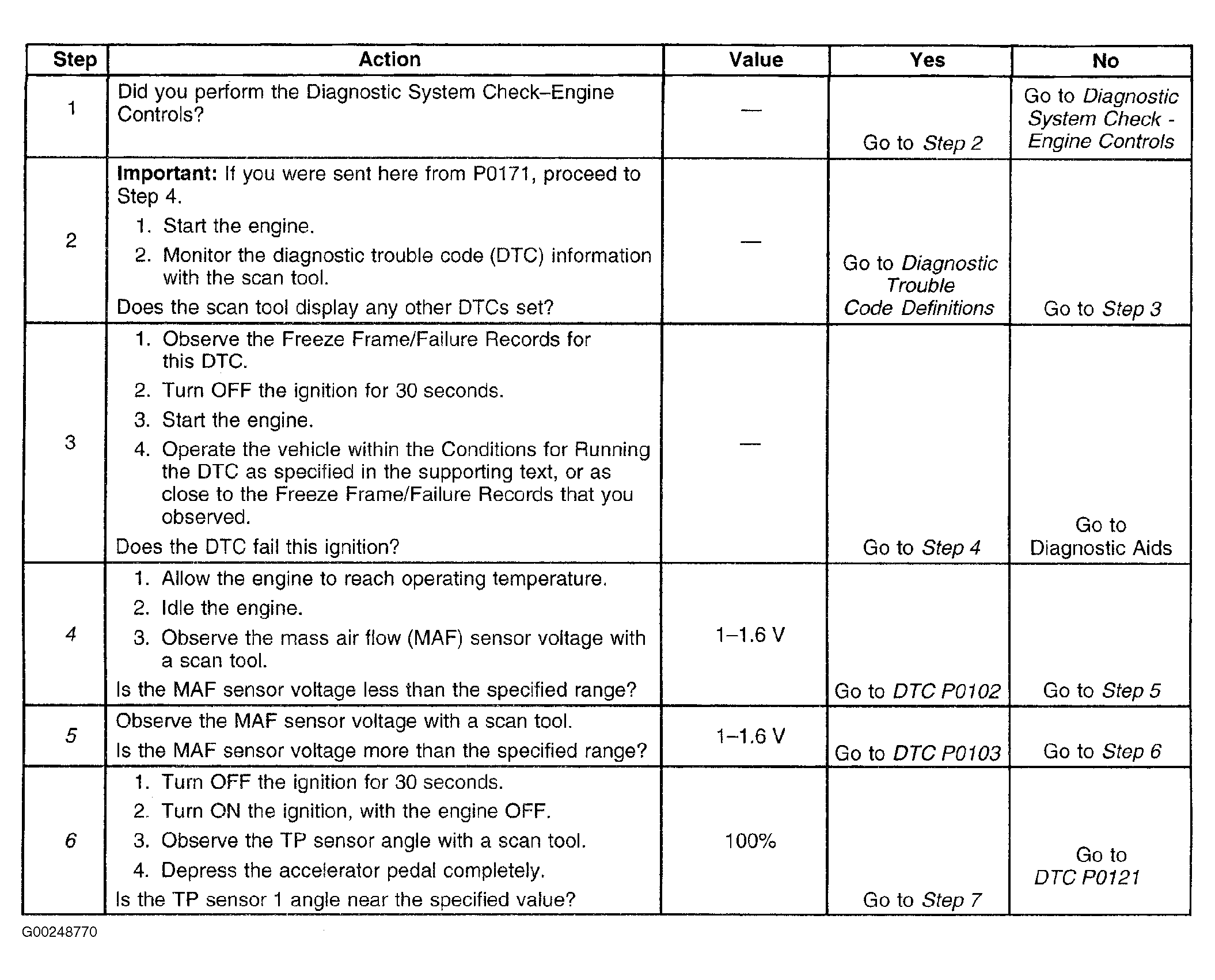

Fig 1: DTC P0101: Mass Airflow Sensor System Performance (Steps 1-6)
G00248770Courtesy of GENERAL MOTORS CORP.

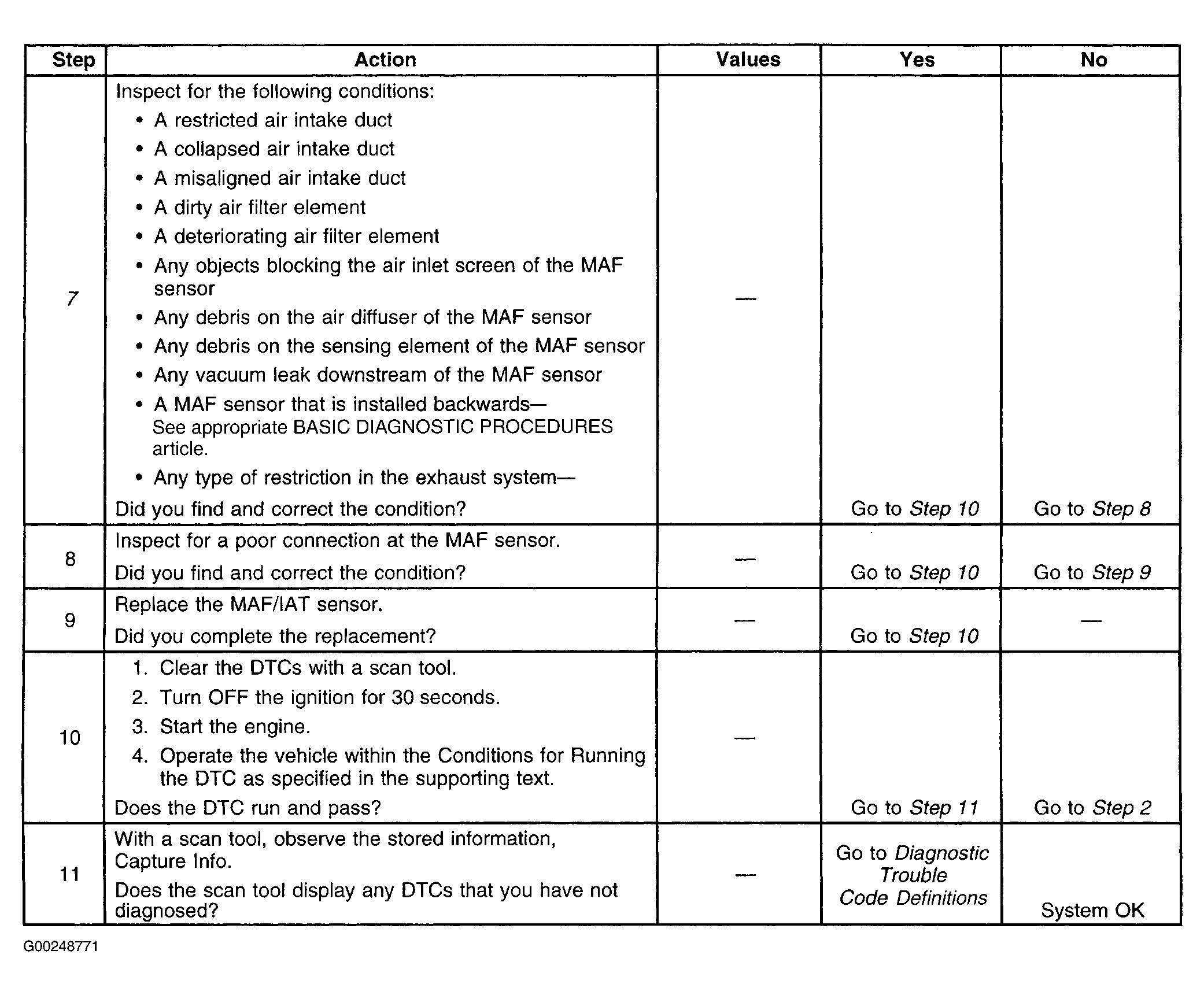

Fig 2: DTC P0101: Mass Airflow Sensor System Performance (Steps 7-11)
G00248771Courtesy of GENERAL MOTORS CORP.
