Diagnostic Procedure

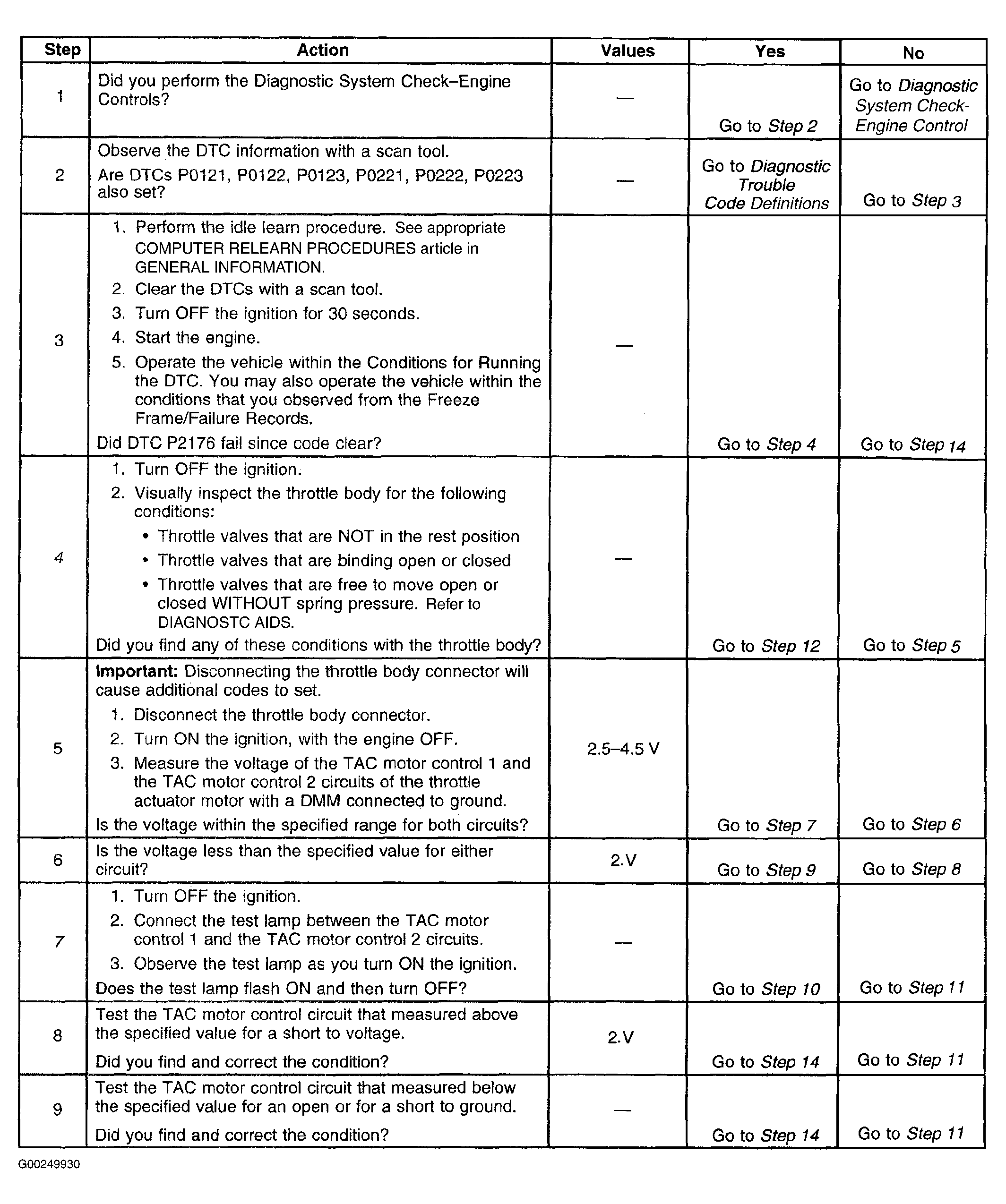

Fig 1: DTC P2176: Minimum Throttle Position Not Detected (Steps 1-9)
G00249930Courtesy of GENERAL MOTORS CORP.

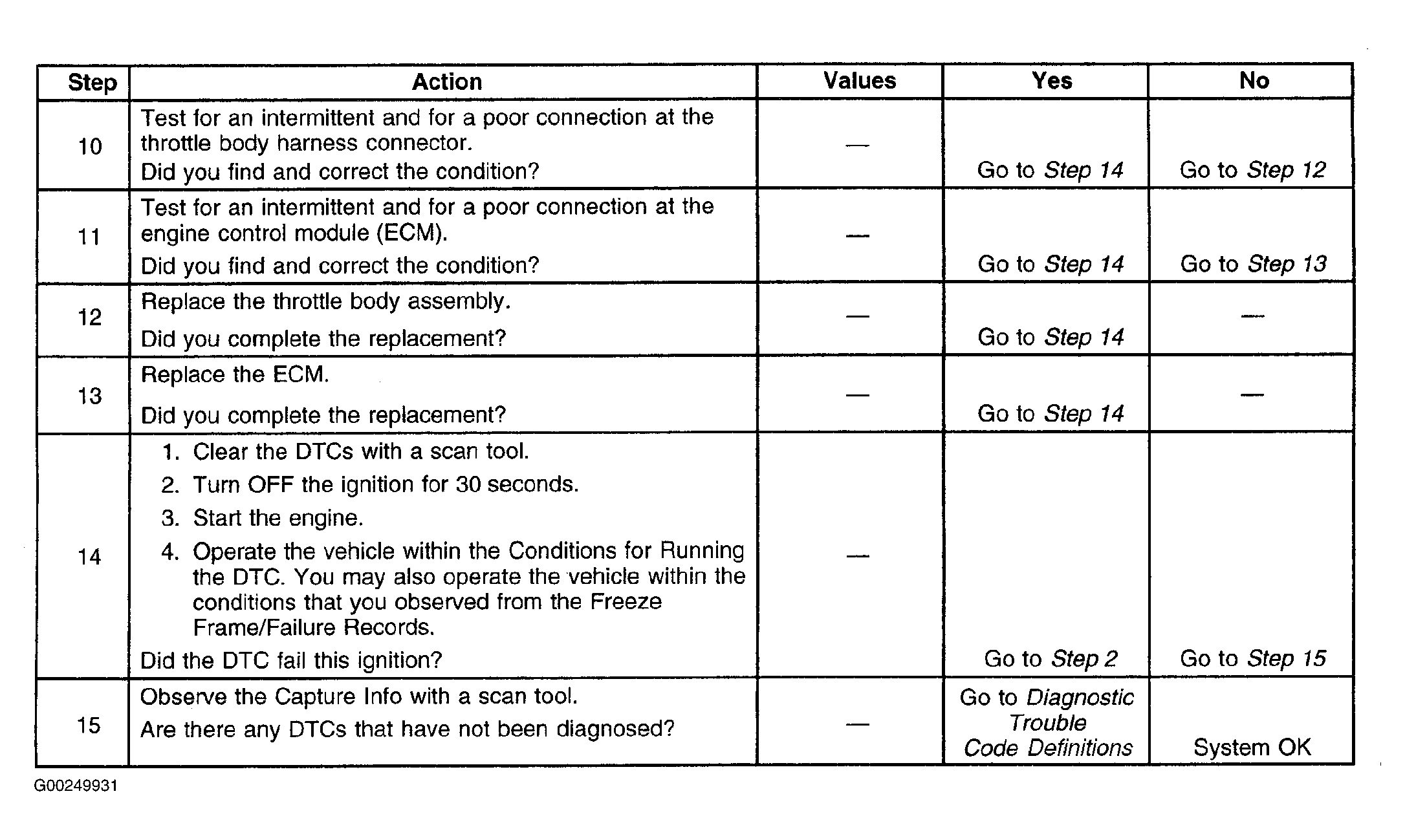

Fig 2: DTC P2176: Minimum Throttle Position Not Detected (Steps 10-15)
G00249931Courtesy of GENERAL MOTORS CORP.
