Removal Procedure

CAUTION: Do NOT attempt to repair or alter the bracket on the child seat restraint system. If the bracket is damaged, replace the entire bracket. Altering the bracket could result in personal injury.
  1. Remove the rear shelf panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF in Interior Trim.
  2. Remove the bolt that retains the child tether anchor that is being serviced.
  3. Remove the child tether anchor from the vehicle.

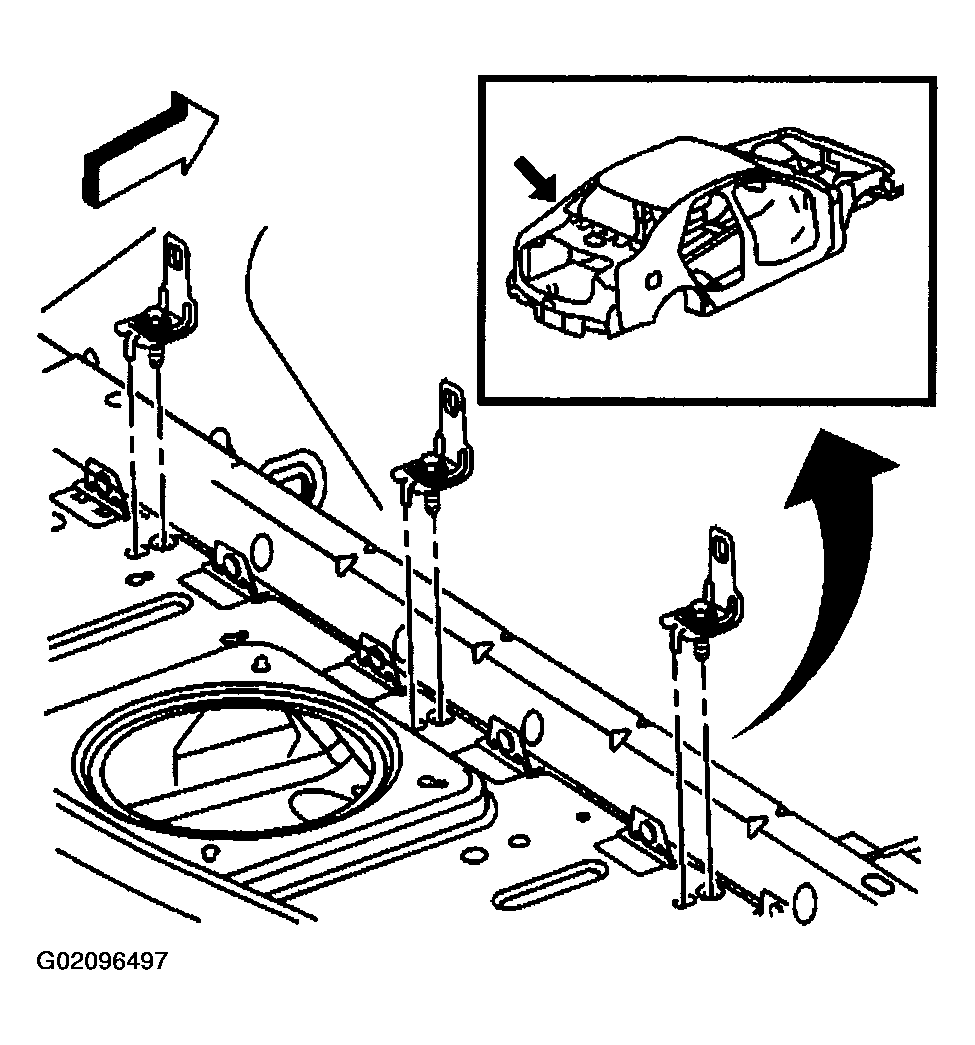

    Fig 1: Child Tether Anchors
    G02096497Courtesy of GENERAL MOTORS CORP.
