Installation Procedure

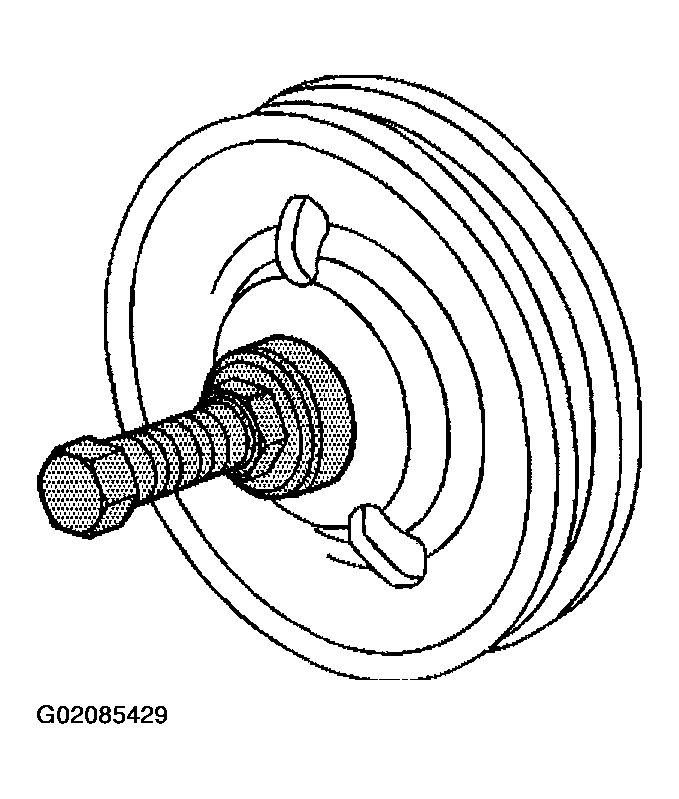

- Using J 25033-C
install the power steering pump pulley to the power steering pump. See Special Tools and Equipment .
Courtesy of GENERAL MOTORS CORP.

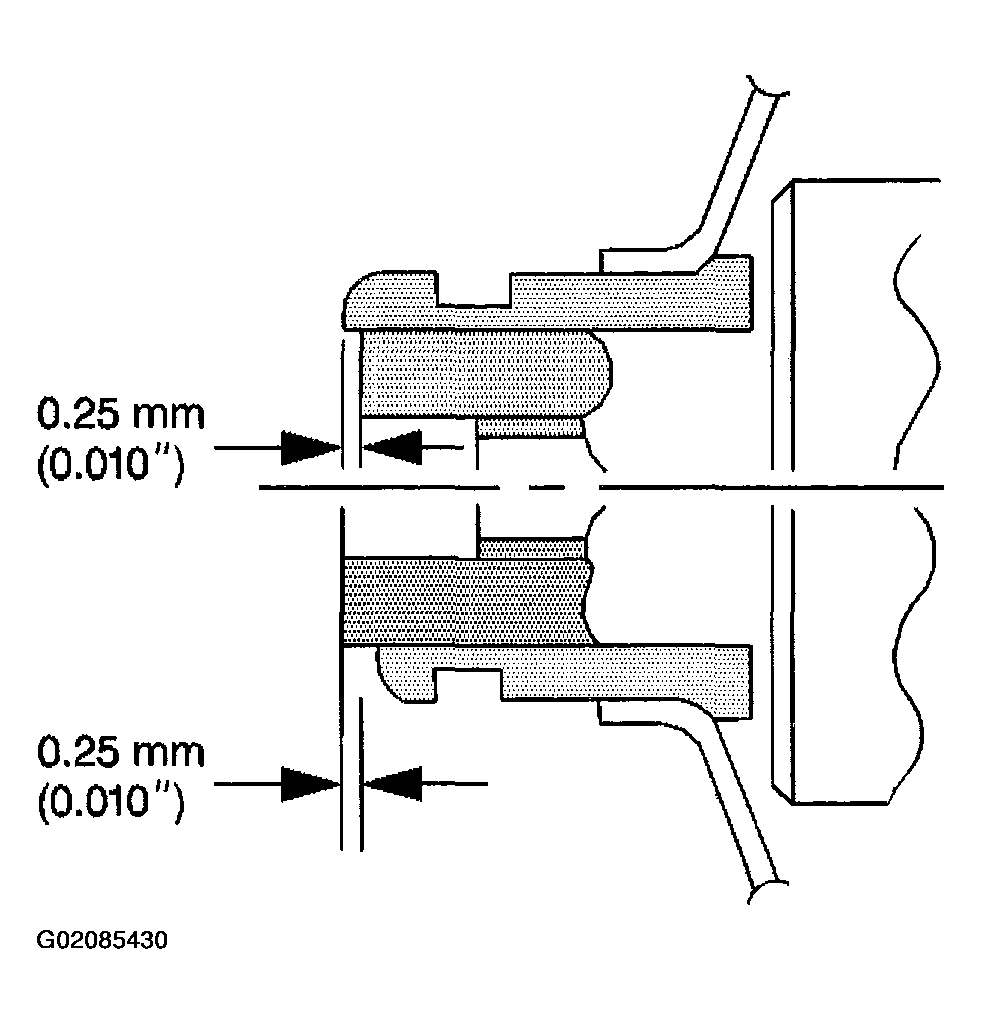

- Ensure that the axial tolerance of the power steering pulley on the power steering pump is within 0.25 mm (0.010 in).
- Install the drive belt. Refer to DRIVE BELT REPLACEMENT
in Engine Mechanical - 2.6L and 3.2L.
- Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY
in Engine Controls - 2.6L and 3.2L.
Courtesy of GENERAL MOTORS CORP.
