Wheel Alignment Specifications: Specifications

Use illustration for wheel alignment specifications. See Fig 1.

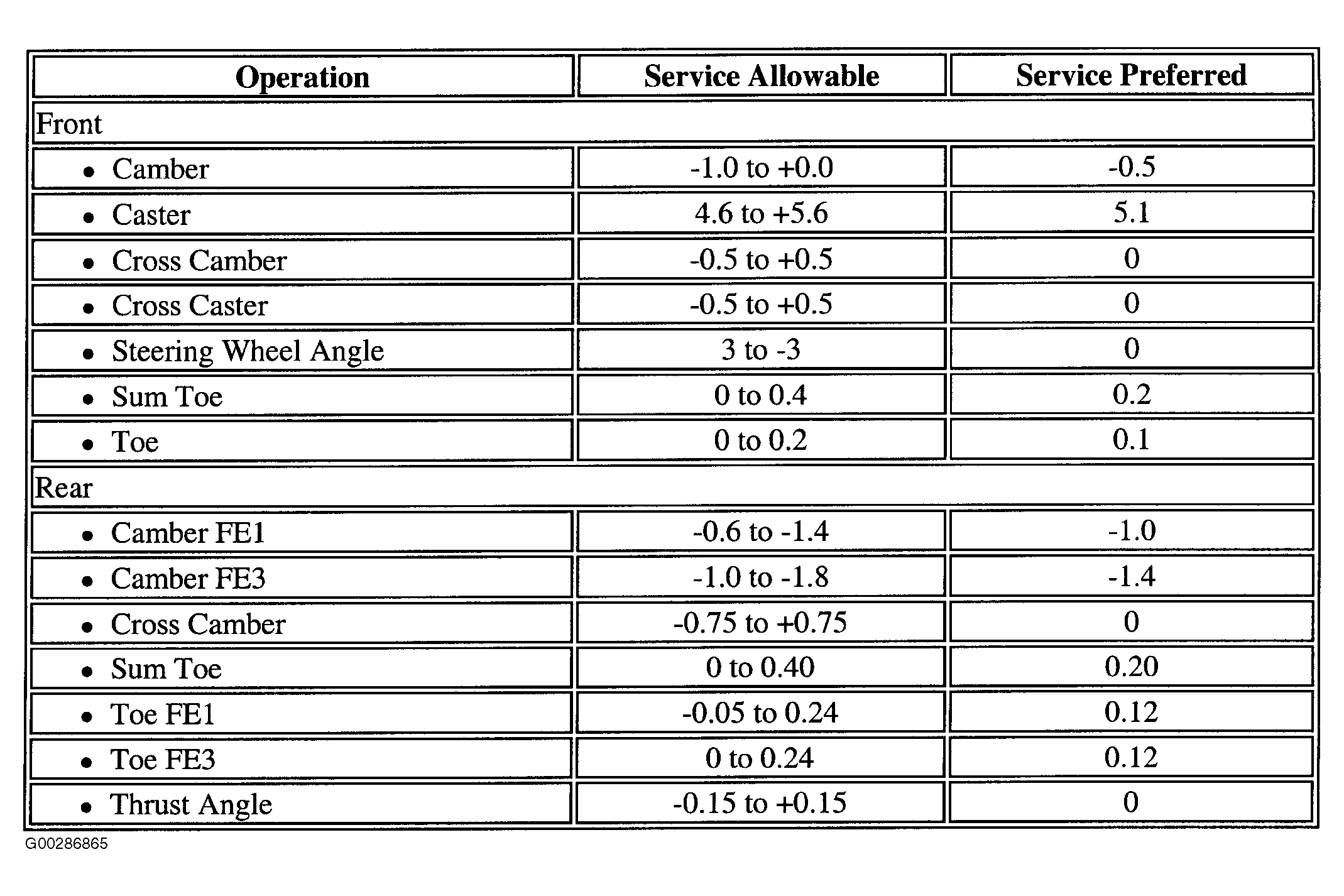

Fig 1: Wheel Alignment Specifications
G00286865Courtesy of GENERAL MOTORS CORP.
