Input Speed Sensor: Installation

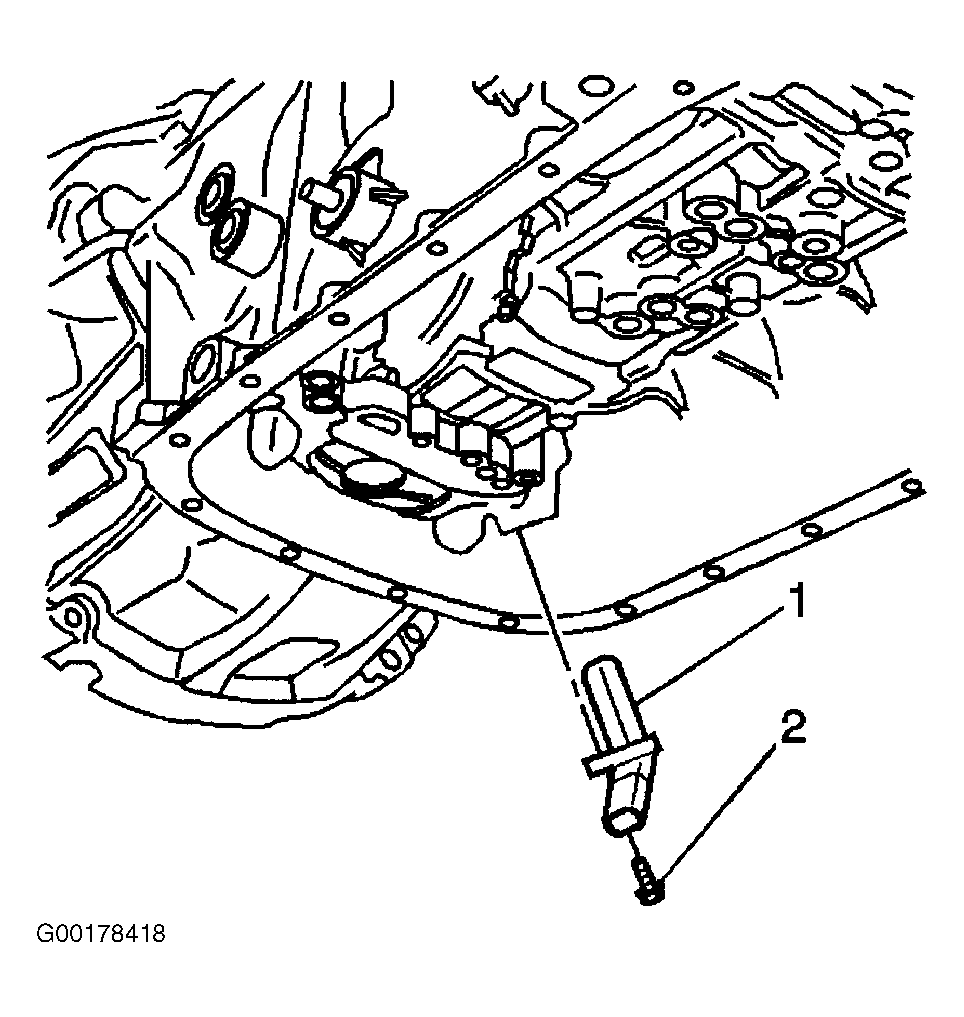

  1. Install the input speed sensor (1). See Figure.
  2. Install the input speed sensor bolt (2). Tighten to specification. See TORQUE SPECIFICATIONS .

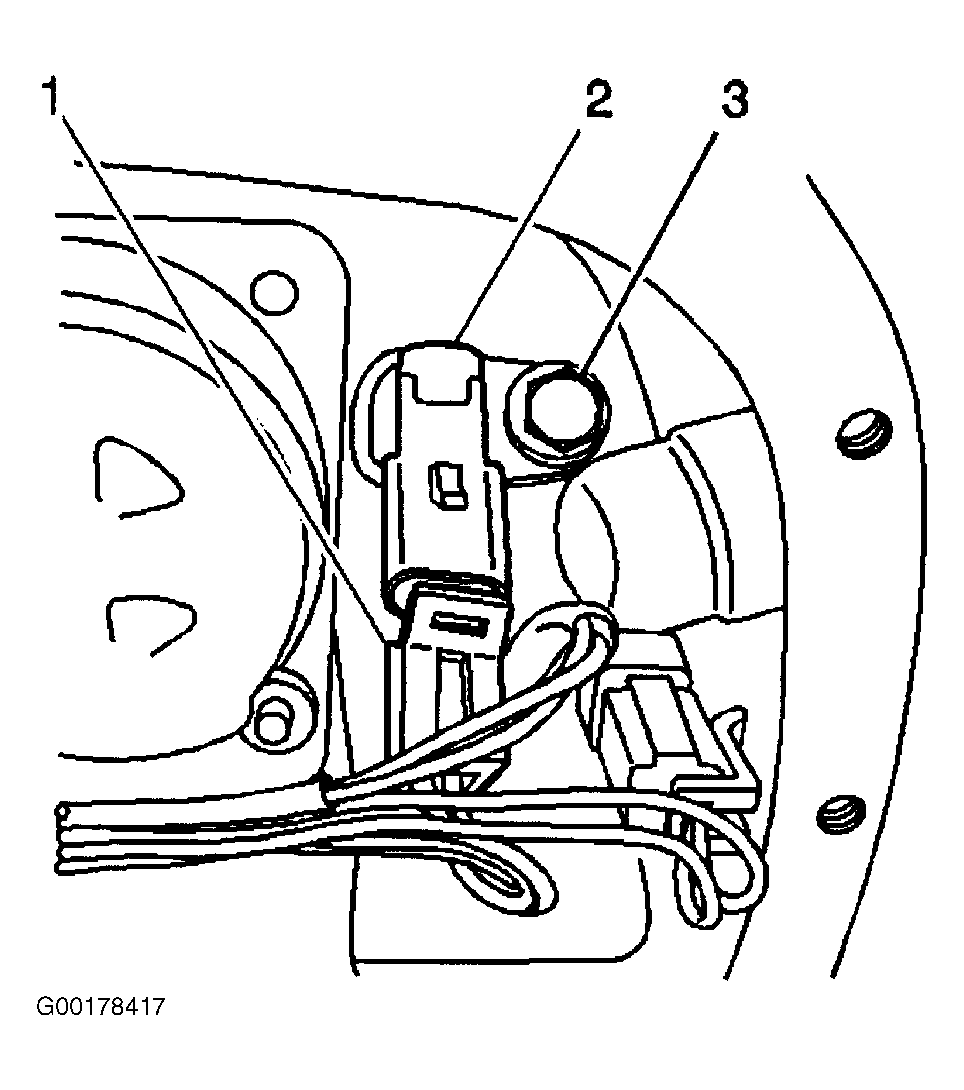

  3. Connect the electrical wiring harness connector (1) to the input speed sensor (2). See Figure.
  4. Install the transmission oil pan and filter.
