Installation Procedure

  1. Install the shift lock actuator (2) to the shift control assembly.
  2. Install the three shift lock actuator attaching screws (1).

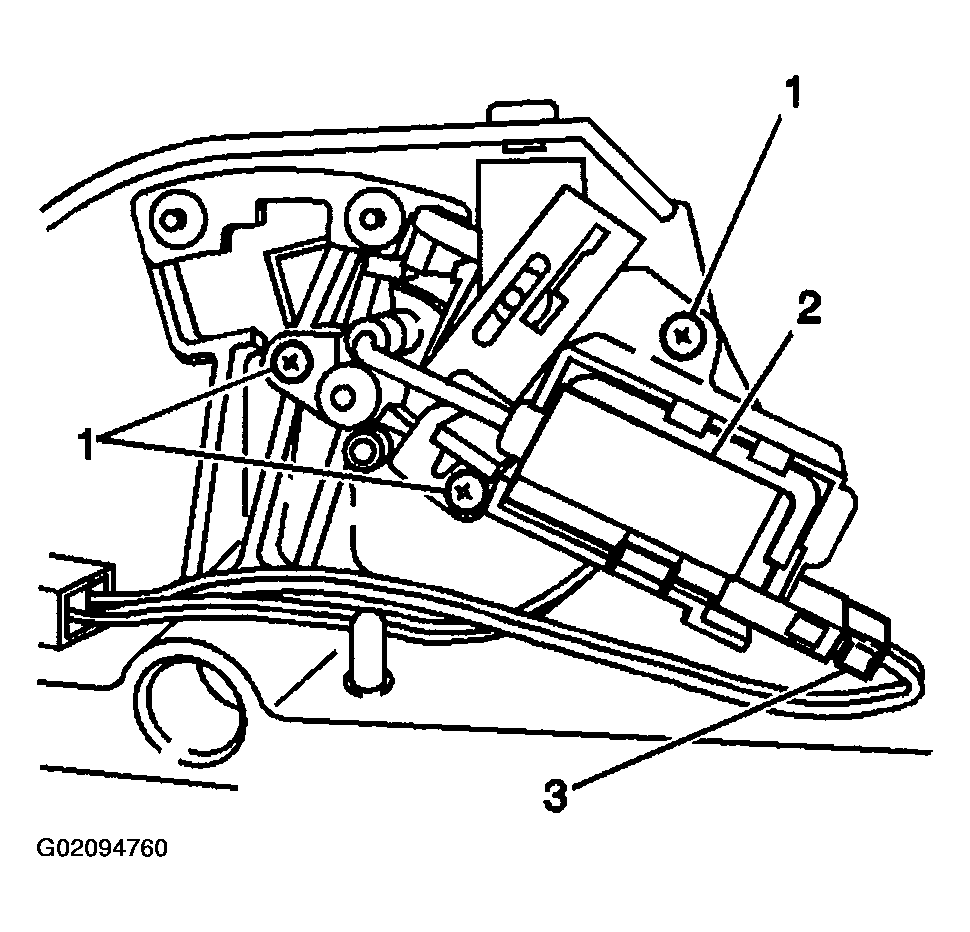

    Fig 1: Locating Shift Lock Actuator & Retaining Screws
    G02094760Courtesy of GENERAL MOTORS CORP.
  3. Slide the pigtail connector (2) onto the retainer (3).
  4. Connect the wiring harness connector (1) to the shift lock control pigtail connector (2).
  5. Install the pigtail harness into the wire retainer (4).

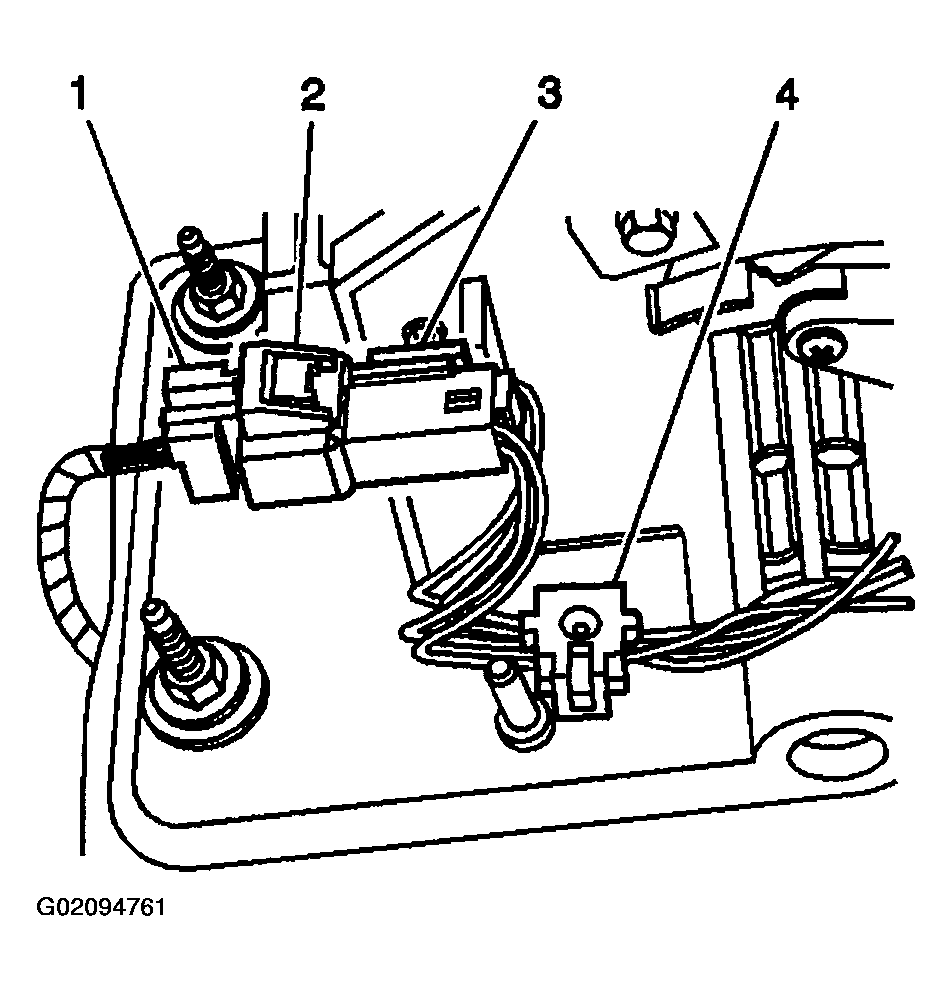

    Fig 2: Installing Pigtail Harness
    G02094761Courtesy of GENERAL MOTORS CORP.
  6. Install the center console assembly. Refer to CONSOLE REPLACEMENT - FRONT FLOOR in Instrument Panel, Gages and Console.
  7. Install the shift control boot. Refer to FLOOR SHIFT CONTROL BOOT . .
