Installation Procedure

Important:  Use the proper battery size or damage to the transmitter may result.

1. Install a GM P/N 90541381 battery type or equivalent.
2. Install the transmitter rear cover.
3. Test the transmitter operation.

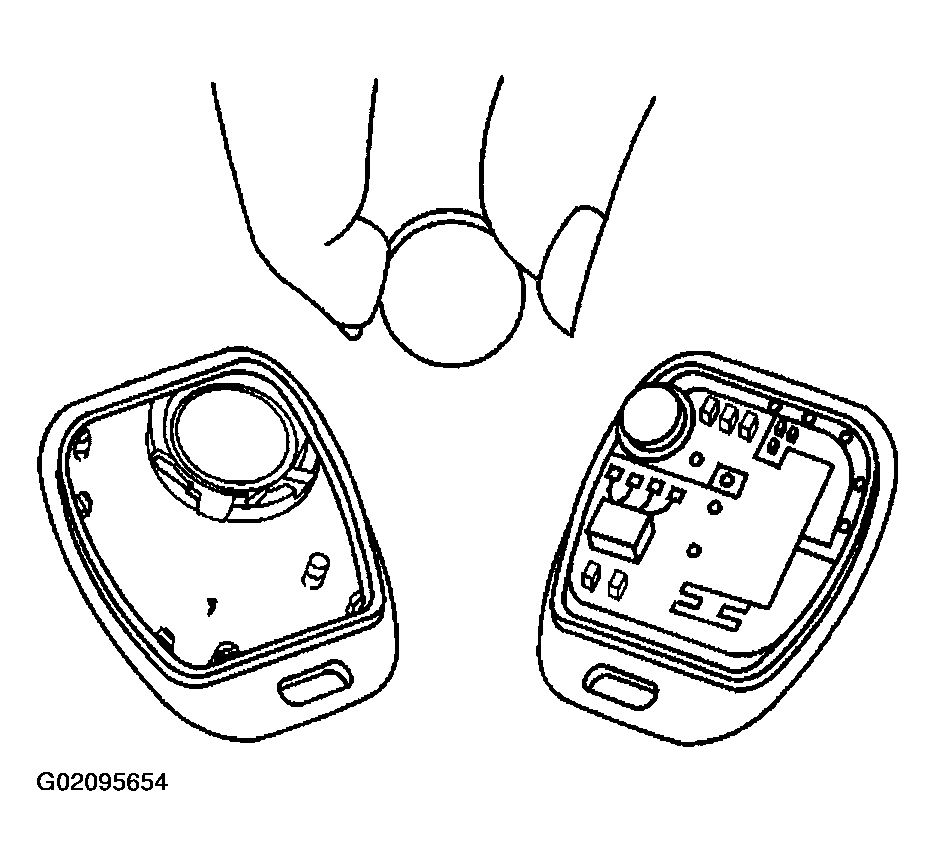

   Fig 1: Installing Battery

   Courtesy of GENERAL MOTORS CORP.
