Connector Identification

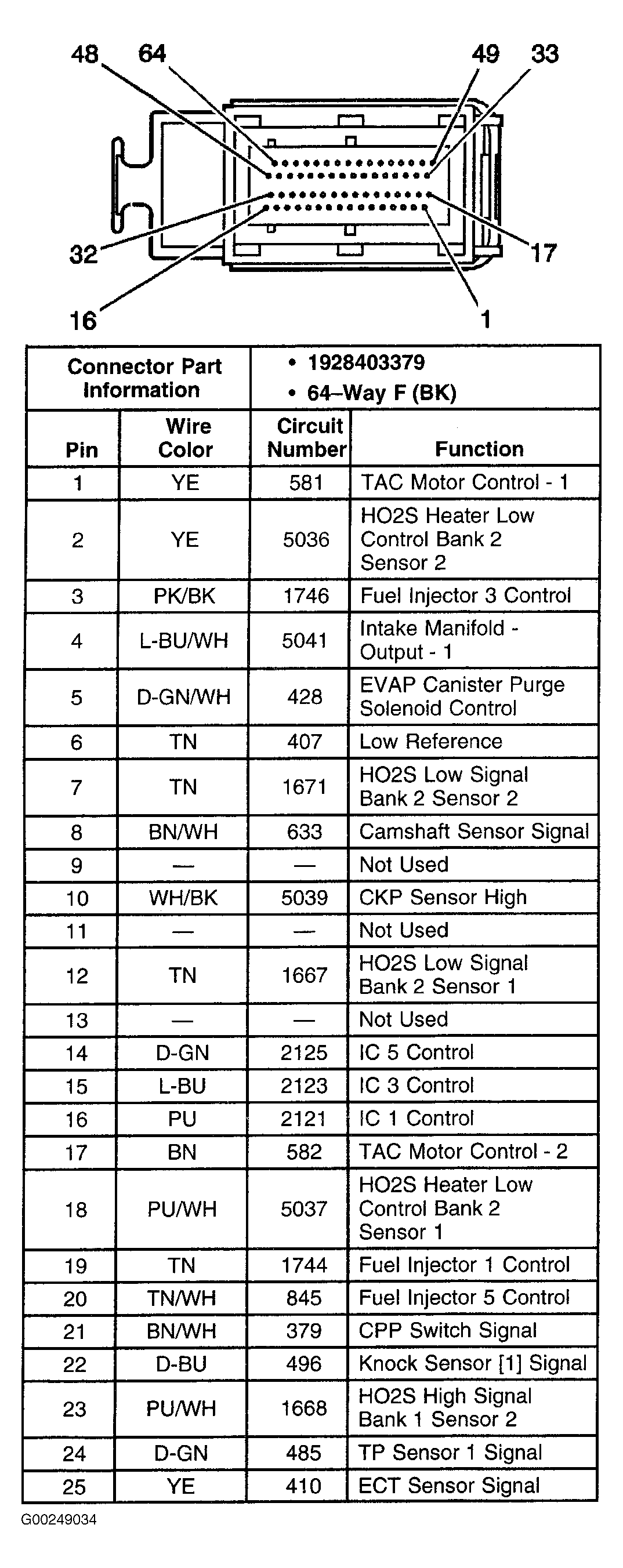

Fig 1: Identifying Engine Control Module - C1 Connector Terminals (1 Of 3)

G00249034

Courtesy of GENERAL MOTORS CORP.

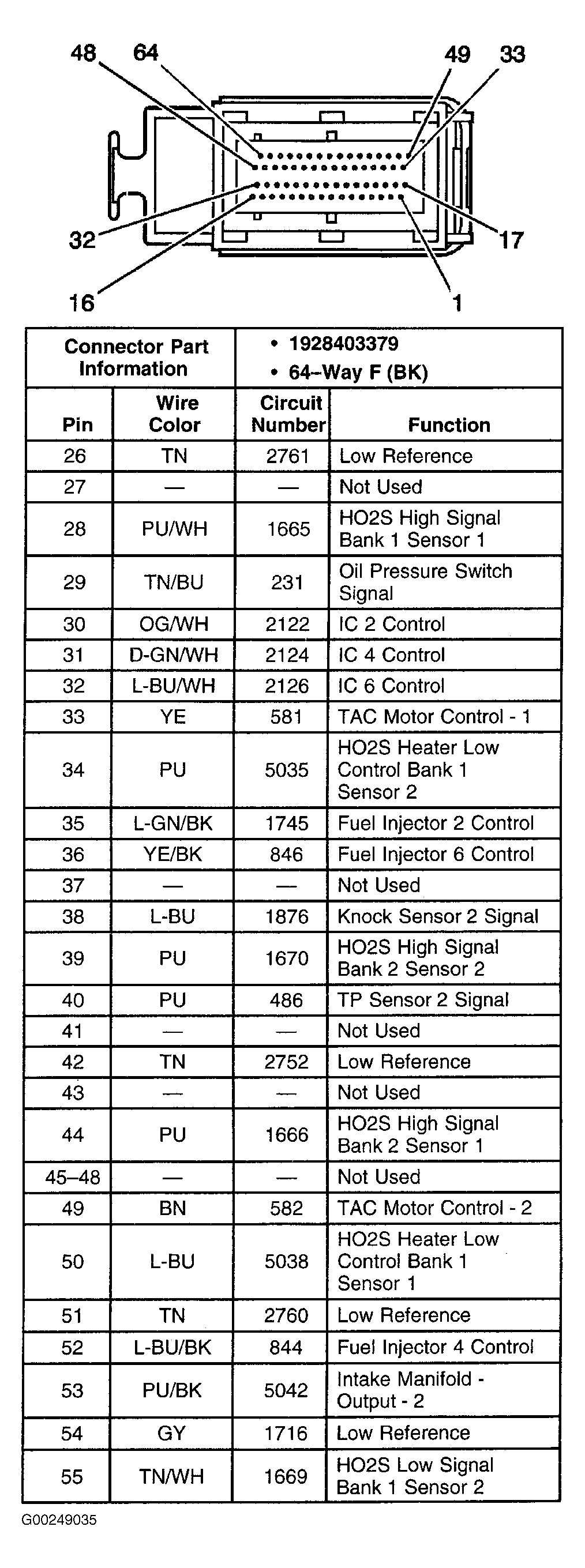

Fig 2: Identifying Engine Control Module - C1 Connector Terminals (2 Of 3)

G00249035

Courtesy of GENERAL MOTORS CORP.

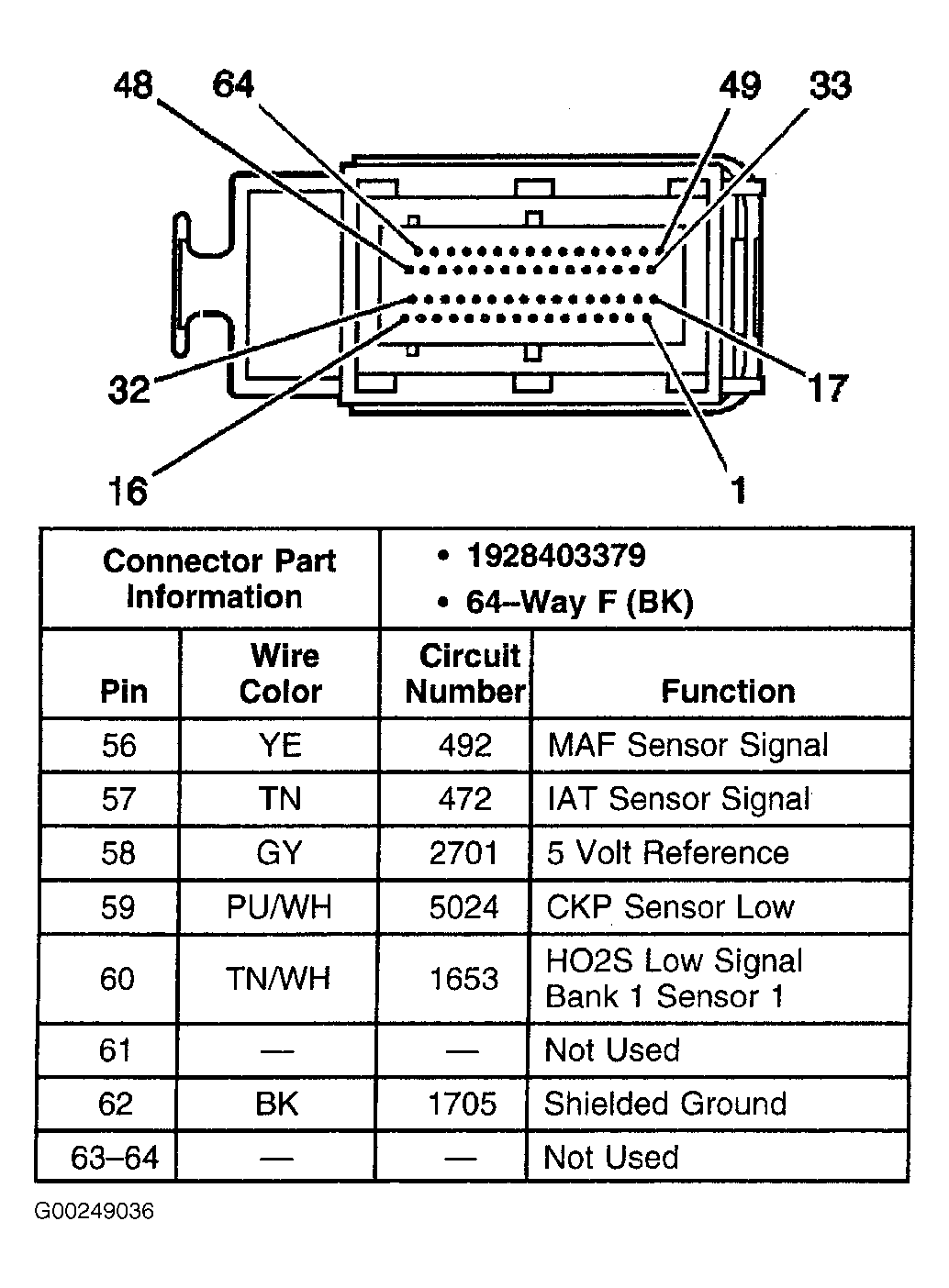

Fig 3: Identifying Engine Control Module - C1 Connector Terminals (3 Of 3)

G00249036

Courtesy of GENERAL MOTORS CORP.

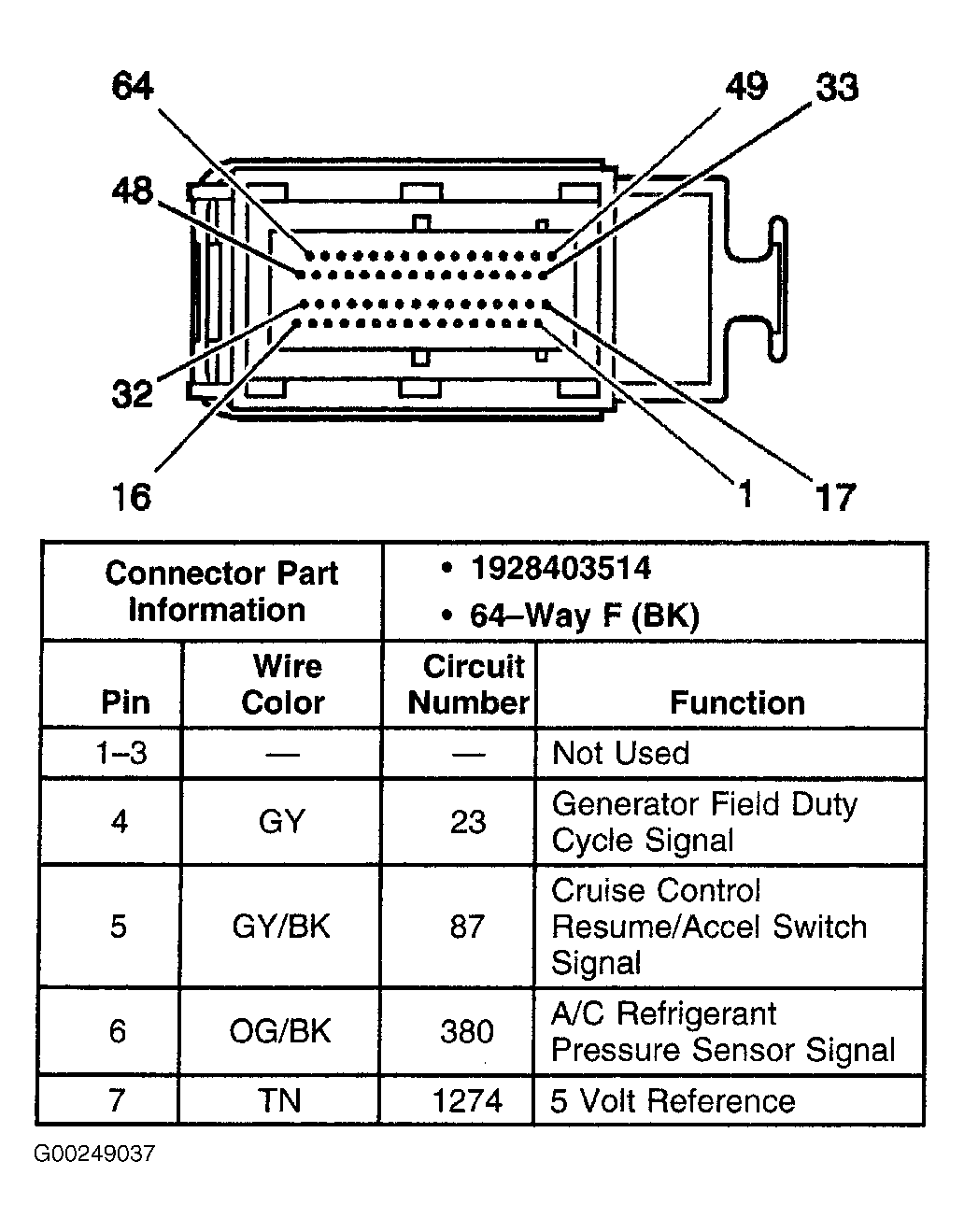

Fig 4: Identifying Engine Control Module - C2 Connector Terminals (1 Of 4)

G00249037

Courtesy of GENERAL MOTORS CORP.

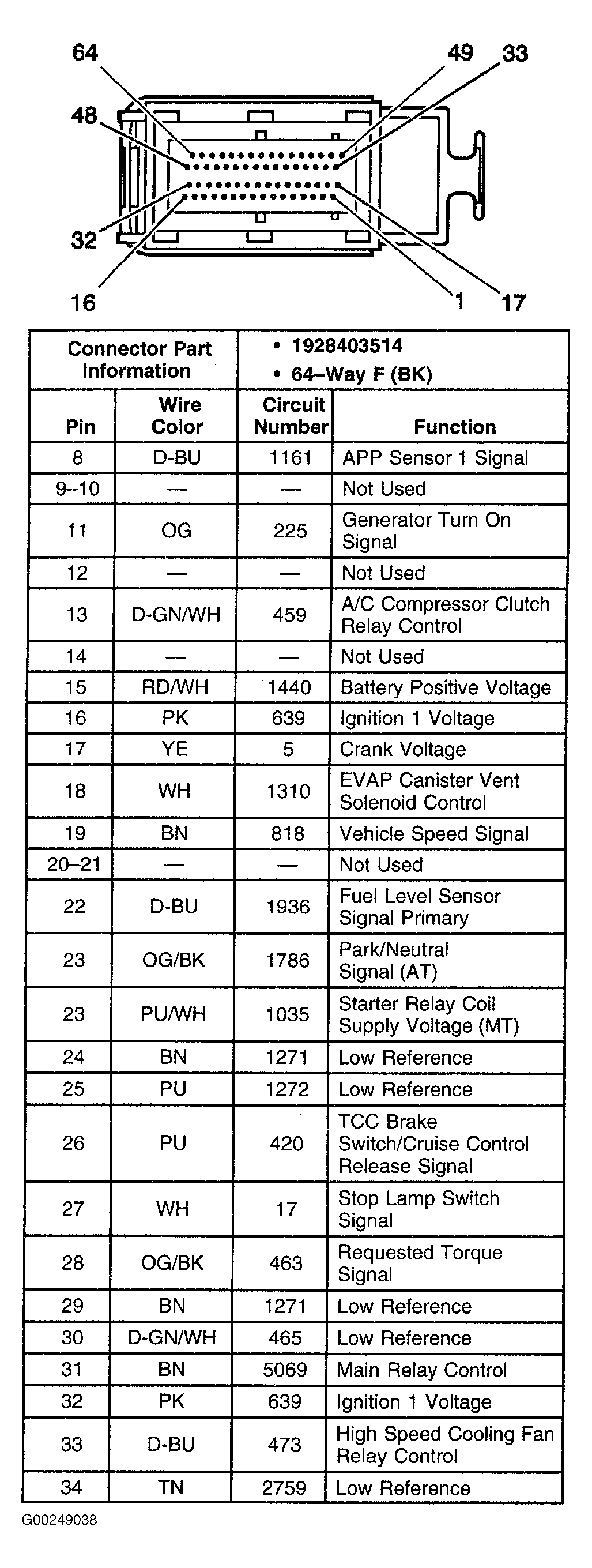

Fig 5: Identifying Engine Control Module - C2 Connector Terminals (2 Of 4)

G00249038

Courtesy of GENERAL MOTORS CORP.

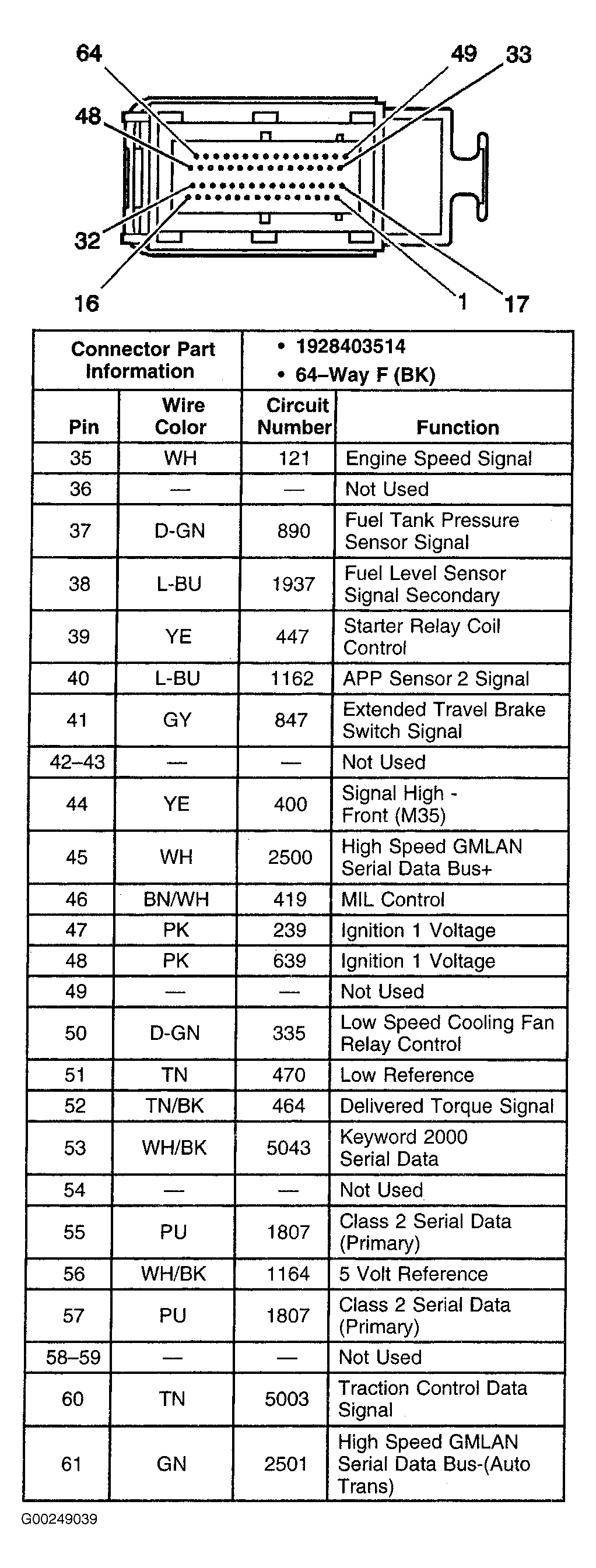

Fig 6: Identifying Engine Control Module - C2 Connector Terminals (3 Of 4)

G00249039

Courtesy of GENERAL MOTORS CORP.

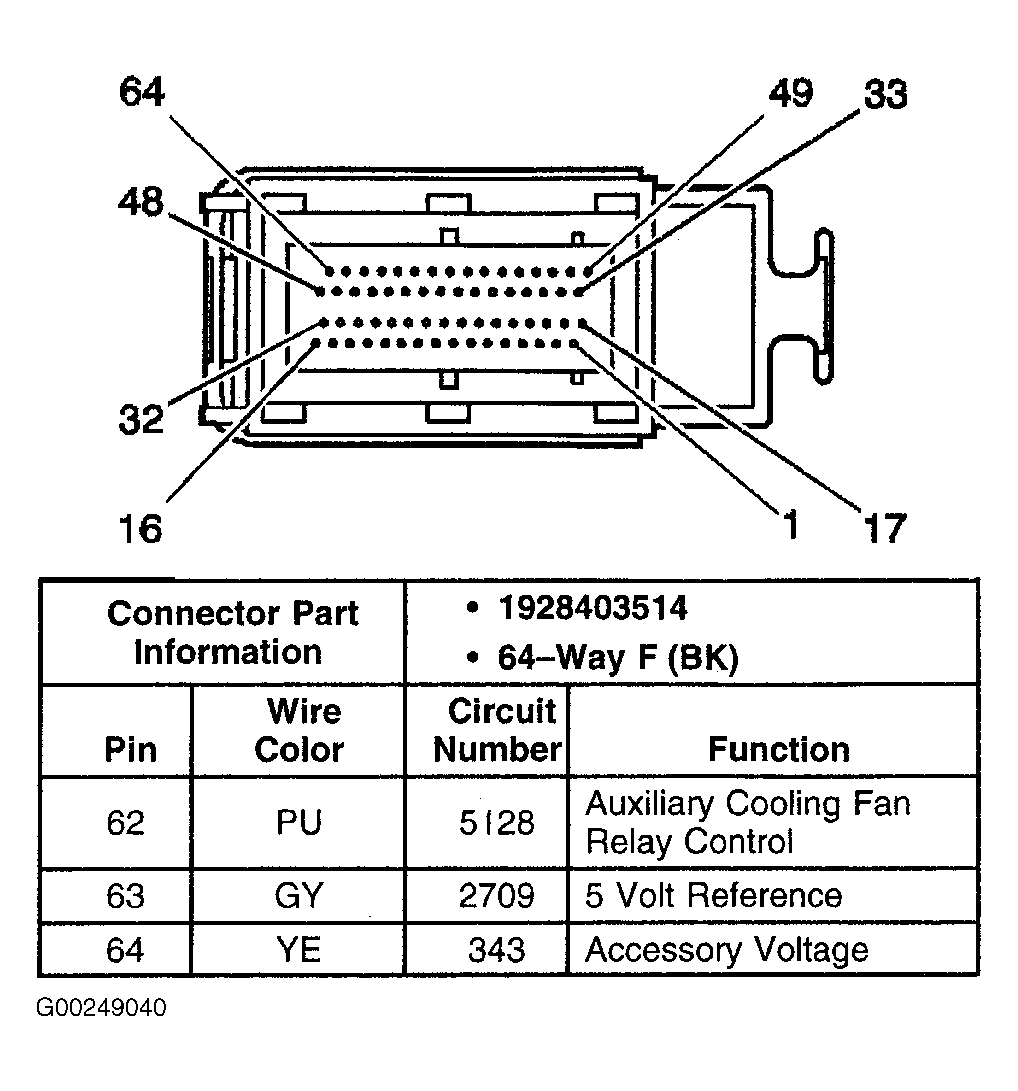

Fig 7: Identifying Engine Control Module - C2 Connector Terminals (4 Of 4)

G00249040

Courtesy of GENERAL MOTORS CORP.

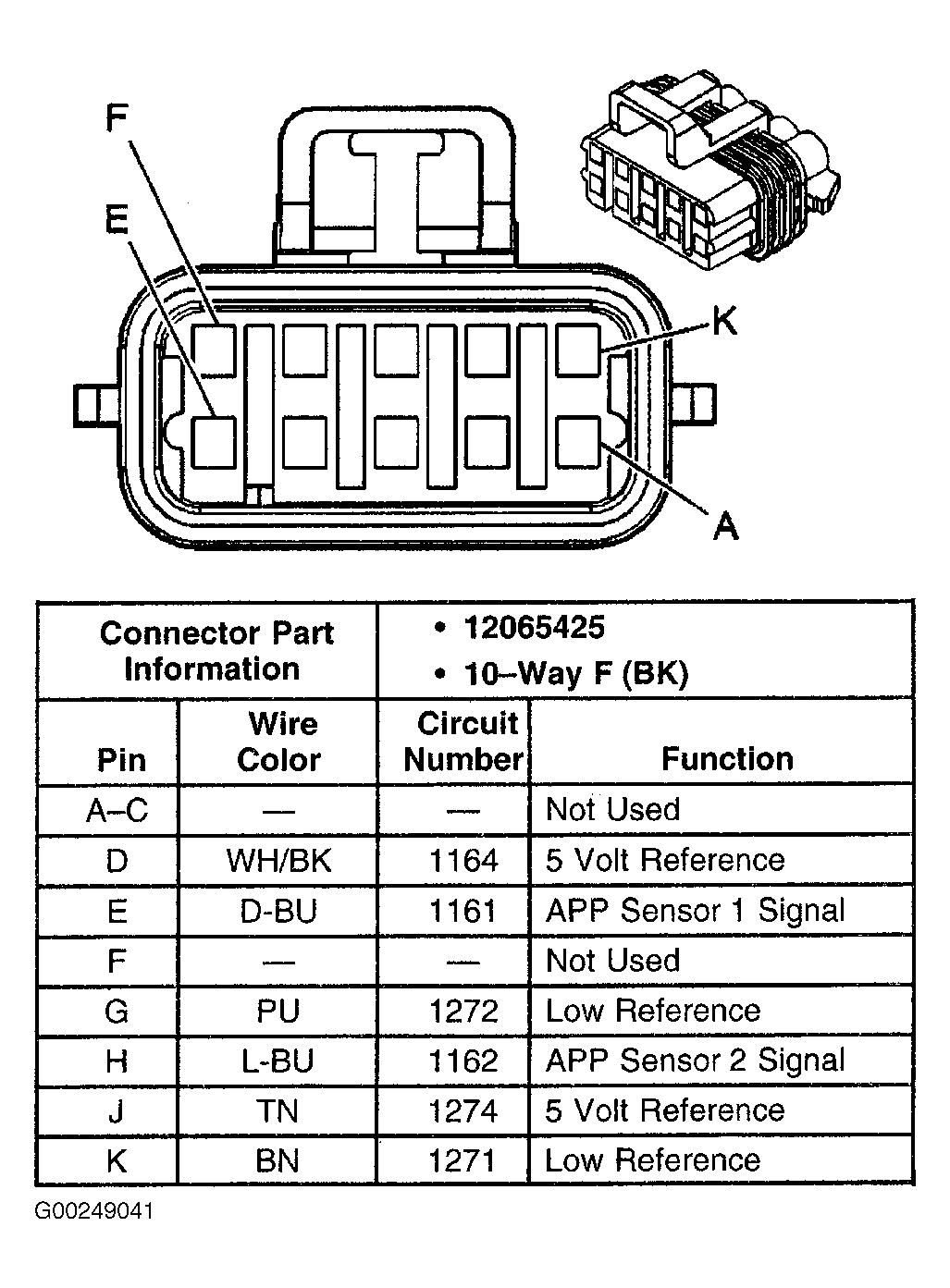

Fig 8: Identifying Accelerator Pedal Position Sensor Connector Terminals

G00249041

Courtesy of GENERAL MOTORS CORP.

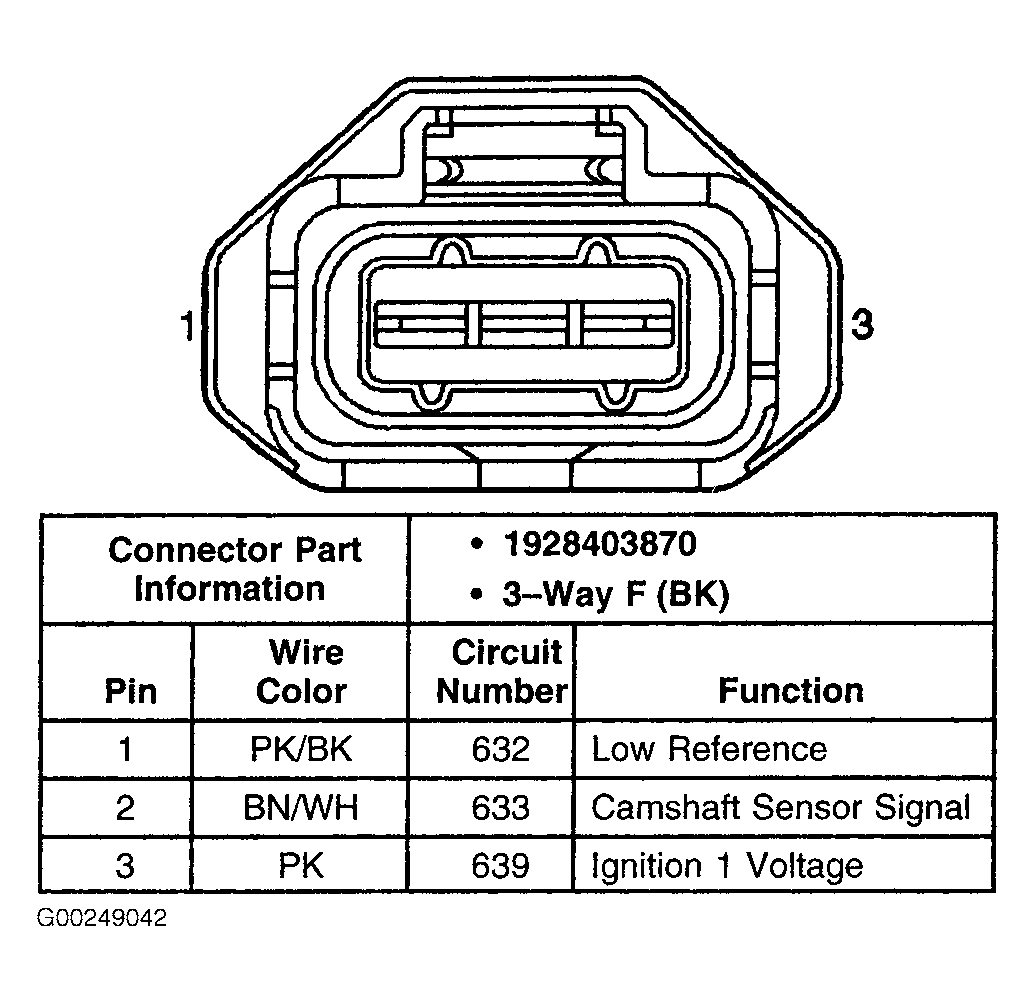

Fig 9: Identifying Camshaft Position Sensor Connector Terminals

G00249042

Courtesy of GENERAL MOTORS CORP.

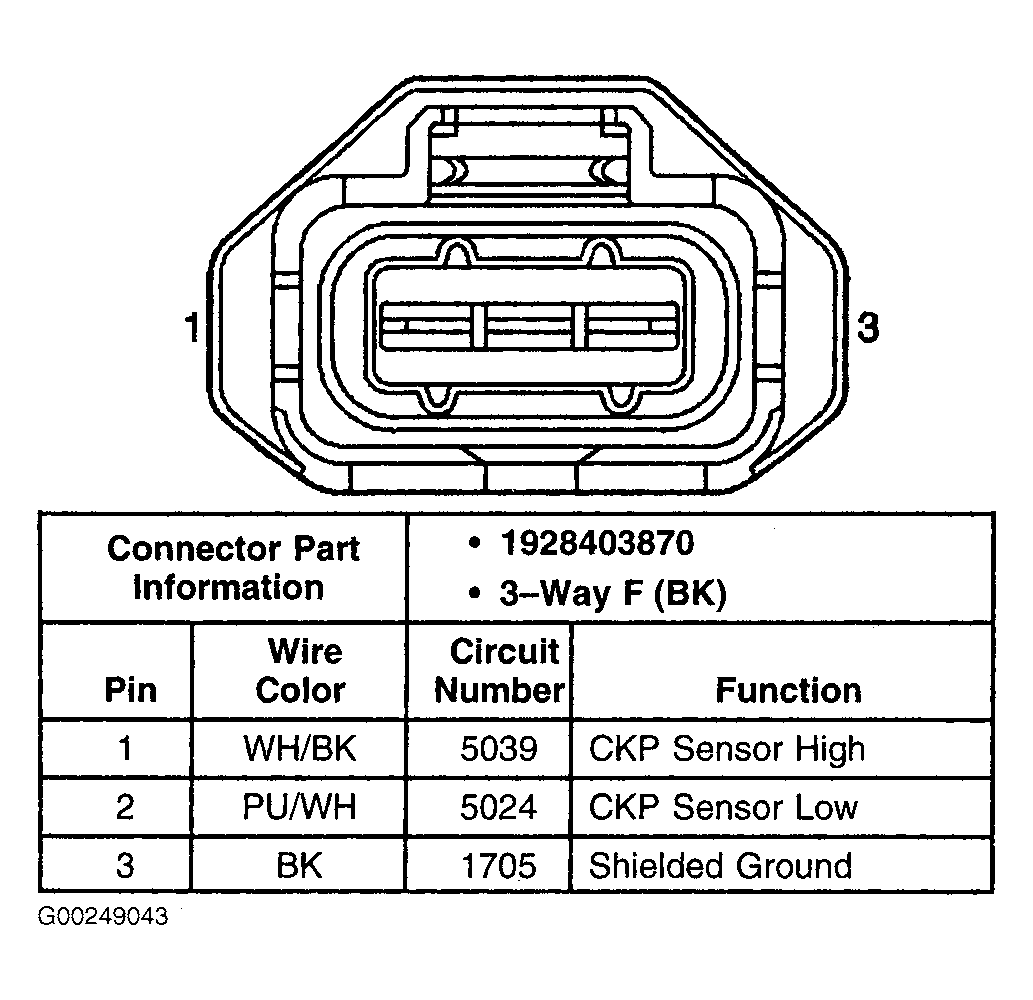

Fig 10: Identifying Crankshaft Position Sensor Connector Terminals

G00249043

Courtesy of GENERAL MOTORS CORP.

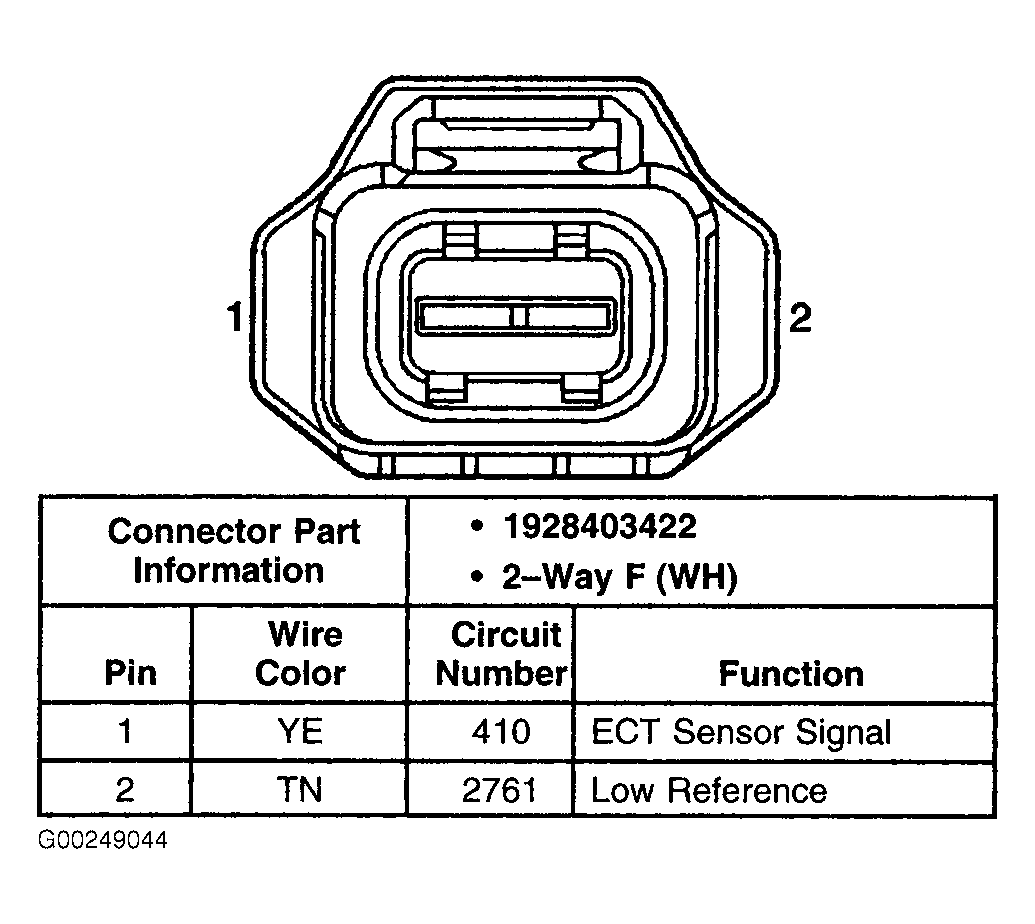

Fig 11: Identifying Engine Coolant Temperature Sensor Connector Terminals

G00249044

Courtesy of GENERAL MOTORS CORP.

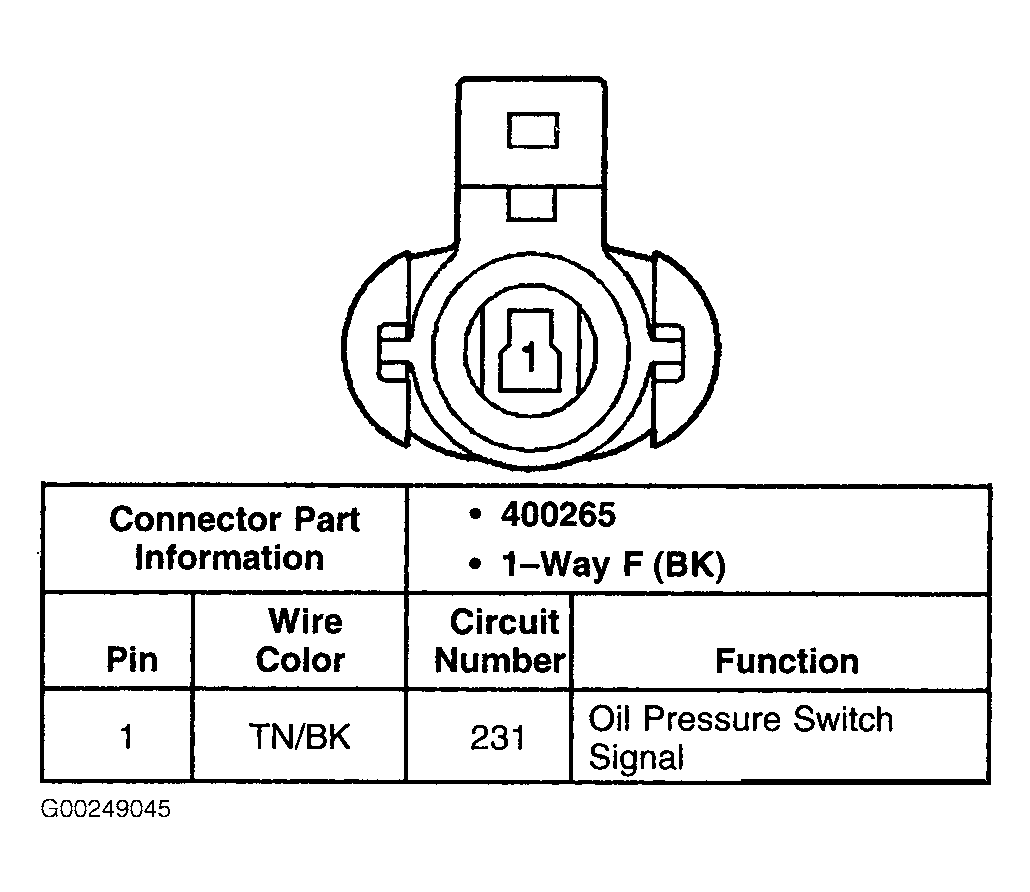

Fig 12: Identifying Engine Oil Pressure Sensor Connector Terminals

G00249045

Courtesy of GENERAL MOTORS CORP.

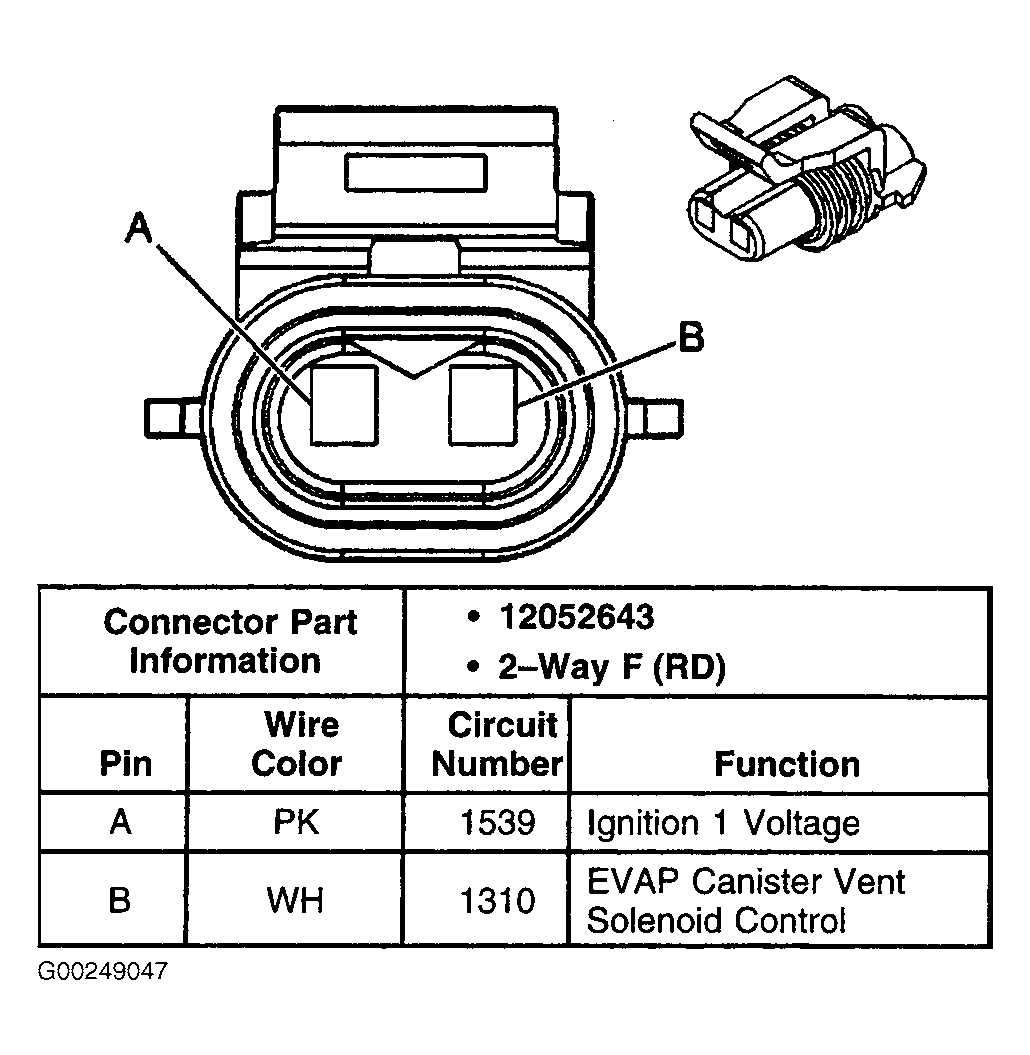

Fig 13: Identifying EVAP Canister Vent Solenoid Connector Terminals

G00249047

Courtesy of GENERAL MOTORS CORP.

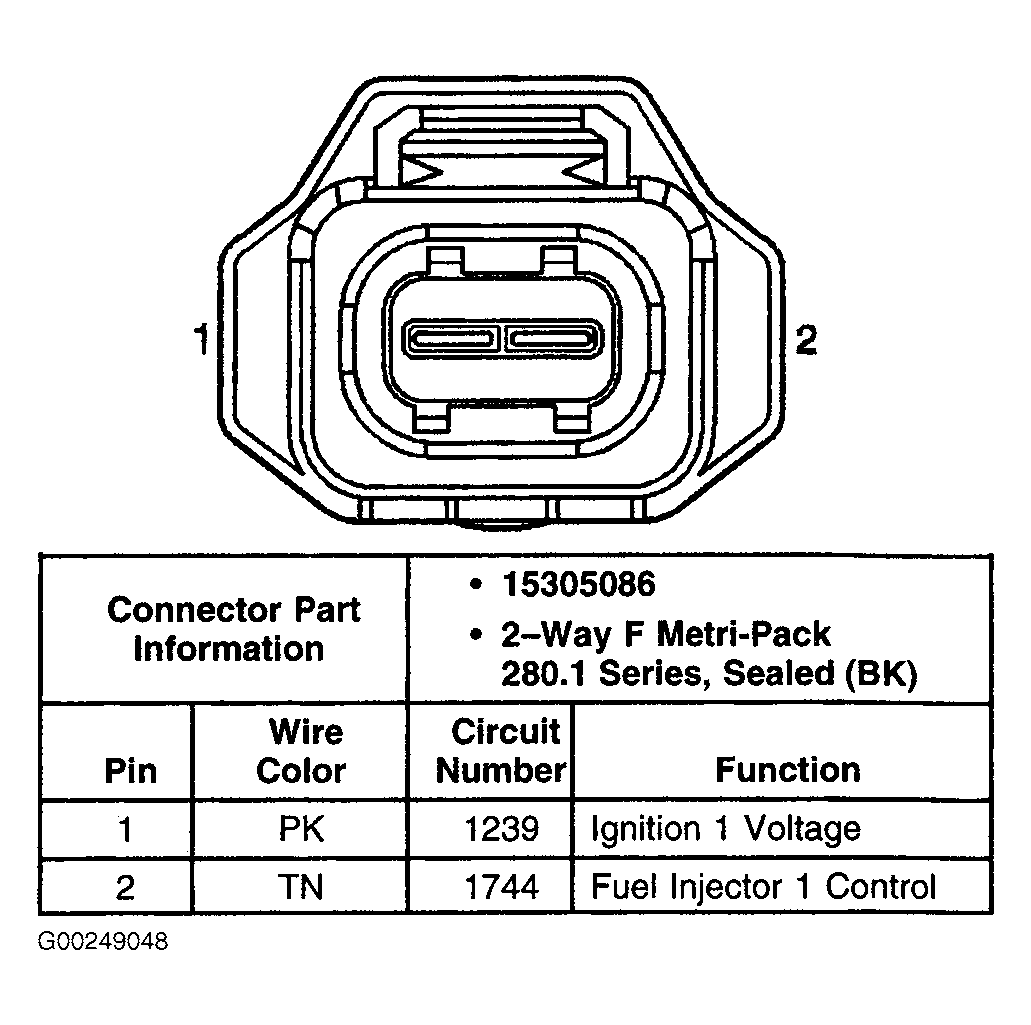

Fig 14: Identifying Fuel Injector 1 Connector Terminals

G00249048

Courtesy of GENERAL MOTORS CORP.

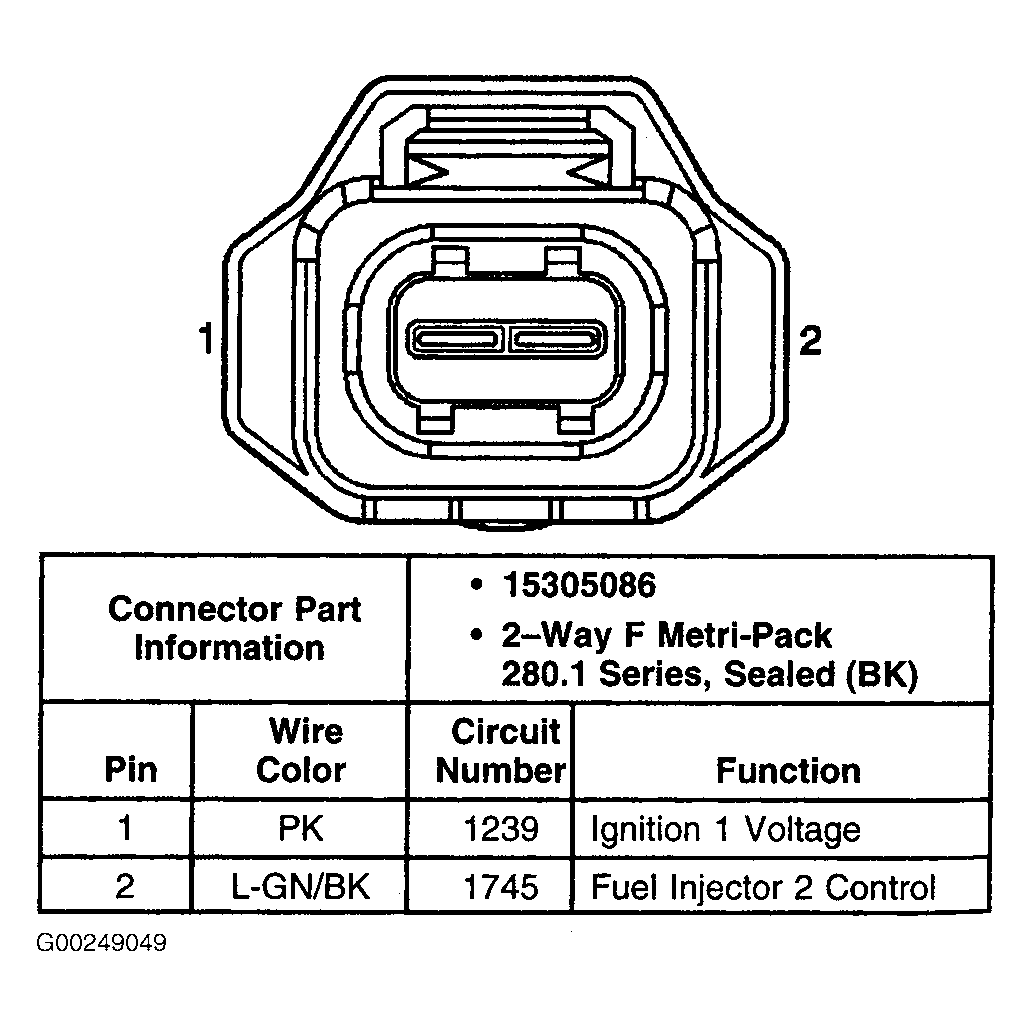

Fig 15: Identifying Fuel Injector 2 Connector Terminals

G00249049

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Fuel Injector 3 Connector Terminals

G00249050

Courtesy of GENERAL MOTORS CORP.

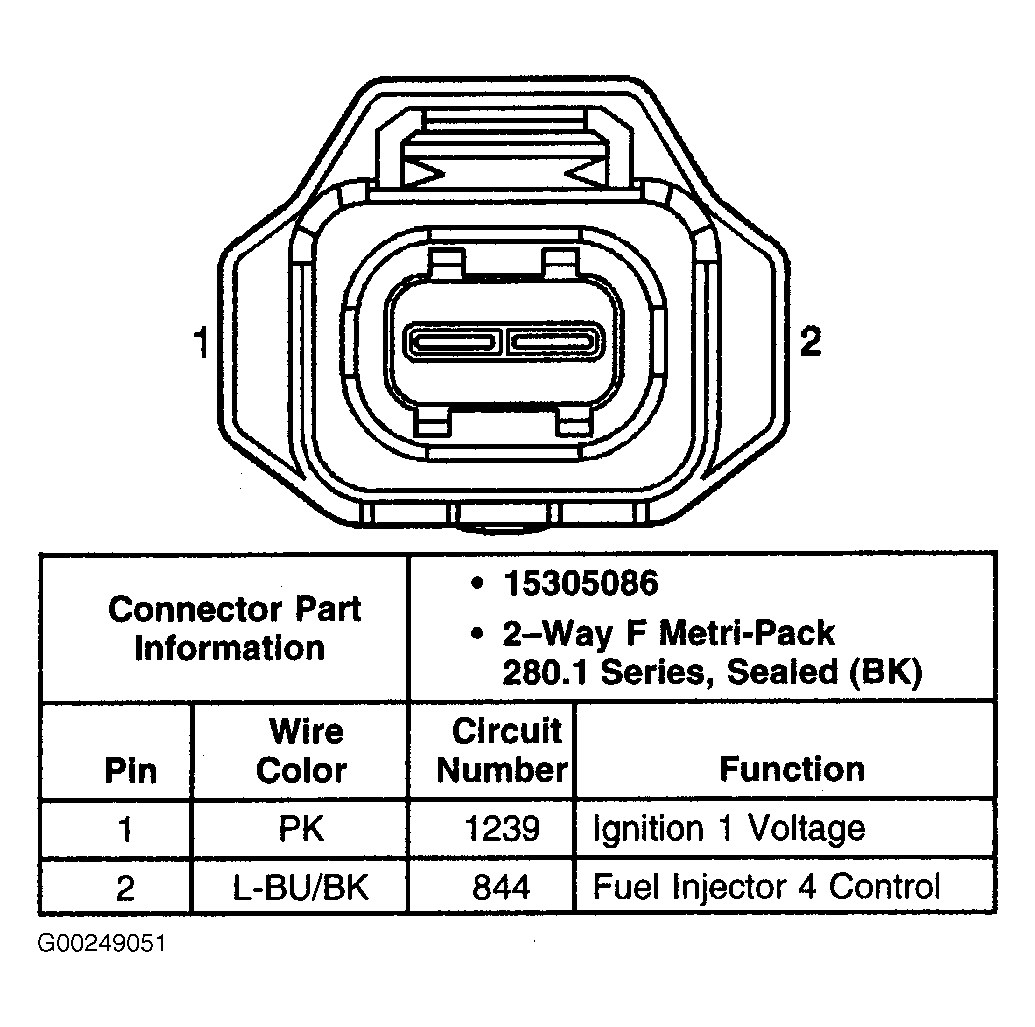

Fig 17: Identifying Fuel Injector 4 Connector Terminals

G00249051

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying Fuel Injector 5 Connector Terminals

G00249052

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying Fuel Injector 6 Connector Terminals

G00249053

Courtesy of GENERAL MOTORS CORP.

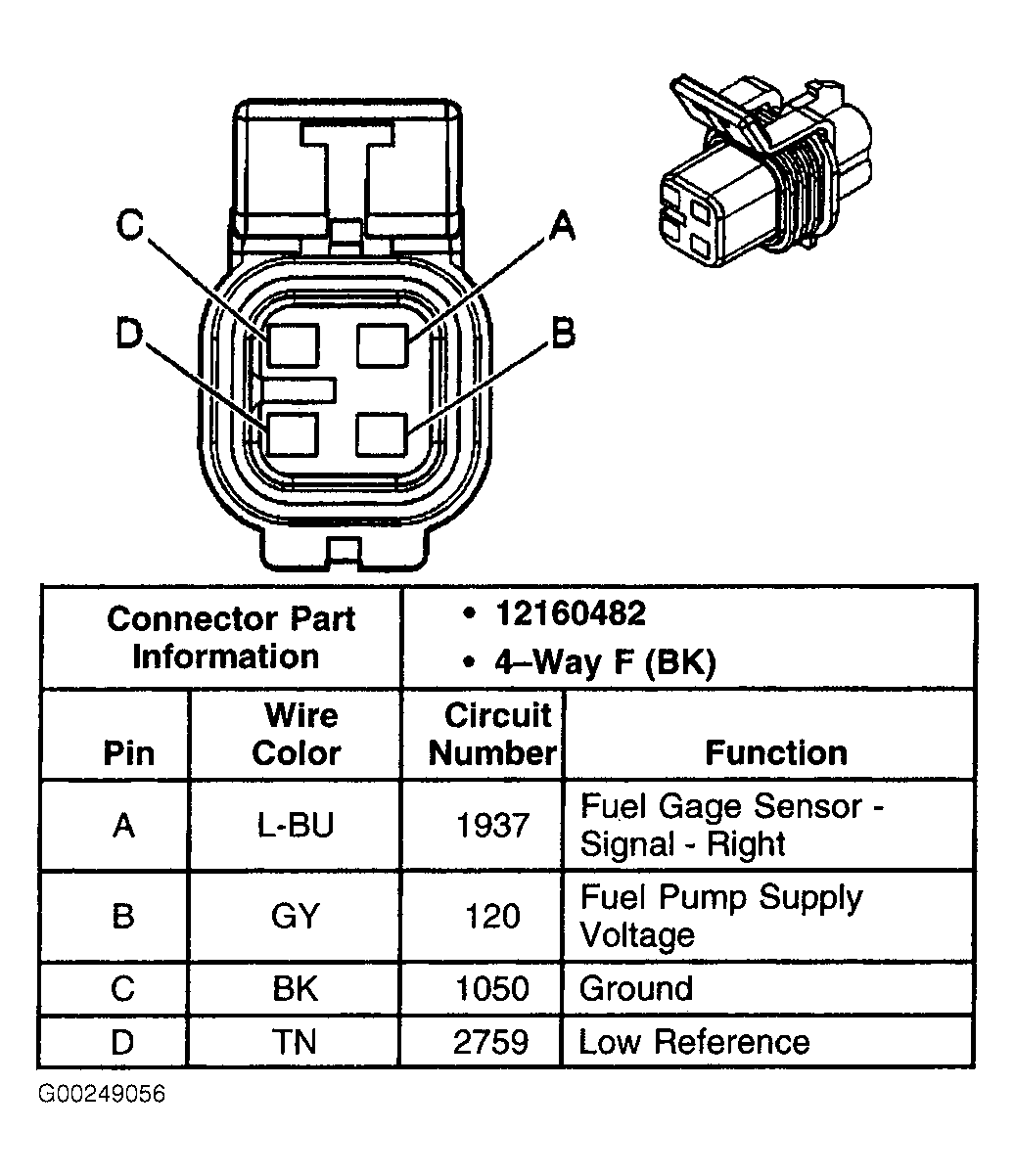

Fig 20: Identifying Fuel Pump Sender Assembly Connector Terminals

G00249056

Courtesy of GENERAL MOTORS CORP.

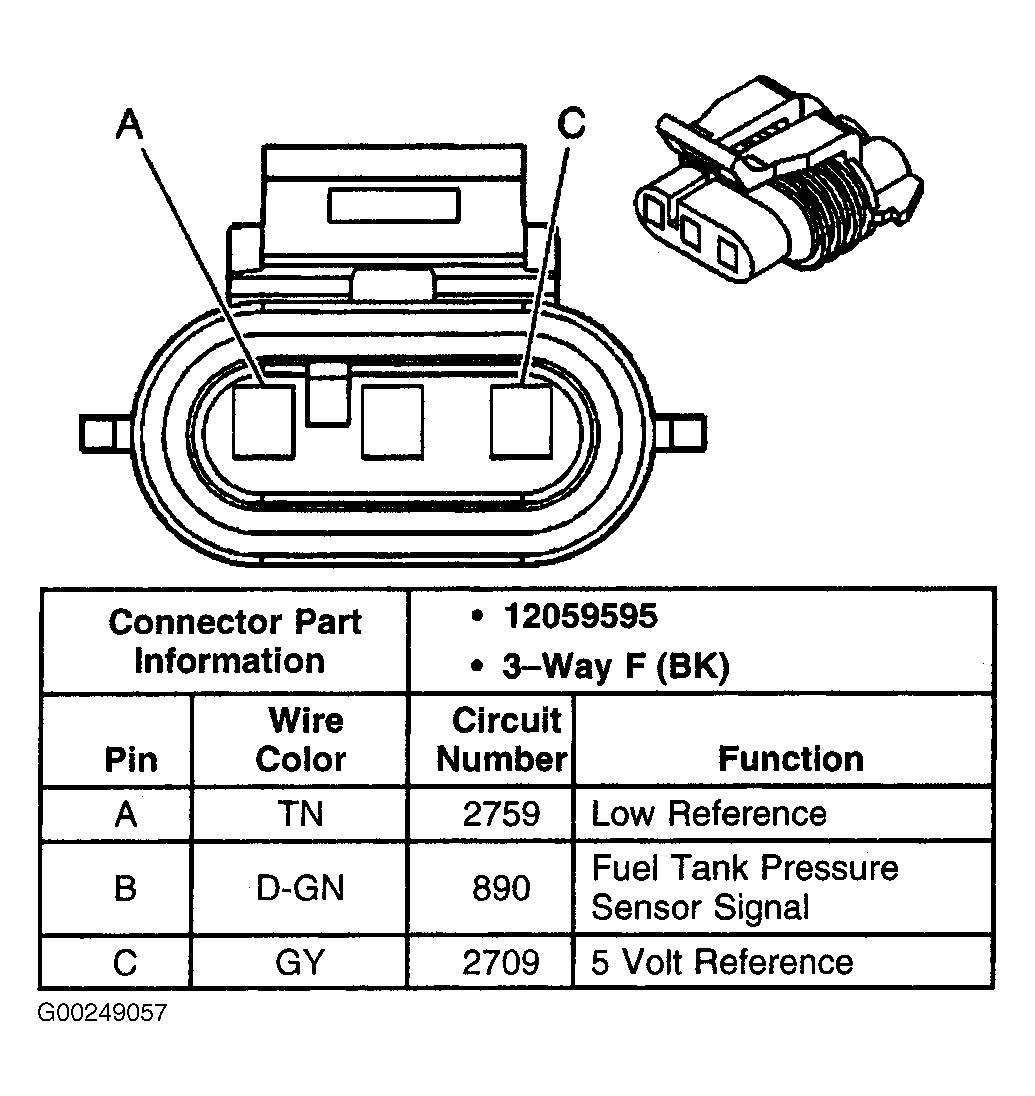

Fig 21: Identifying Fuel Tank Pressure Sensor Connector Terminals

G00249057

Courtesy of GENERAL MOTORS CORP.

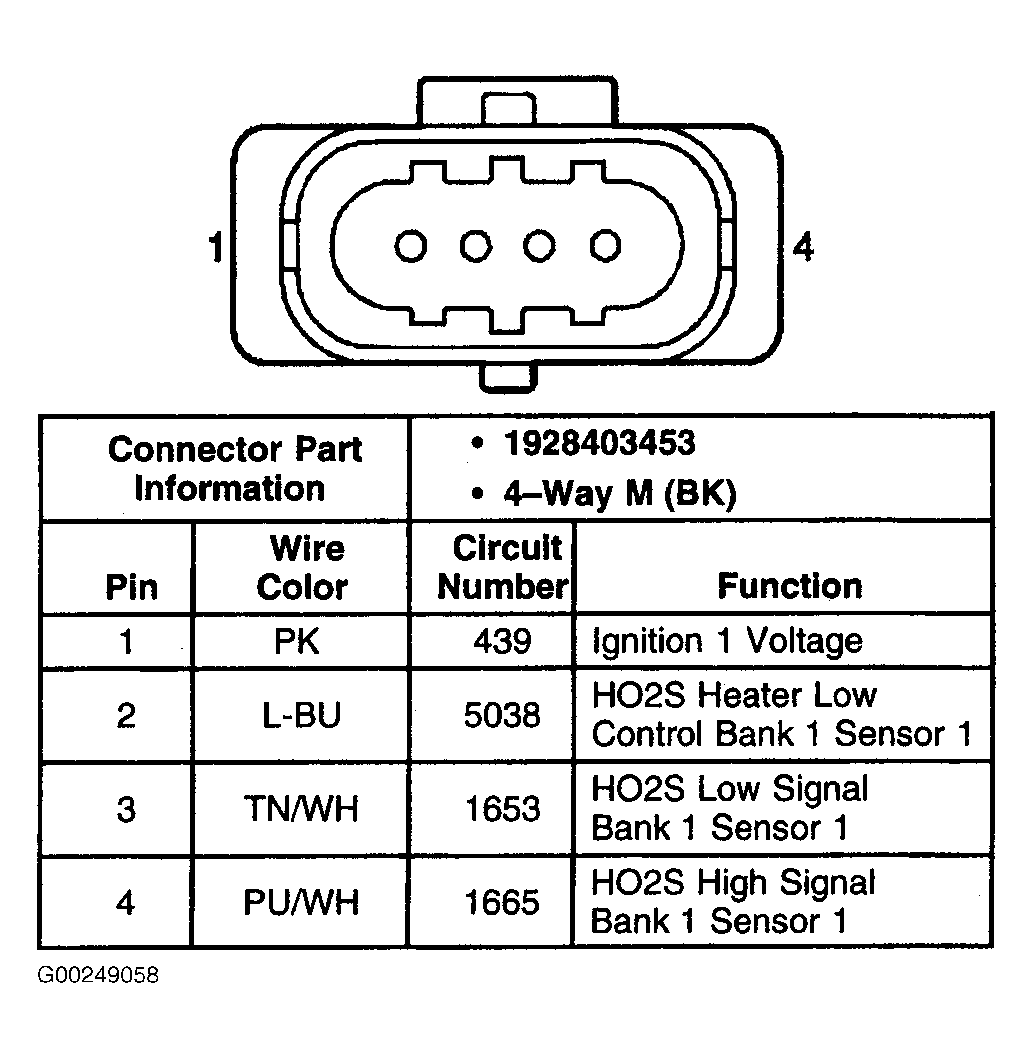

Fig 22: Identifying Heated Oxygen Sensor Bank 1 Sensor 1 Connector Terminals

G00249058

Courtesy of GENERAL MOTORS CORP.

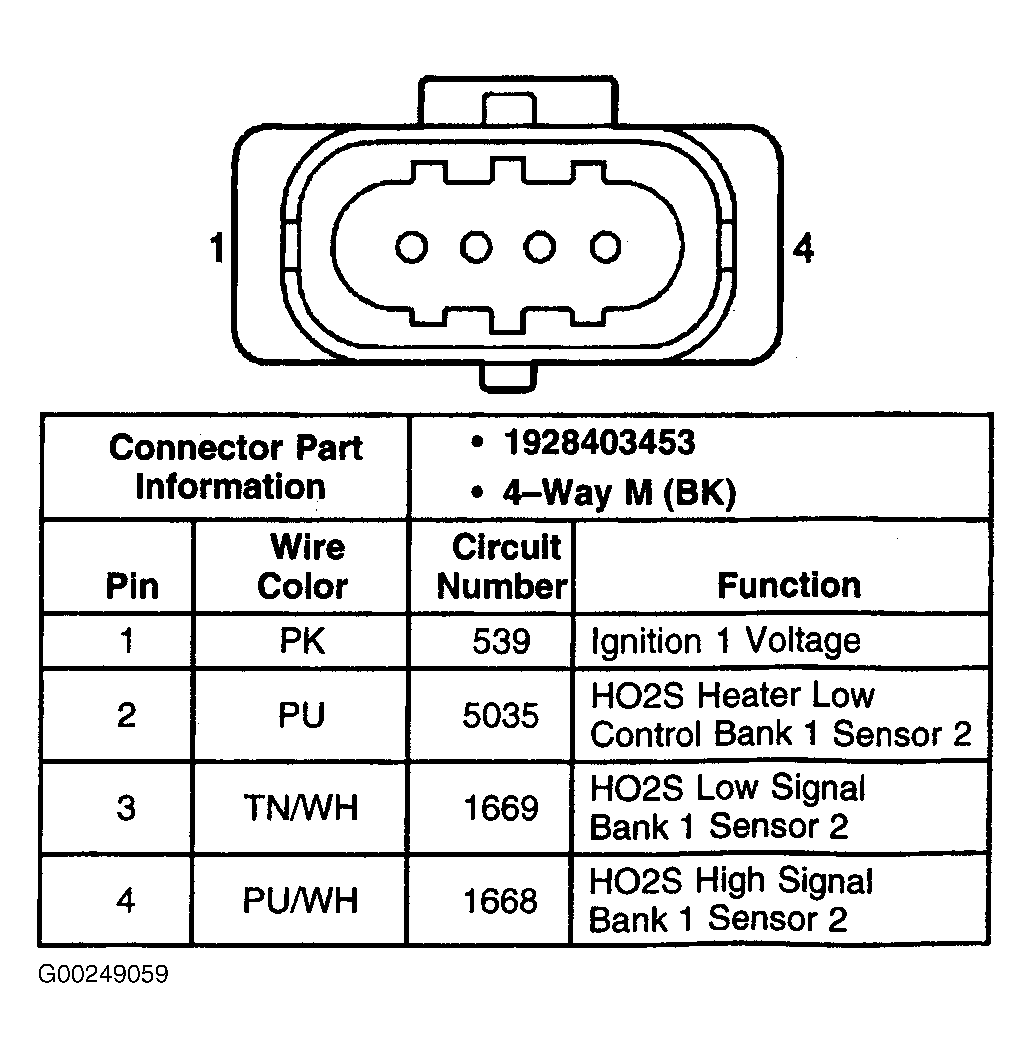

Fig 23: Identifying Heated Oxygen Sensor Bank 1 Sensor 2 Connector Terminals

G00249059

Courtesy of GENERAL MOTORS CORP.

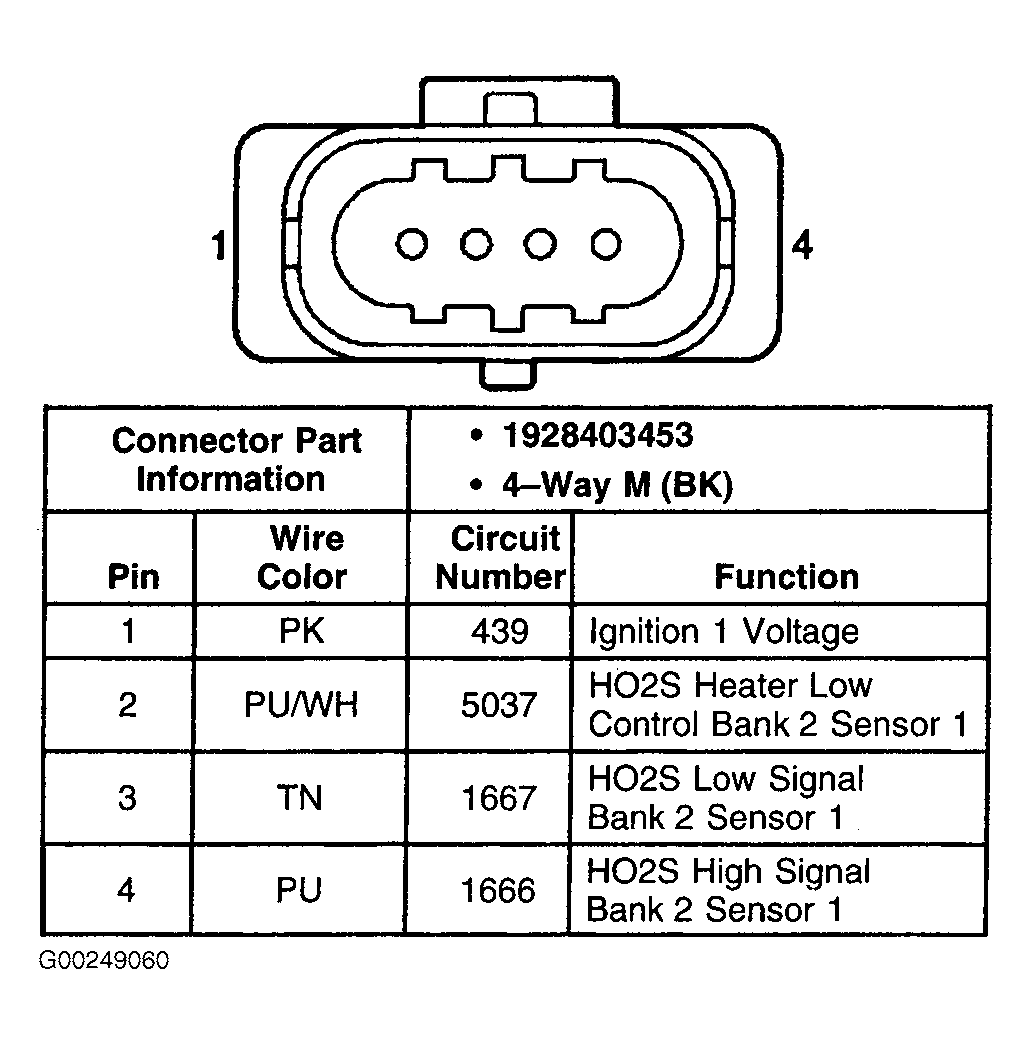

Fig 24: Identifying Heated Oxygen Sensor Bank 2 Sensor 1 Connector Terminals

G00249060

Courtesy of GENERAL MOTORS CORP.

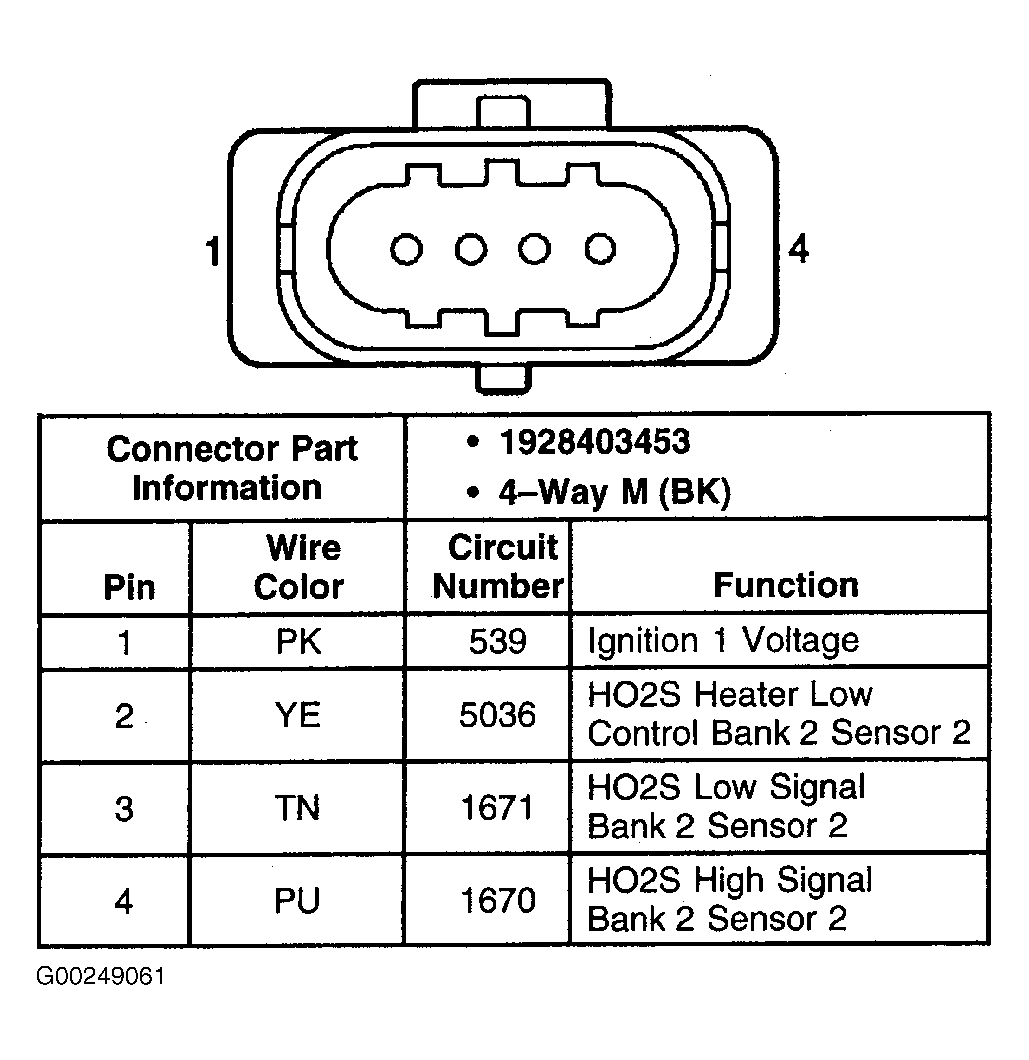

Fig 25: Identifying Heated Oxygen Sensor Bank 2 Sensor 2 Connector Terminals

G00249061

Courtesy of GENERAL MOTORS CORP.

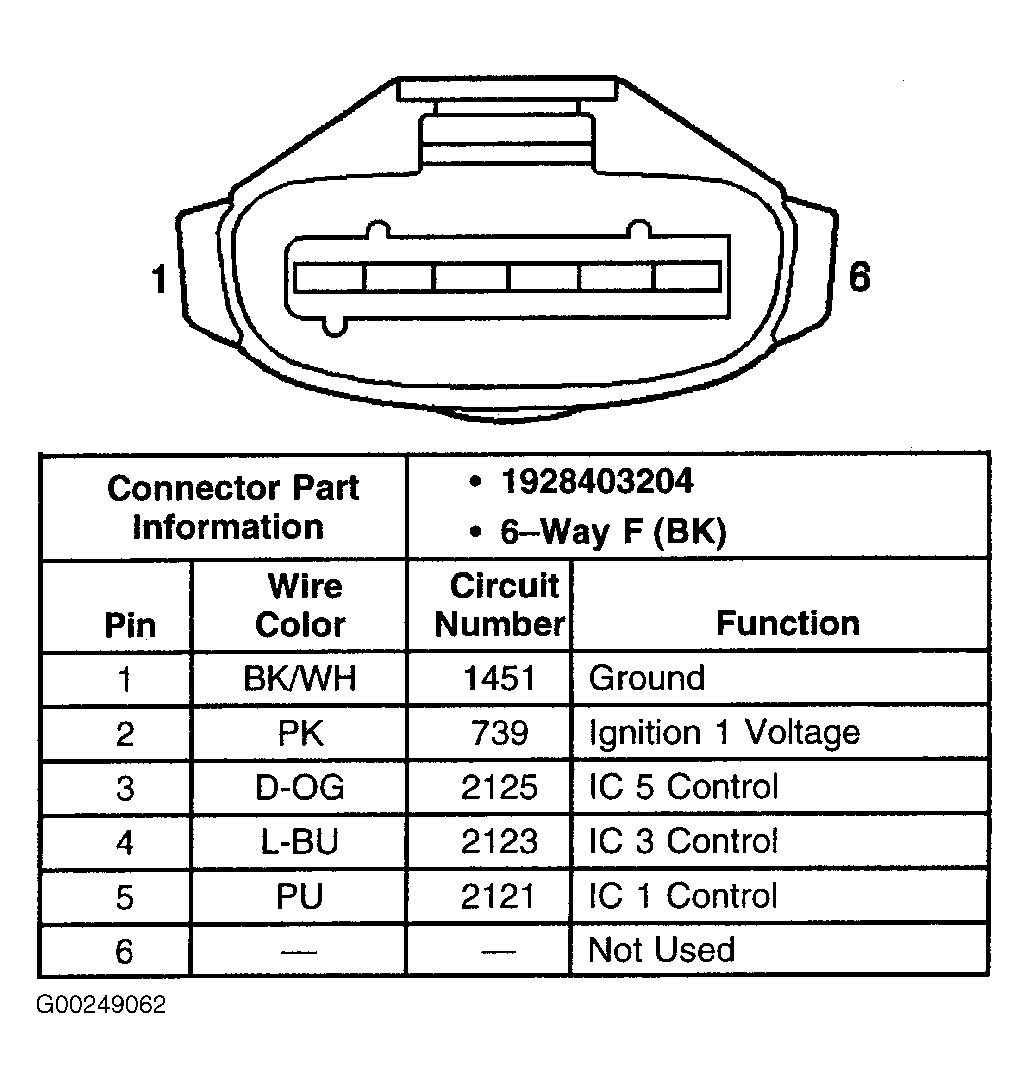

Fig 26: Identifying Ignition Coil Bank 1 Connector Terminals

G00249062

Courtesy of GENERAL MOTORS CORP.

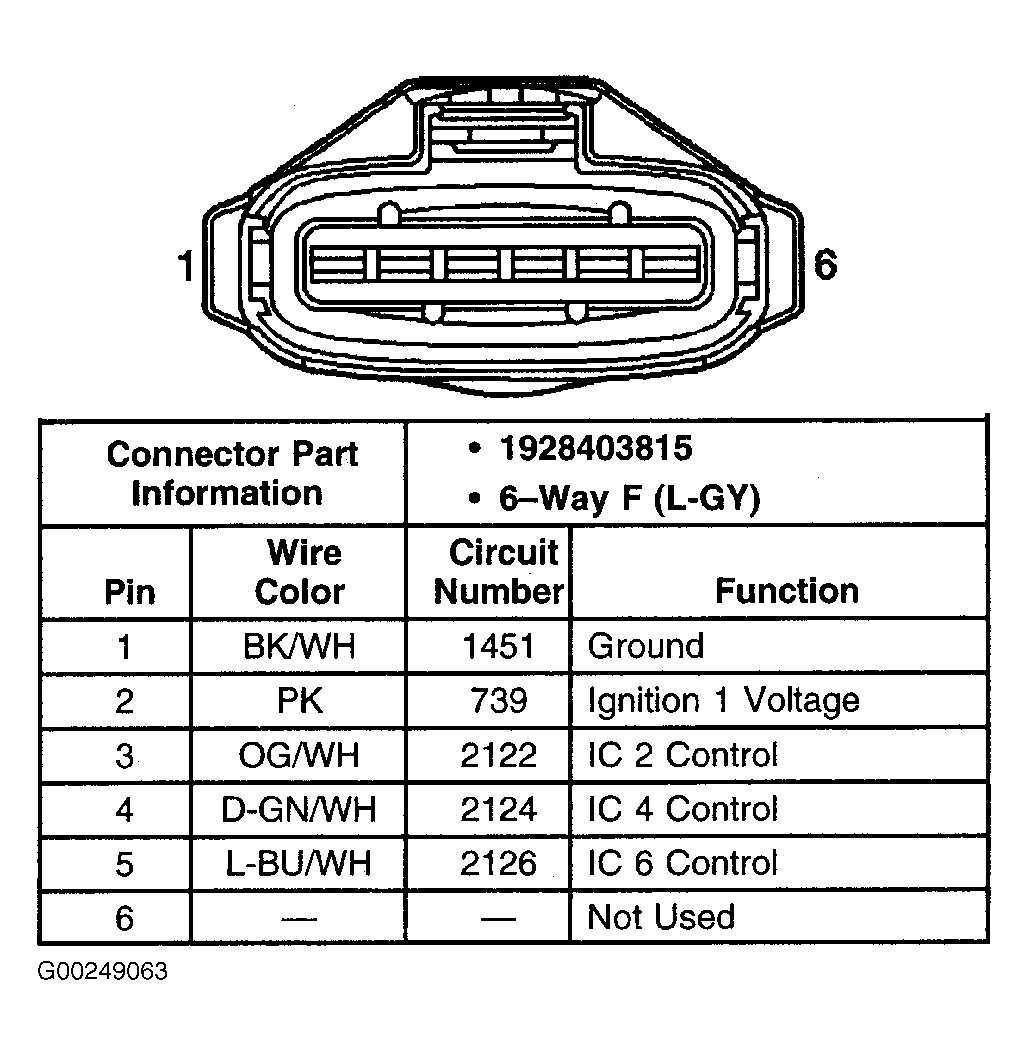

Fig 27: Identifying Ignition Coil Bank 2 Connector Terminals

G00249063

Courtesy of GENERAL MOTORS CORP.

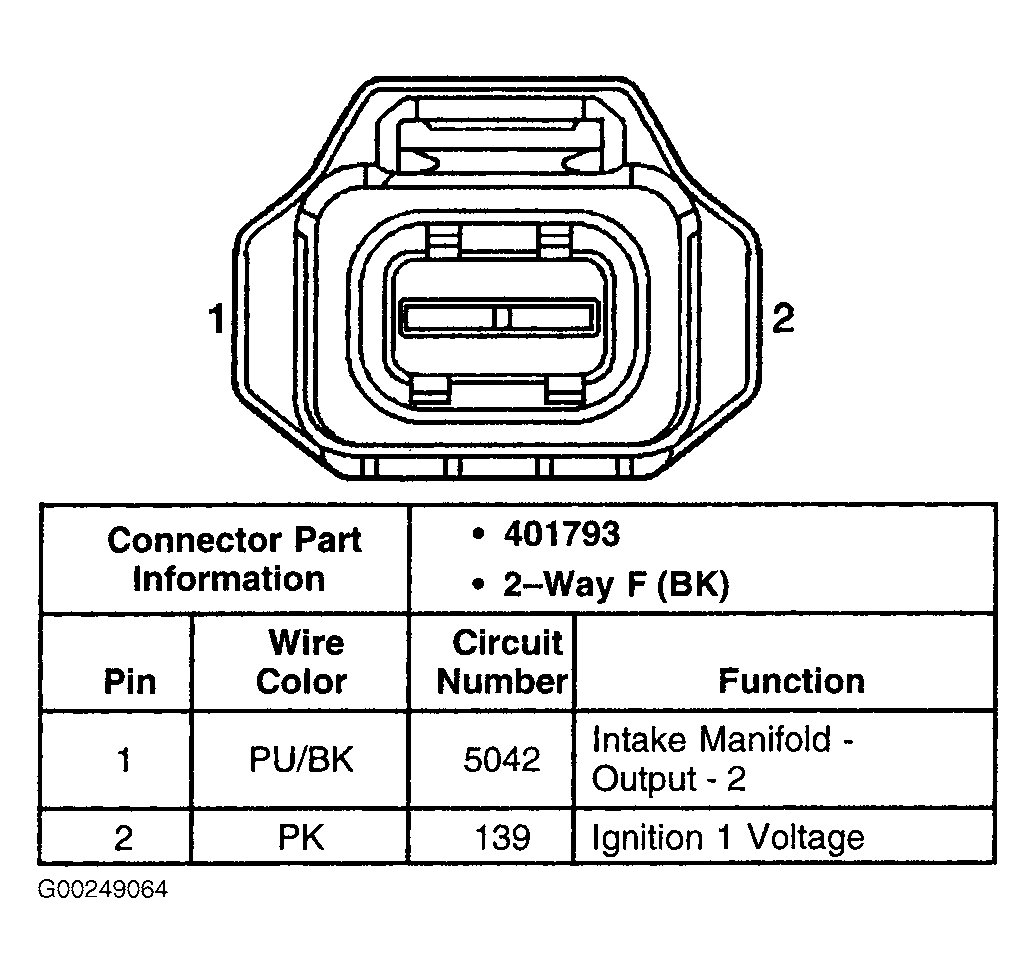

Fig 28: Identifying Intake Manifold Runner Control Solenoid Connector Terminals

G00249064

Courtesy of GENERAL MOTORS CORP.

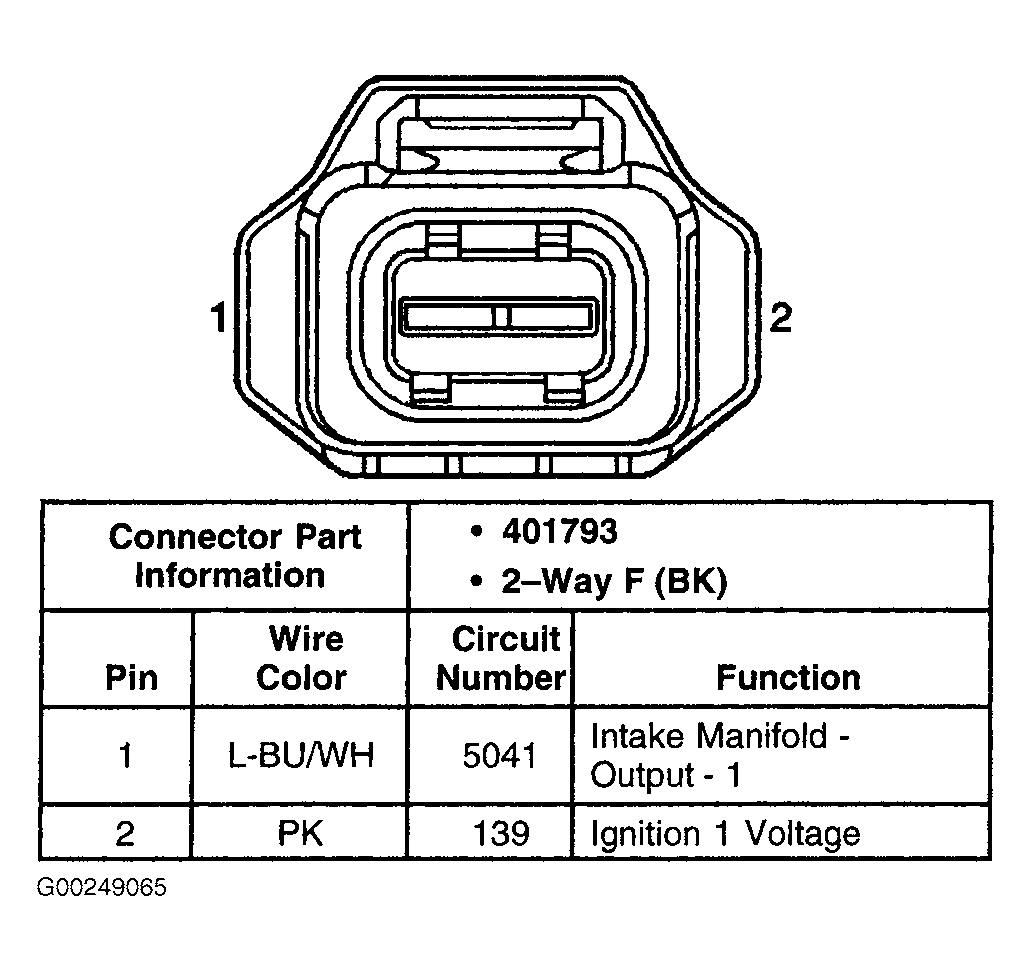

Fig 29: Identifying Intake Manifold Tuning Valve Solenoid Connector Terminals

G00249065

Courtesy of GENERAL MOTORS CORP.

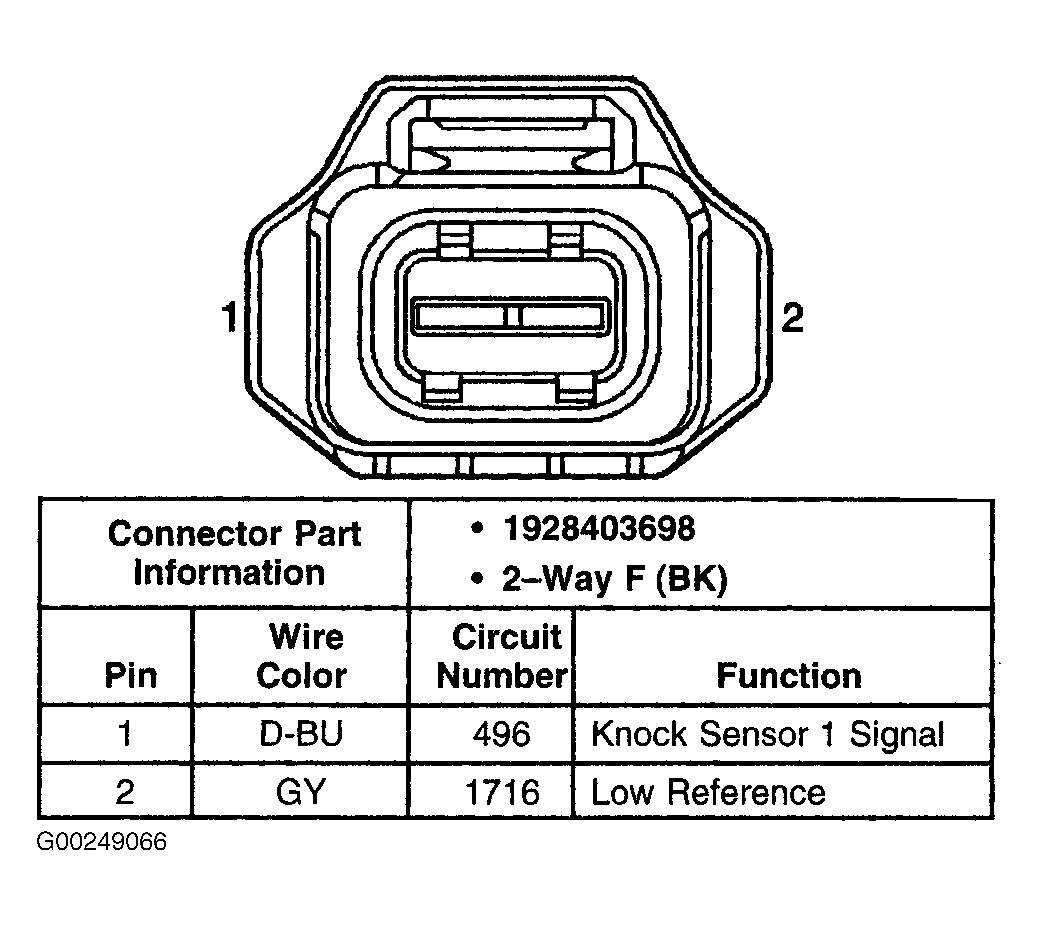

Fig 30: Identifying Knock Sensor 1 Connector Terminals

G00249066

Courtesy of GENERAL MOTORS CORP.

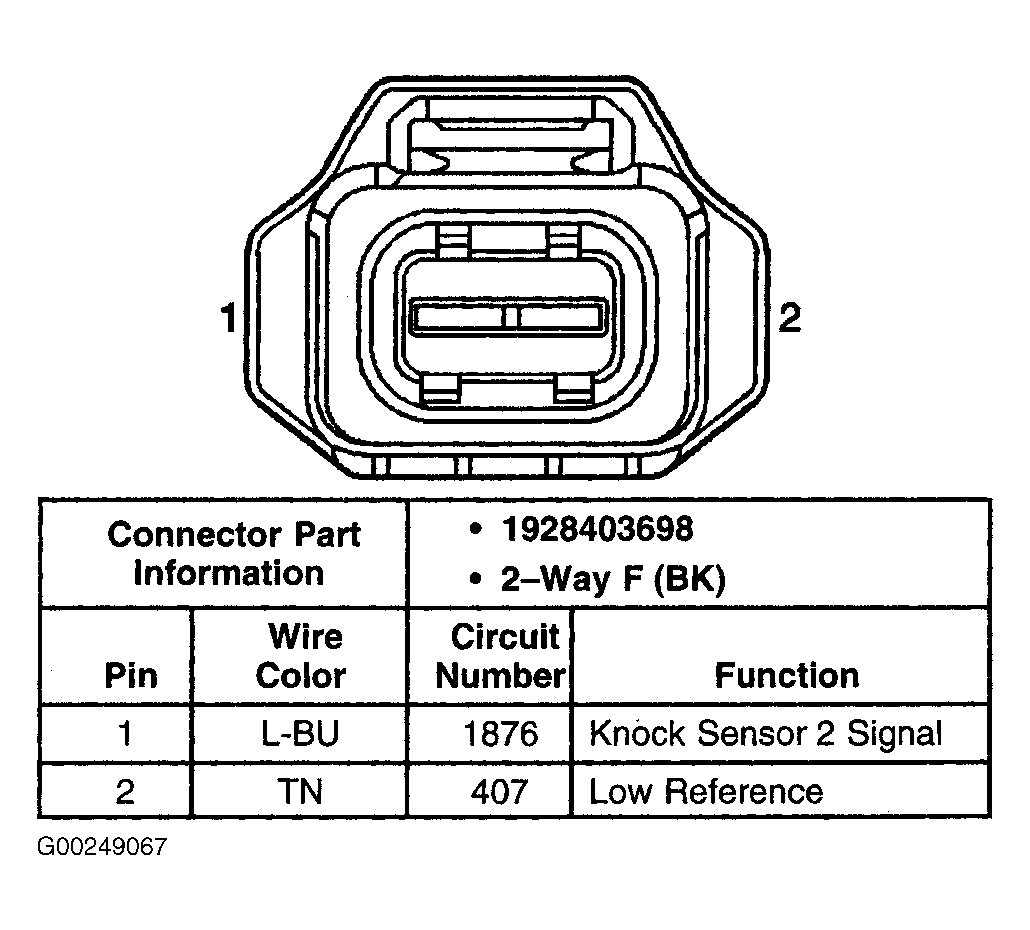

Fig 31: Identifying Knock Sensor 2 Connector Terminals

G00249067

Courtesy of GENERAL MOTORS CORP.

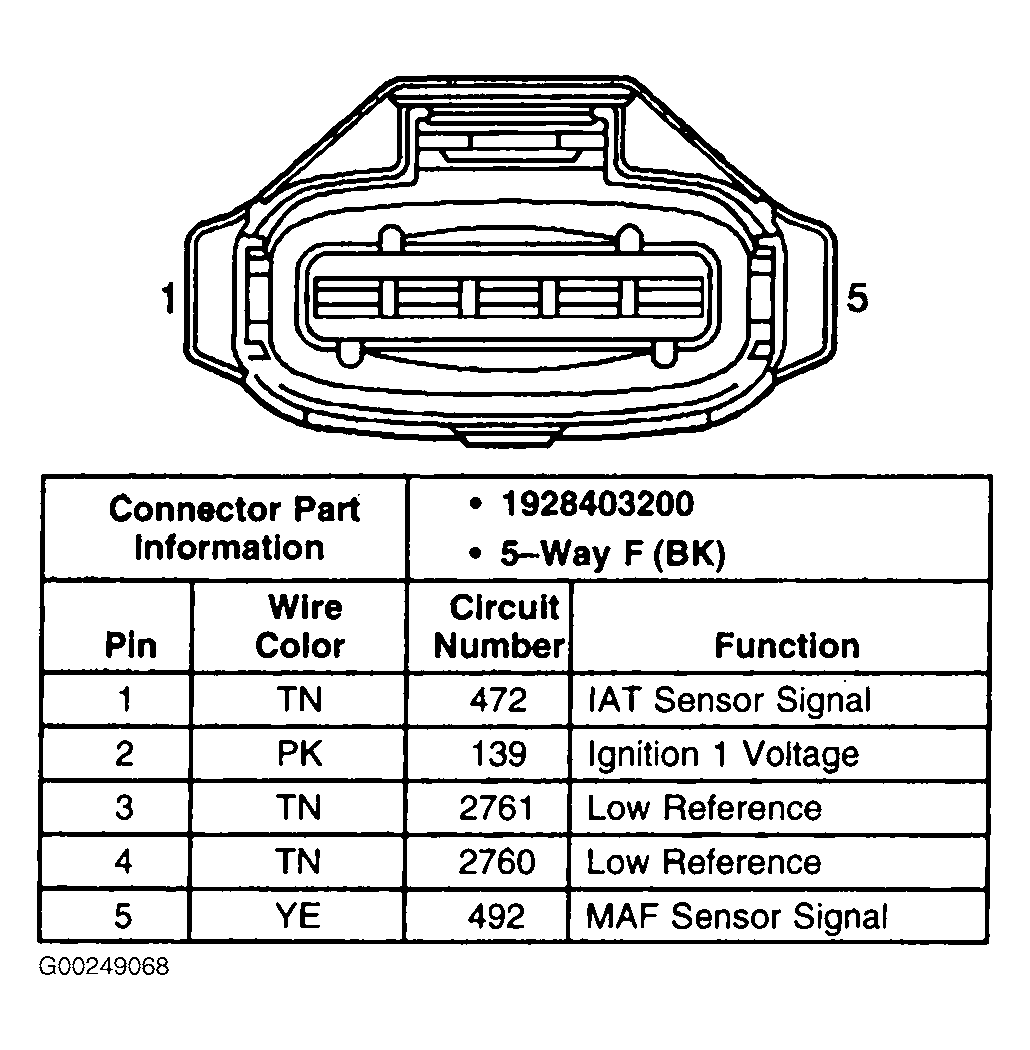

Fig 32: Identifying Mass Air Flow Sensor Connector Terminals

G00249068

Courtesy of GENERAL MOTORS CORP.

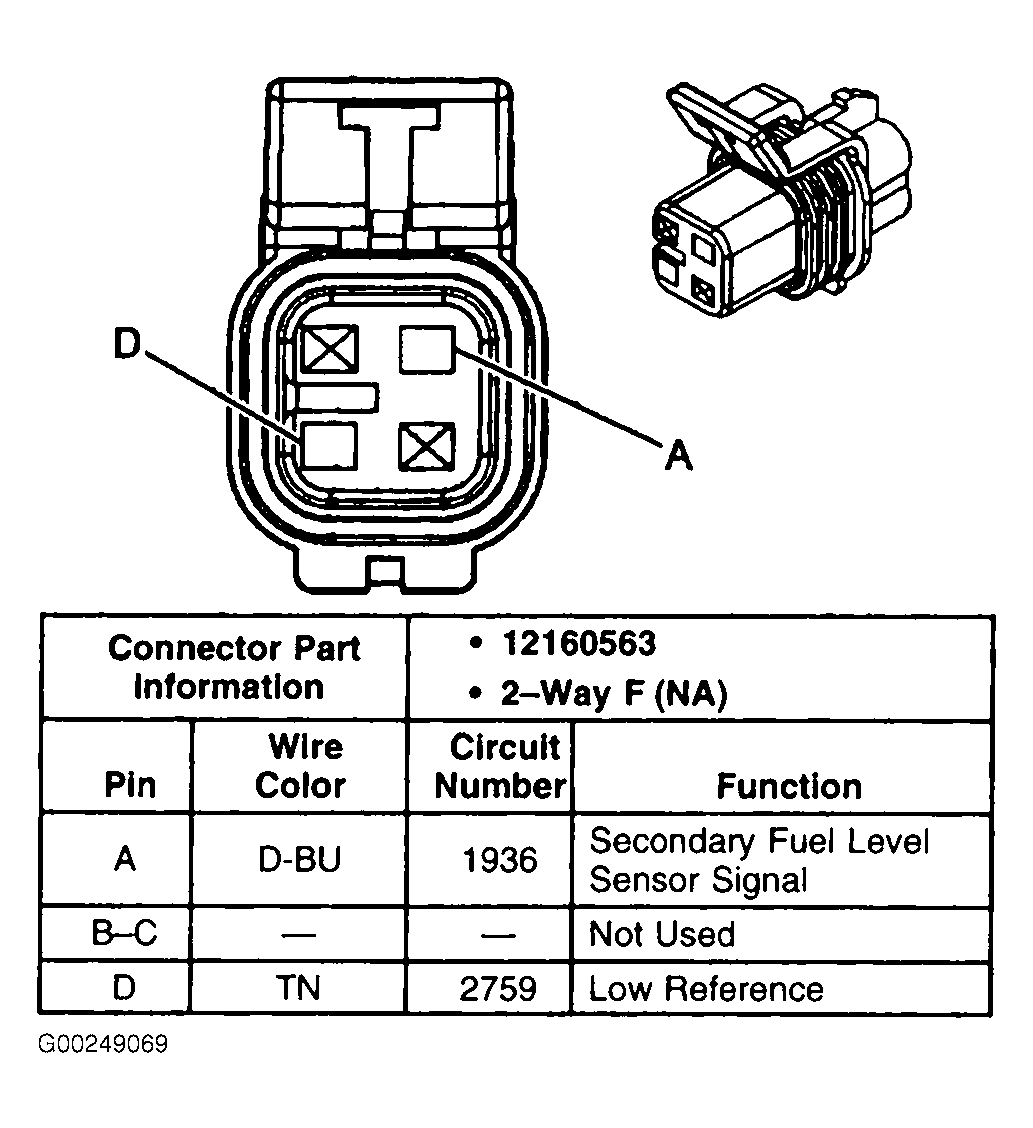

Fig 33: Identifying Secondary Fuel Pump & Sender Assembly Connector Terminals

G00249069

Courtesy of GENERAL MOTORS CORP.

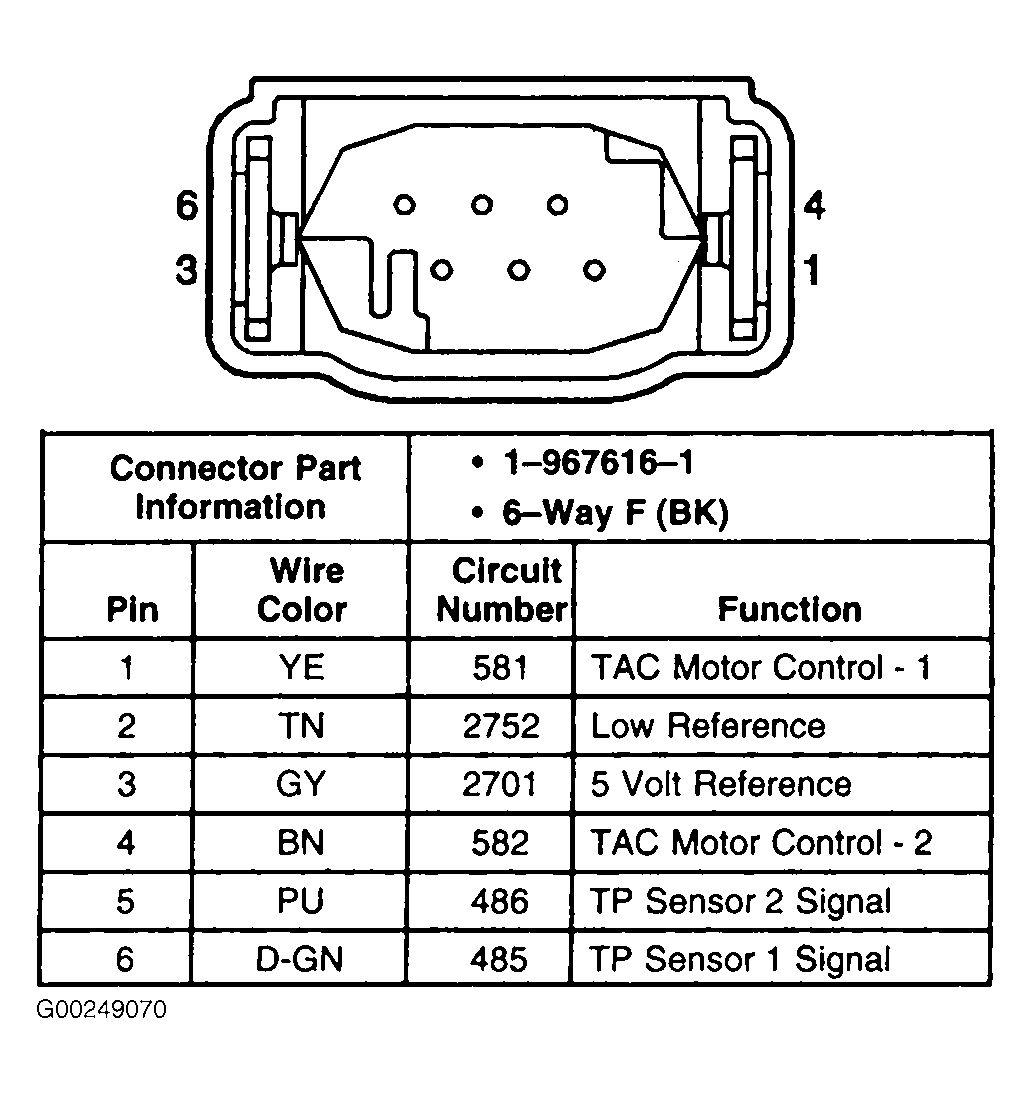

Fig 34: Identifying Throttle Position Sensor Connector Terminals

G00249070

Courtesy of GENERAL MOTORS CORP.
