Seat Belt Component Views

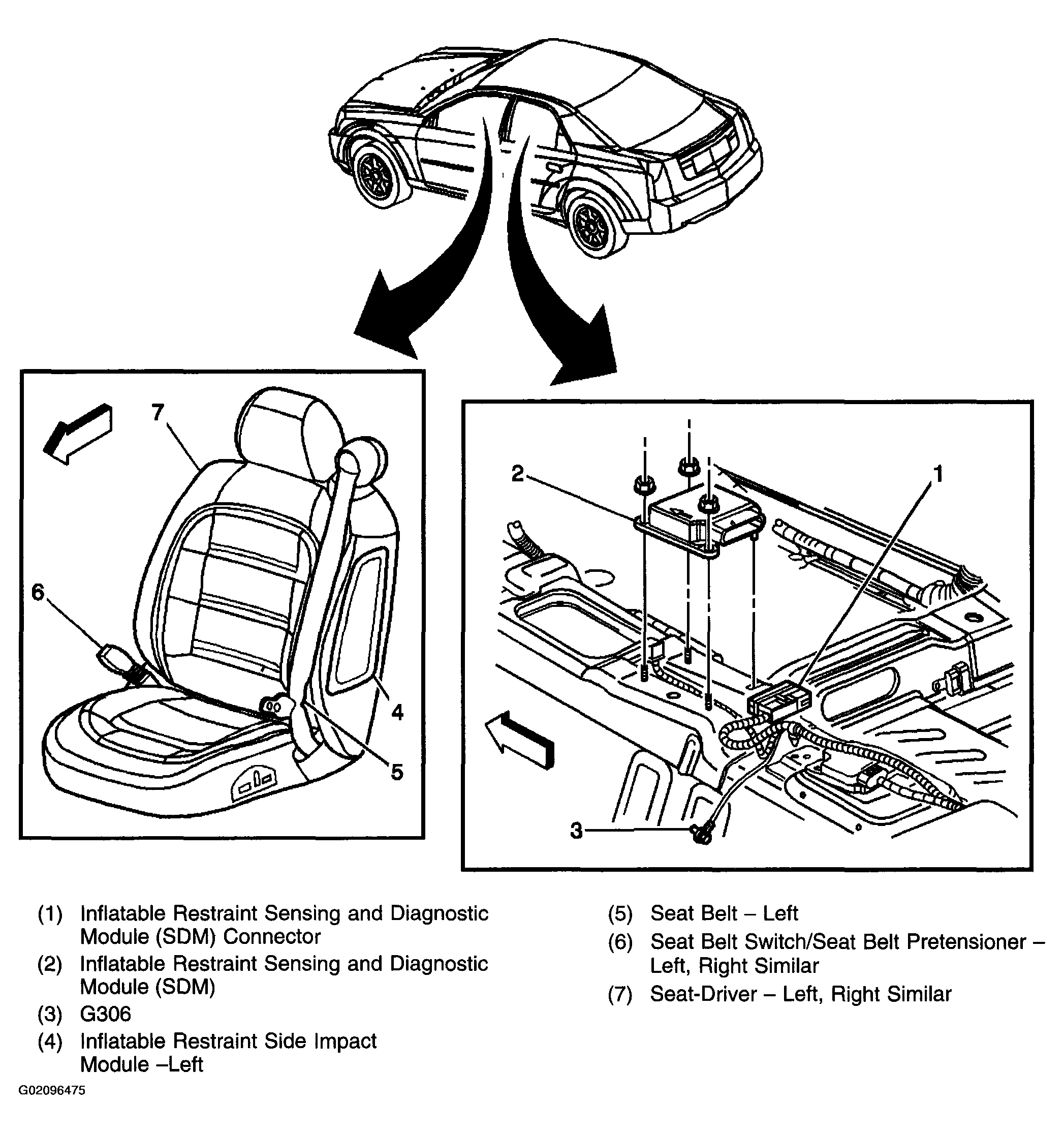

Fig 1: Component Location - Seat Belts Sub-System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
