Component Locator
COMPONENT LOCATIONS
| Component | Location | ||
|---|---|---|---|
| Engine In-Line Harness Connector C107 | Starter Harness To Engine Harness, Right Rear Corner Of Engine Near Rear Cam Cover | ||
| Powertrain Control Module | Front Left Side Of Engine Compartment, Below Air Cleaner | ||
| START 1 Relay | In Underhood Fuse Block | ||
| START Circuit Breaker | In Underhood Fuse Block | ||

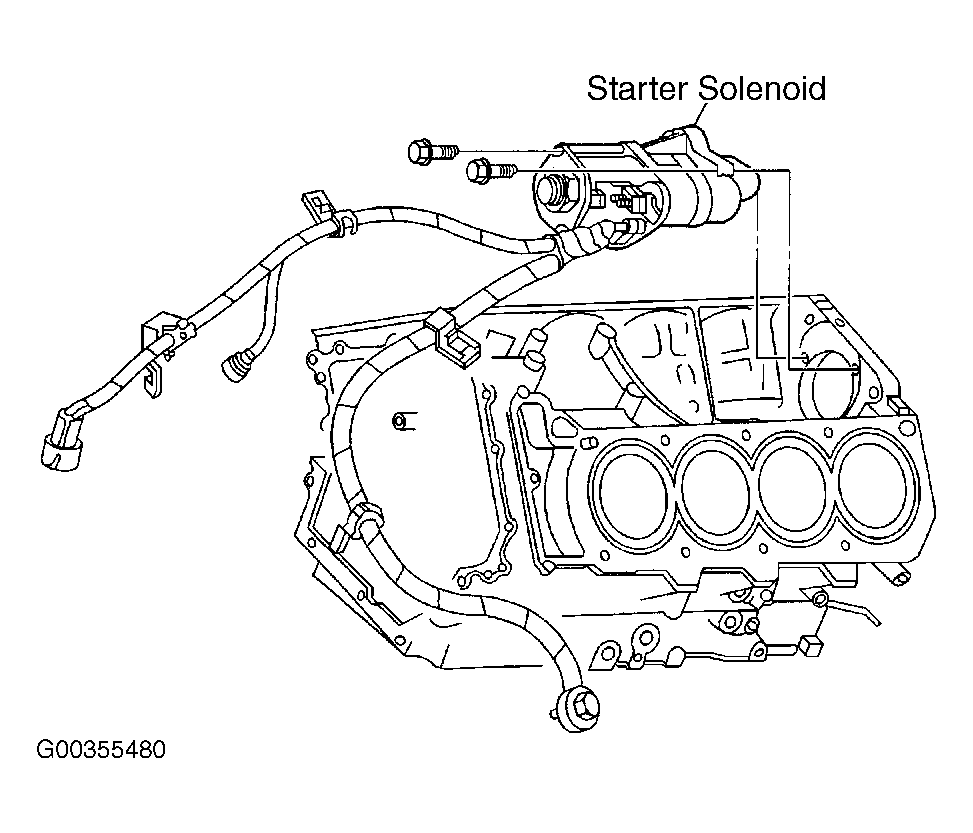

| Starter Solenoid (1) | Center Of Engine Under Intake Manifold | ||
|
|||
