Automatic Transmission Shift Lock Control Connector End Views

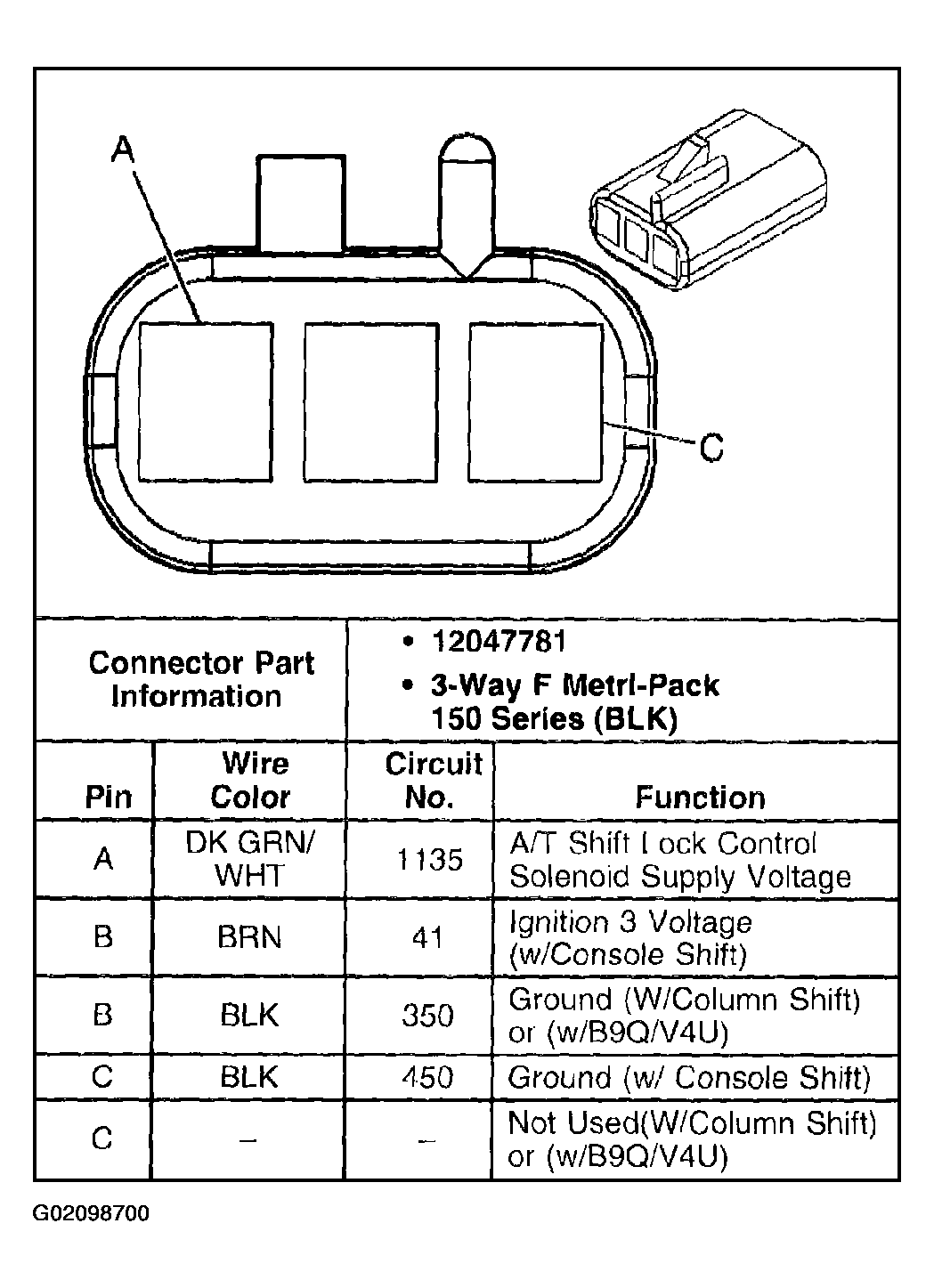

Fig 1: Identifying A/T Shift Lock Control Solenoid

Courtesy of GENERAL MOTORS CORP.

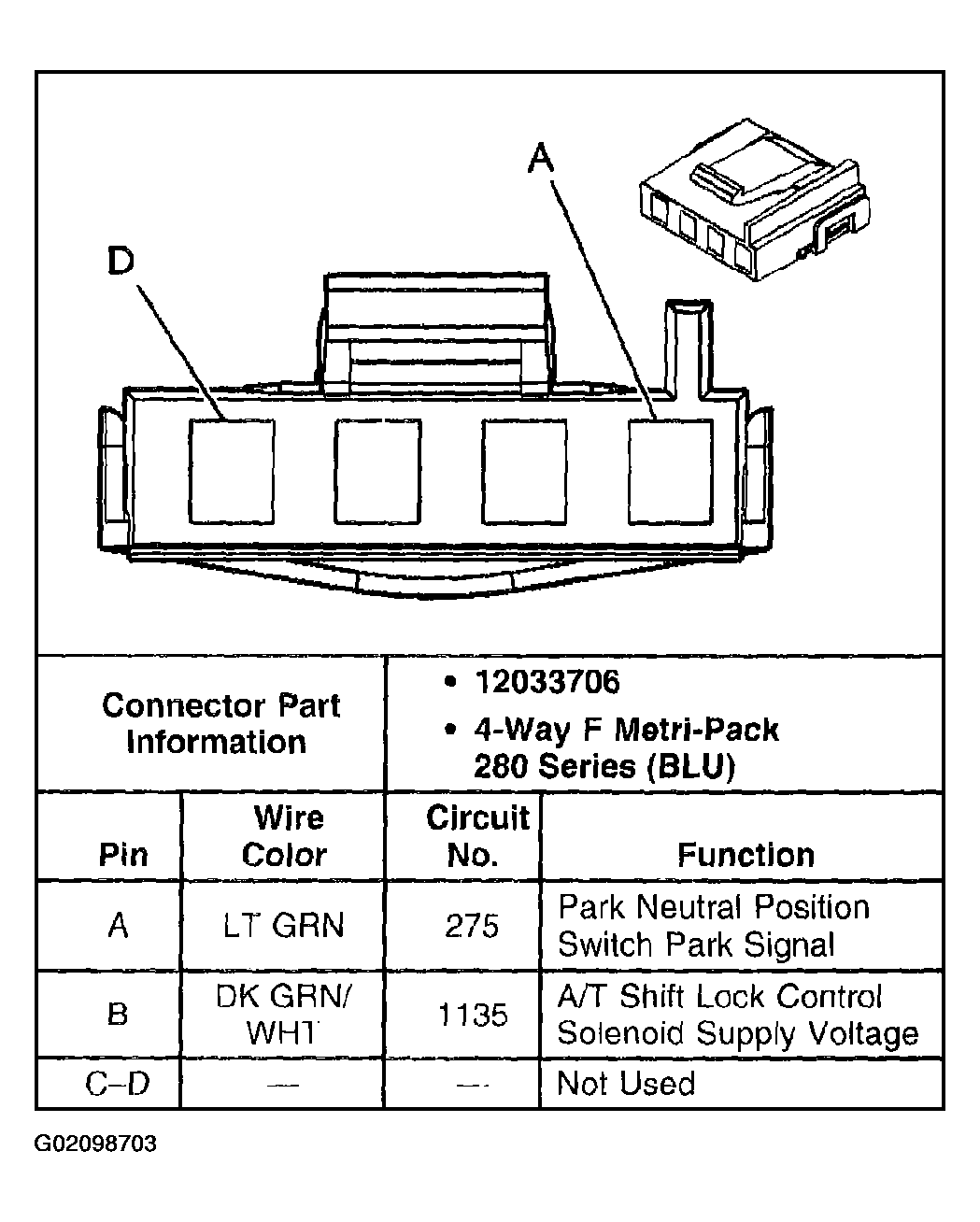

Fig 2: Reverse Lockout Actuator - Part Of Shift Control Assembly (w/ Console Shifter)

Courtesy of GENERAL MOTORS CORP.

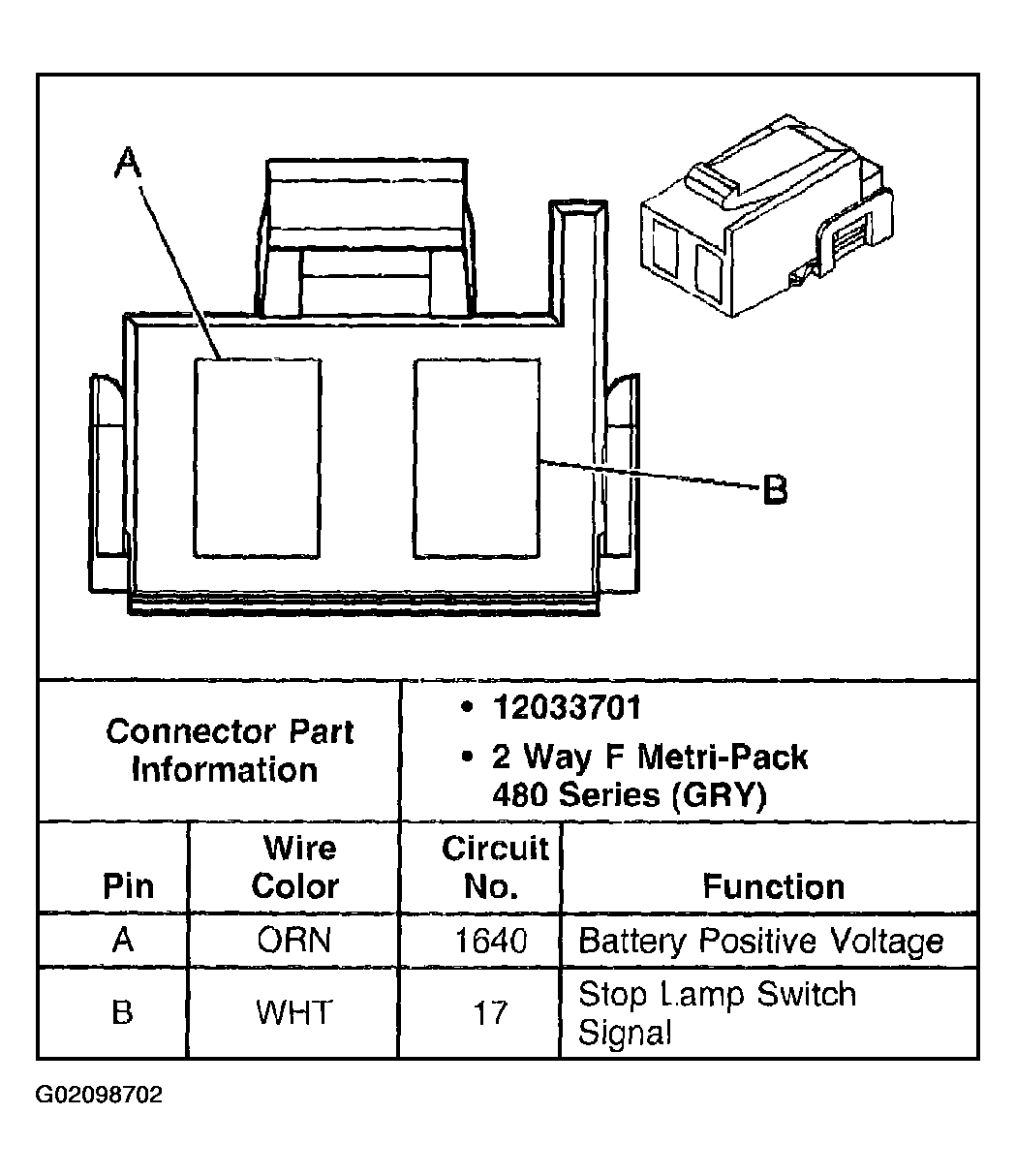

Fig 3: Stop Lamp/AT Shift Lock Control Switch C1

Courtesy of GENERAL MOTORS CORP.

Fig 4: Stop Lamp/AT Shift Lock Control Switch C2

Courtesy of GENERAL MOTORS CORP.
