Engine Block-Rear View

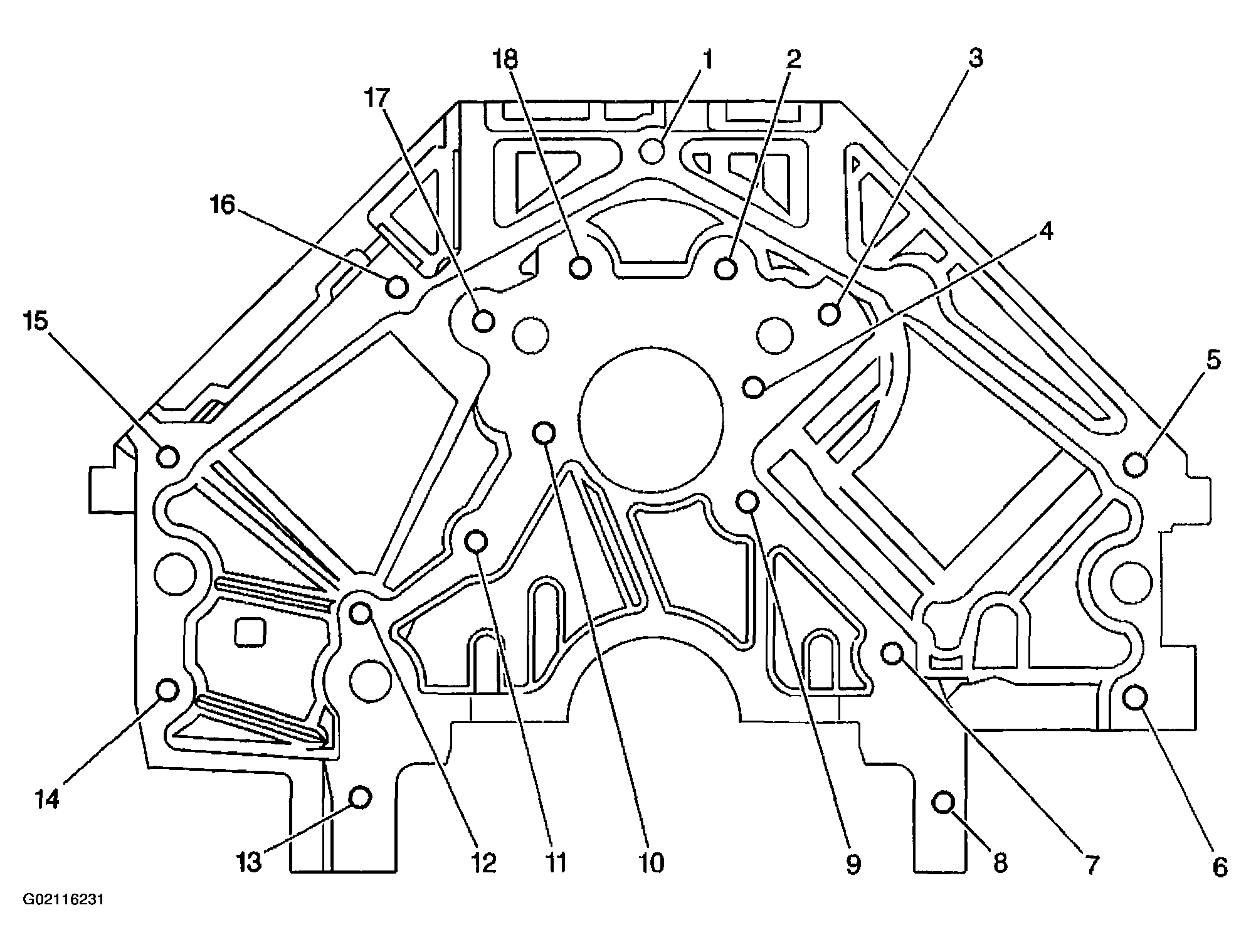

Fig 1: Unidentified Engine Block-Rear View - Thread Repair
G02116231Courtesy of GENERAL MOTORS CORP.

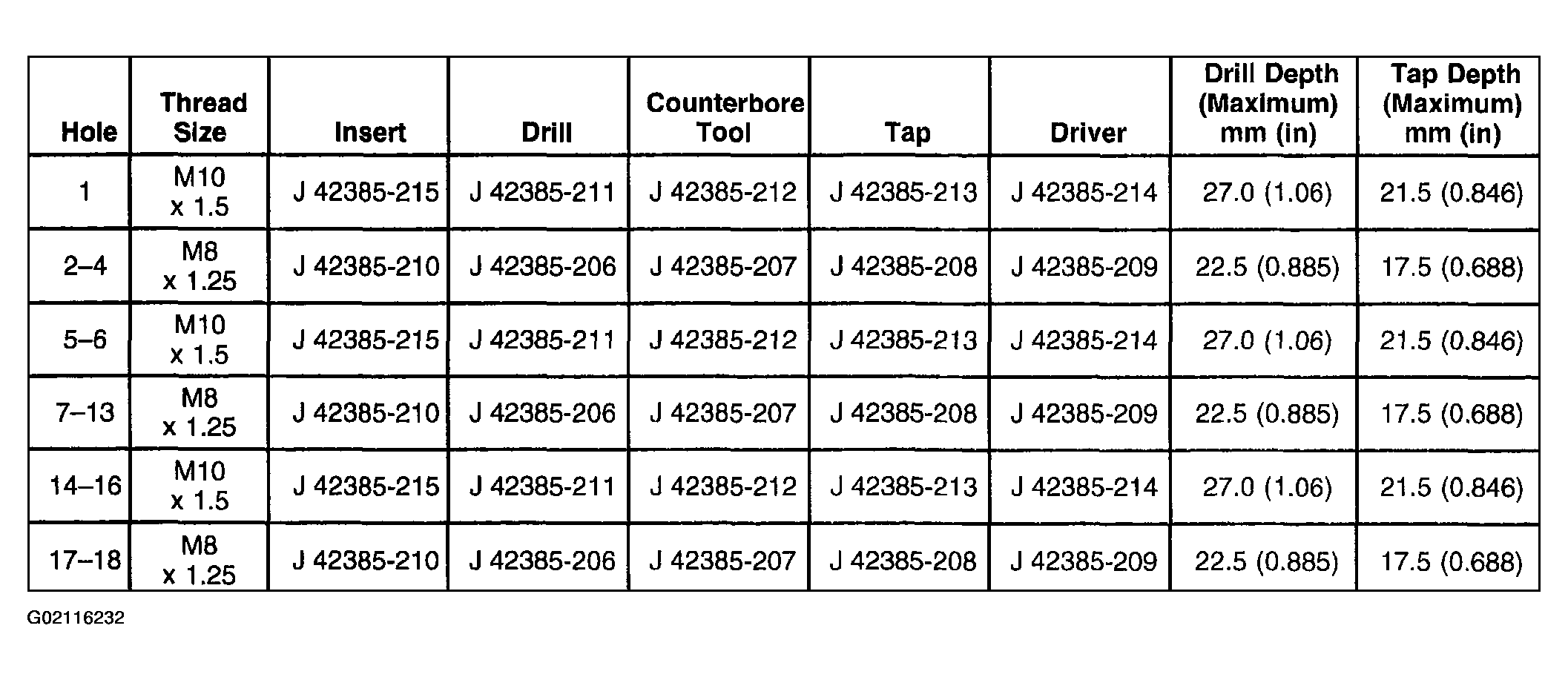

Fig 2: Thread Repair Specifications Index - Engine Block-Rear
G02116232Courtesy of GENERAL MOTORS CORP.
