Engine Block-Right Side View

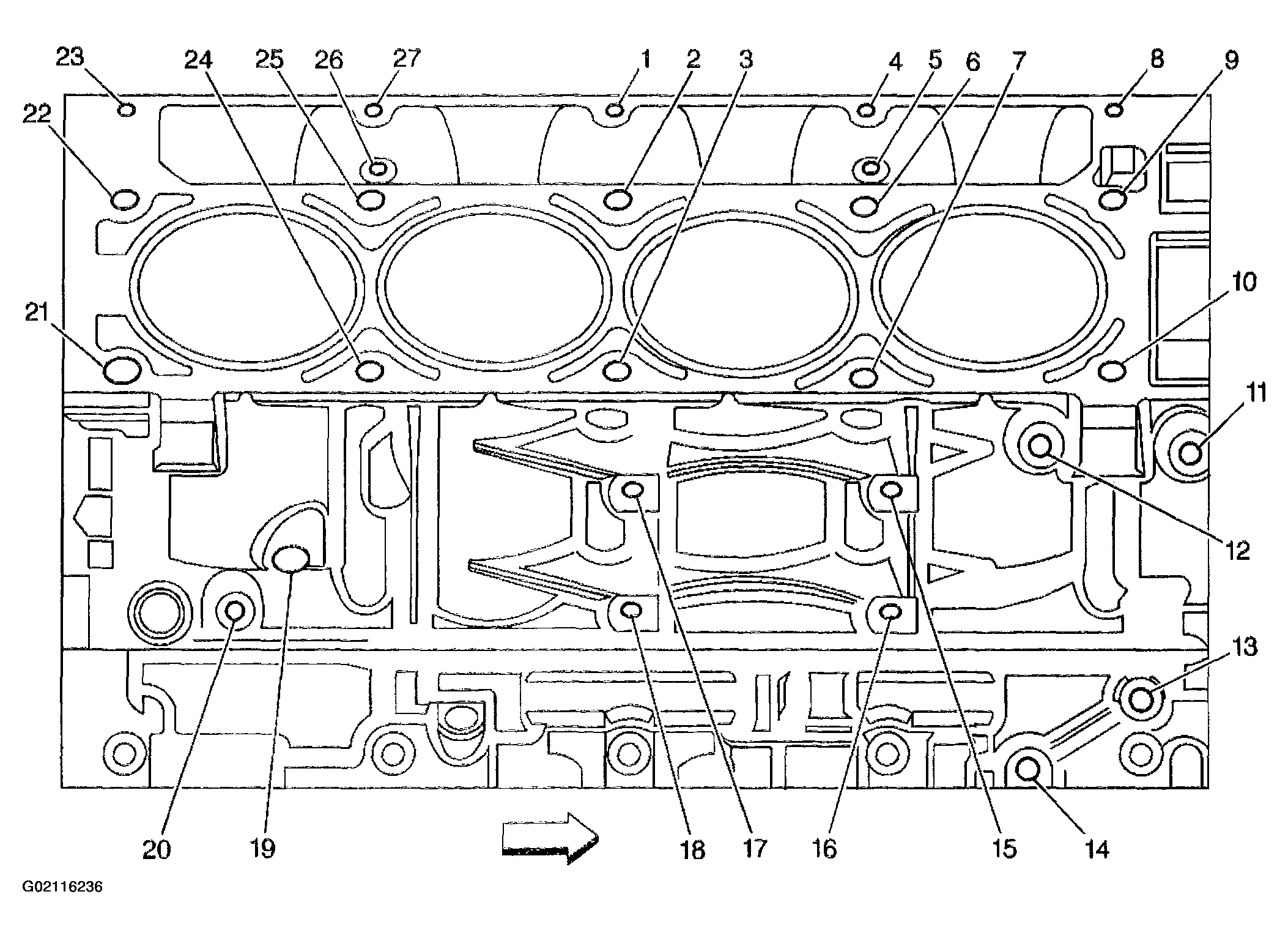

Fig 1: Identifying Engine Block-Right Side View - Thread Repair
G02116236Courtesy of GENERAL MOTORS CORP.

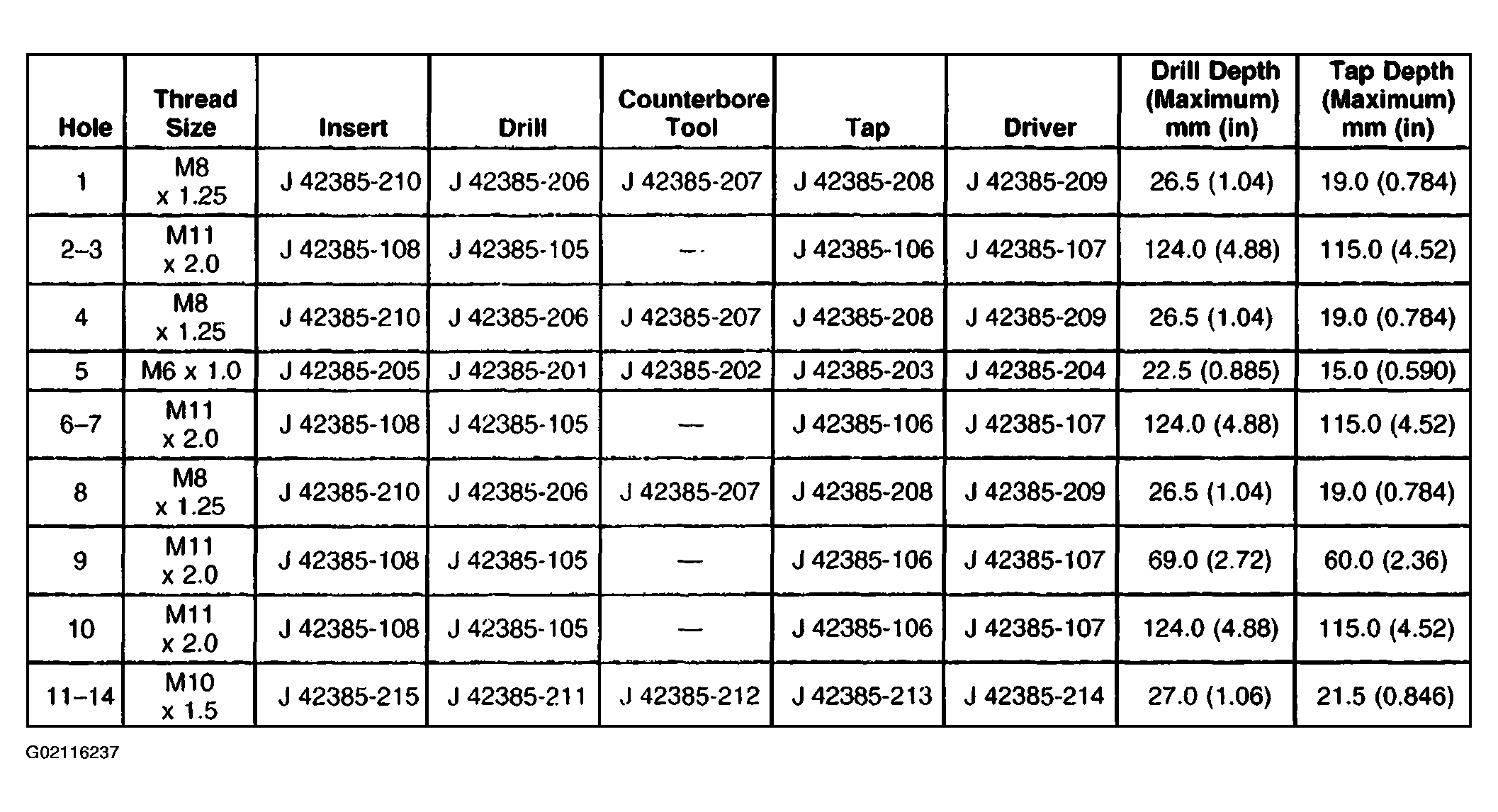

Fig 2: Thread Repair Specifications Index - Engine Block-Right Side (1 Of 2)
G02116237Courtesy of GENERAL MOTORS CORP.

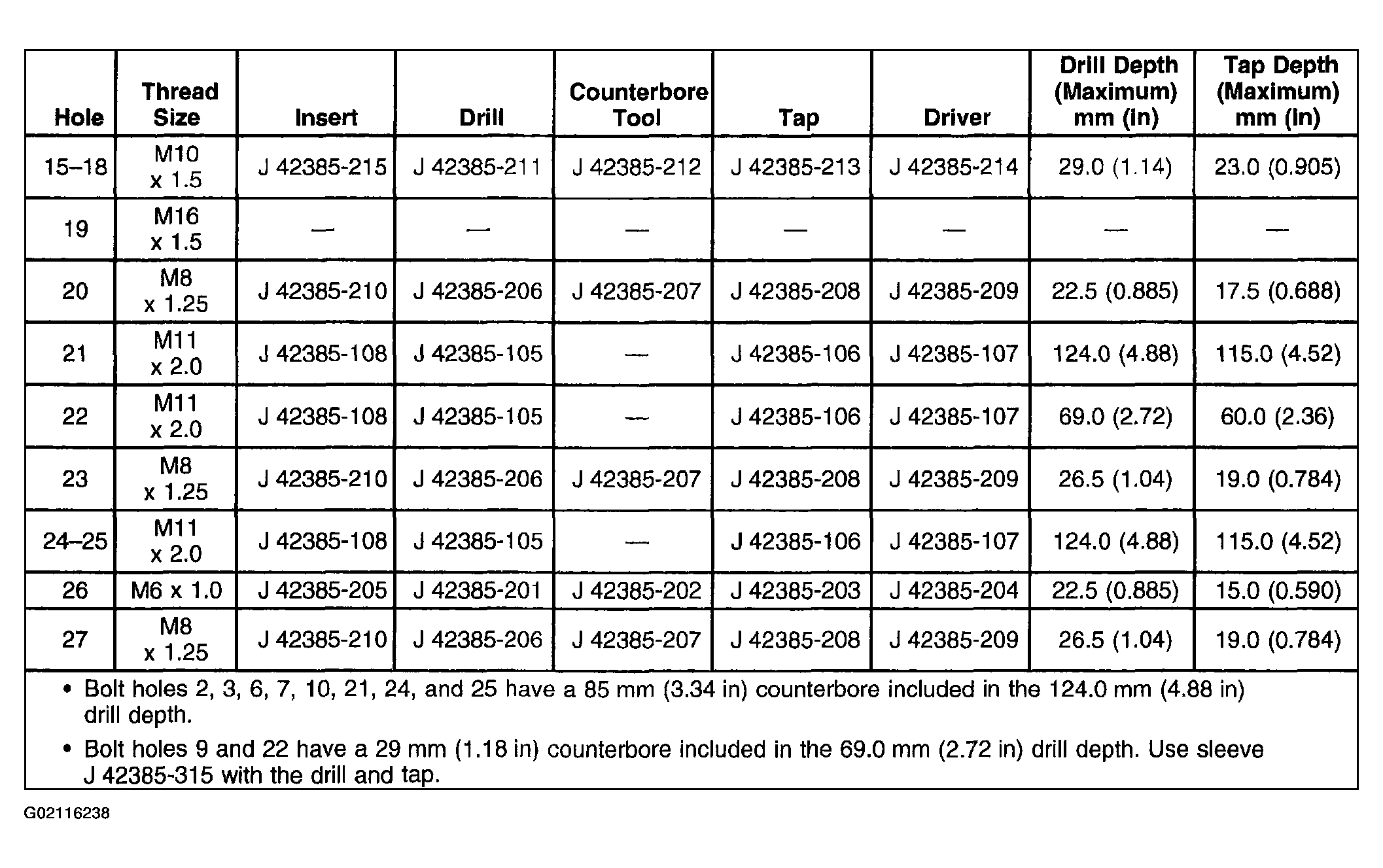

Fig 3: Thread Repair Specifications Index - Engine Block-Right Side (2 Of 2)
G02116238Courtesy of GENERAL MOTORS CORP.
