Throttle Position Sensor

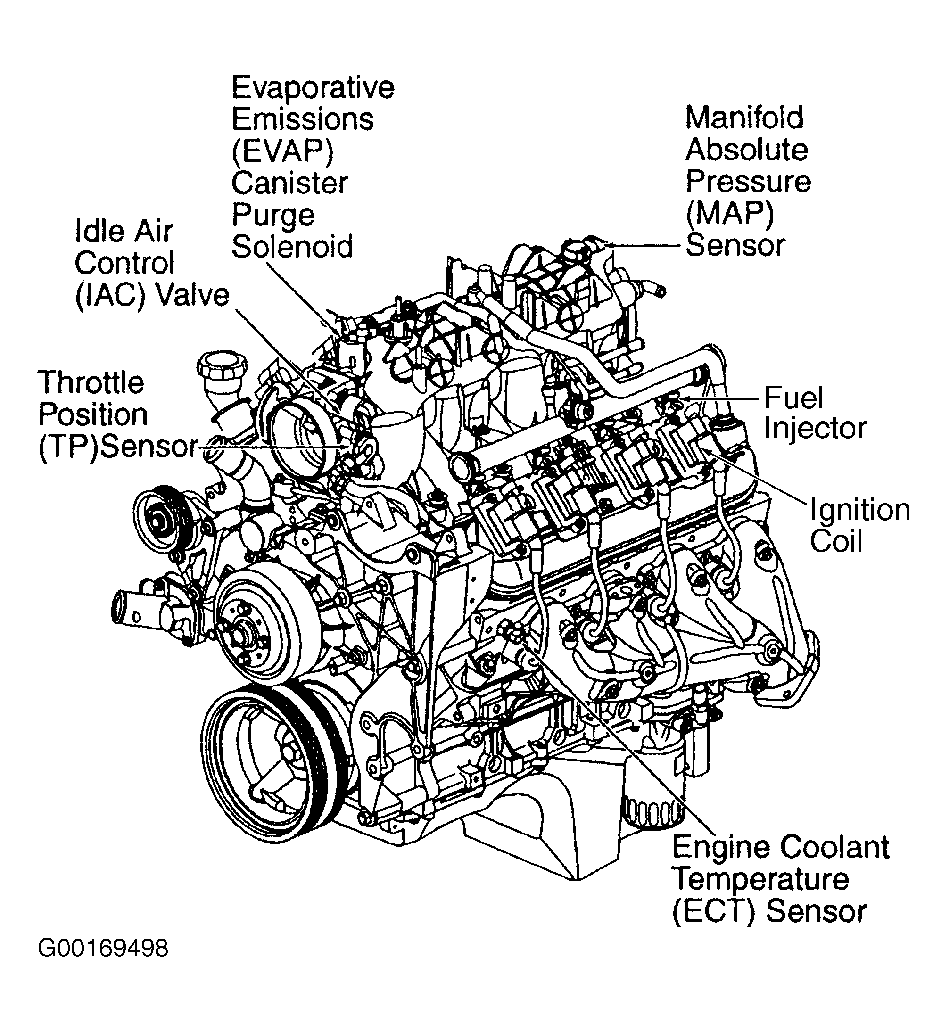

The Throttle Position (TP) sensor is used by the PCM to determine the throttle plate angle for various engine management systems. TP sensor is mounted on throttle body assembly. See Figure. The TP sensor is a potentiometer type sensor with a 5-volt reference circuit, a low reference circuit and a sensor signal circuit. PCM provides the TP sensor with 5 volts on the 5-volt reference circuit and a ground on the low reference circuit. Rotation of the TP sensor rotor from the closed throttle position to Wide Open Throttle (WOT) position provides the PCM with a signal voltage from less than one volt to greater than 4 volts through the TP sensor signal circuit. When TP sensor signal voltage is not within the predicted range, a DTC sets. To diagnose, perform related diagnostic test. See DIAGNOSTIC TROUBLE CODE DEFINITIONS in SELF-DIAGNOSTICS - 4.8L, 5.3L & 6.0L "C", "K" & "N" SERIES - FLEX FUEL & GASOLINE article.
