Installation Procedure

  1. Install the battery with the (+) positive side down.
  2. Close the transmitter case and perform the following steps:
    1. 2.1. Align the top and bottom covers.
    2. 2.2. Press together the top and the bottom covers.
    3. 2.3. Inspect the operation of the transmitter.

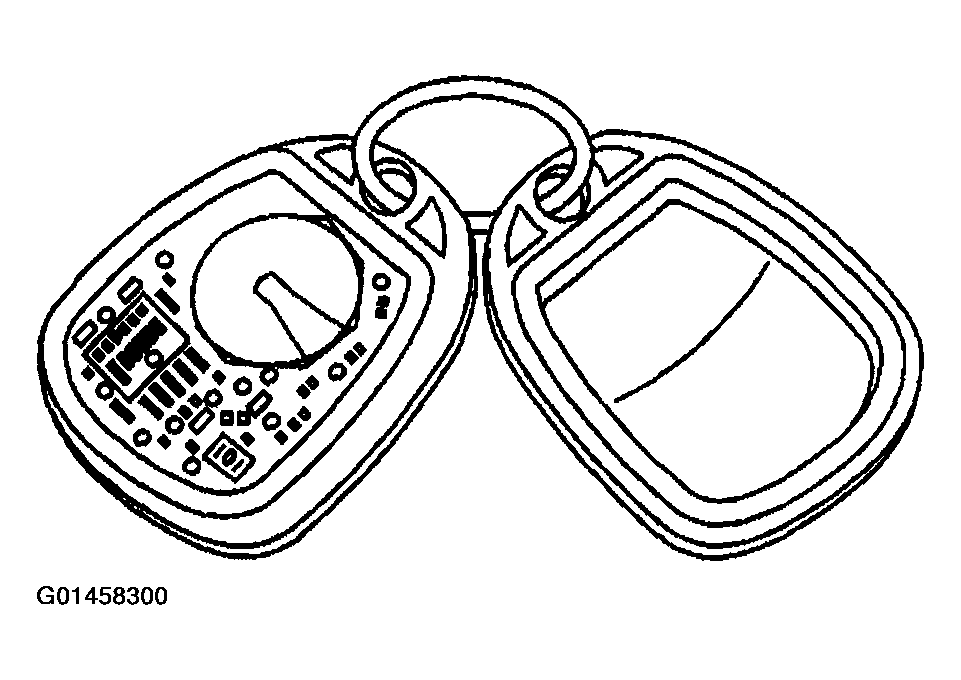

    Fig 1: Installing Battery
    G01458300Courtesy of GENERAL MOTORS CORP.
  3. Synchronize the transmitter. Refer to TRANSMITTER SYNCHRONIZATION  .
