Removal Procedure

Under normal use, the battery in the transmitter will last about 2 years. For battery replacement, use a Panasonic® 3 volt, type CR2032, or equivalent.

1. Open the transmitter case and perform the following steps:
   1. 1.1. Insert a dime between the 2 halves of the transmitter near the key ring hole.
   2. 1.2. Twist the dime.

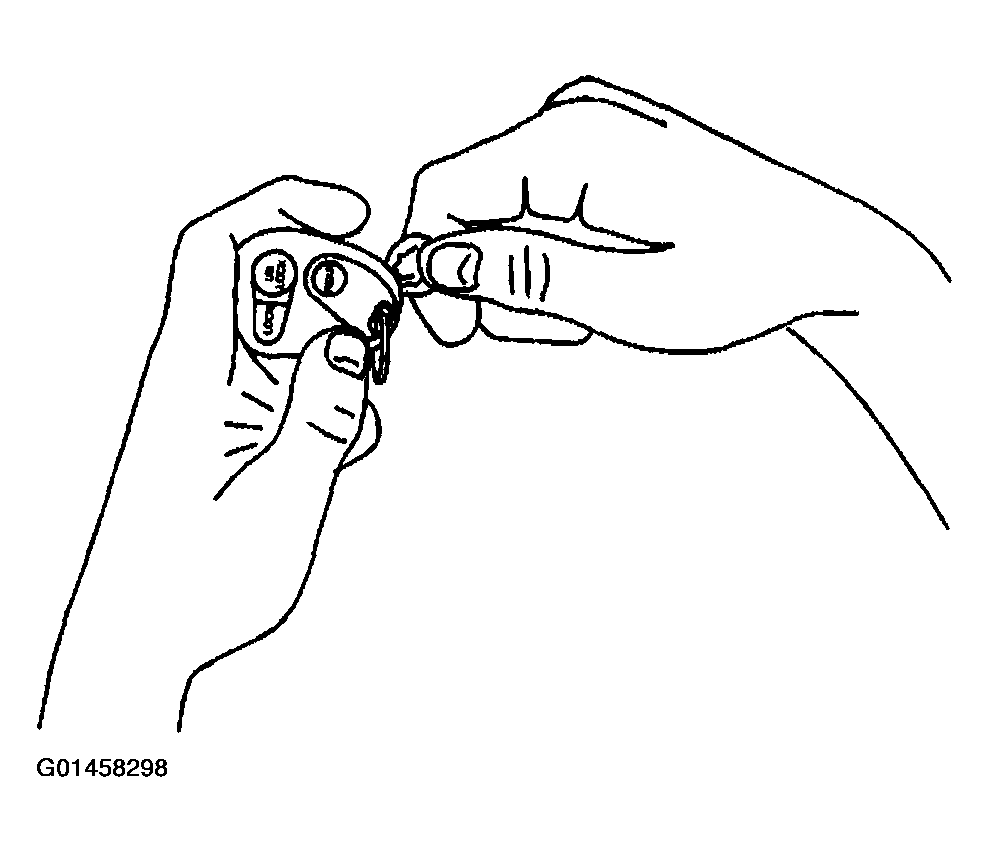

   Fig 1: Opening Transmitter Case

   Courtesy of GENERAL MOTORS CORP.
2. Remove the battery.

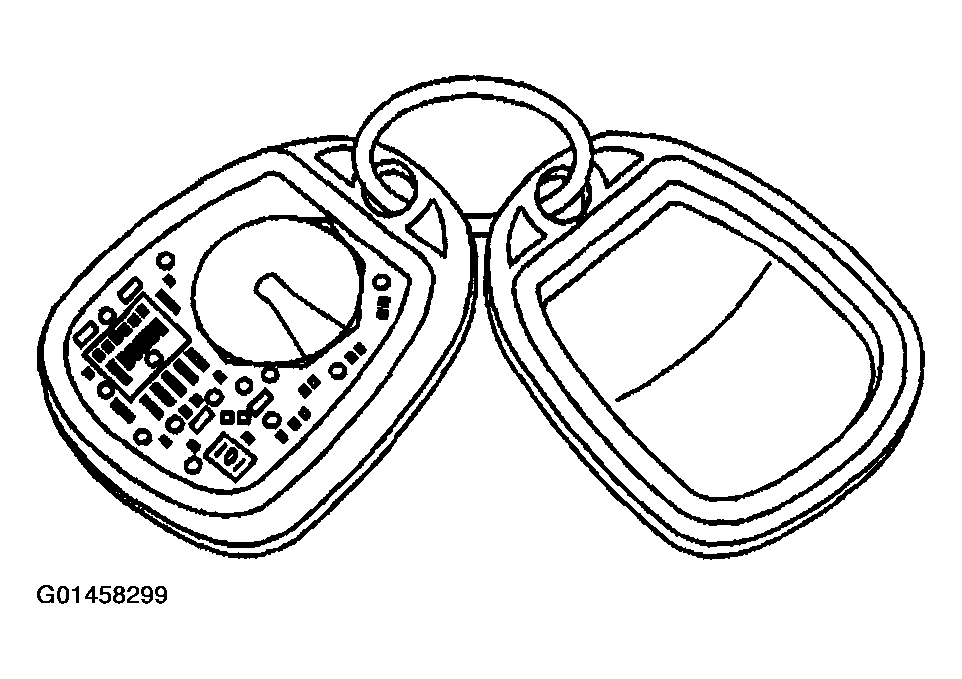

   Fig 2: Removing Battery

   Courtesy of GENERAL MOTORS CORP.
