Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the armrest retaining screws.
  3. Remove the armrest from the panel.

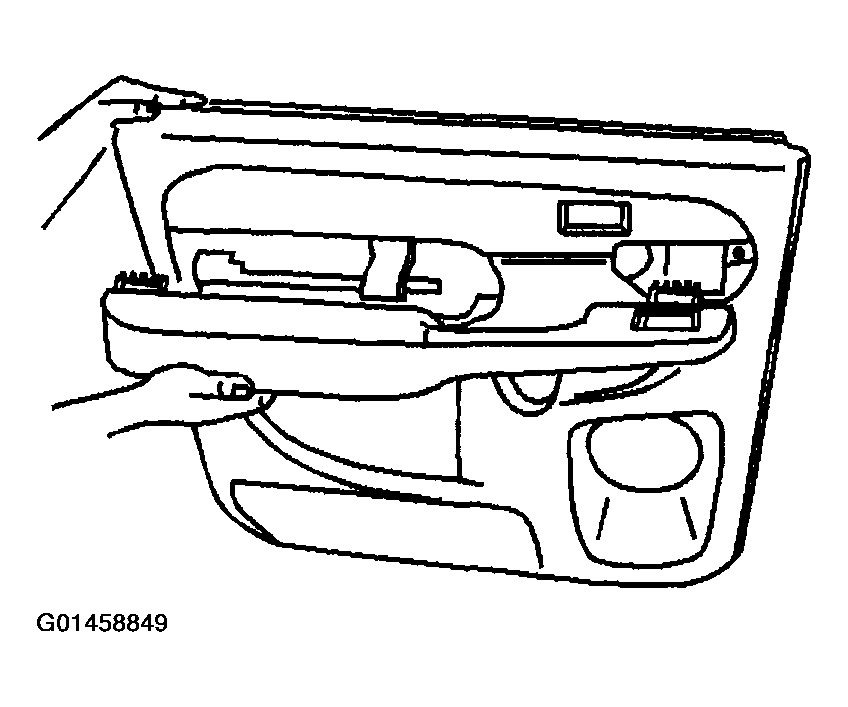

    4. Fig 1: Removing Armrest
    G01458849Courtesy of GENERAL MOTORS CORP.
