Removal Procedure

  1. Remove the trim panel upper extension. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION  .
  2. Remove the insulator, if equipped.
  3. Disconnect the electrical connector.

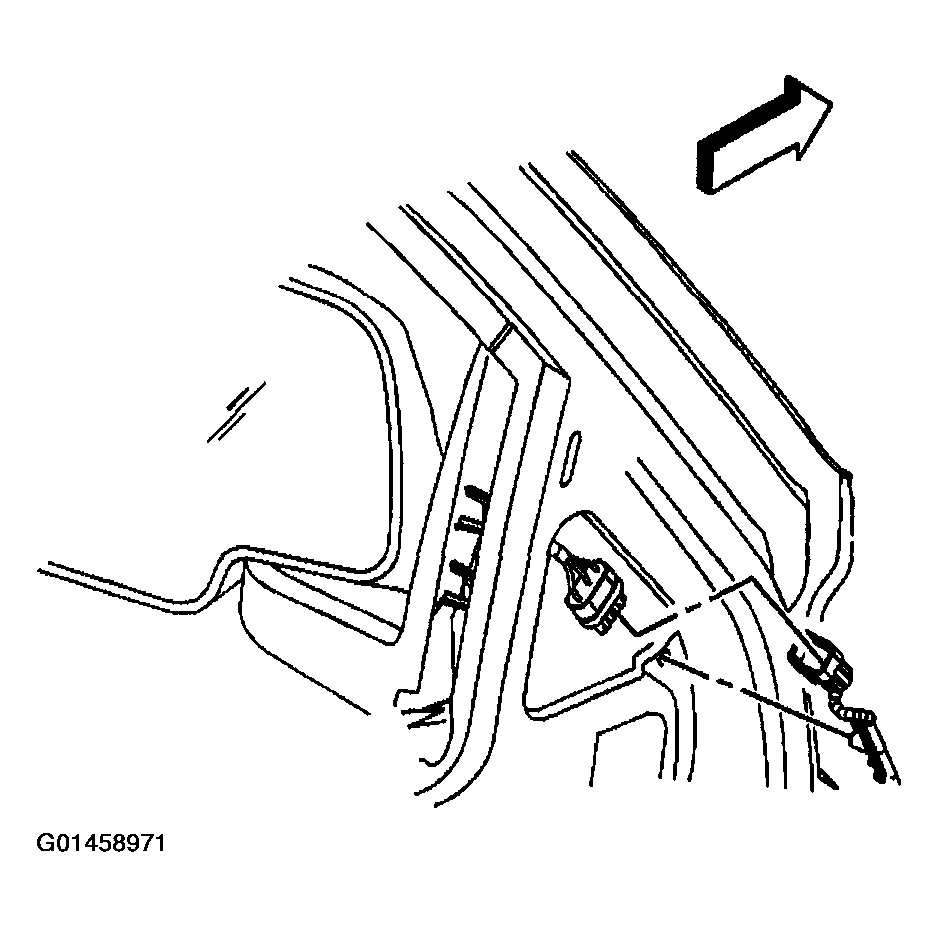

    4. Fig 1: Removing Power Mirror Electrical Connector
    G01458971Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts securing the outside mirror to the door.
  5. Remove the mirror from the door.

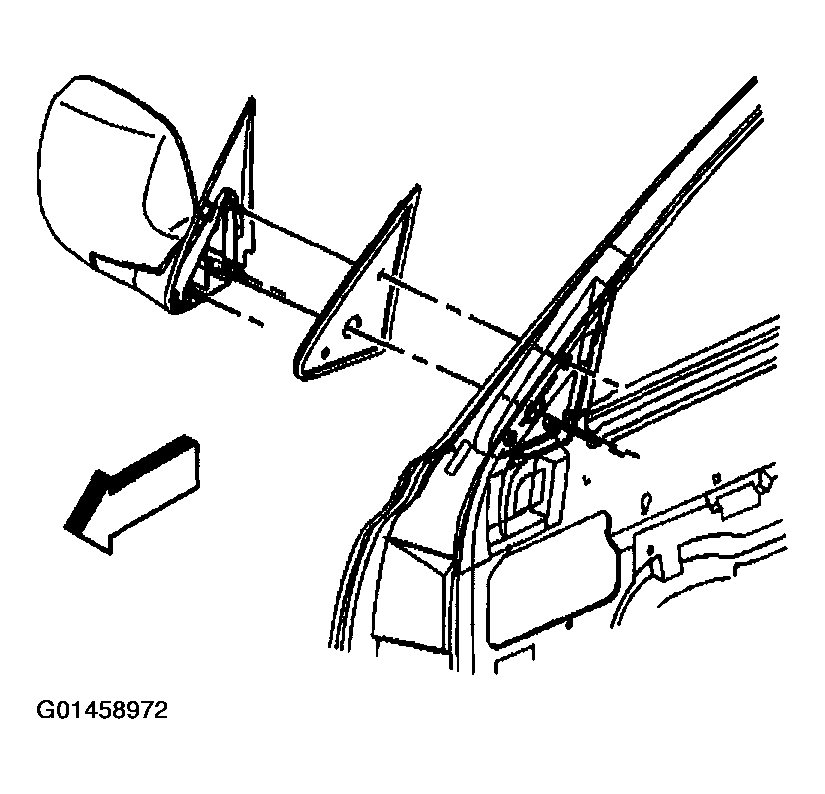

    6. Fig 2: Removing Power Mirror
    G01458972Courtesy of GENERAL MOTORS CORP.
