Installation Procedure

  1. Install the regulator to the door.
  2. Install the bolts to the window regulator.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  3. Align the window glass to the regulator, and install the bolts that hold the window glass to the regulator.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

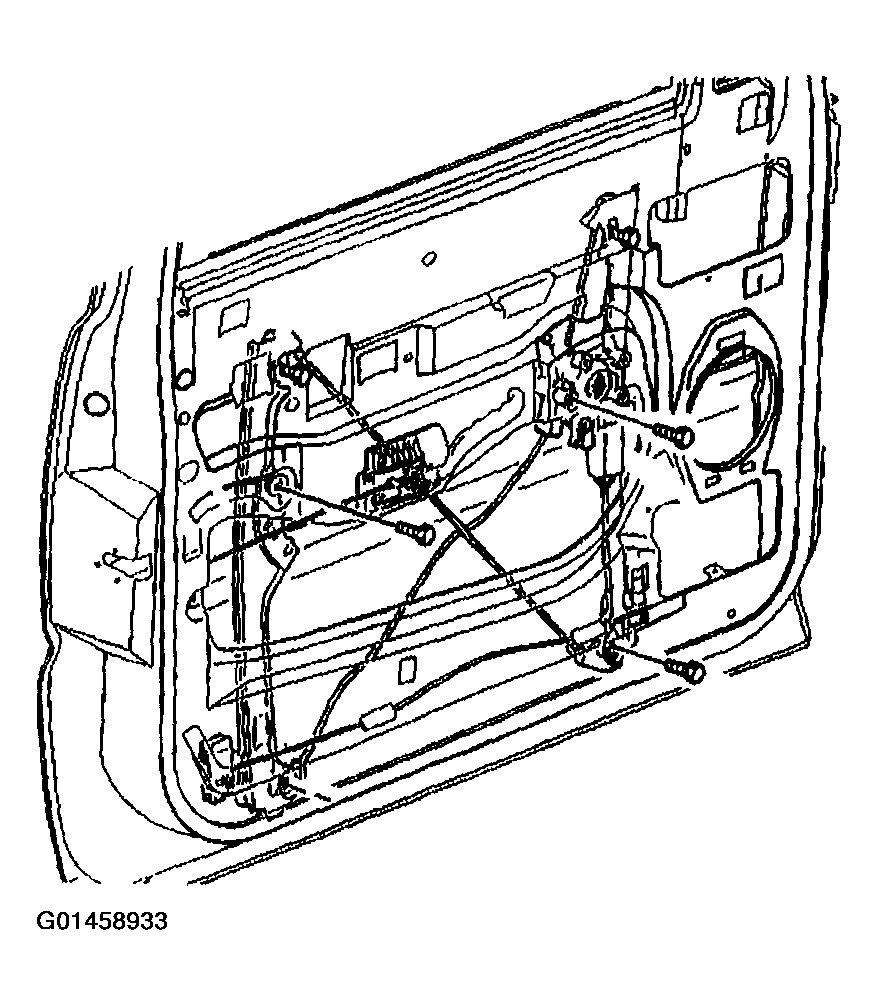

    4. Fig 1: Installing Module Front Power Window
    G01458933Courtesy of GENERAL MOTORS CORP.
  4. Connect the harness to the electric window motor assembly.
  5. Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  6. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  7. Lower the window. Inspect the operation.
