Removal Procedure

Raise and support the window glass.
Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
Disconnect the harness from the electric window motor assembly.
Remove the 2 bolts that hold the window glass to the regulator.
Remove the bolts from the window regulator.
Remove the window regulator assembly from the door by folding both sides of the window regulator assembly together.

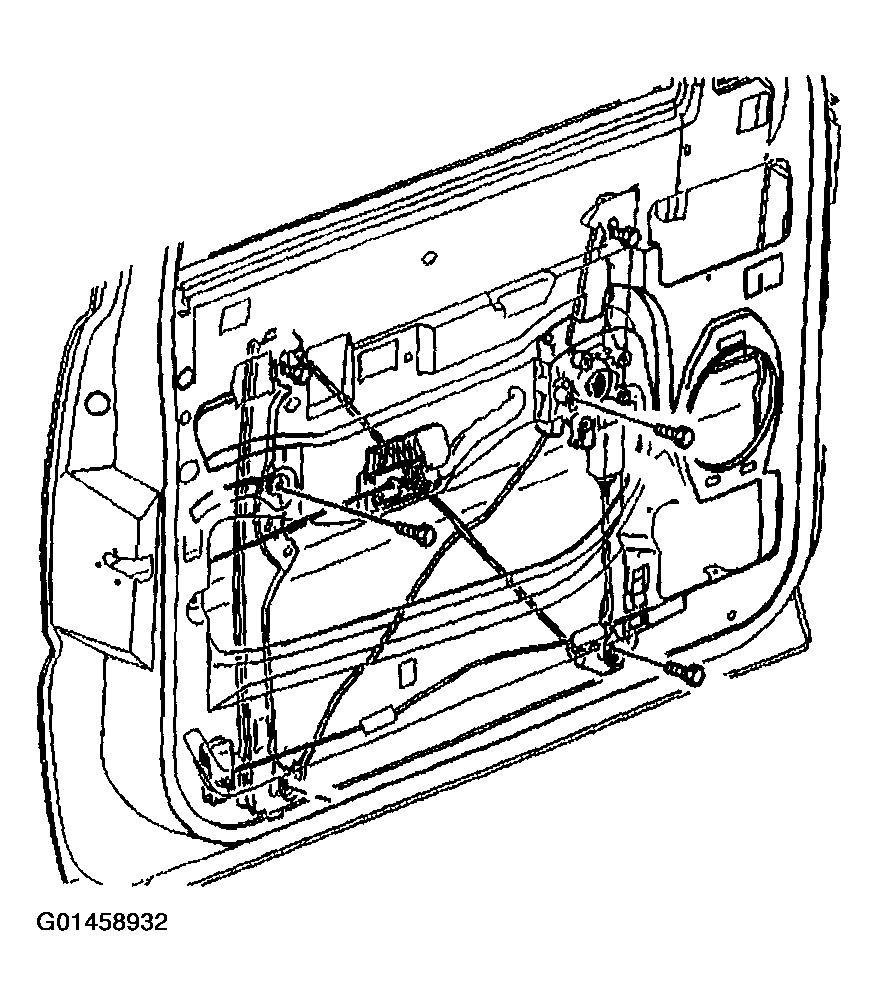

Fig 1: Removing Module Front Power Window

Courtesy of GENERAL MOTORS CORP.
