Removal Procedure

  1. Open the front door.
  2. Release the upper extension by pulling outward in order to release the upper retainer clip.
  3. Remove the upper extension from the trim panel by lifting up and out.

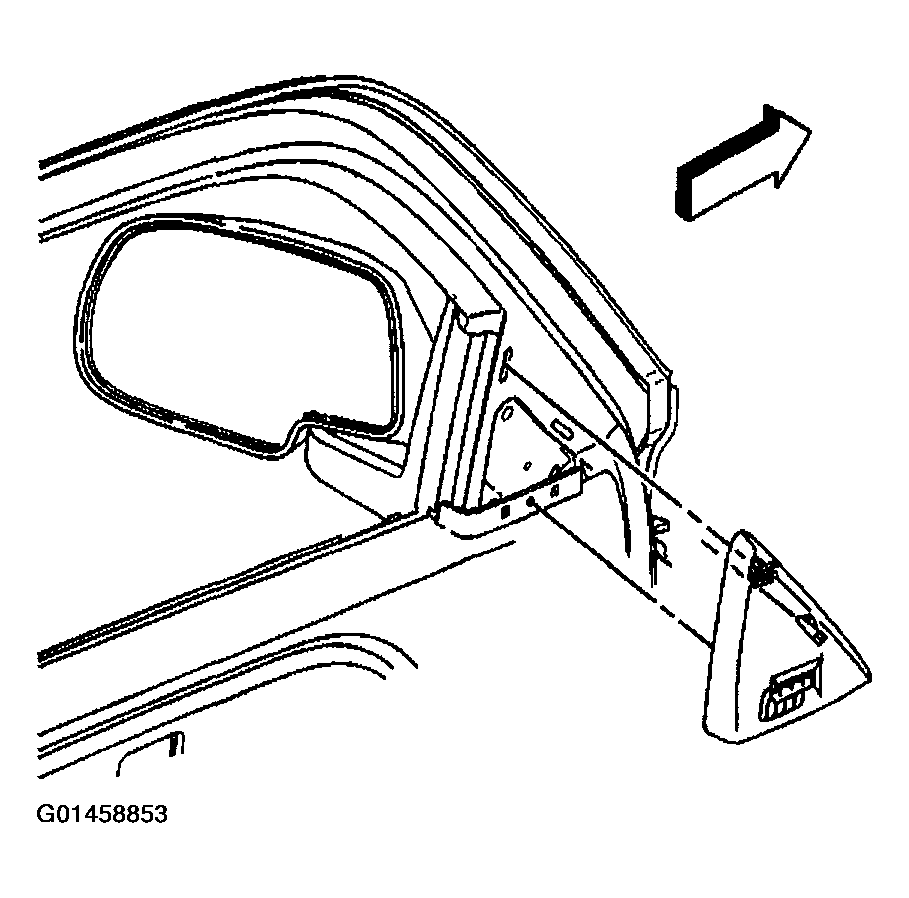

    4. Fig 1: Removing Trim Panel Upper Extension
    G01458853Courtesy of GENERAL MOTORS CORP.
