Stationary Windows Component Views

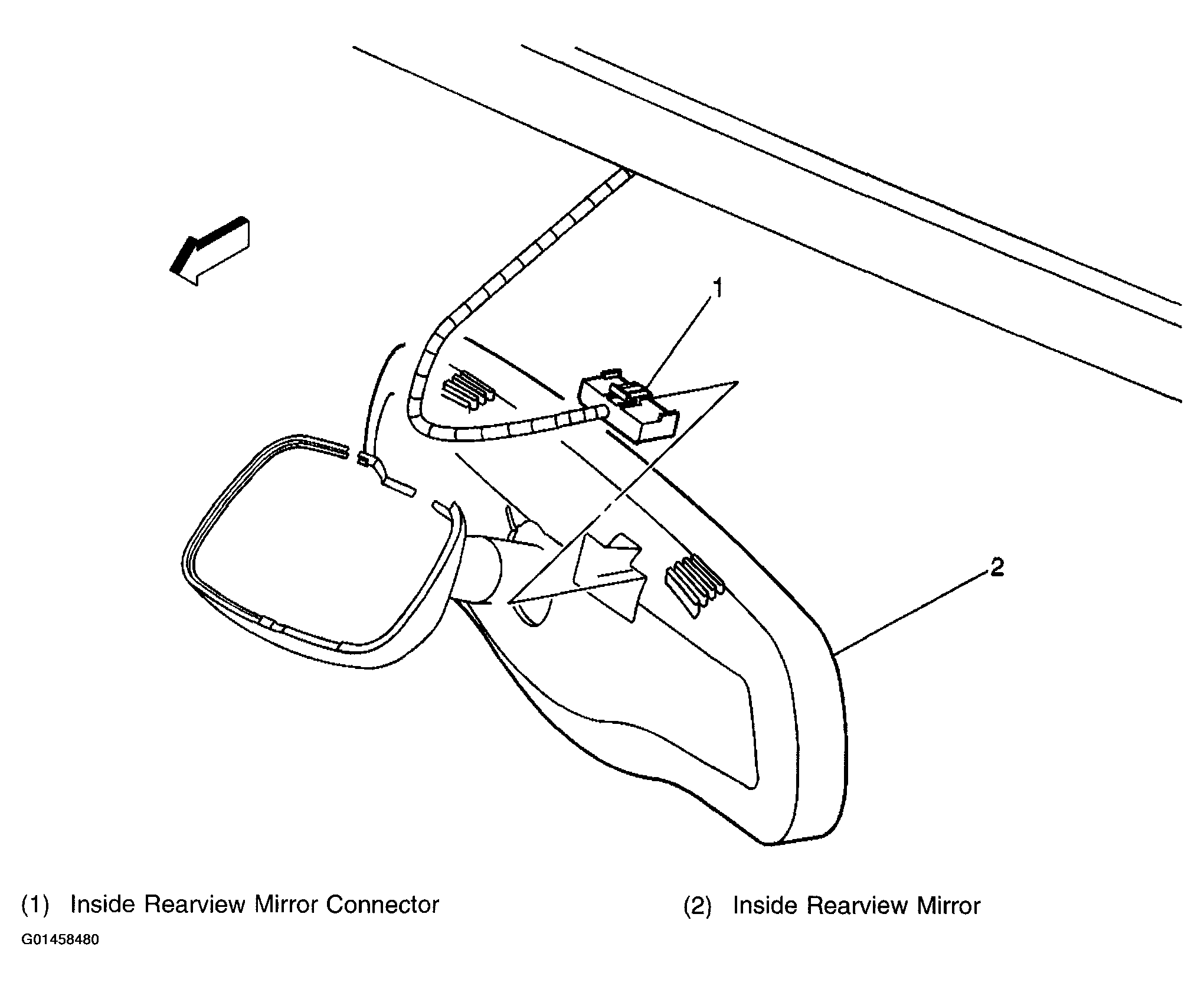

Fig 1: Identifying Inside Rearview Mirror Components
G01458480Courtesy of GENERAL MOTORS CORP.

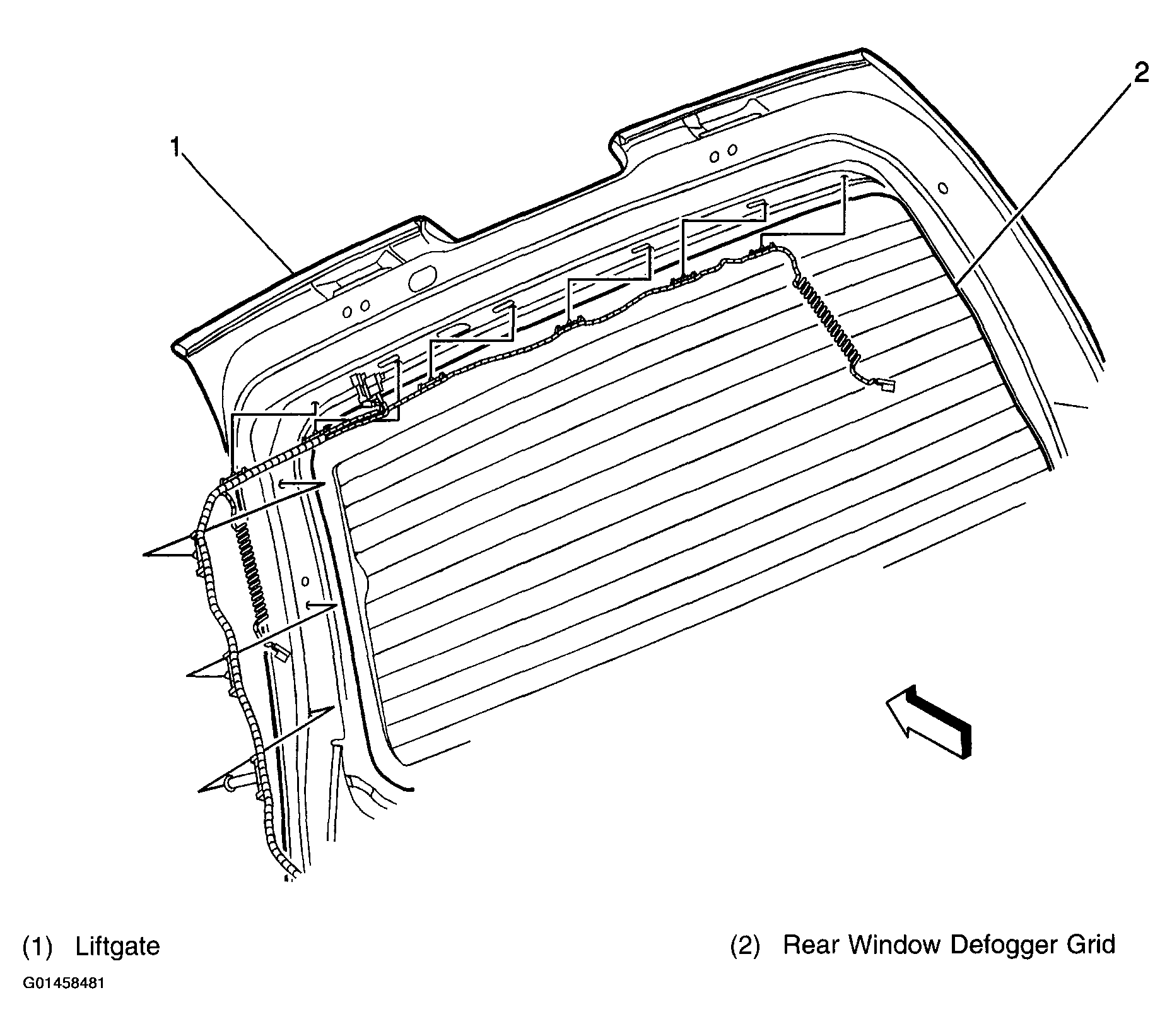

Fig 2: Locating Liftgate Defogger Grid
G01458481Courtesy of GENERAL MOTORS CORP.

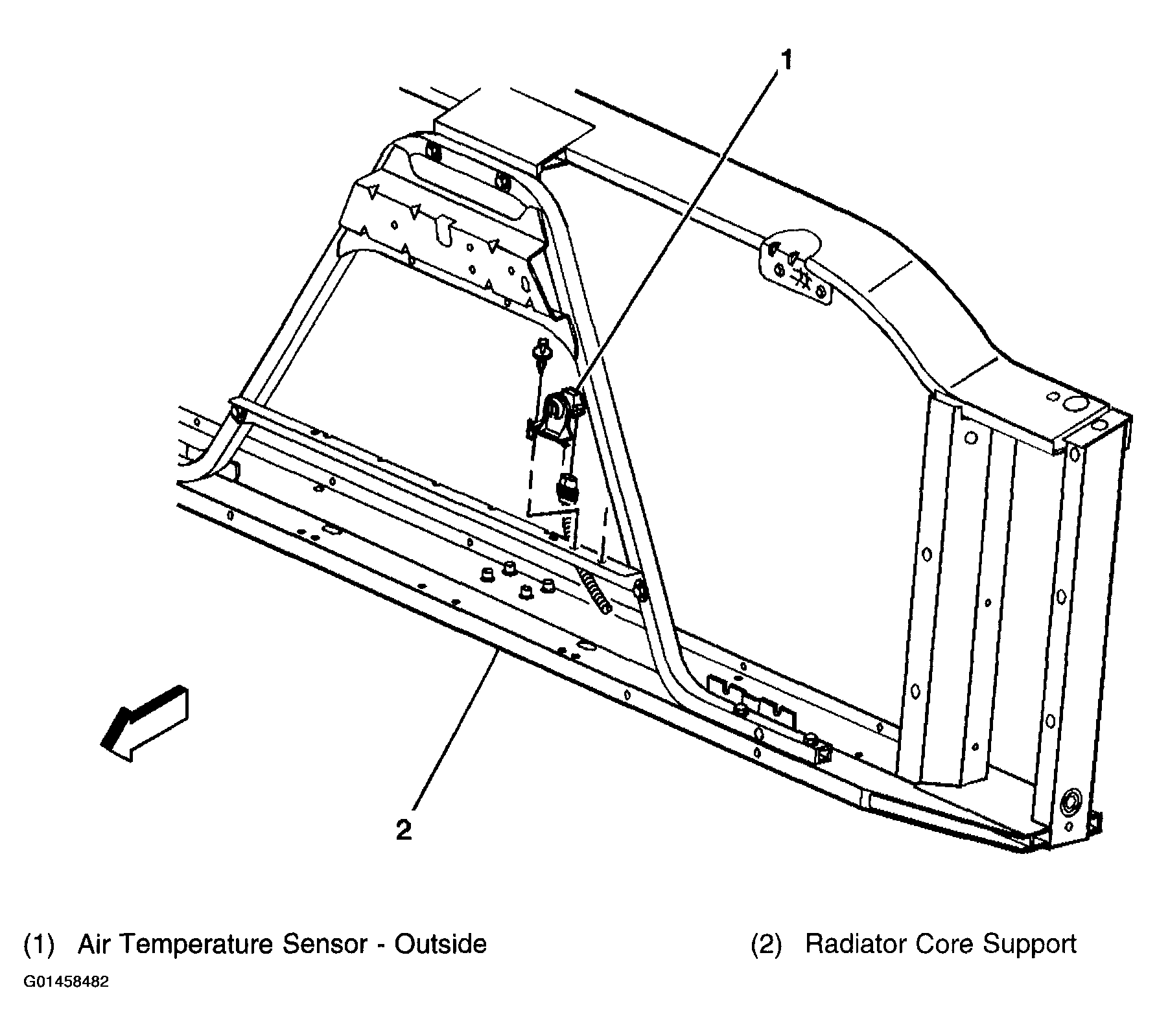

Fig 3: Locating Air Temperature Sensor - Outside
G01458482Courtesy of GENERAL MOTORS CORP.
