Installation Procedure

  1. Install the ambient air temperature sensor (3).
  2. Connect the electrical connector to the ambient air temperature sensor (3).
  3. Install the Park/Turn Signal. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT (AVALANCHE) or PARK/TURN SIGNAL LAMP REPLACEMENT (EXCEPT AVALANCHE) in Lighting Systems.

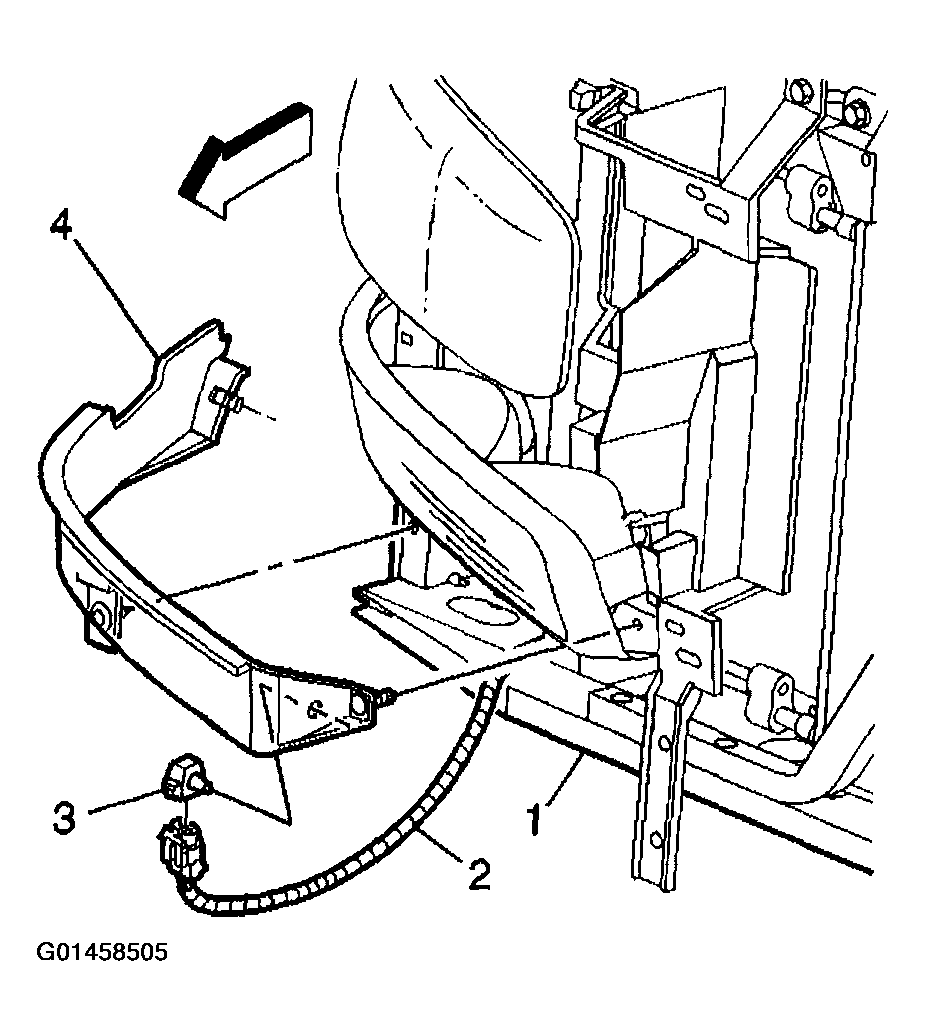

    Fig 1: Installing Ambient Air Temperature Sensor
    G01458505Courtesy of GENERAL MOTORS CORP.
