Removal Procedure

CAUTION: Refer to GLASS & SHEET METAL HANDLING CAUTION in Cautions and Notices.

CAUTION: If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the rusk of damage or personal injury.

Important: Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

Open the liftgate.
CAUTION: If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
Cover the following parts to protect from broken glass.
1. 2.1. The upper dash pad
2. 2.2. The defroster outlets and A/C outlets
3. 2.3. The seats and the carpeting
Remove the right of left side applique.
Important: Keep the cutting edge of the tool against the quarter window from inside the vehicle. This will allow the urethane adhesive to be separated from the window.
Use J24402-A, J 39032, or equivalent in order to remove the quarter window.
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.
If the original reveal molding on the window is damaged, replace the molding.

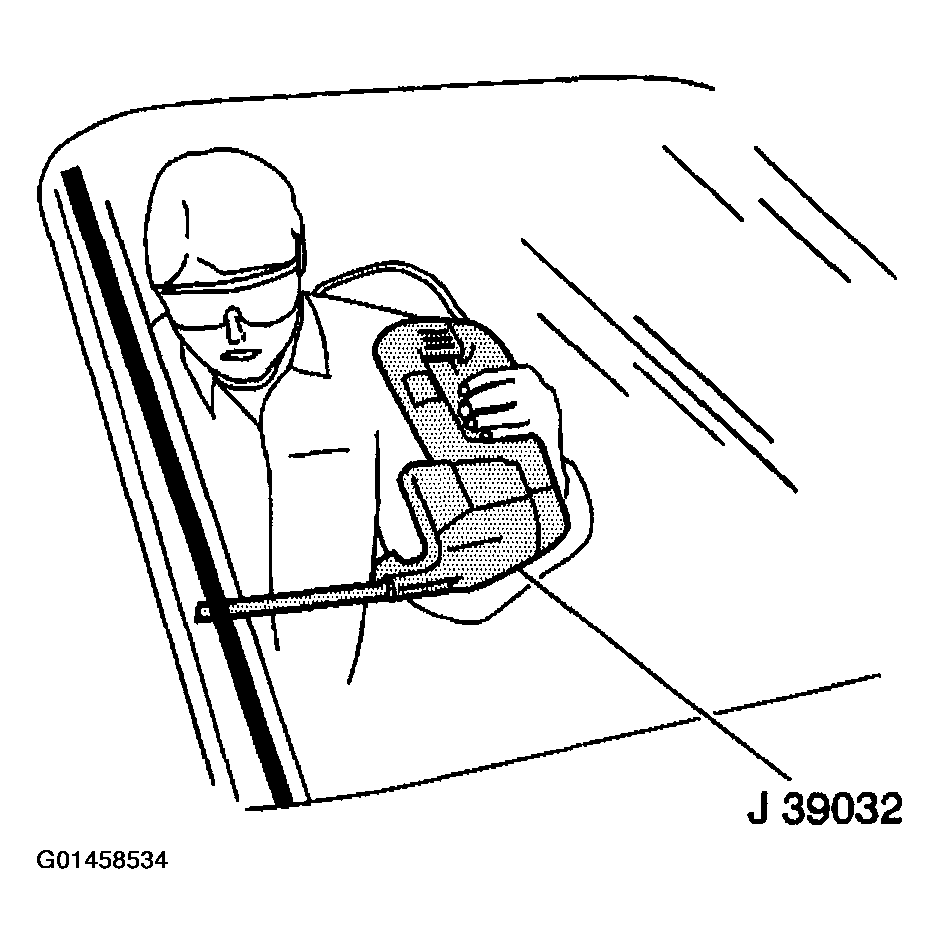

Fig 1: Removing Quarter Window Using J 24402-A & J 39032
Courtesy of GENERAL MOTORS CORP.
With the aid of an assistant, use the suction cups to remove the window from the opening.

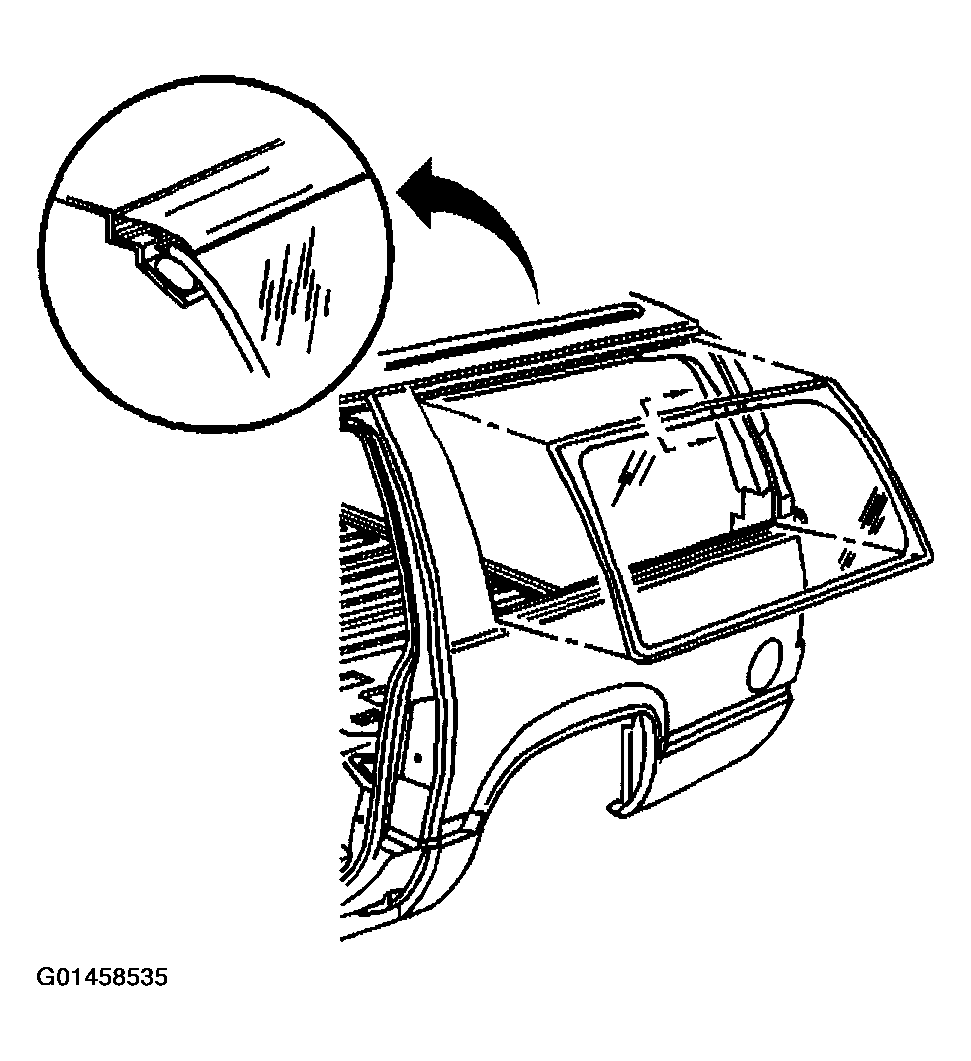

Fig 2: Removing Window From Opening
Courtesy of GENERAL MOTORS CORP.
