Installation Procedure

  1. Install the windshield reveal molding to the windshield pillar.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the windshield reveal molding.

    Tighten

    1. Tighten the screws to the windshield reveal molding to 2 N-m (18 lb in).

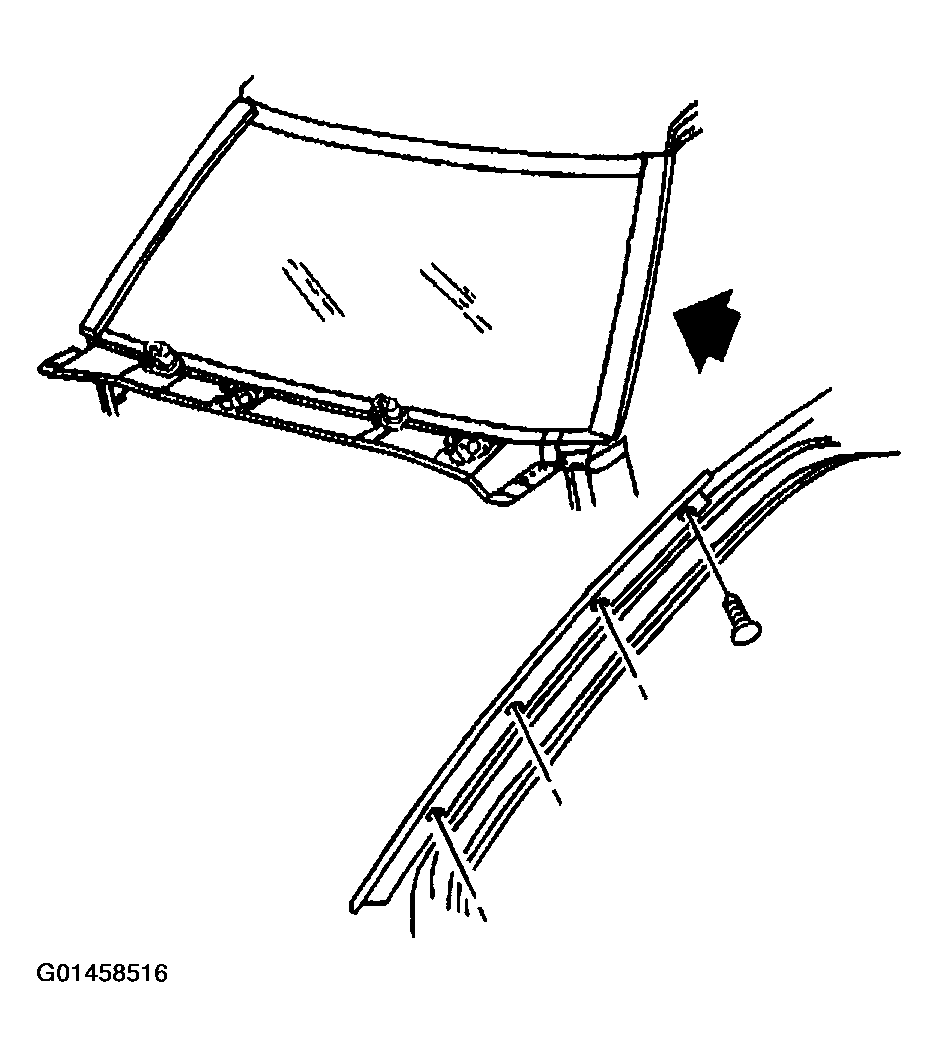

    Fig 1: Installing Screws To Windshield Reveal Molding
    G01458516Courtesy of GENERAL MOTORS CORP.
  3. Install the front door sealing weatherstrip (1) to the pinch-weld.
  4. Close the door.

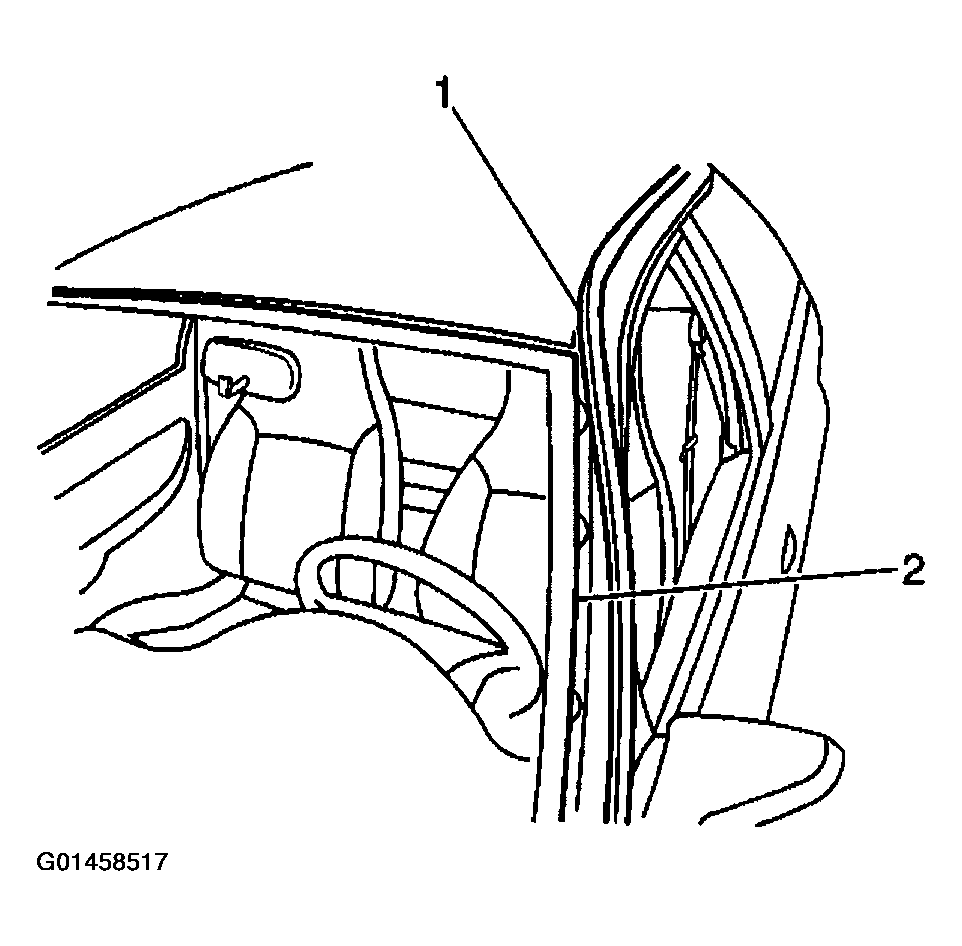

    Fig 2: Installing Front Door Sealing Weatherstrip To Pinch-Weld
    G01458517Courtesy of GENERAL MOTORS CORP.
