Removal Procedure

Remove the battery. Refer to BATTERY REPLACEMENT .

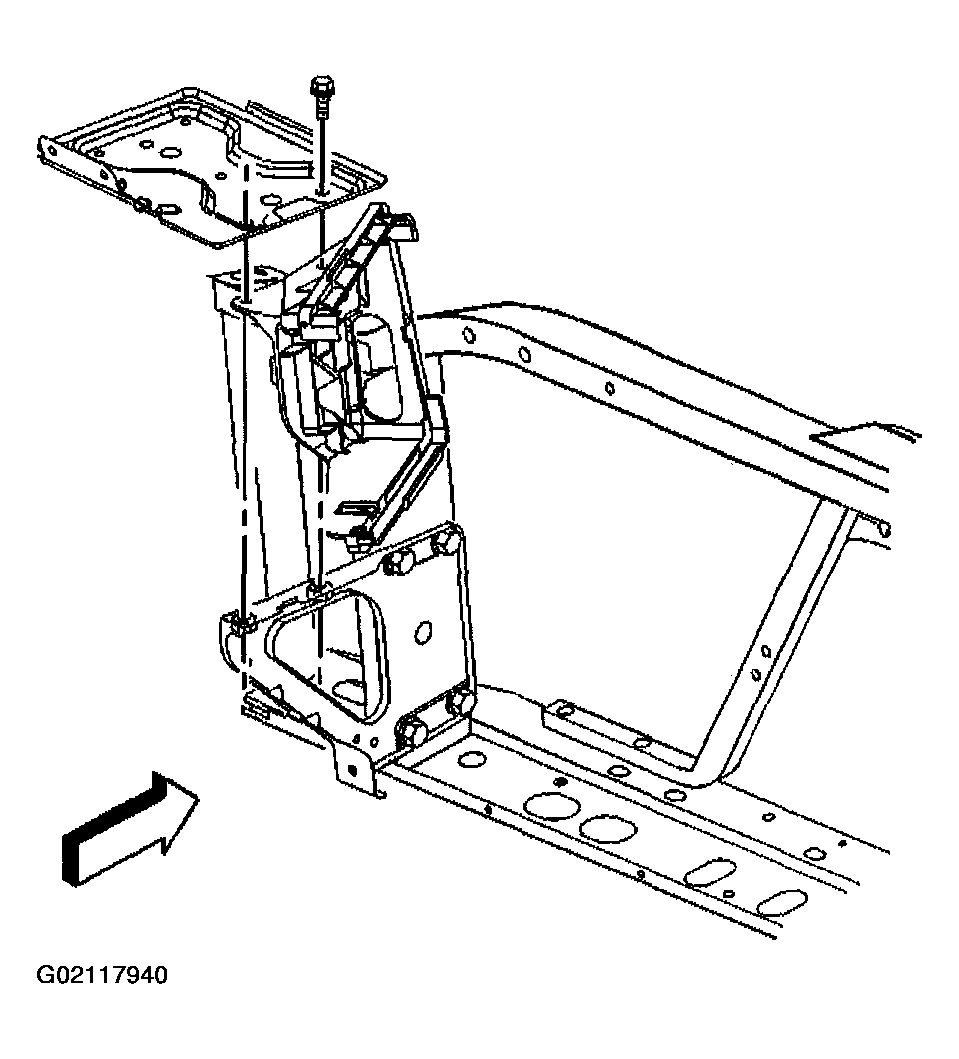

Remove the bolts from the battery tray support.

Fig 1: Removing Bolts From Battery Tray Support
Courtesy of GENERAL MOTORS CORP.

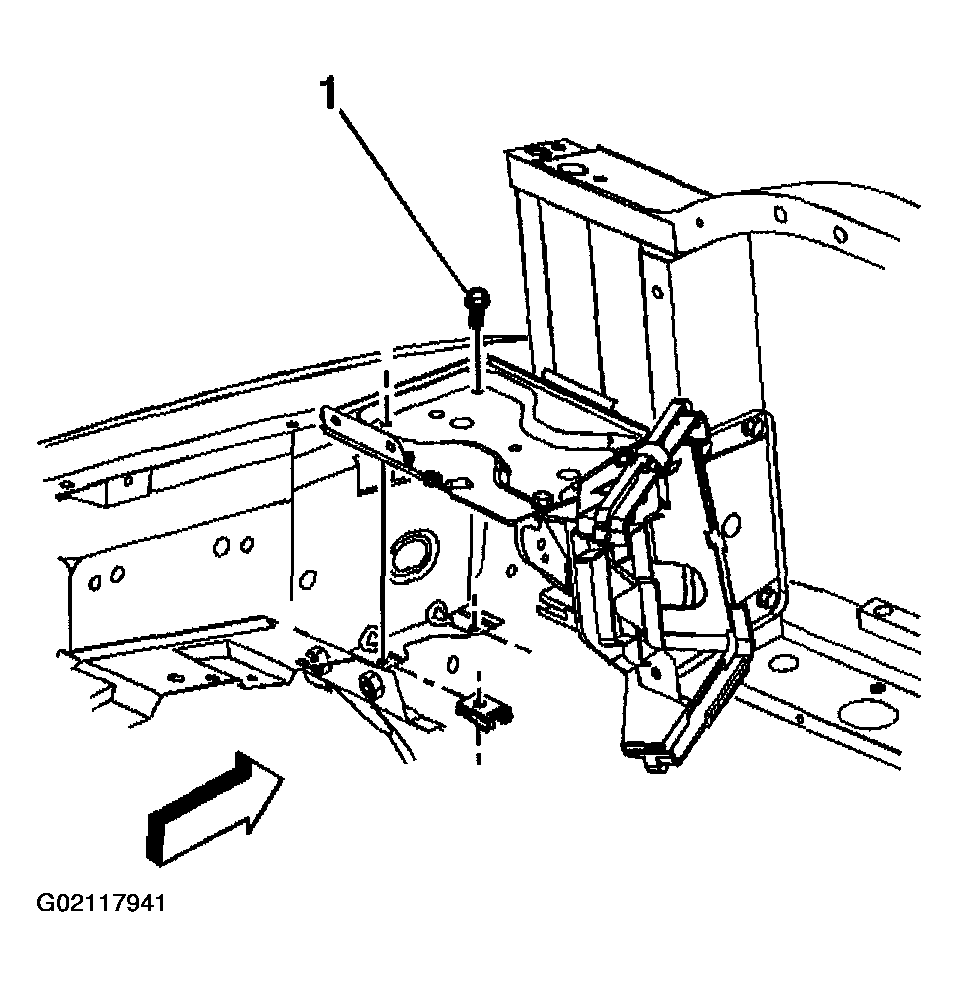

Remove the bolts (1) from the fender inner panel.

Fig 2: Removing Bolts From Fender Inner Panel
Courtesy of GENERAL MOTORS CORP.

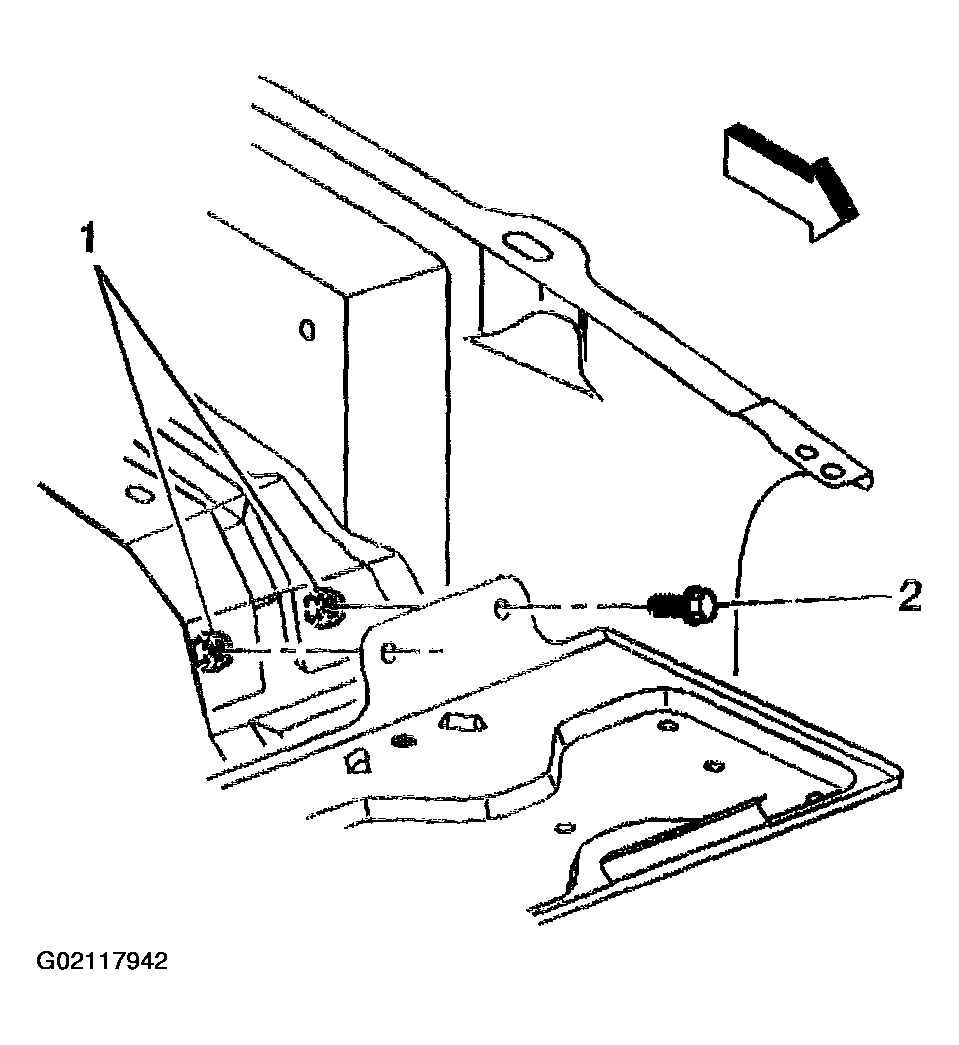

Remove the bolts (2) from the battery tray reinforcement.
Remove the battery tray.

Fig 3: Removing Bolts From Battery Tray Reinforcement
Courtesy of GENERAL MOTORS CORP.
