Horns Component Views

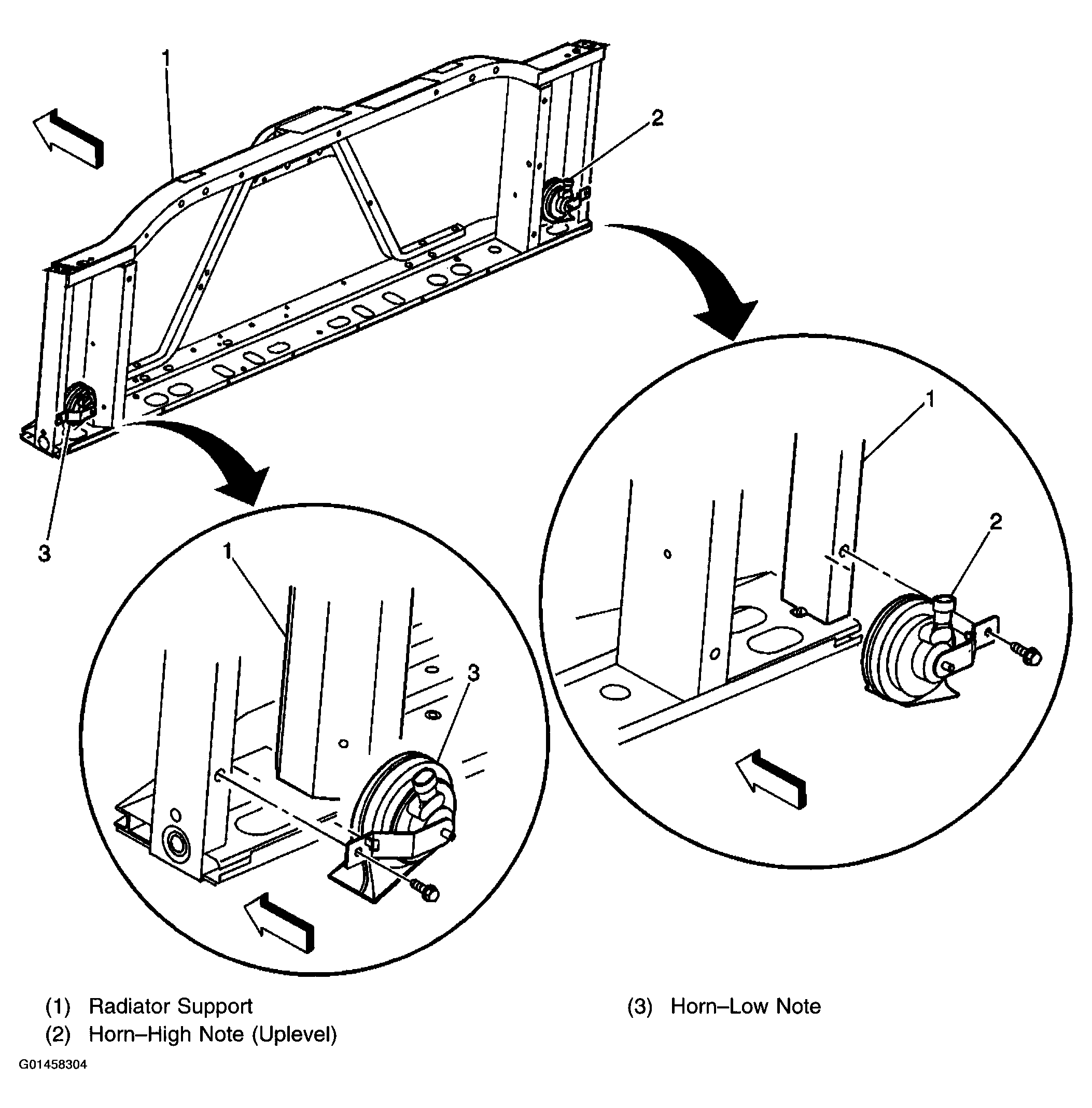

Fig 1: Locating Radiator Support - Horn Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
