Horns Connector End Views

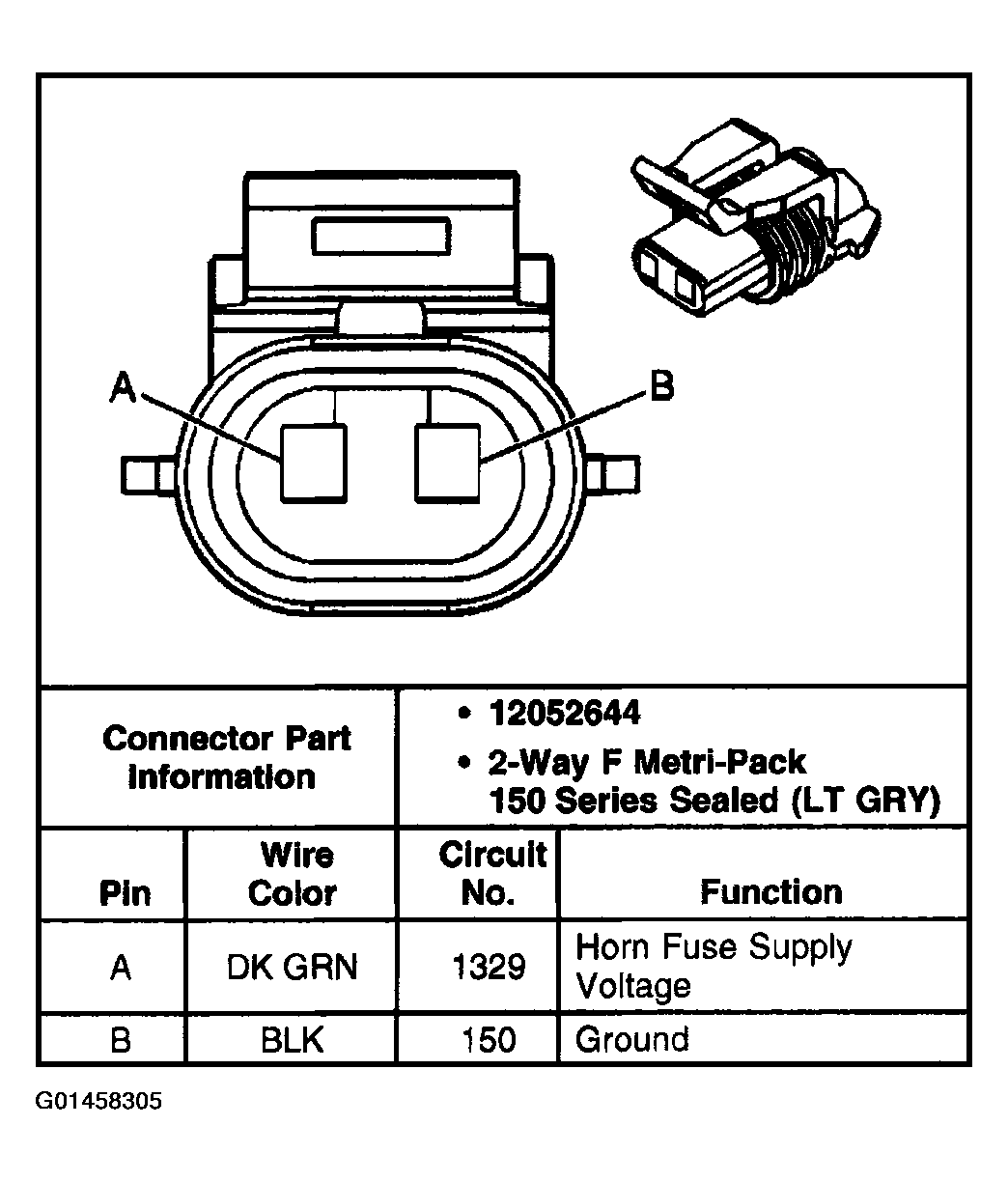

Fig 1: Identifying Horn-Right-High Note
G01458305Courtesy of GENERAL MOTORS CORP.

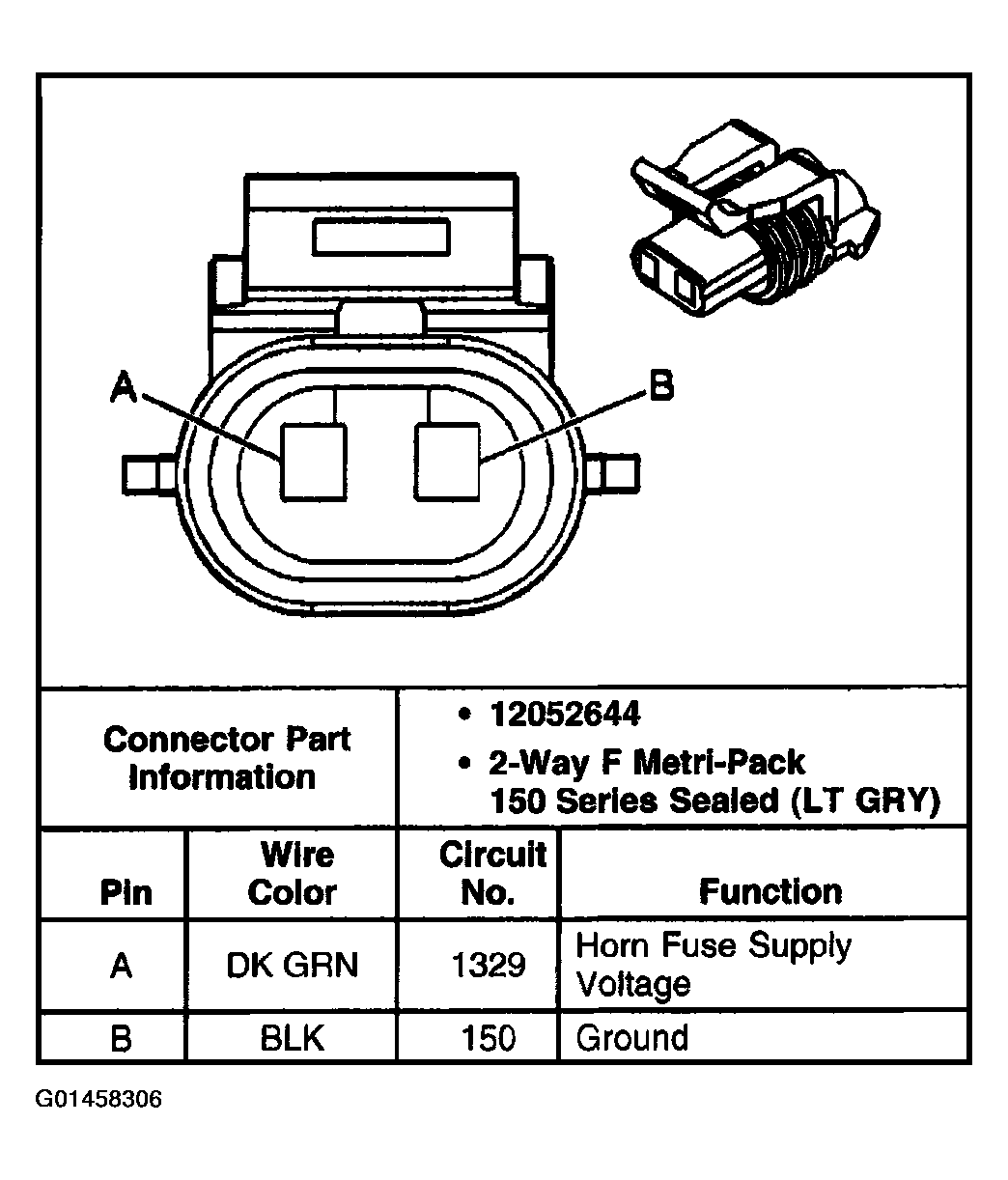

Fig 2: Identifying Horn-Left-Low Note
G01458306Courtesy of GENERAL MOTORS CORP.
