Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

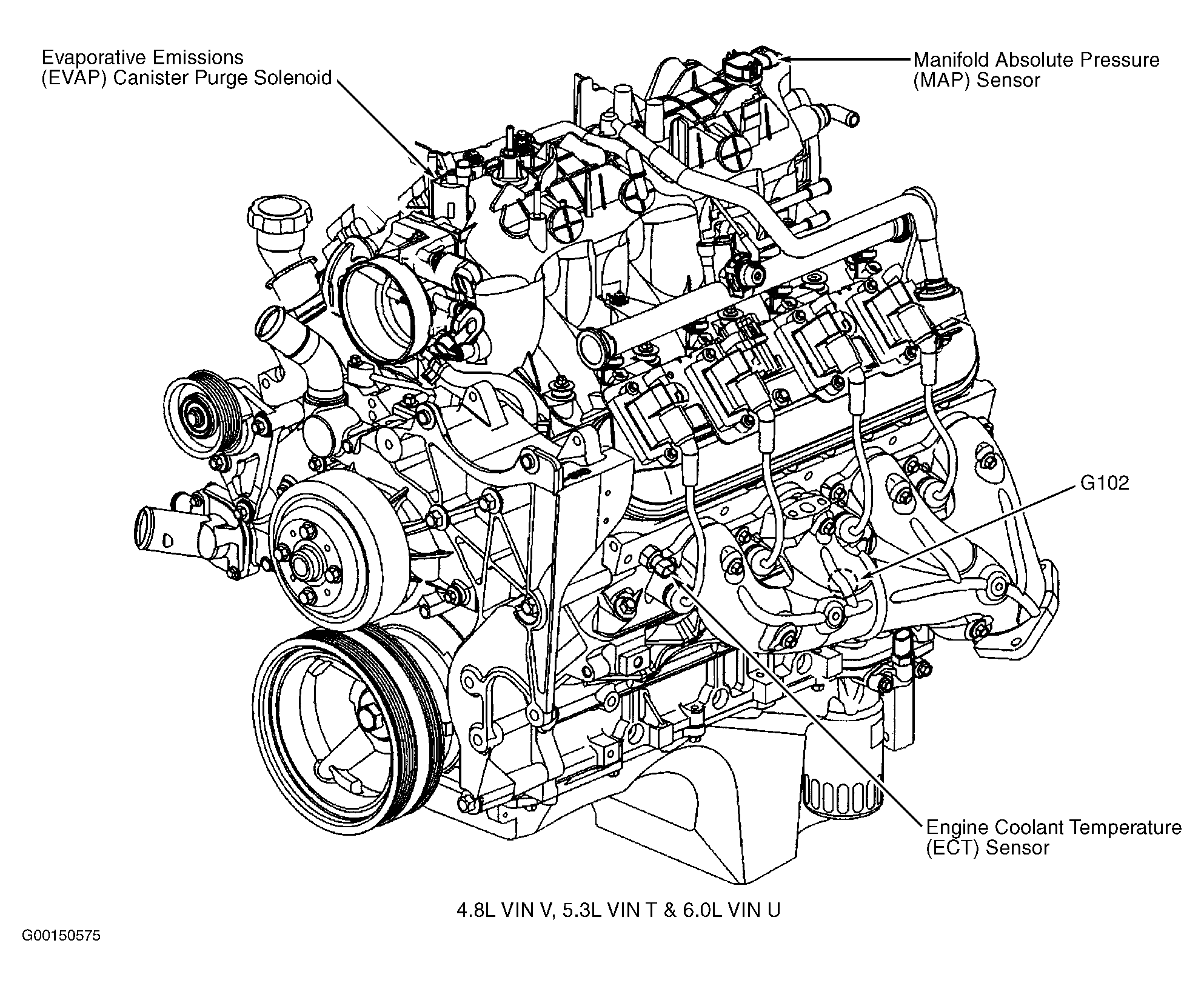

Fig 1: Left Side Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

Courtesy of GENERAL MOTORS CORP.

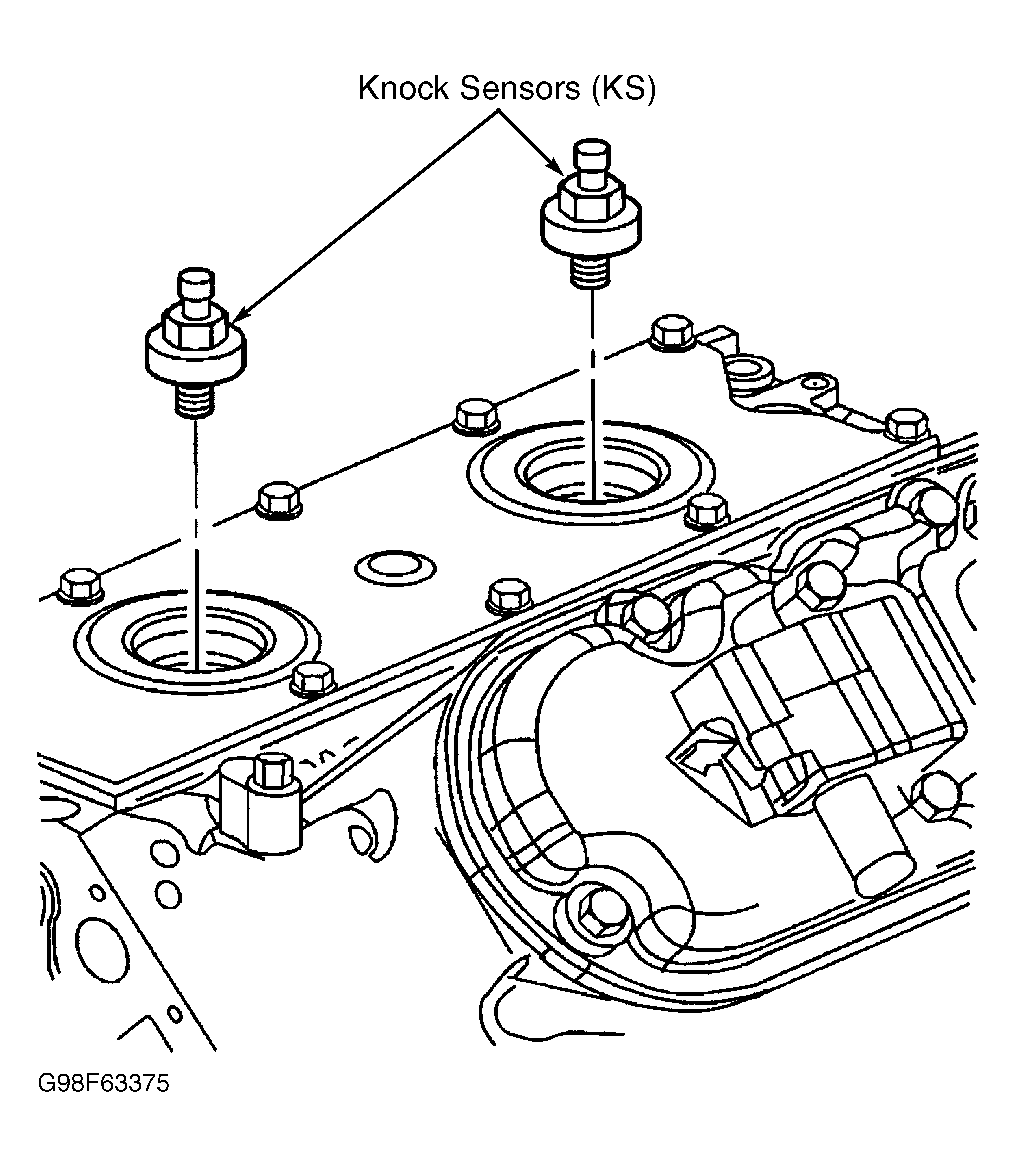

Fig 2: Center Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Lower Right Rear Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

Courtesy of GENERAL MOTORS CORP.

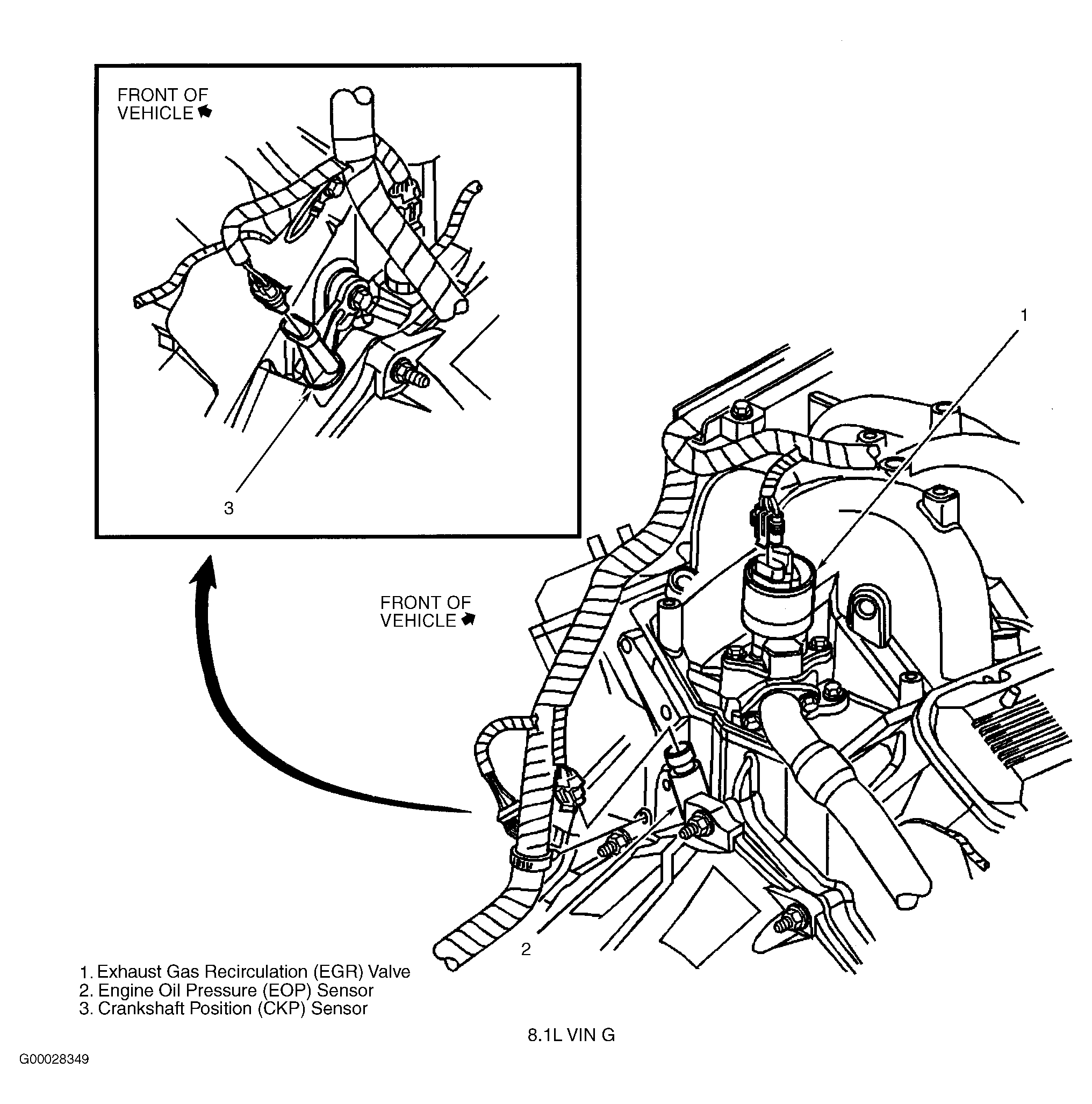

Fig 4: Rear Of Engine (8.1L VIN G)

Courtesy of GENERAL MOTORS CORP.

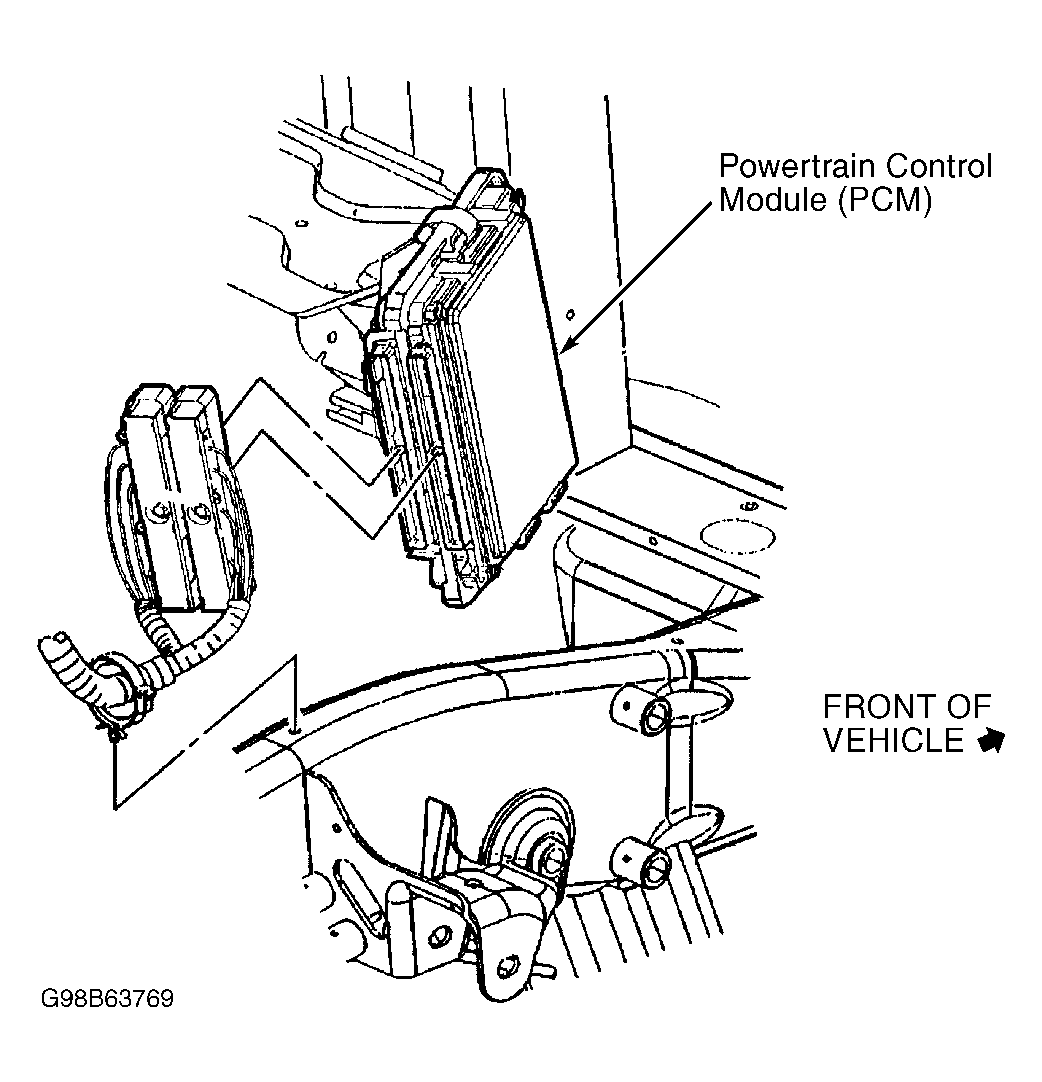

Fig 5: Right Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

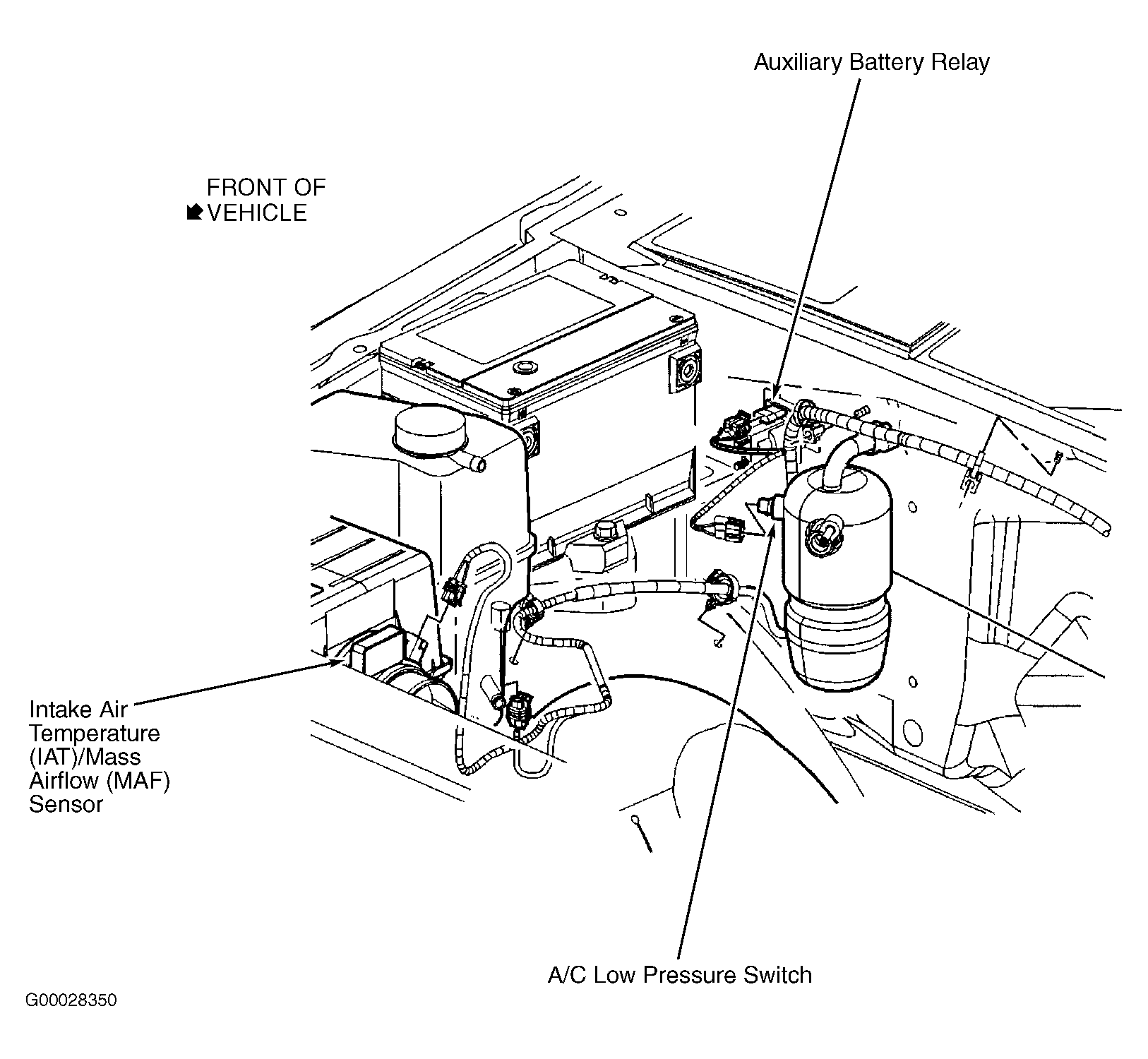

Fig 6: Left Front Of Engine Compartment (4.8L VIN V, 5.3L VIN T, 6.0L VIN U & 8.1L VIN G)

Courtesy of GENERAL MOTORS CORP.

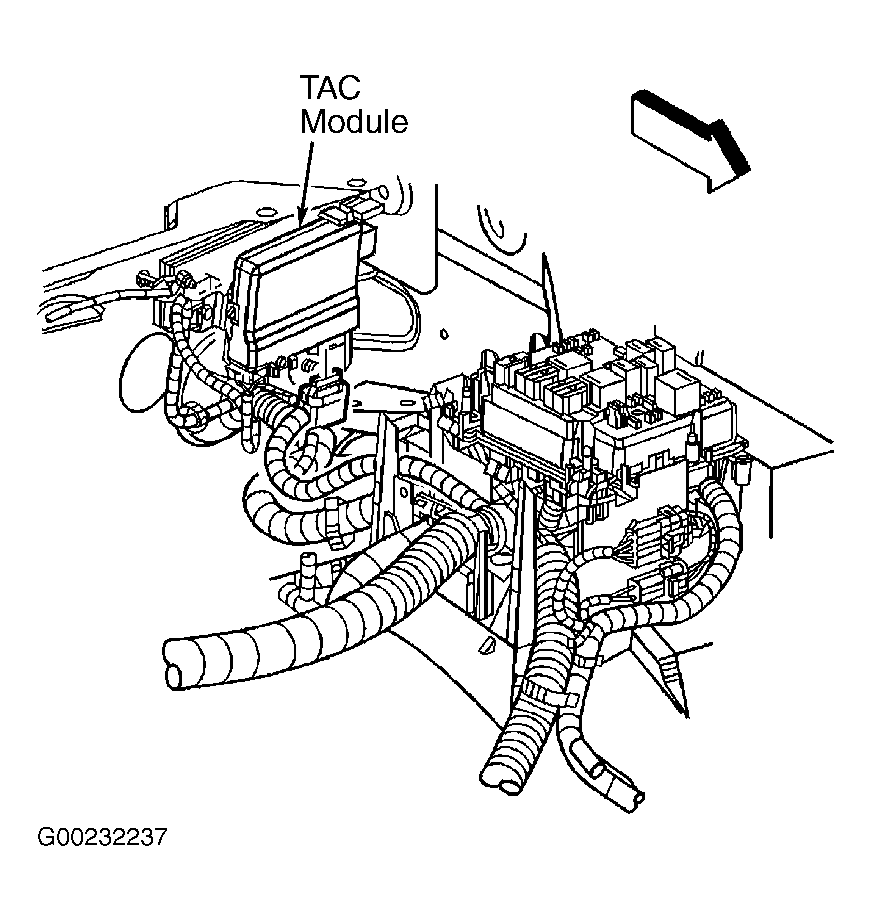

Fig 7: Left Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

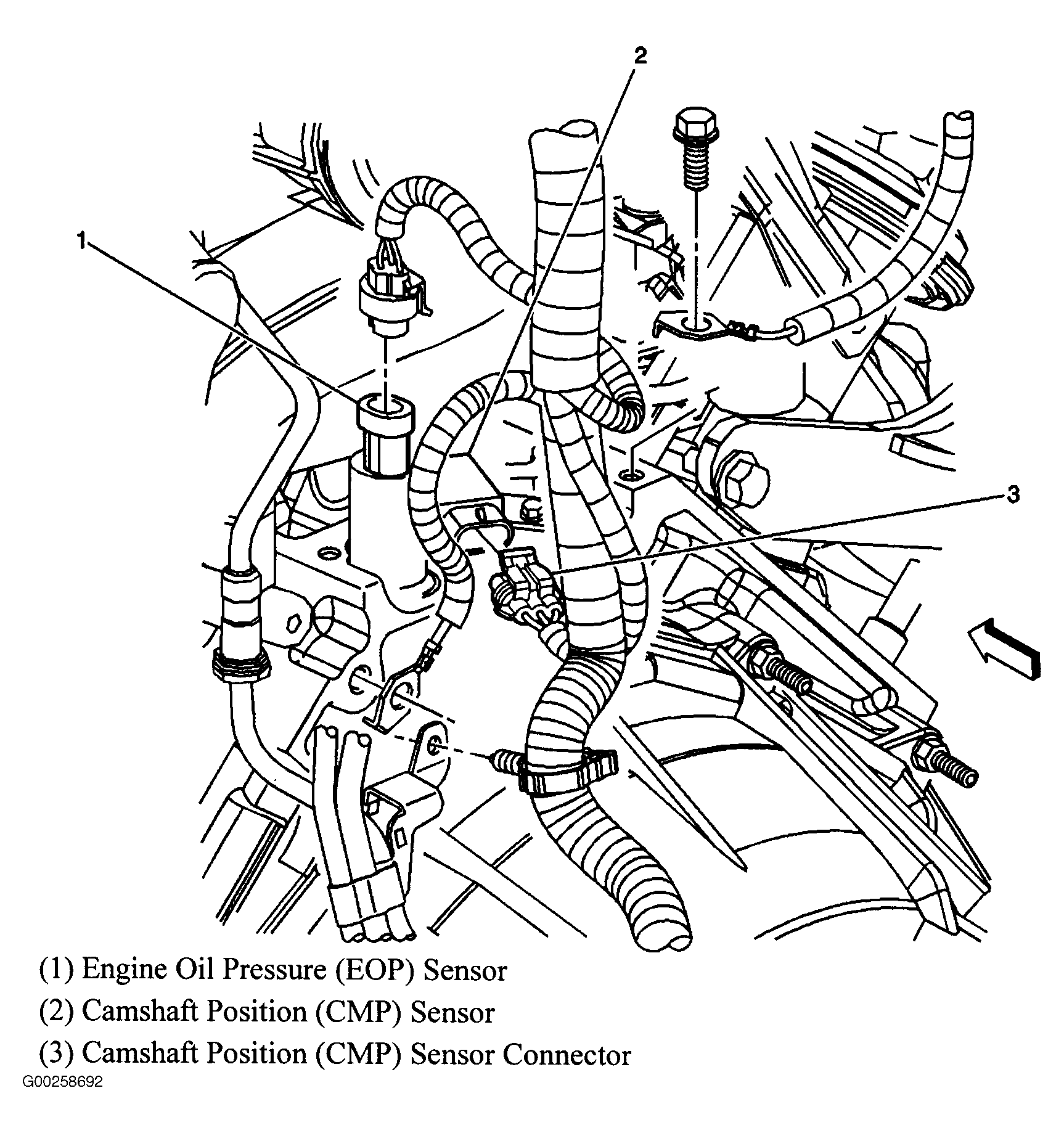

Fig 8: Top Rear Of Engine (4.8L, 5.3L & 6.0L)

Courtesy of GENERAL MOTORS CORP.

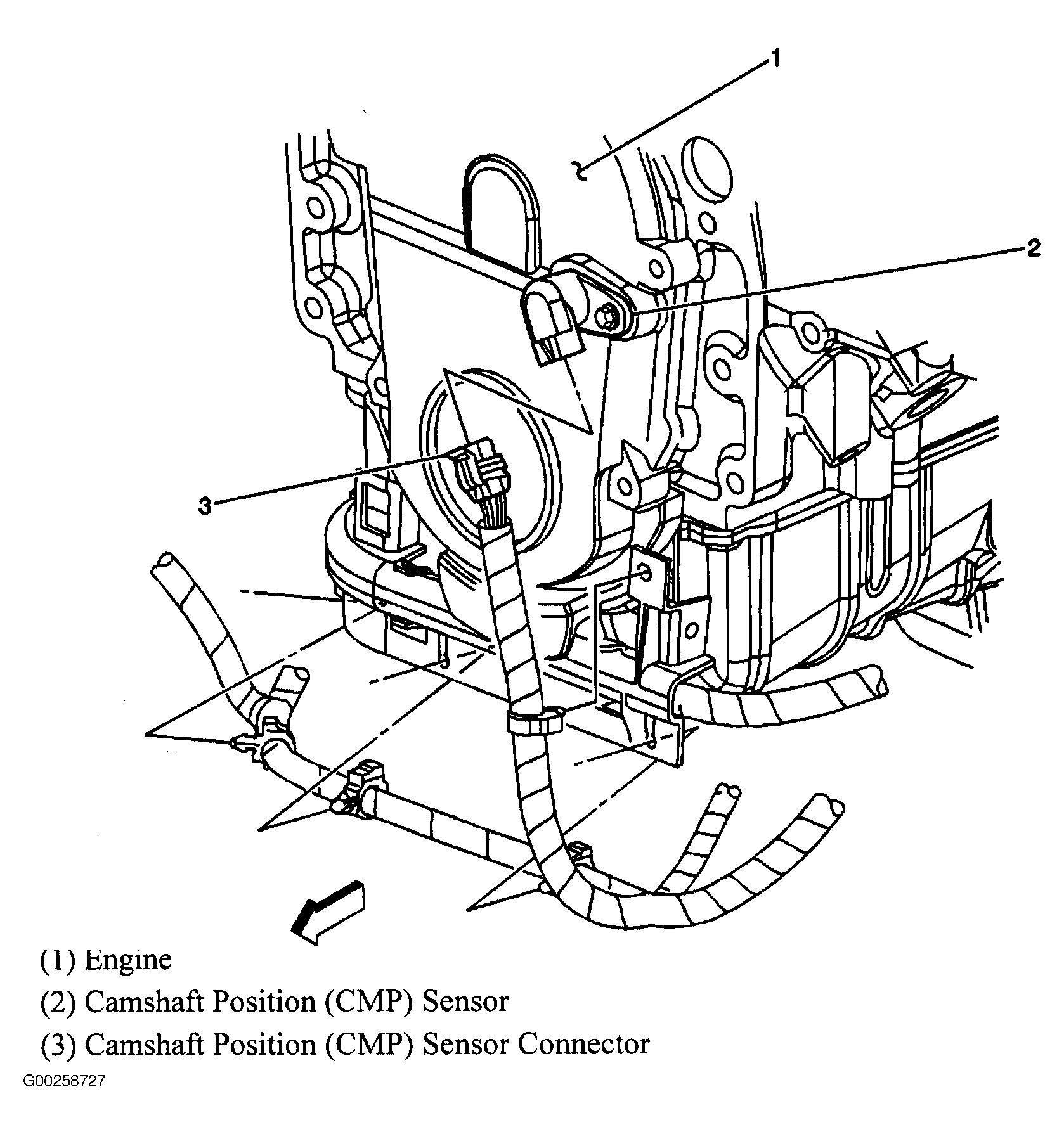

Fig 9: Camshaft Position (CMP) Sensor (8.1L)

Courtesy of GENERAL MOTORS CORP.

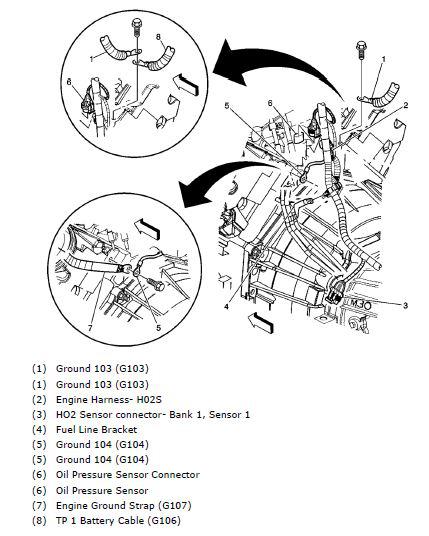

Fig 10: right rear of engine block

Courtesy of GENERAL MOTORS CORP.
