Starter Solenoid Does Not Click

Refer to illustrations for STARTER SOLENOID DOES NOT CLICK symptom test. See Fig 1-Fig 4 .

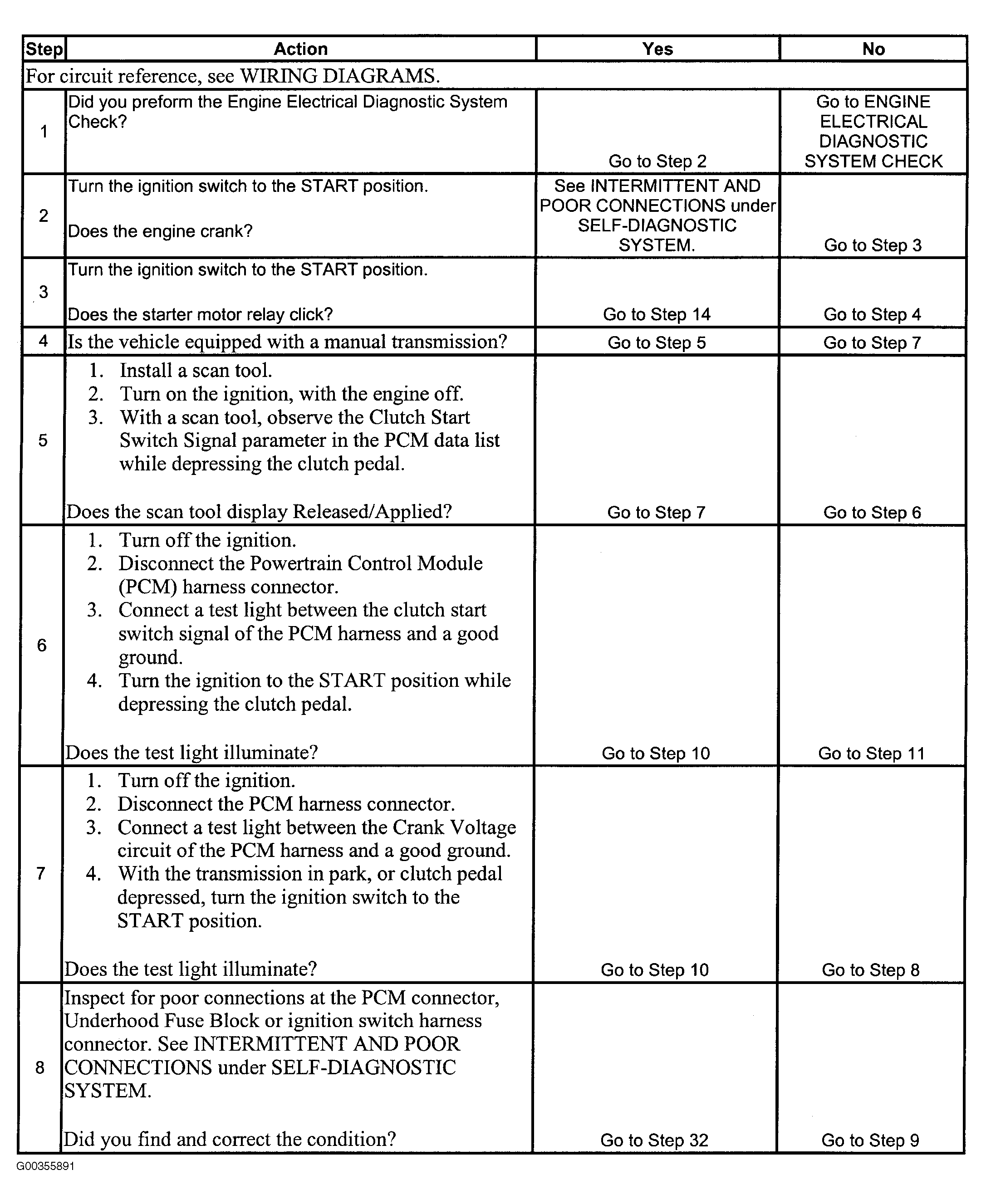

Fig 1: Starter Solenoid Does Not Click Symptom Test (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

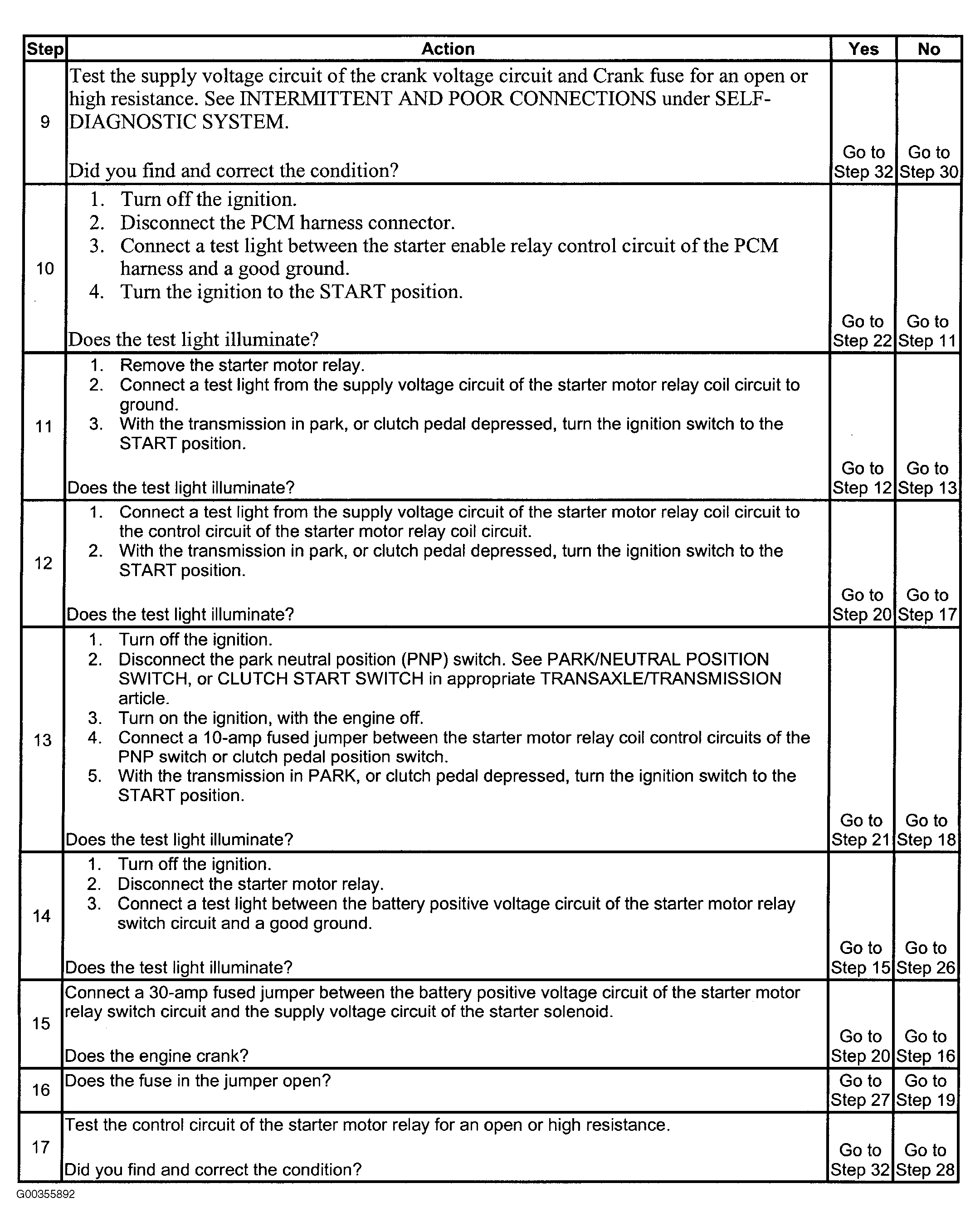

Fig 2: Starter Solenoid Does Not Click Symptom Test (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

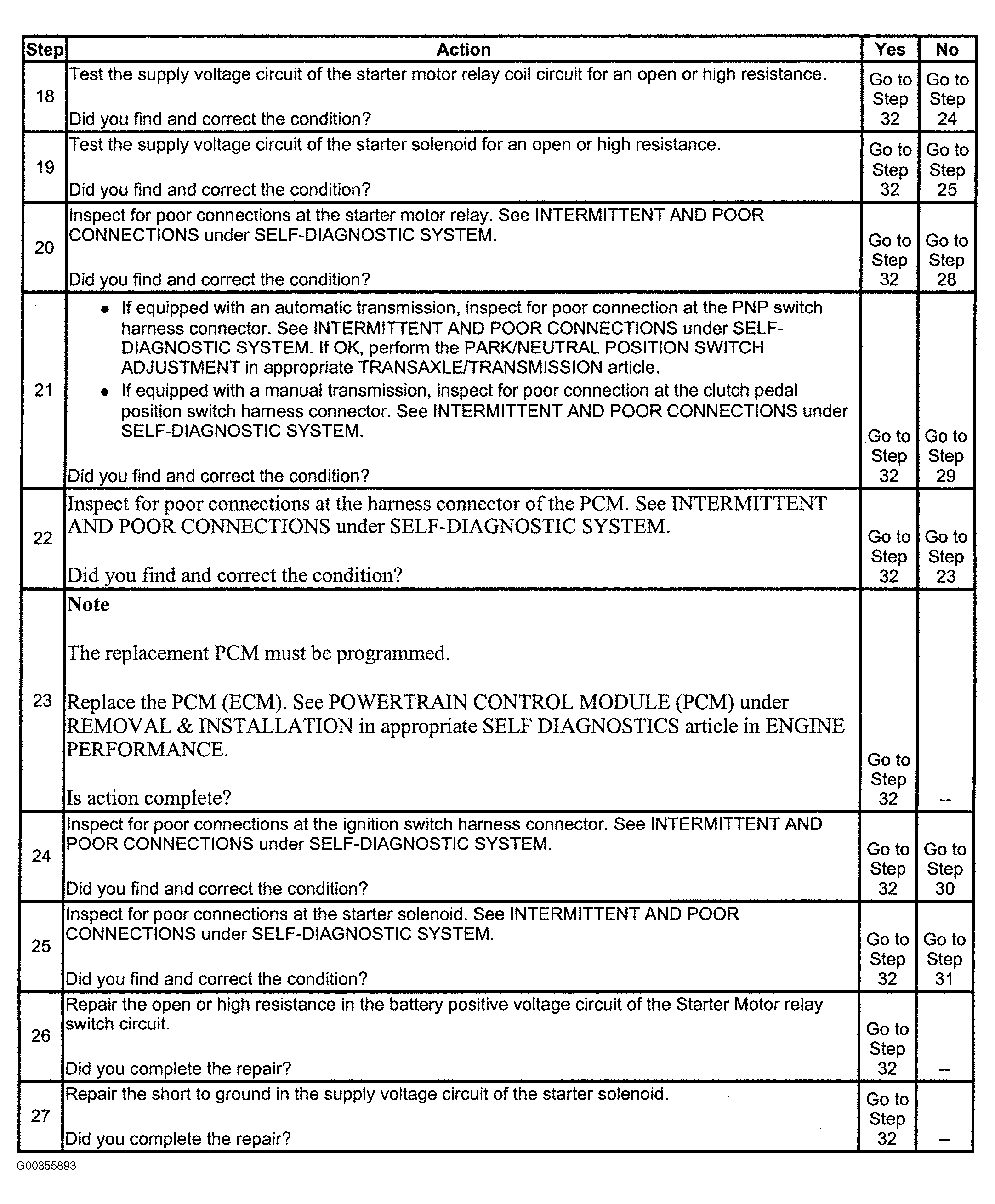

Fig 3: Starter Solenoid Does Not Click Symptom Test (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

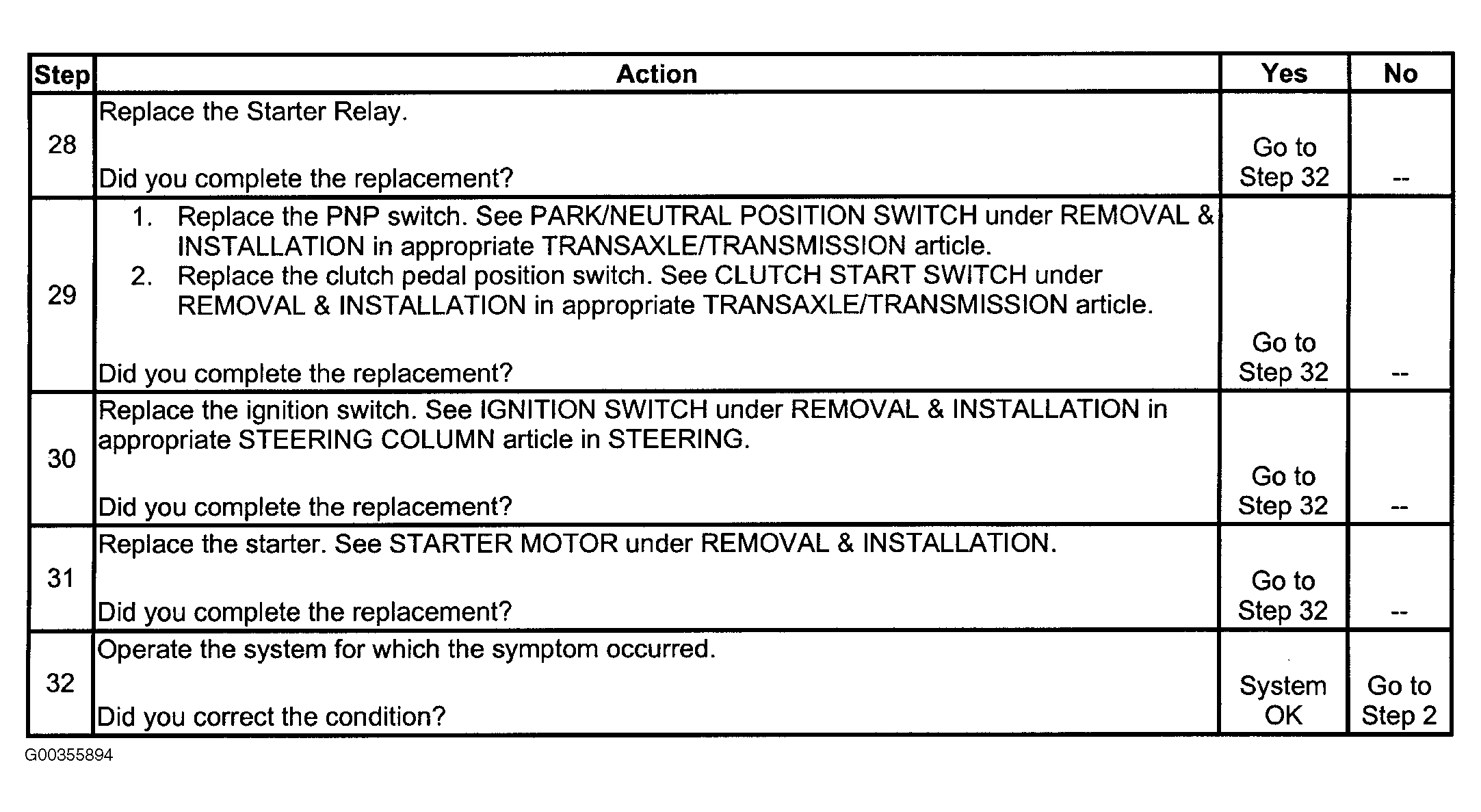

Fig 4: Starter Solenoid Does Not Click Symptom Test (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
