Installation Procedure

  1. Install the exhaust heat shield to the studs.
  2. Install the exhaust heat shield nuts.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the nuts to 9 N.m (80 lb in).

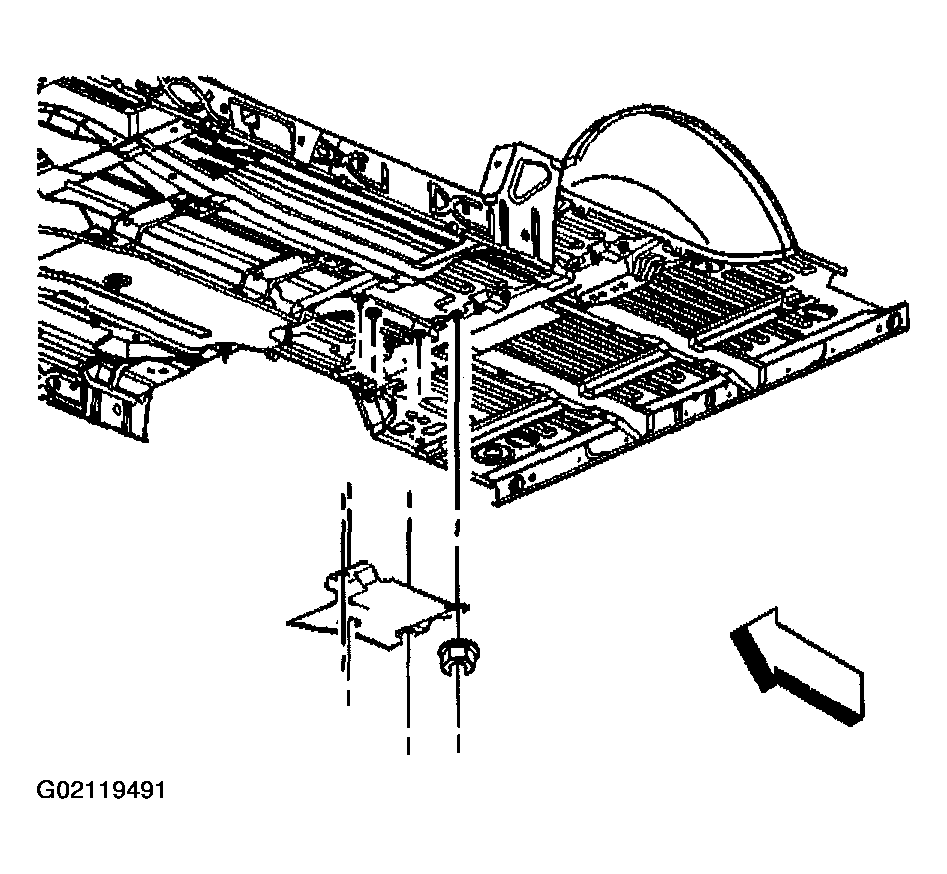

    3. Fig 1: Installing Exhaust Heat Shield Nuts
    G02119491Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust front heat shield to the studs.
  4. Install the exhaust front heat shield nuts.

    Tighten

    Tighten the nuts to 9 N.m (80 lb in).

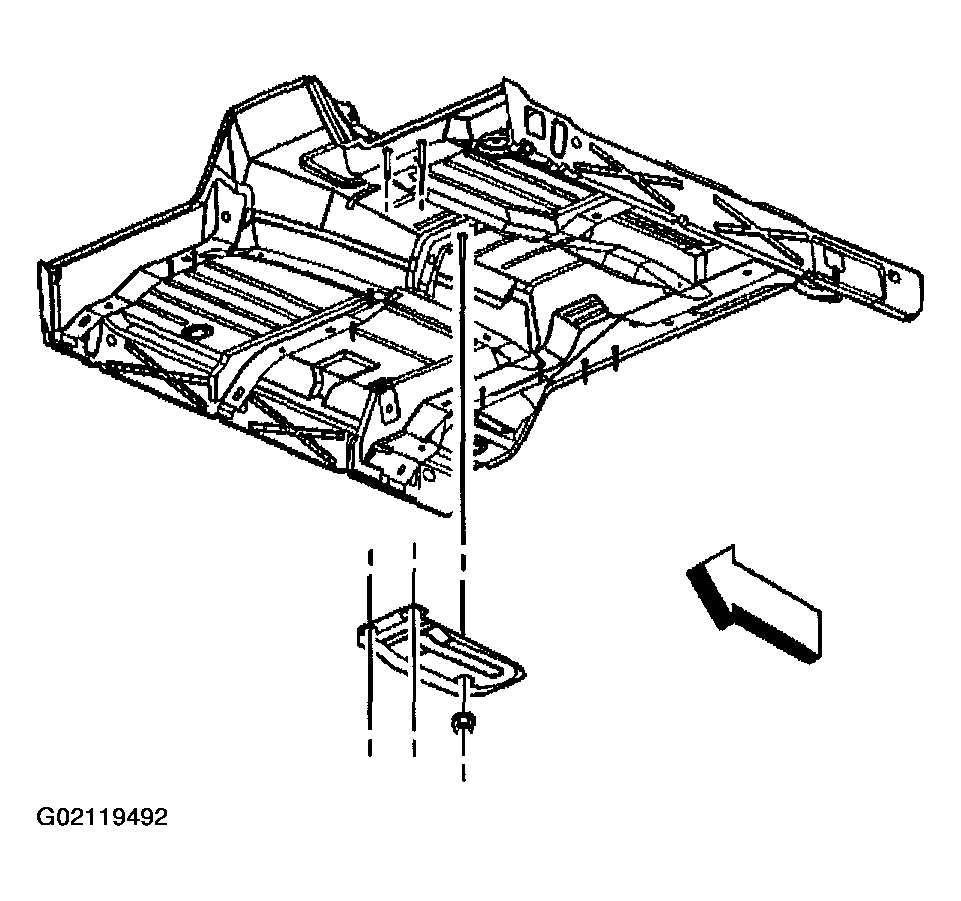

    5. Fig 2: Installing Exhaust Front Heat Shield Nuts
    G02119492Courtesy of GENERAL MOTORS CORP.
  5. Install the catalytic converter, if necessary. Refer to CATALYTIC CONVERTER REPLACEMENT (4.8L AND 5.3L ENGINES)  or CATALYTIC CONVERTER REPLACEMENT (6.0L AND 8.1L ENGINES)  .
  6. Install the exhaust manifold pipe, if necessary. Refer to EXHAUST MANIFOLD PIPE REPLACEMENT (6.0L AND 8.1L ENGINES)  .
