Engine Exhaust System: Specifications

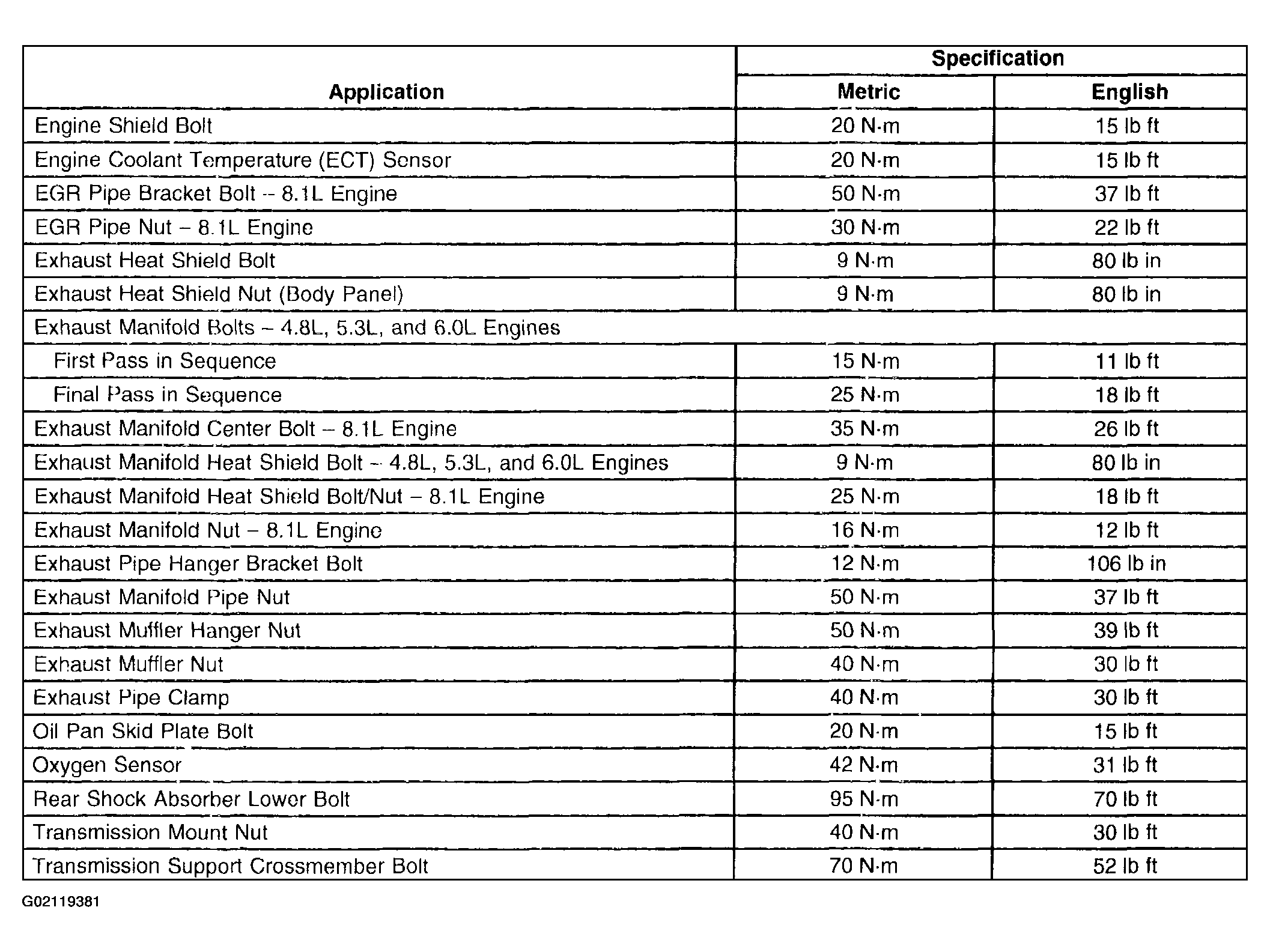

Fig 1: Fastener Torque Specifications

G02119381

Courtesy of GENERAL MOTORS CORP.
