Vehicle Identification Number

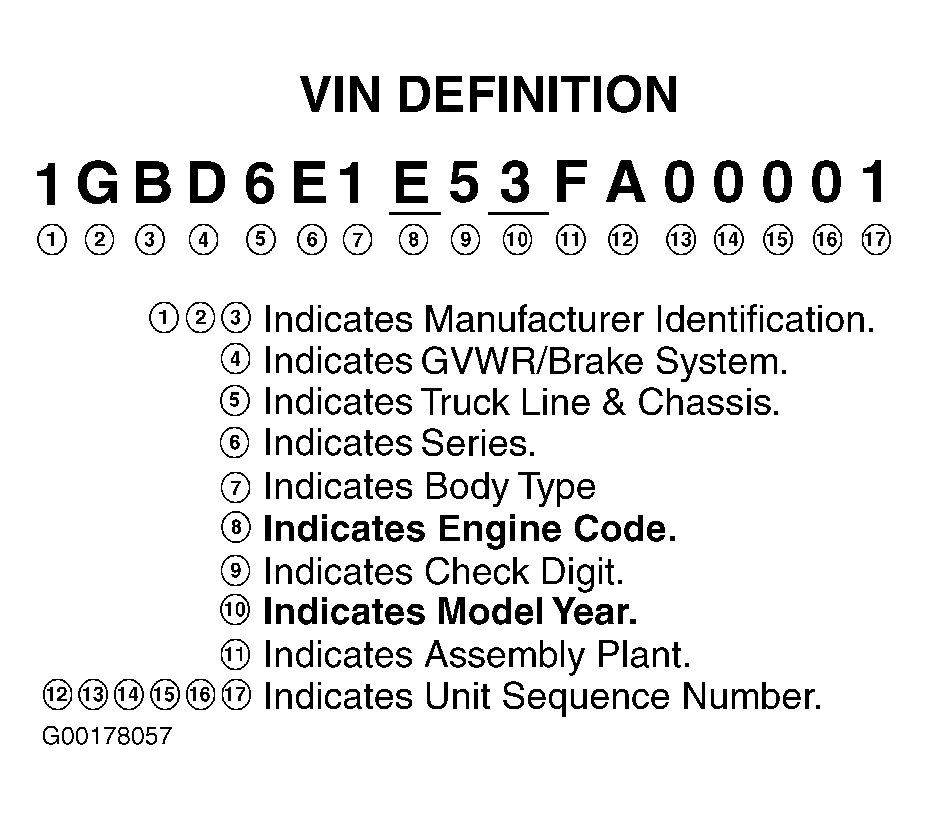

Fig 1: VIN Character Position & Definition
G00178057Courtesy of GENERAL MOTORS CORP.

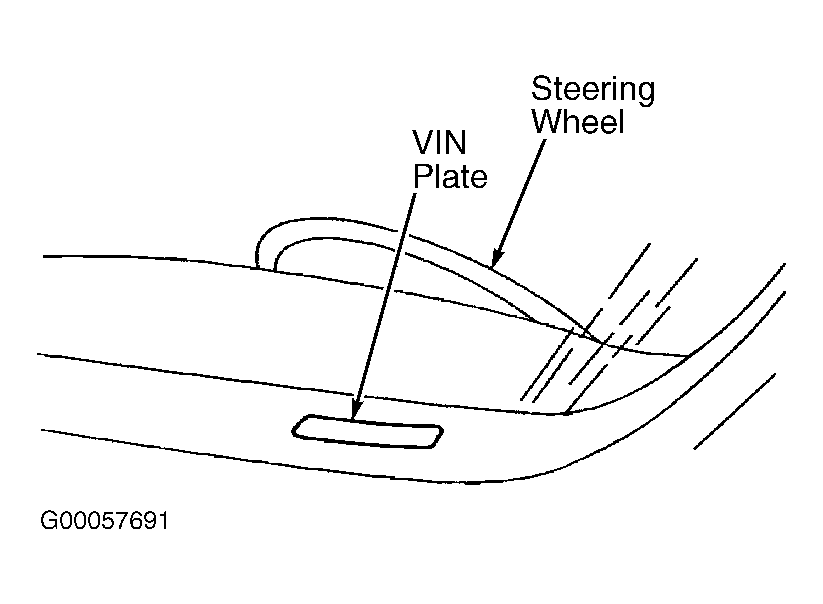

Fig 2: VIN Plate Location
G00057691Courtesy of GENERAL MOTORS CORP.

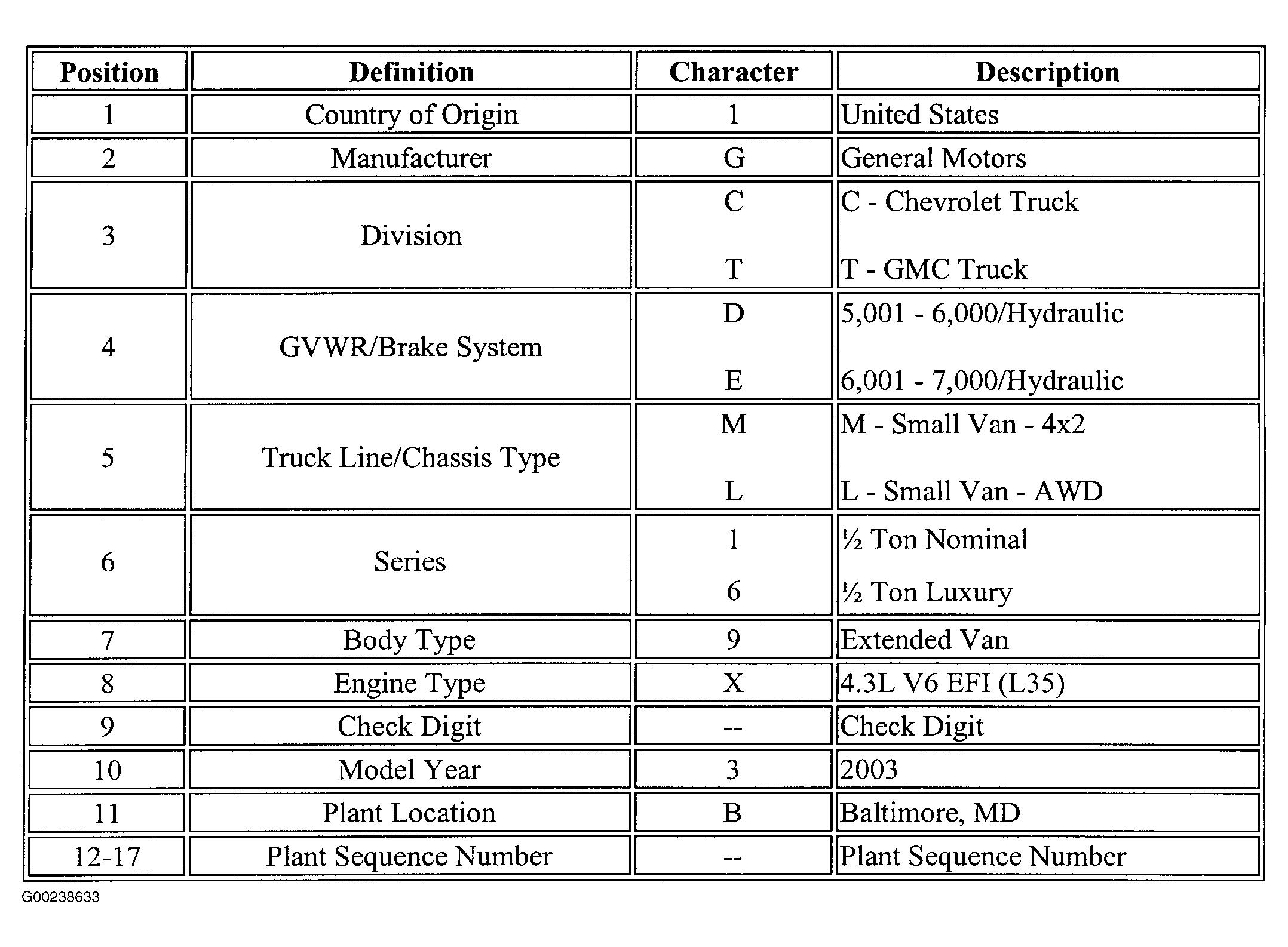

Fig 3: VIN Decoding Chart (Astro & Safari)
G00238633Courtesy of GENERAL MOTORS CORP.

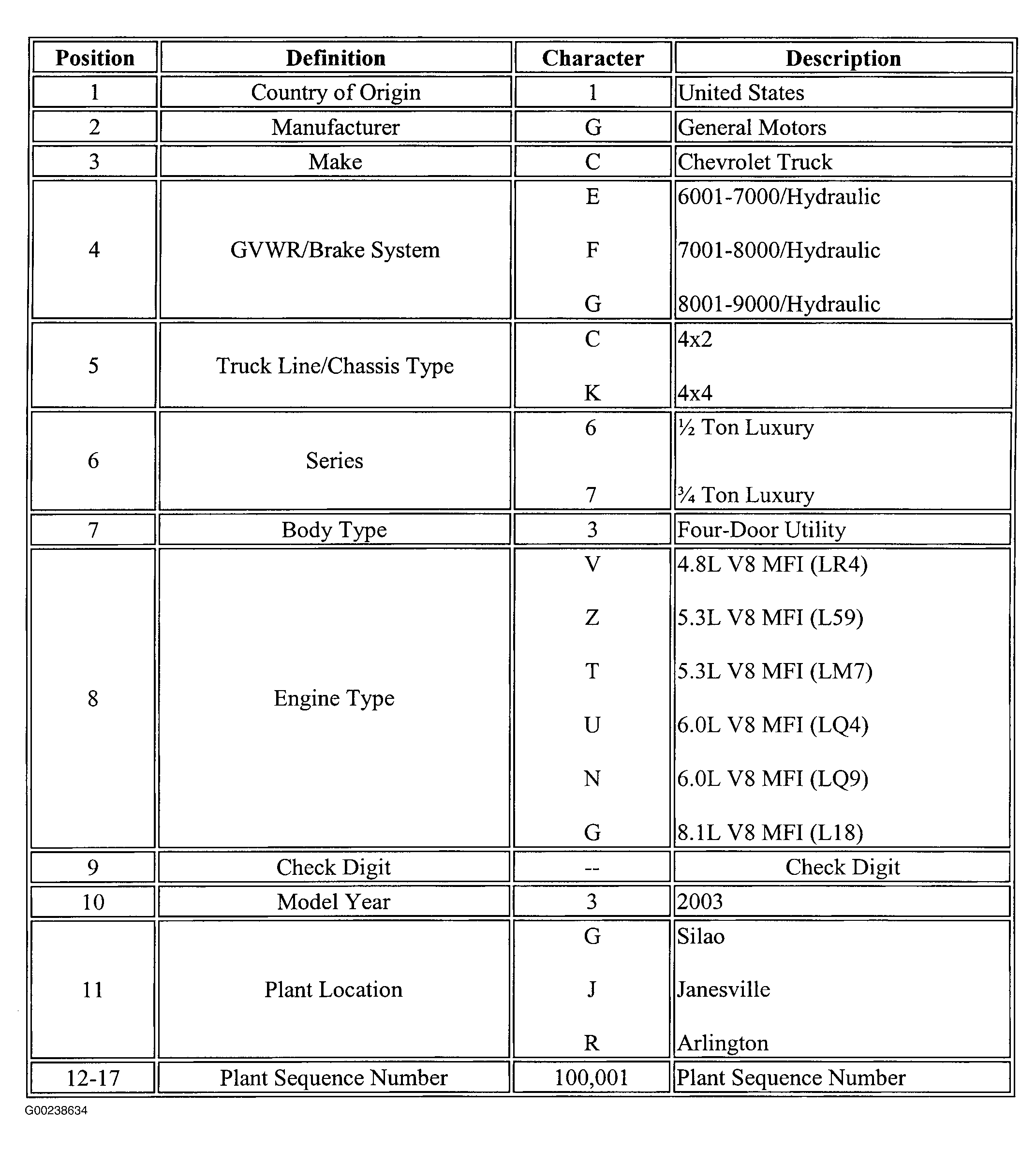

Fig 4: VIN Decoding Chart (Avalanche & Tahoe)
G00238634Courtesy of GENERAL MOTORS CORP.

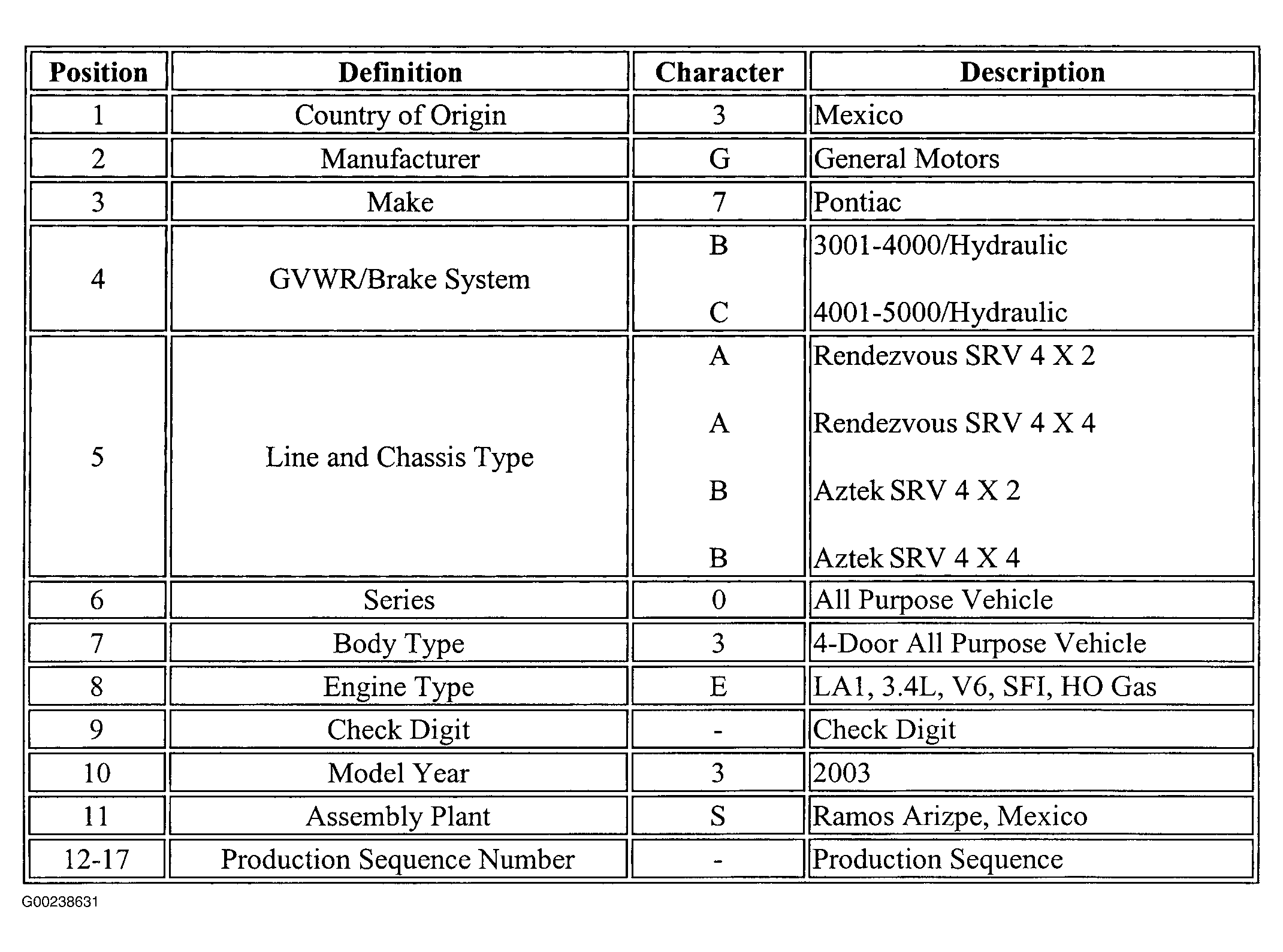

Fig 5: VIN Decoding Chart (Aztek & Rendezvous)
G00238631Courtesy of GENERAL MOTORS CORP.

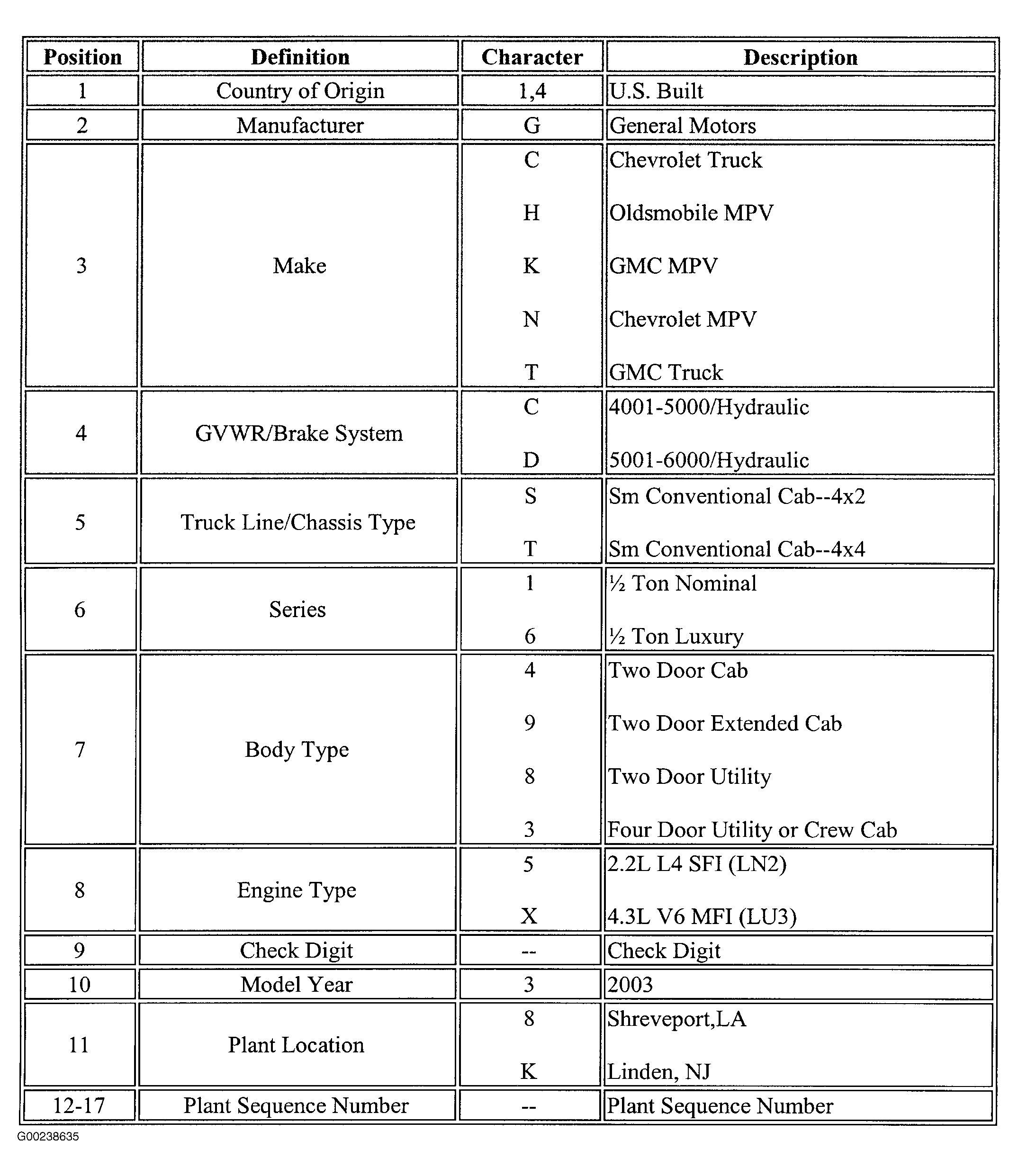

Fig 6: VIN Decoding Chart (Blazer, Jimmy Canadian, S10 Pickup & Sonoma)
G00238635Courtesy of GENERAL MOTORS CORP.

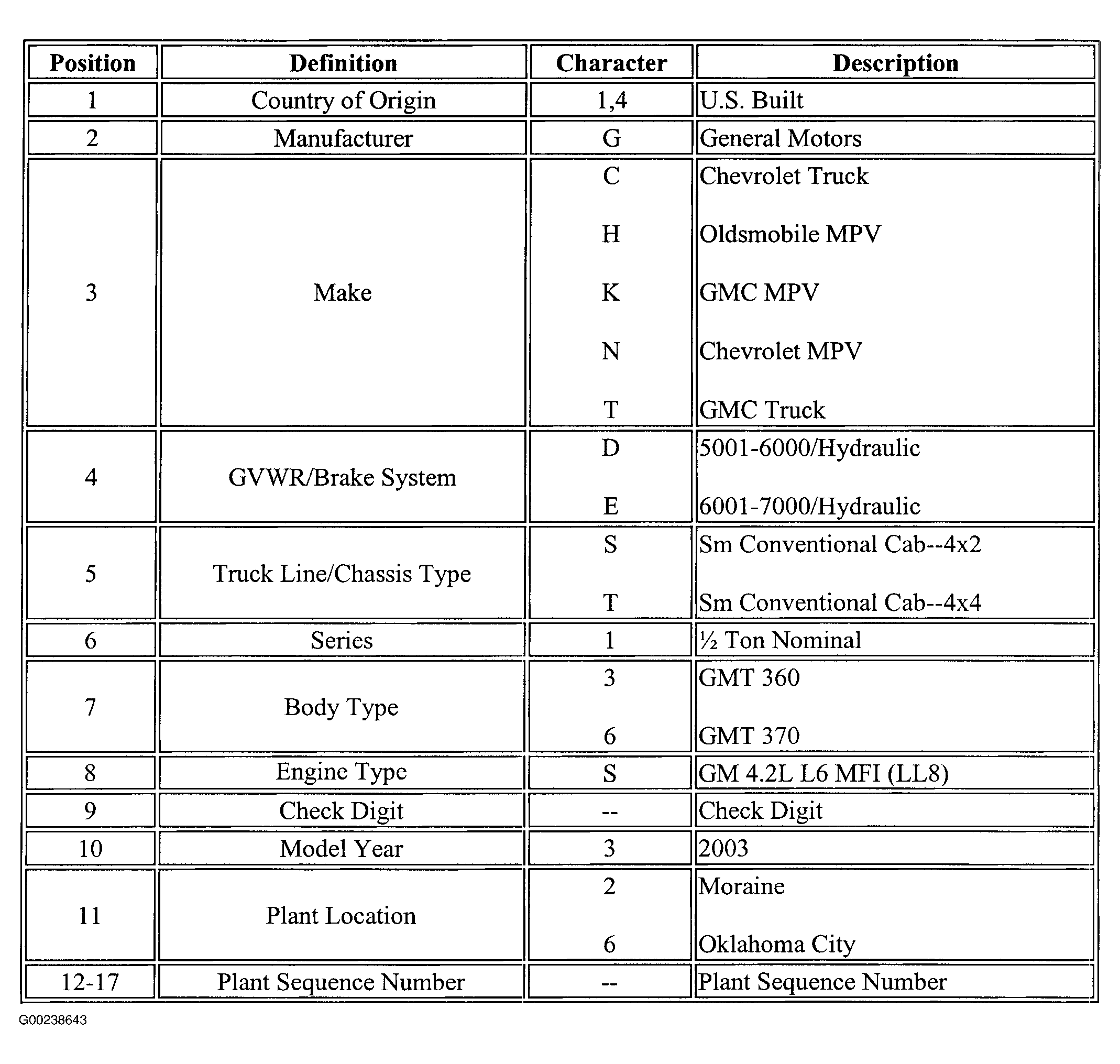

Fig 7: VIN Decoding Chart (Bravada)
G00238643Courtesy of GENERAL MOTORS CORP.

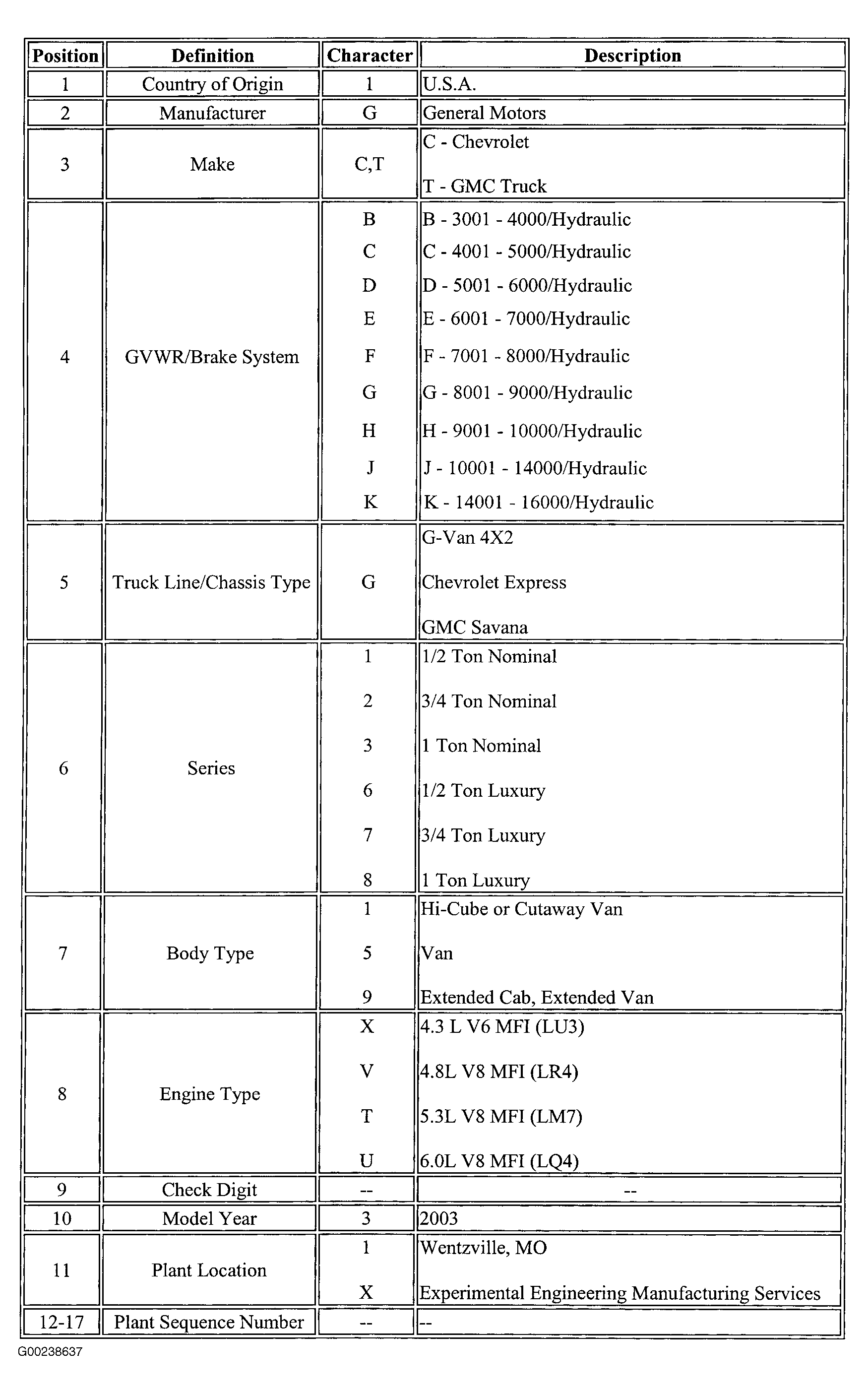

Fig 8: VIN Decoding Chart (Chevy Express & Savana)
G00238637Courtesy of GENERAL MOTORS CORP.

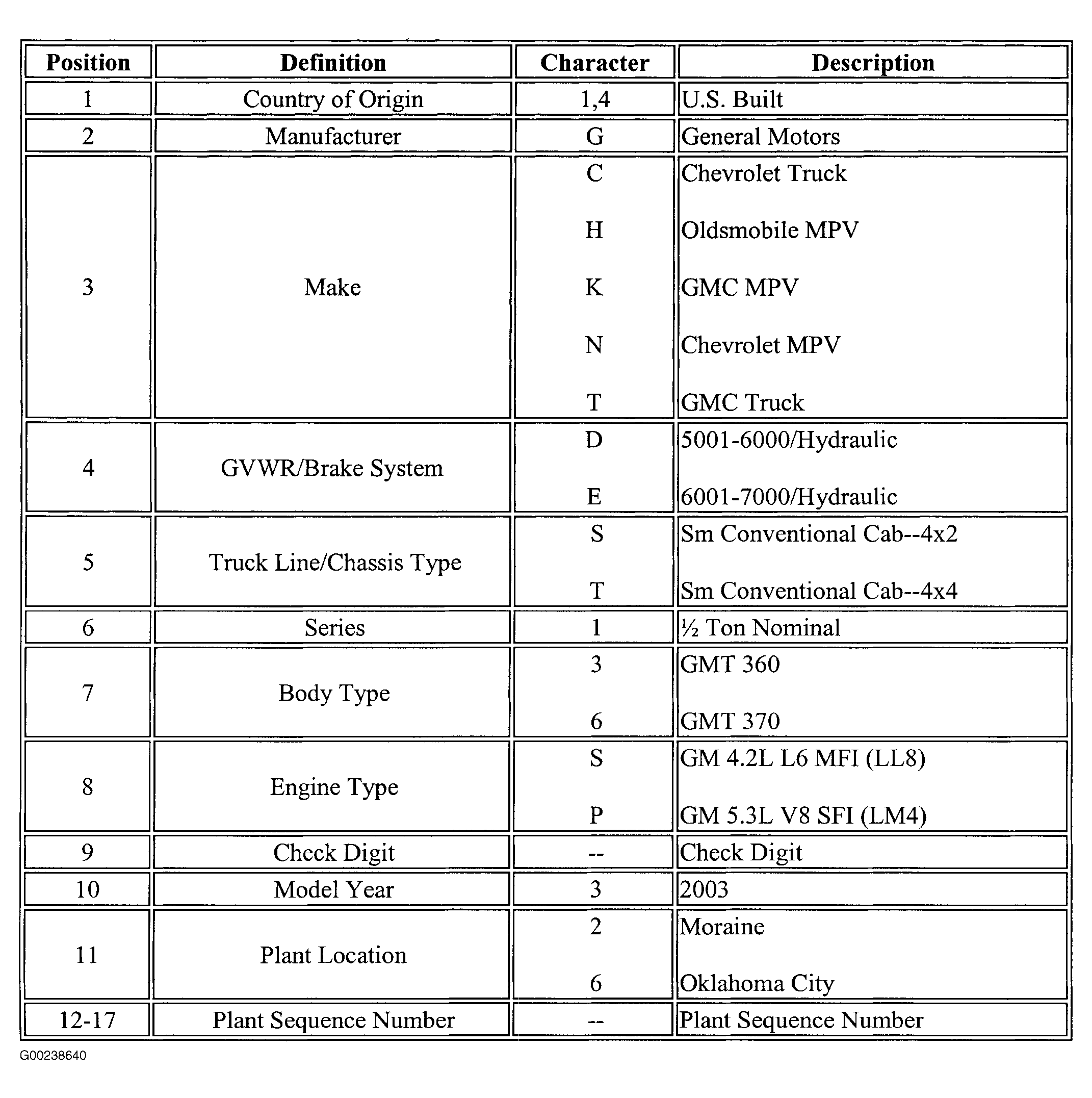

Fig 9: VIN Decoding Chart (Envoy & TrailBlazer)
G00238640Courtesy of GENERAL MOTORS CORP.

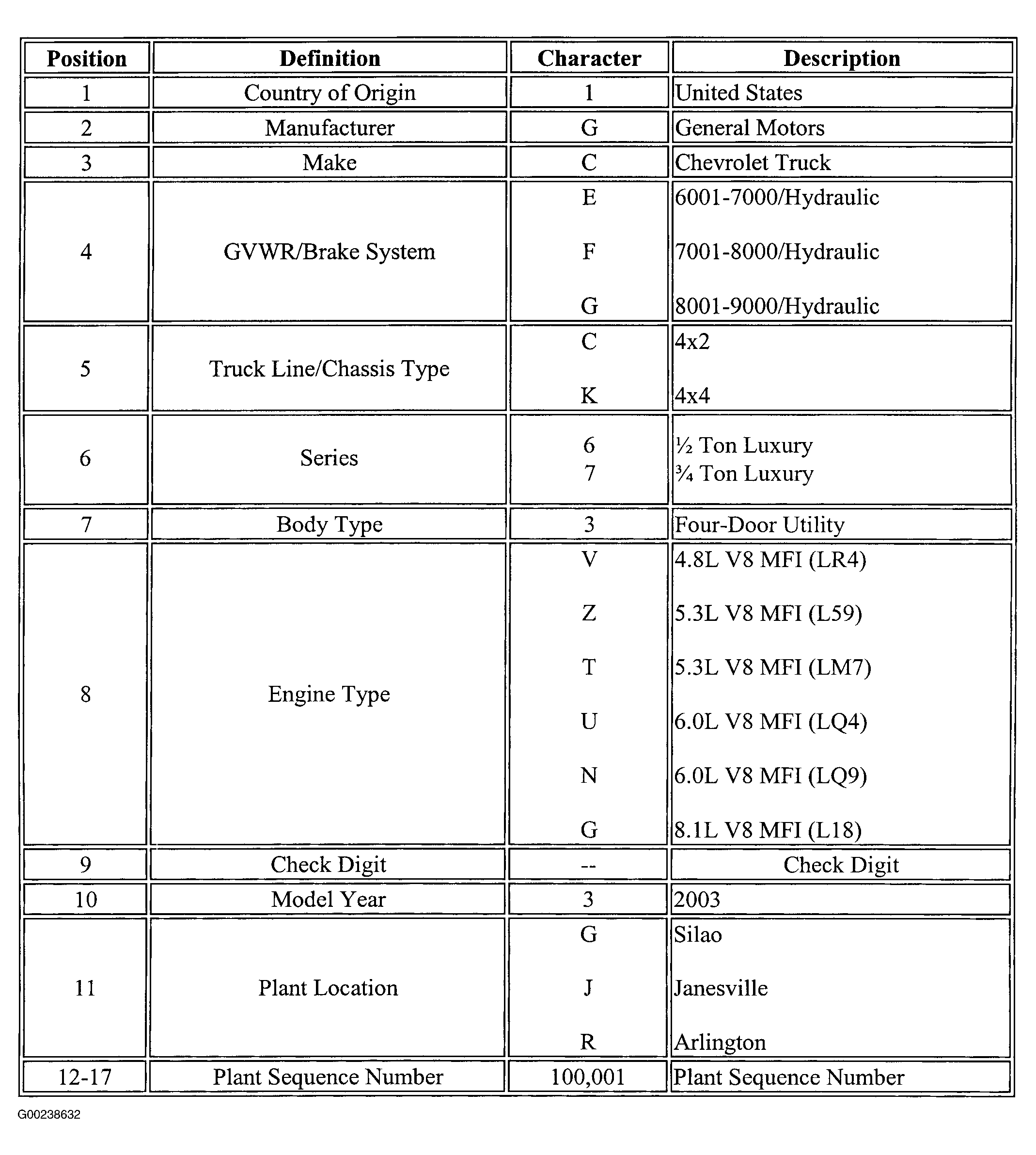

Fig 10: VIN Decoding Chart (Escalade, Suburban & Yukon)
G00238632Courtesy of GENERAL MOTORS CORP.
Fig 11: VIN Decoding Chart (Hummer H2)
G00238642Courtesy of GENERAL MOTORS CORP.

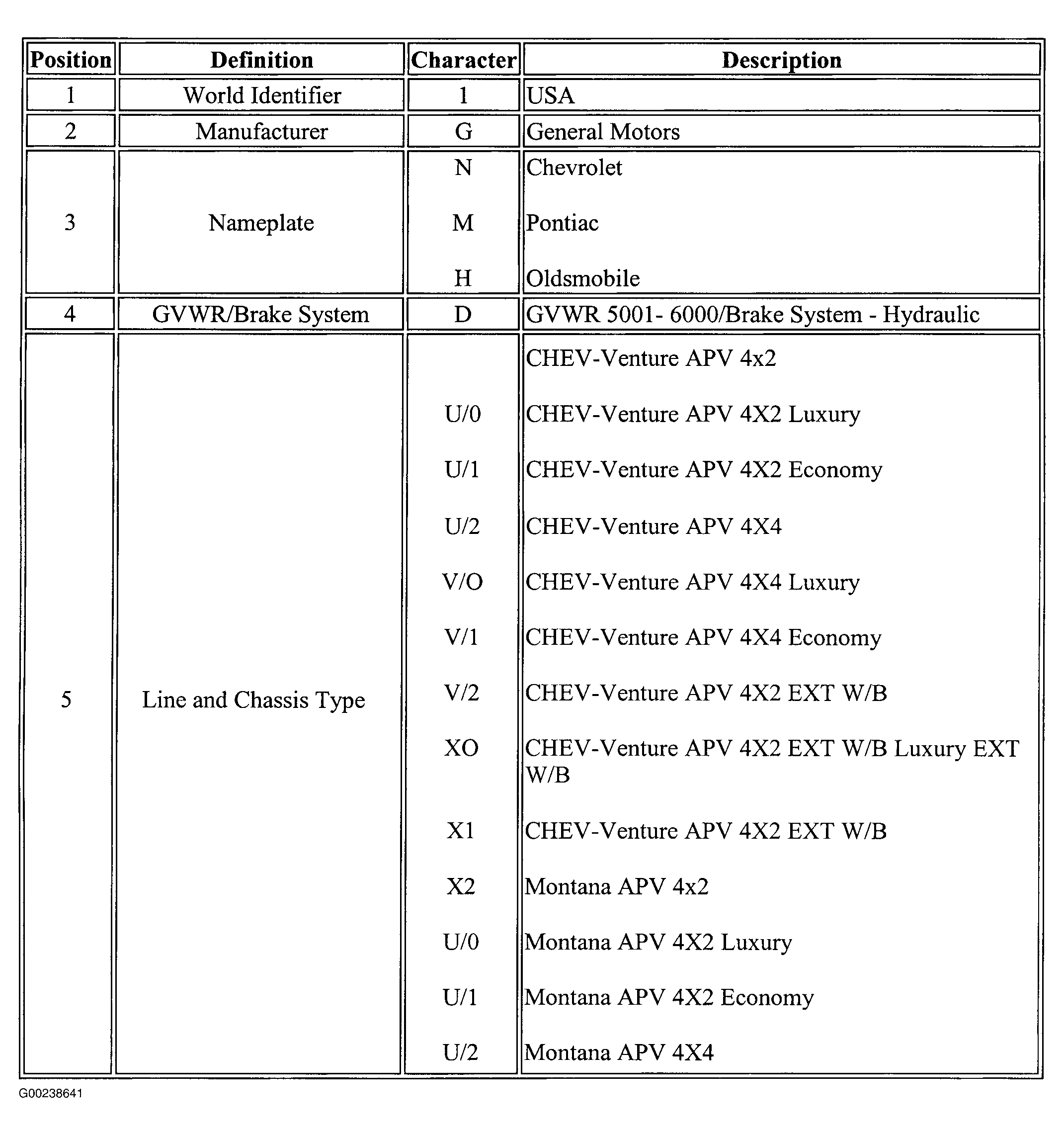

Fig 12: VIN Decoding Chart (Montana, Silhouette & Venture) - 1 Of 2
G00238641Courtesy of GENERAL MOTORS CORP.

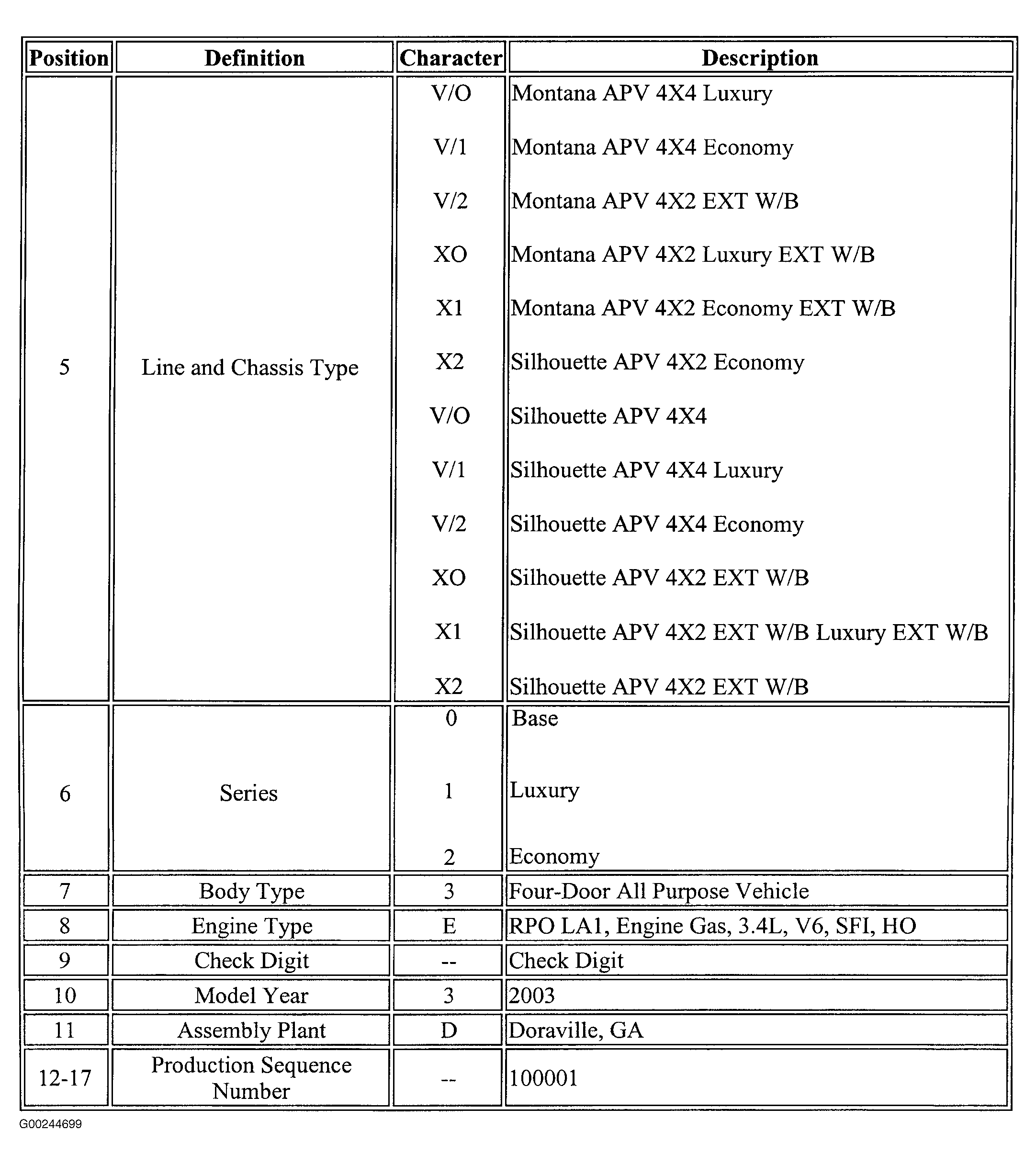

Fig 13: VIN Decoding Chart (Montana, Silhouette & Venture) - 2 Of 2
G00244699Courtesy of GENERAL MOTORS CORP.

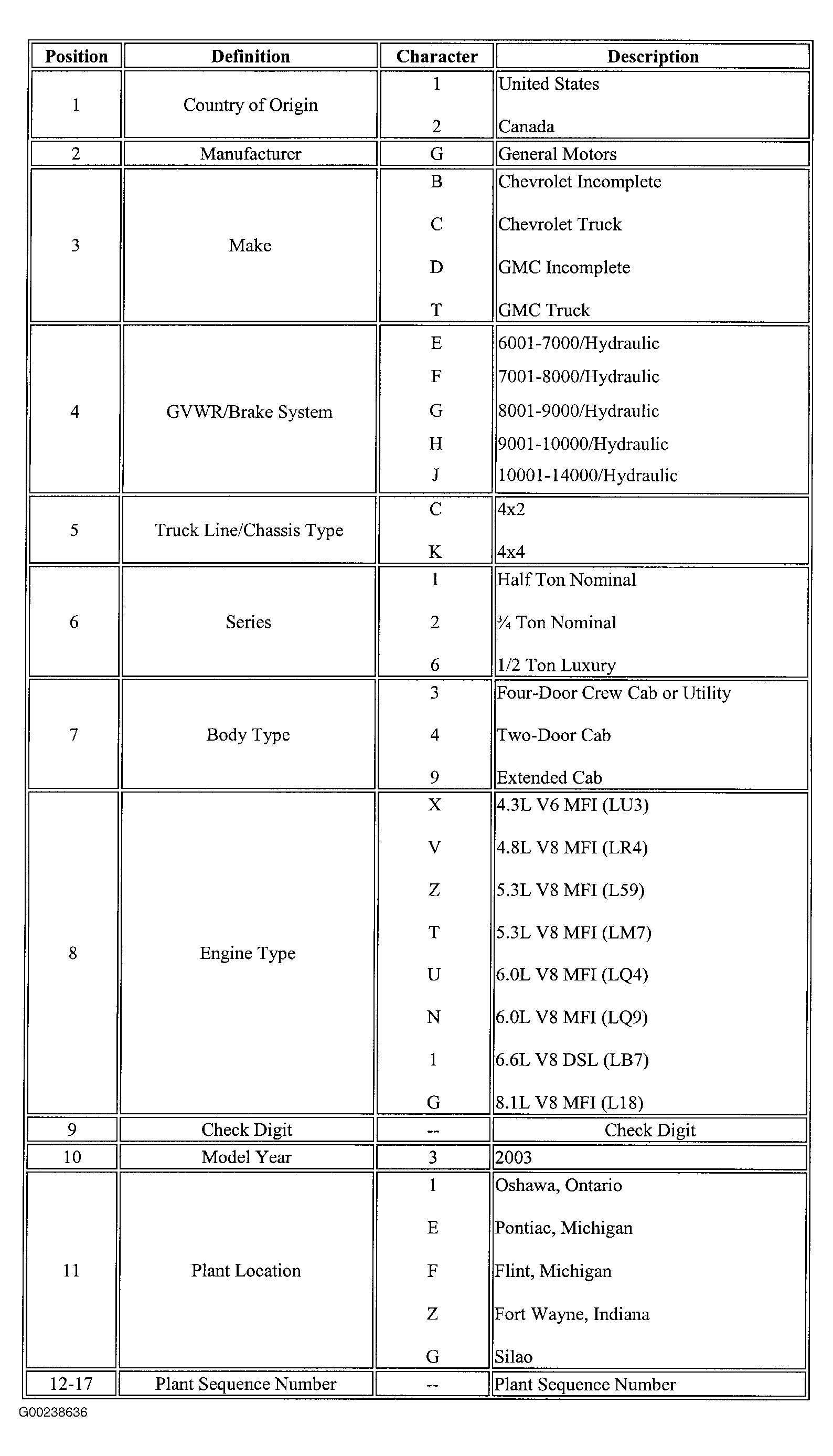

Fig 14: VIN Decoding Chart (Sierra & Silverado)
G00238636Courtesy of GENERAL MOTORS CORP.

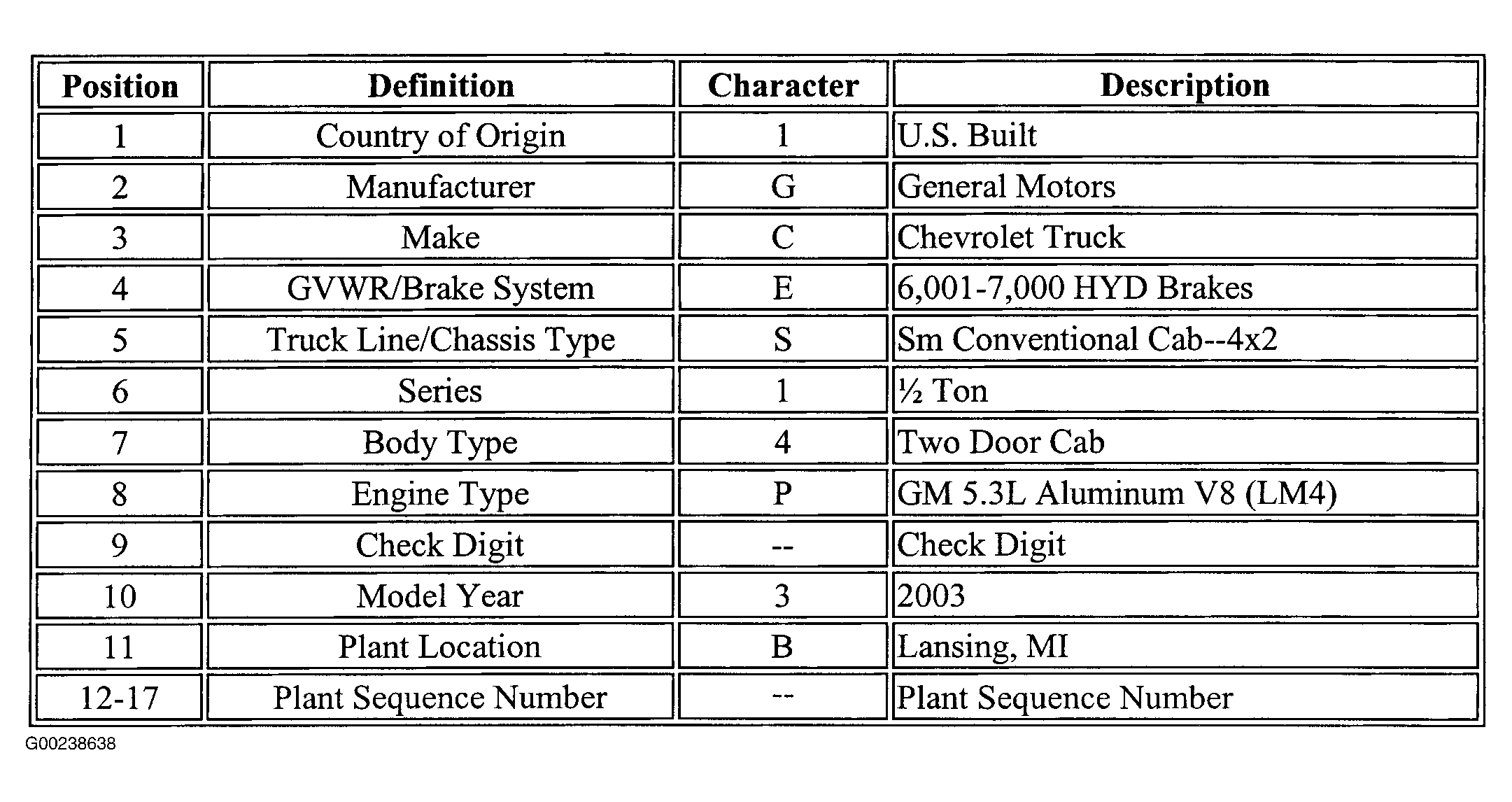

Fig 15: VIN Decoding Chart (SSR)
G00238638Courtesy of GENERAL MOTORS CORP.

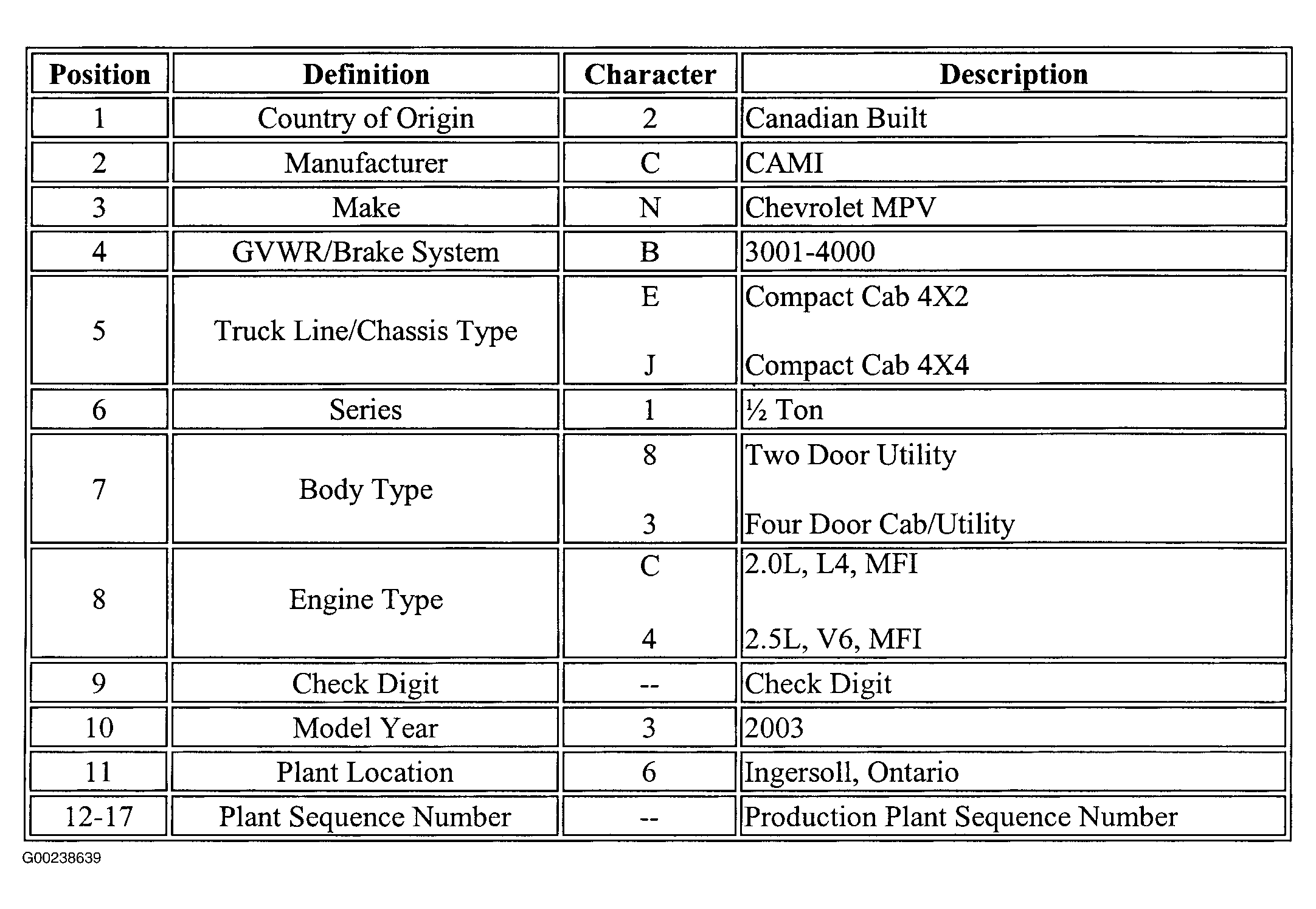

Fig 16: VIN Decoding Chart (Tracker)
G00238639Courtesy of GENERAL MOTORS CORP.

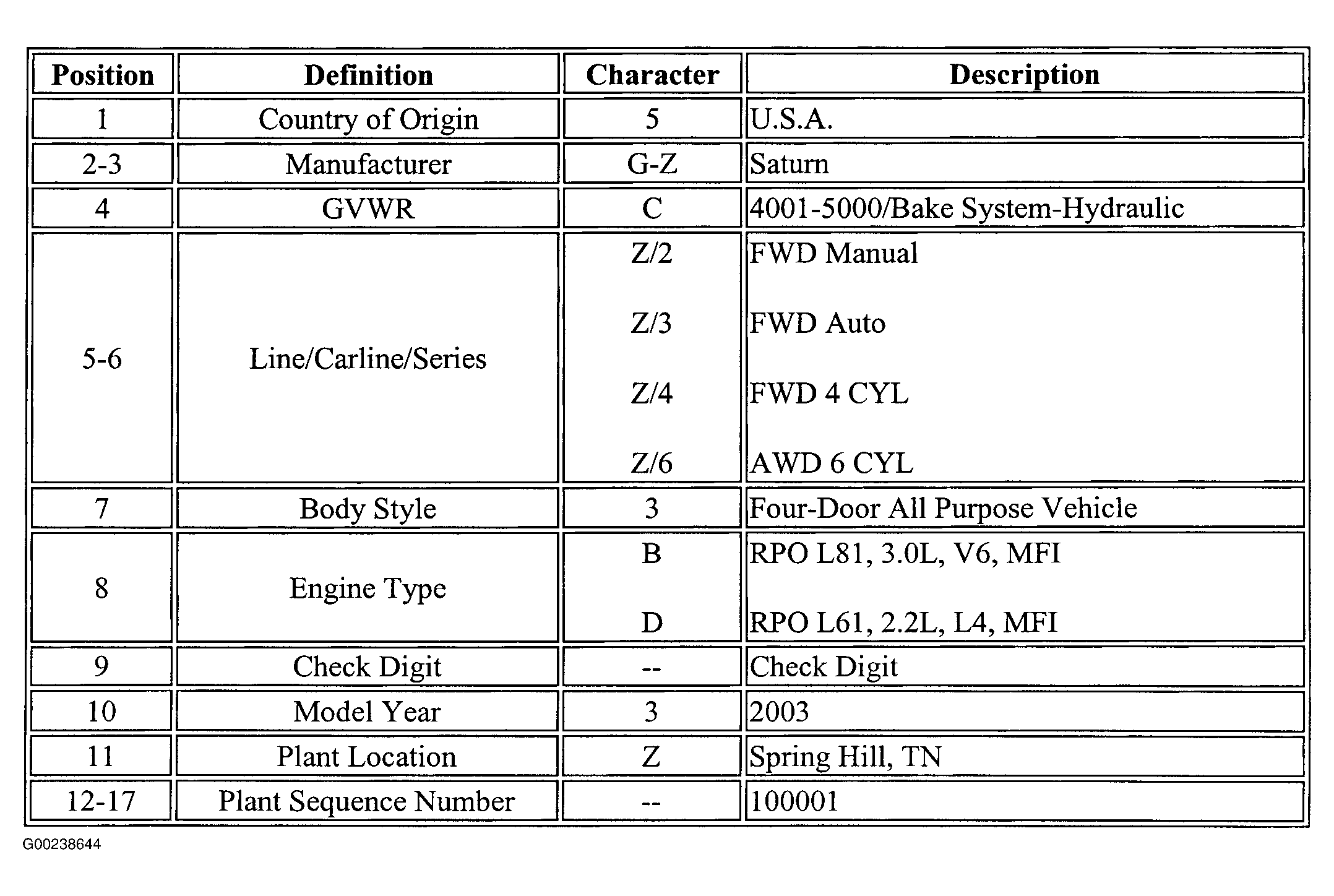

Fig 17: VIN Decoding Chart (Vue)
G00238644Courtesy of GENERAL MOTORS CORP.
