Sunroof Switch Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

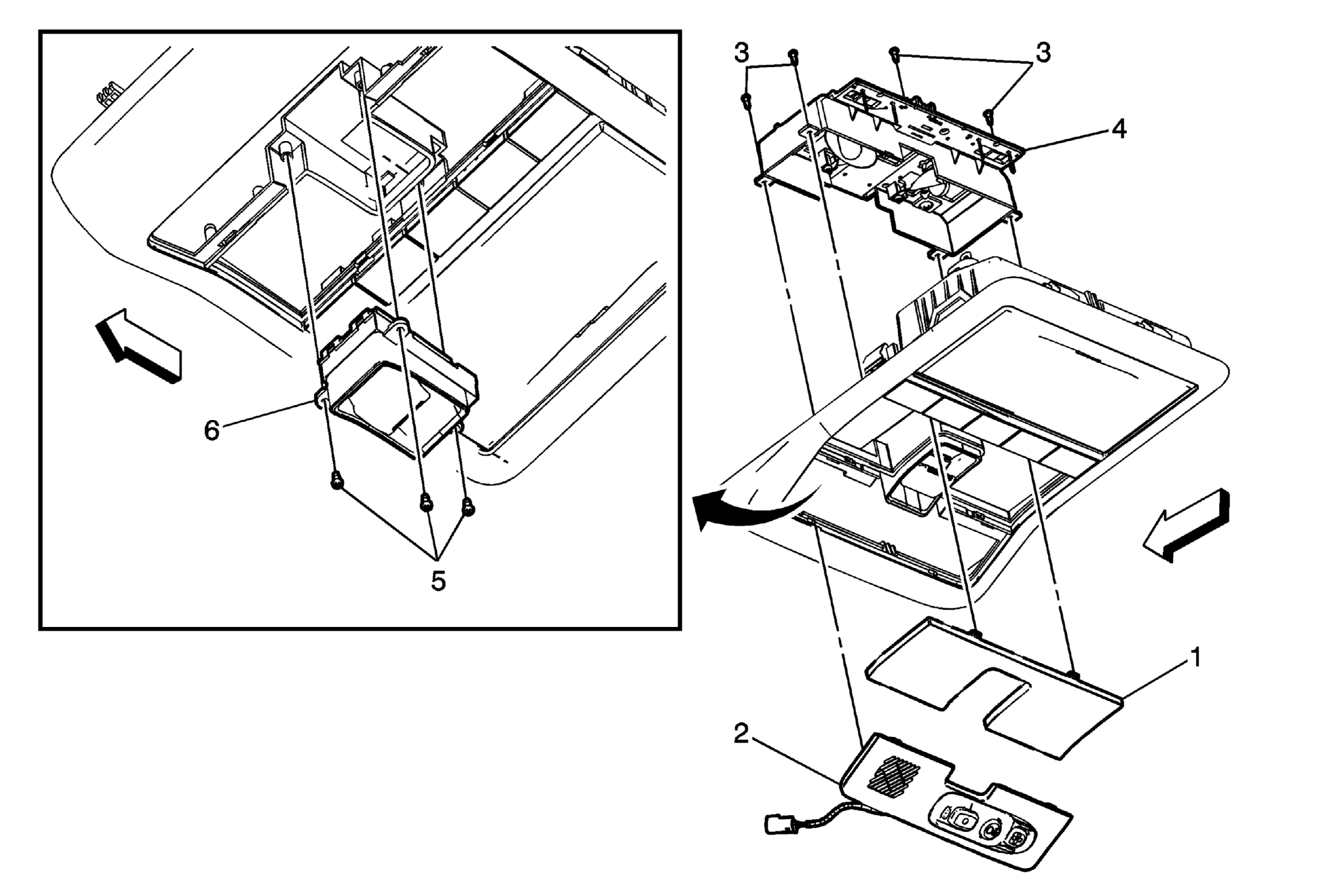

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the roof console assembly. Refer to Roof Console Replacement . |
|
| 1 | Reading Lamp Lens Procedure: Use a plastic flat-bladed tool to remove the lens. |
| 2 | Mobile Communication Trim Cover Procedure: Use a plastic flat-bladed tool to remove the cover. |
| 3 | Reading Lamp Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 4 | Reading Lamp Housing |
| 5 | Sun Roof Switch Screw (Qty: 3) Tighten: 2 N.m (18 lb in) |
| 6 | Sun Roof Switch Assembly |
