Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

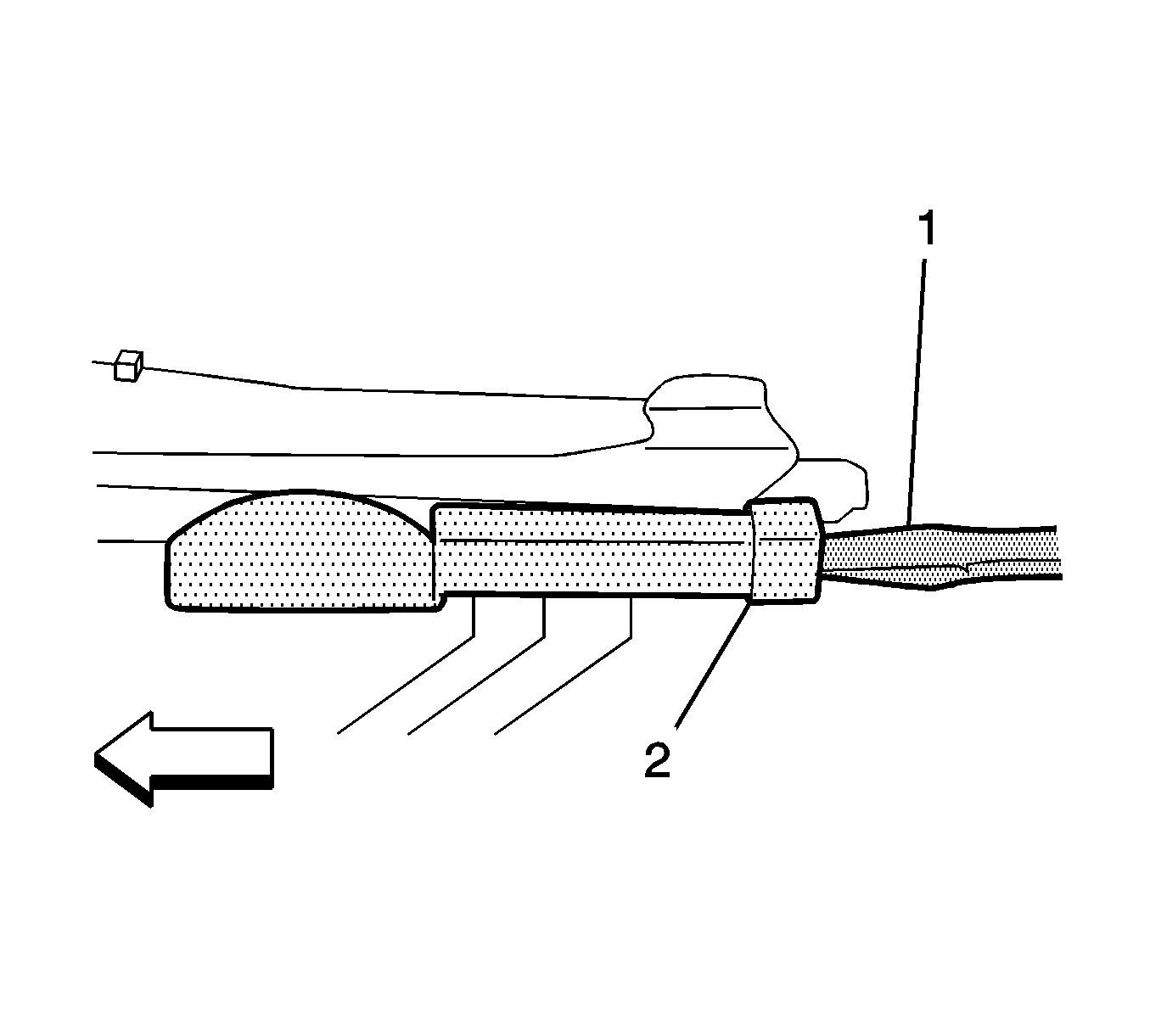

    Fig 1: Pushing Sunroof Cable Plate Rearward
    GM1938508Courtesy of GENERAL MOTORS CORP.
  1. Position a flat blade tool (1) inline with the sunroof cable plate (2) pushing rearward.

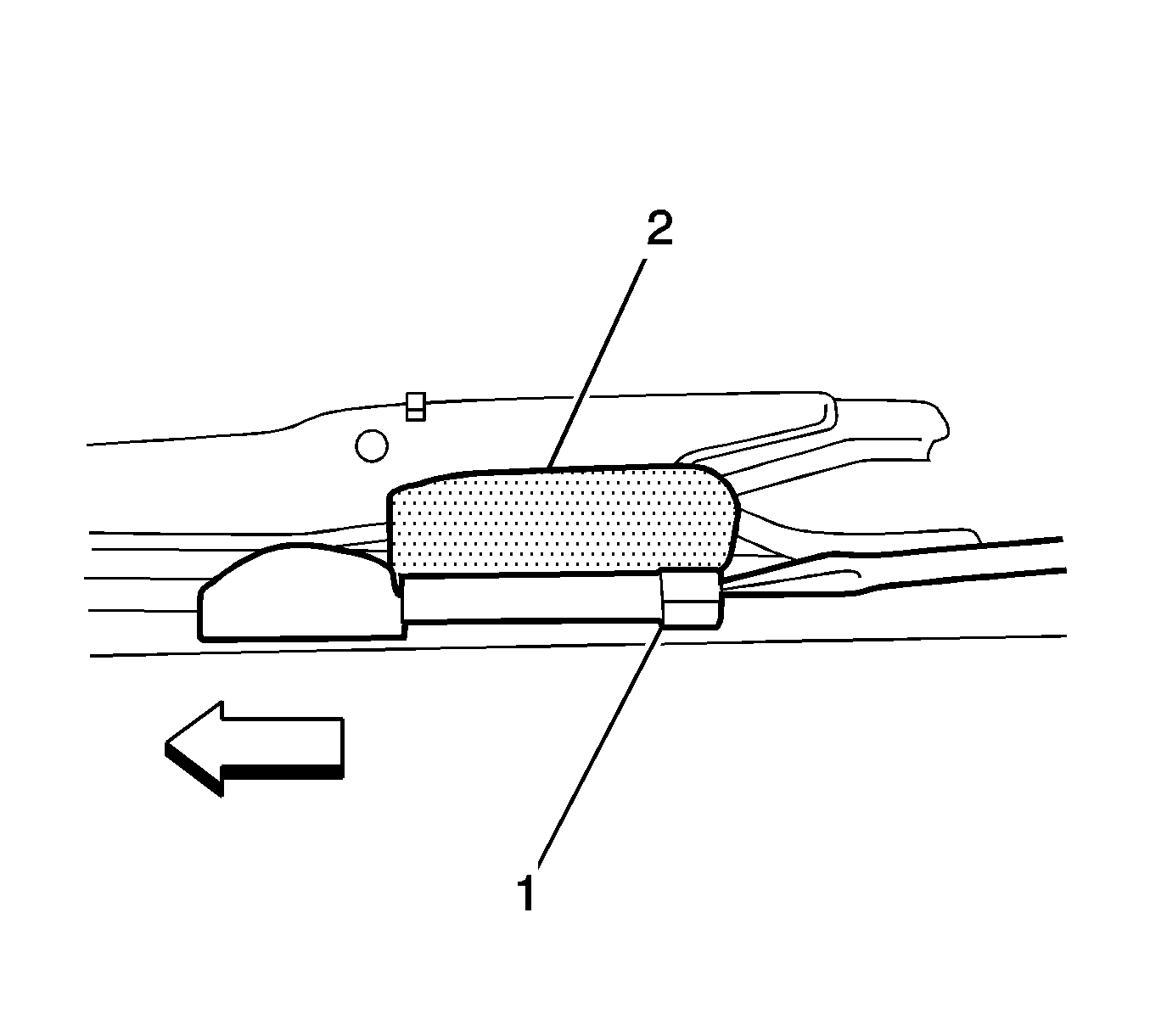

    2. Fig 2: Cable Plate & Sunroof Drive Wedge
    GM2084431Courtesy of GENERAL MOTORS CORP.
  2. Push the sunroof cable plate (1) until the sunroof drive wedge (2) reaches the synchronization position.

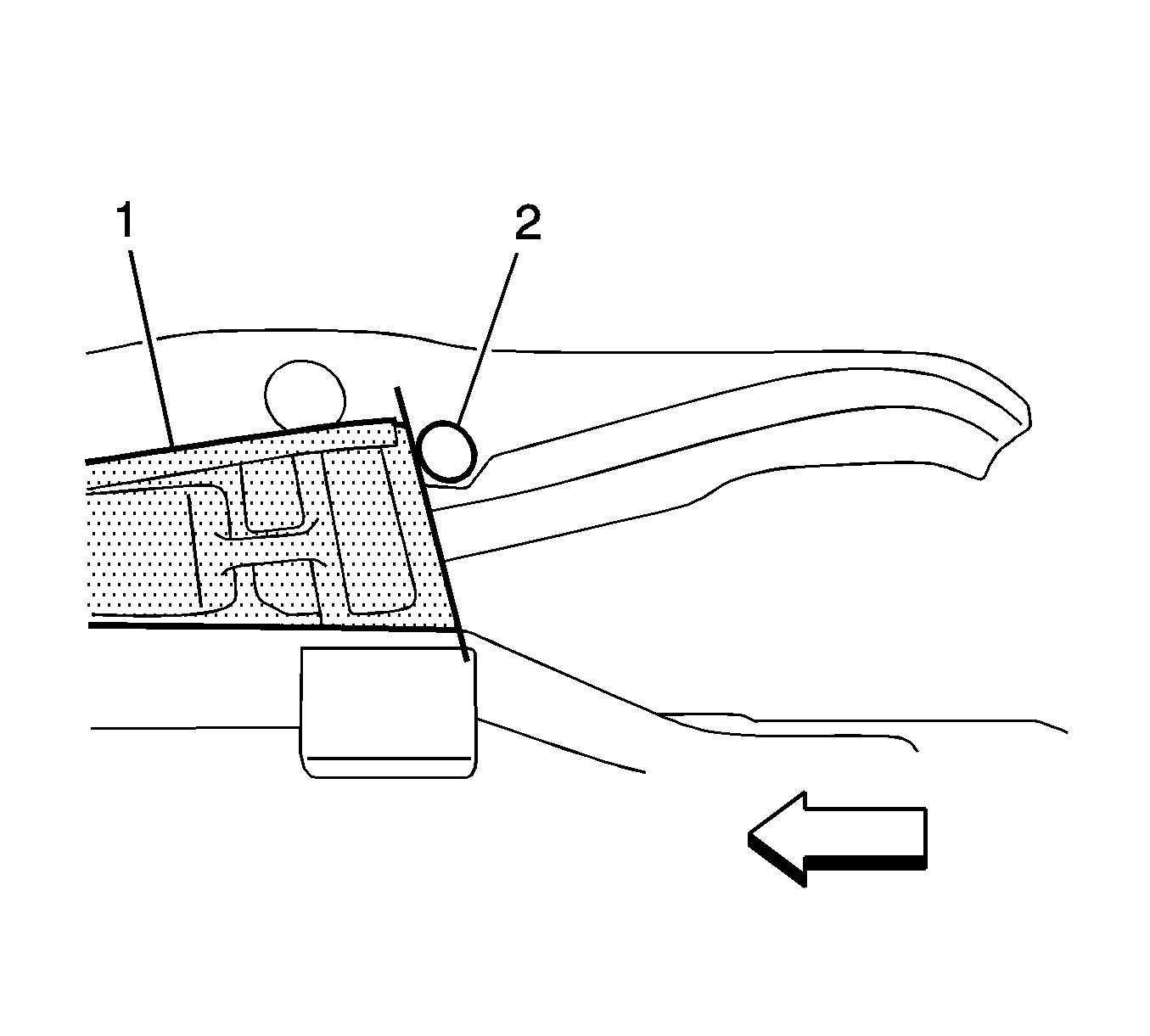

    3. Fig 3: Locating Drive Wedge & Hole
    GM1938509Courtesy of GENERAL MOTORS CORP.
  3. Align the drive wedge (1) with the hole (2) in the mechanism.
  4. Install the sunroof motor. Refer to Sunroof Motor/Actuator Replacement .
  5. Install the sunroof window to the sunroof module. Refer to Sunroof Window Replacement .
  6. Verify the sunroof operation.
  7. Install headliner. Refer to Headlining Trim Panel Replacement .
