Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

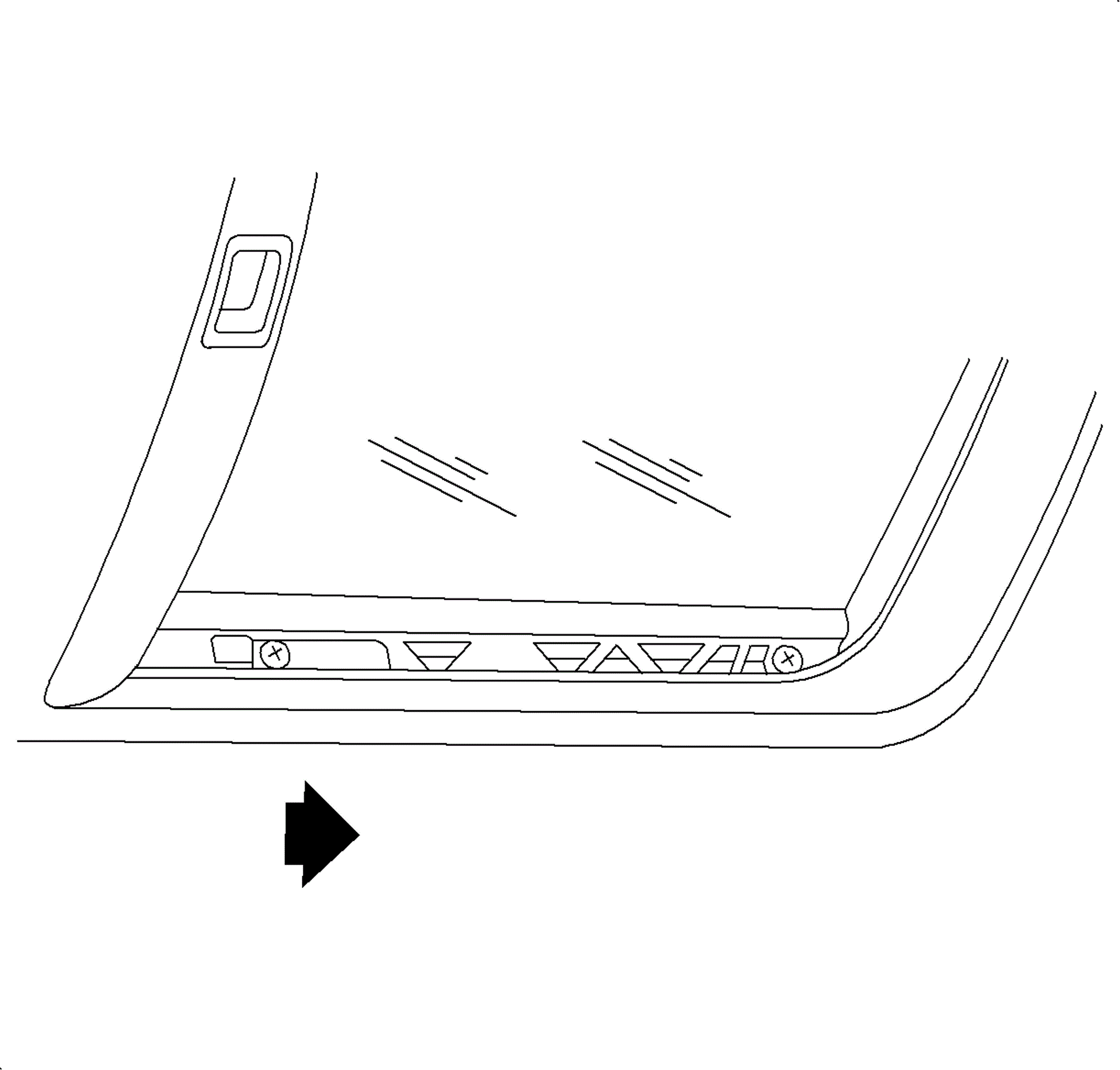

    Fig 1: View Of Sunroof Window
    GM964577Courtesy of GENERAL MOTORS CORP.
  1. Position the sunroof window into the opening.
  2. Install the sunroof window screws. Do not tighten the screws.
  3. Carefully close the sunroof window from the vent position to the full closed position.
  4. Adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment .
    5. CAUTION: Refer to Fastener Caution .
  5. Tighten the sunroof window screws to 5 N.m (44 lb in).
  6. Install the sunroof panel side opening closeout. Refer to Sunroof Panel Side Opening Closeout Cover Replacement .
