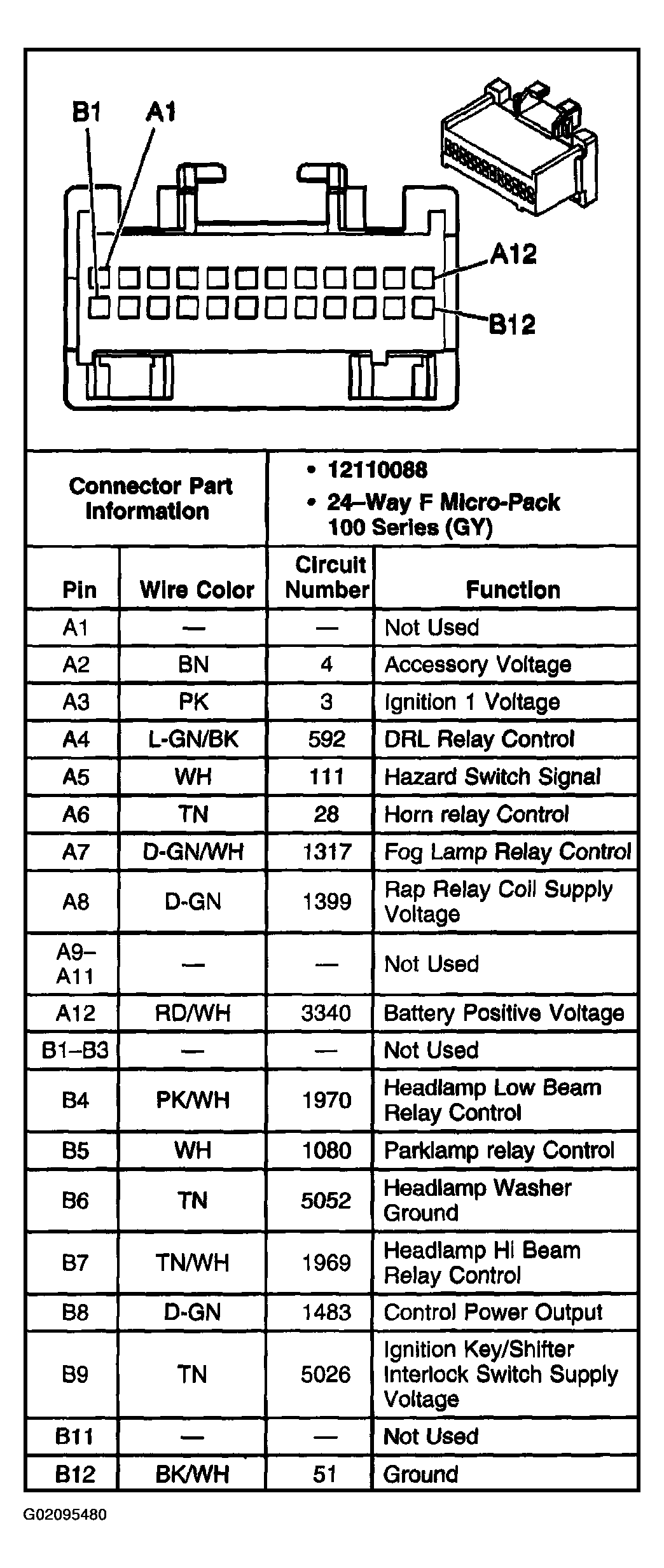

Fig 1: Dash Integration Module C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

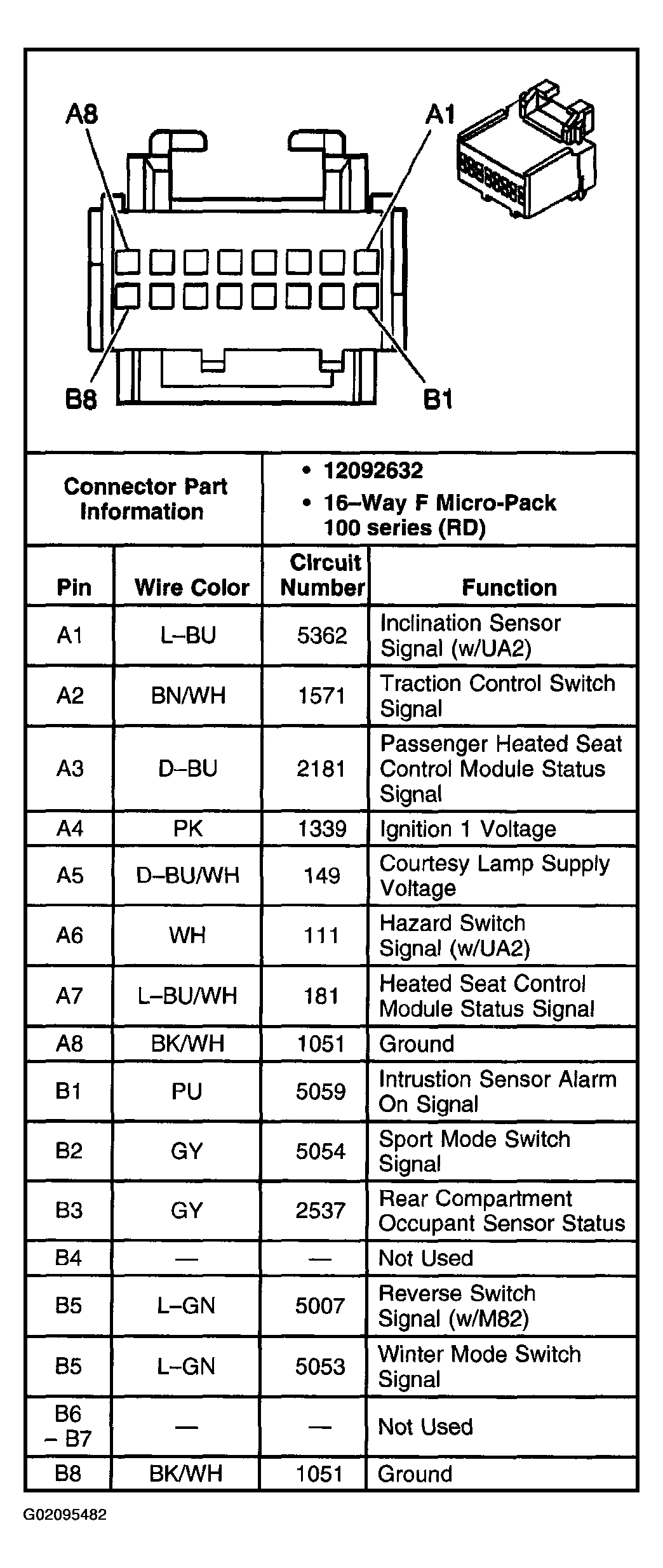

Fig 2: Dash Integration Module C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

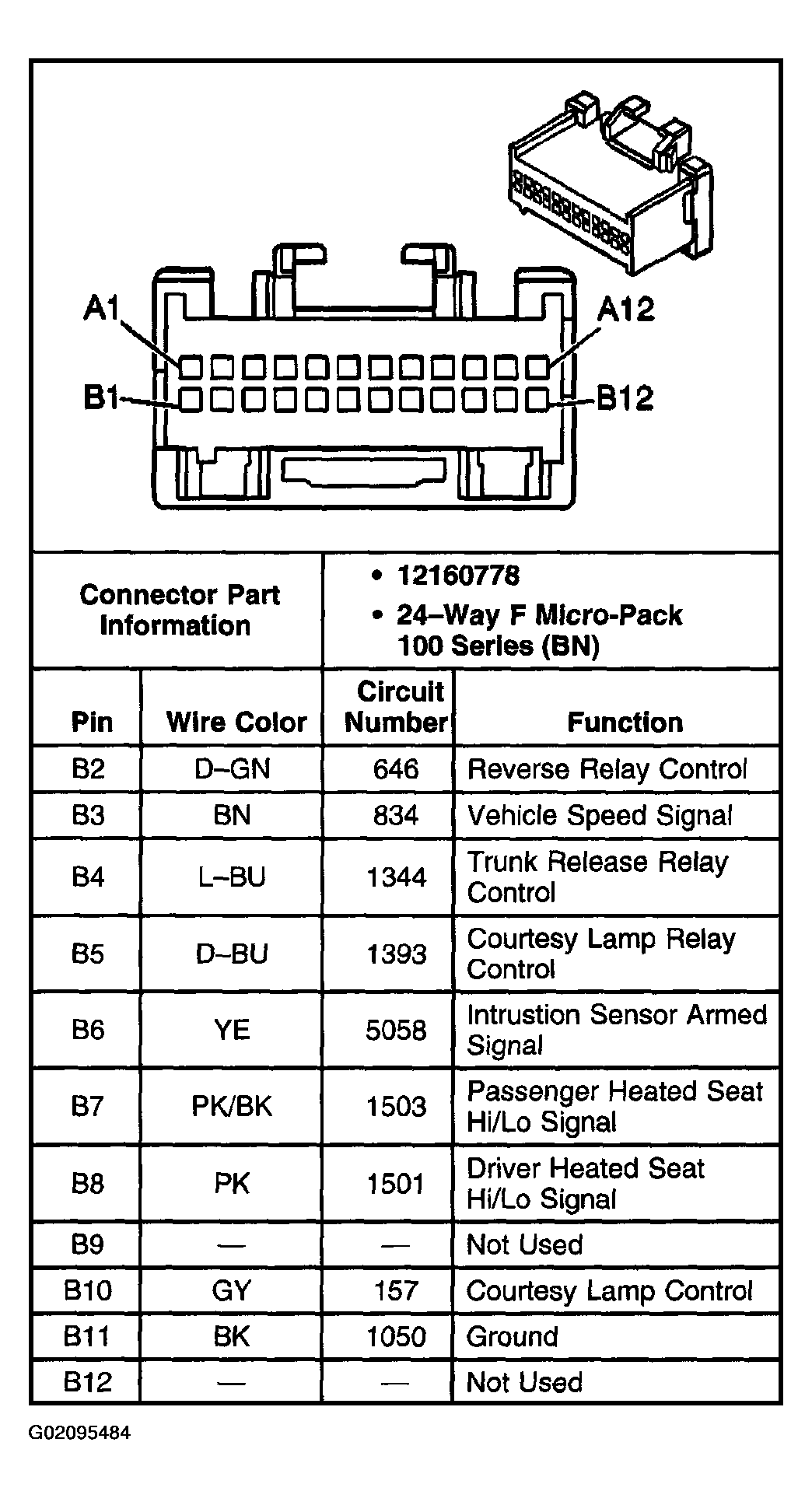

Fig 3: Dash Integration Module C3 Connector End View
Courtesy of GENERAL MOTORS CORP.

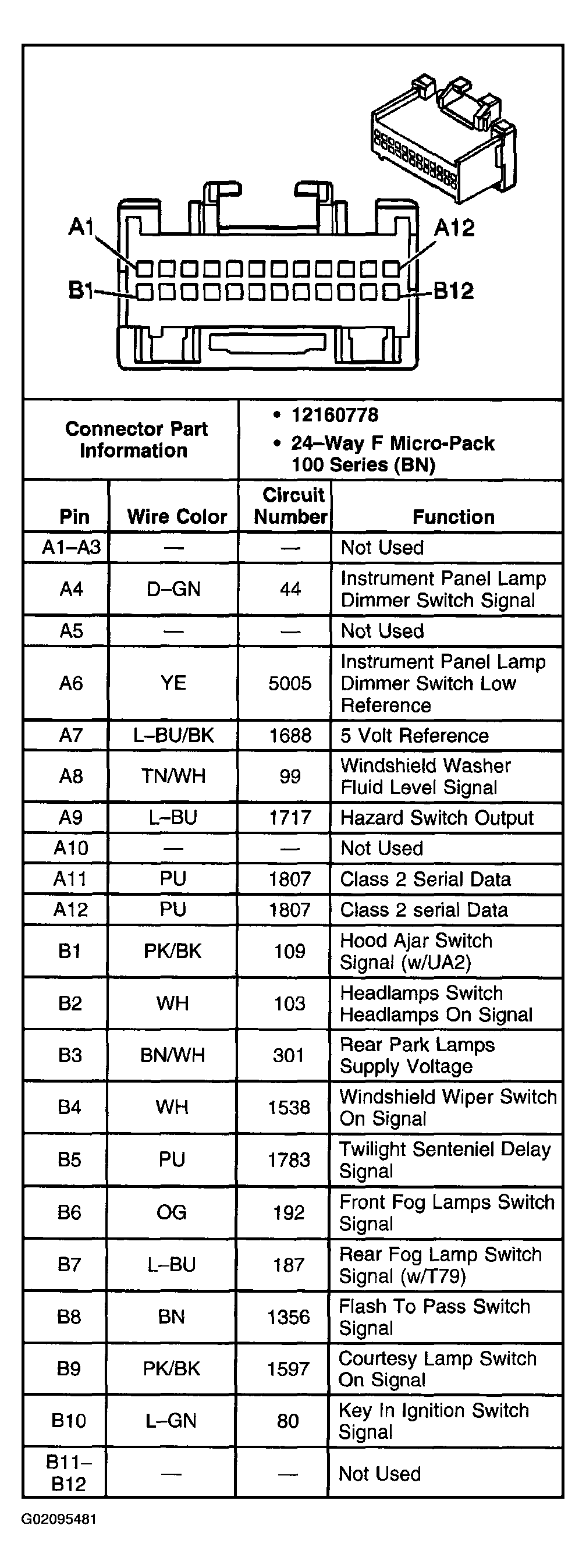

Fig 4: Rear Integration Module C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

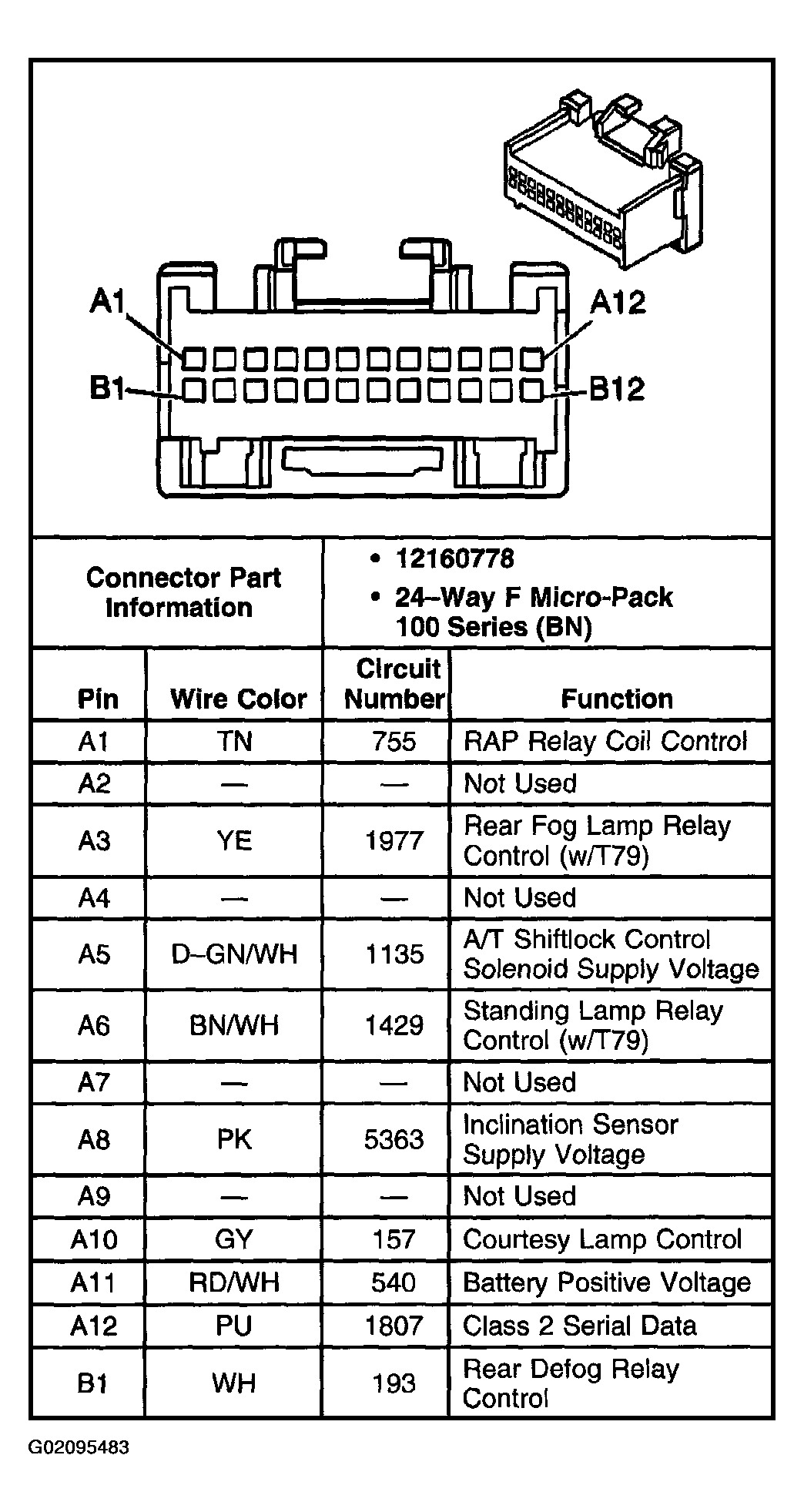

Fig 5: Rear Integration Module C2 Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

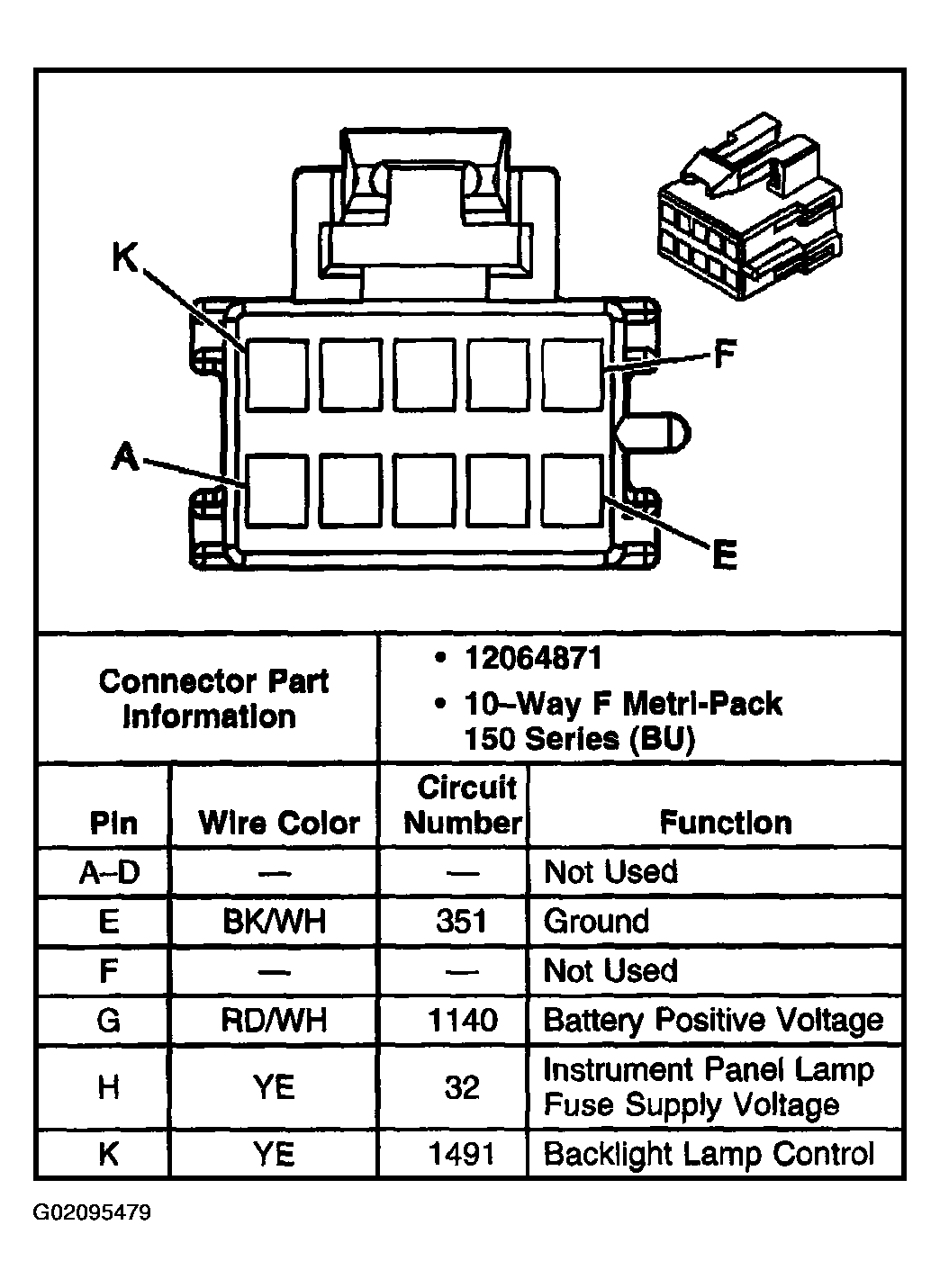

Fig 6: Rear Integration Module C2 Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
NOTE:
Fig 5 and Fig 6 are correct depending on accessory applications.
