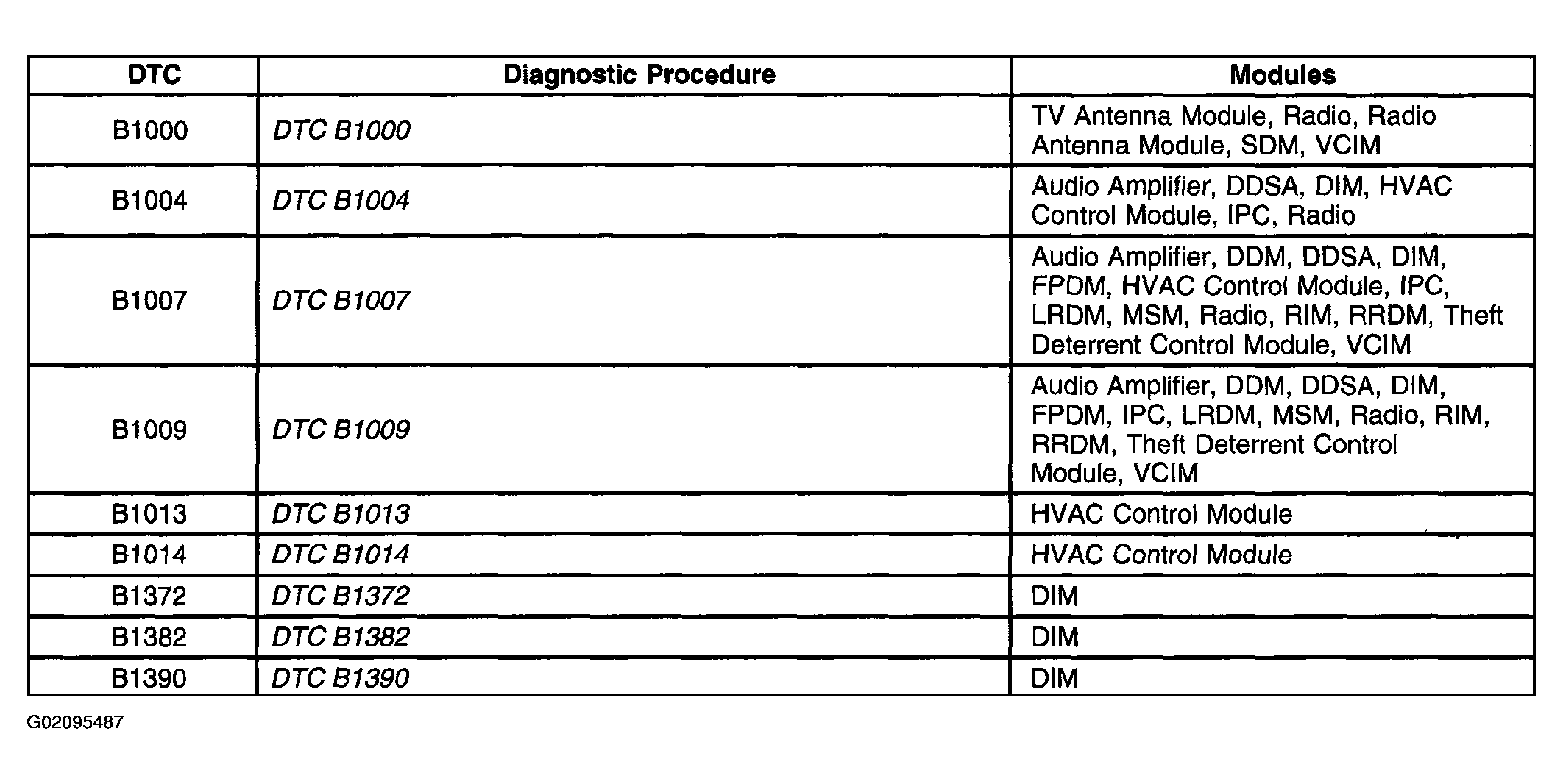

Scan Tool Data Definitions
Battery Voltage: The scan tool displays 0-30 volts. Display indicates the voltage measured between the module's battery positive voltage circuit and ground circuit.
Ignition 1: The scan tool displays Active/Inactive. The scan tool displays Active when the Ignition 1 input circuit of the RIM receives a battery voltage signal from the IGN-1 RELAY.
Ignition 1 Run/Crank: The scan tool displays Active/Inactive. The scan tool displays Active when the Run/Crank circuit of the DIM receives a battery voltage signal from the ignition switch.
Ign. Accessory/Run: The scan tool displays Active/Inactive. The scan tool displays Active when only the Accessory/Run circuits of the DIM receives a battery voltage signal from the ignition switch.
Ignition Switch: The scan tool displays Accy/Crank/Off/RAP/RAP-Unlock/Run/Unlock. The scan tool displays Accy when the accessory circuit of the DIM receives a battery voltage signal from the ignition switch. The scan tool displays Crank when the Crank/Run circuit of the DIM receives a battery voltage signal from the ignition switch. The scan tool displays Off when none of the power moding circuits of the DIM receive a battery voltage signal from the ignition switch. The scan tool displays RAP, when RAP is active and none of the power moding circuits of the DIM receive a battery voltage signal from the ignition switch. The scan tool displays Run when all of the power moding circuits of the DIM receive a battery voltage signal from the ignition switch.
