Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the DIM.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws securing the DIM top the I/P.

    Tighten

    Tighten the screws to 2 N.m 80 (lb in).

  3. Connect the closeout panel light electrical connector (1).
  4. Install the I/P closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .

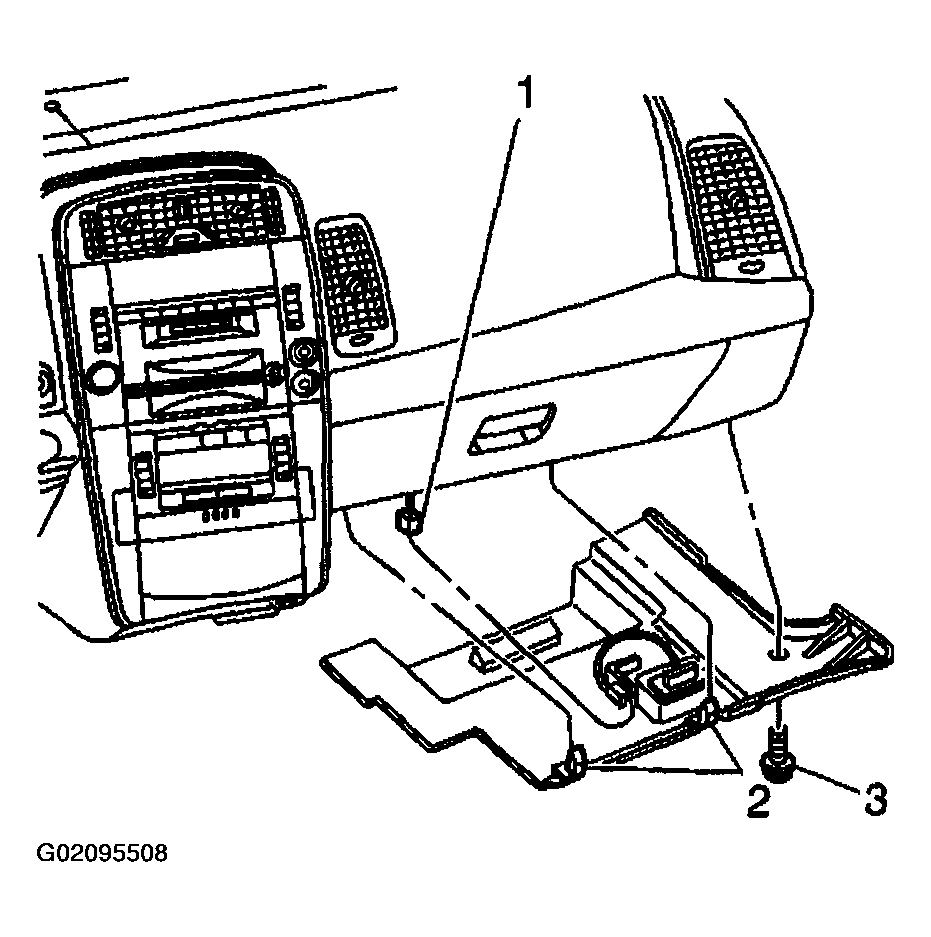

    Fig 1: Installing Dash Integration Module
    G02095508Courtesy of GENERAL MOTORS CORP.
