Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the I/P closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
Disconnect the closeout panel light electrical connector (1).
Remove the screws securing the dash integration module (DIM) to the I/P.
Disconnect the electrical connectors.

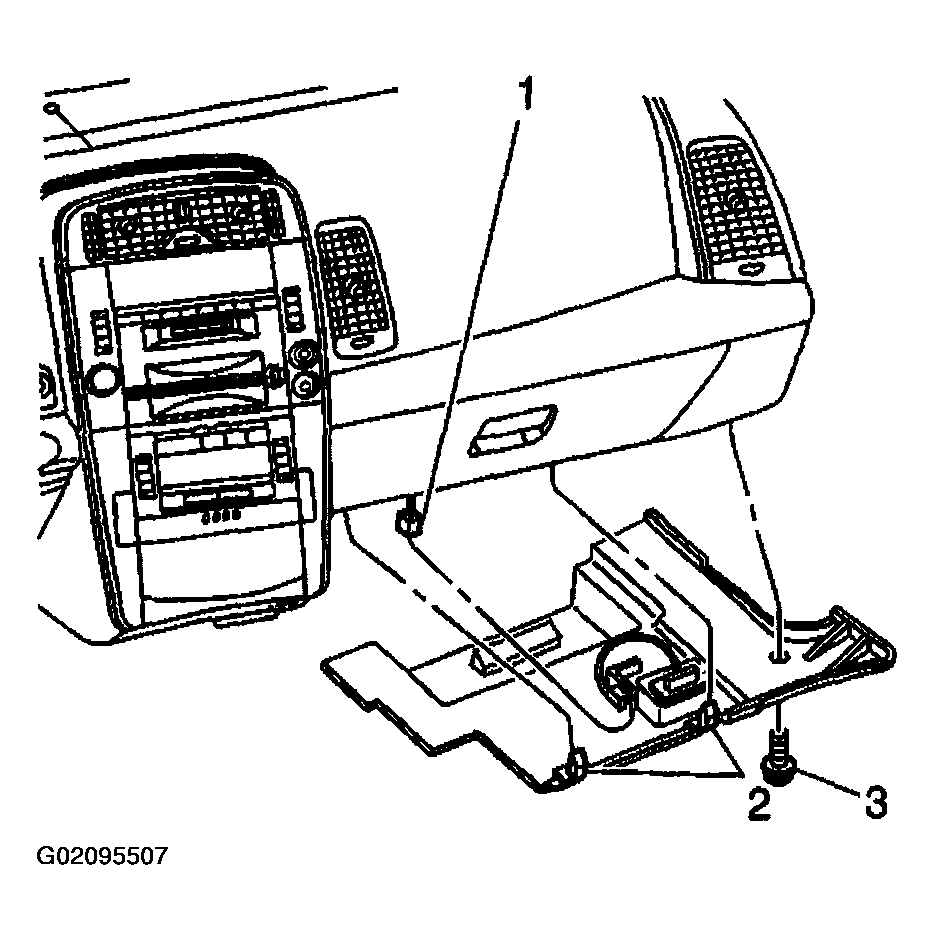

Fig 1: Removing Dash Integration Module
Courtesy of GENERAL MOTORS CORP.
