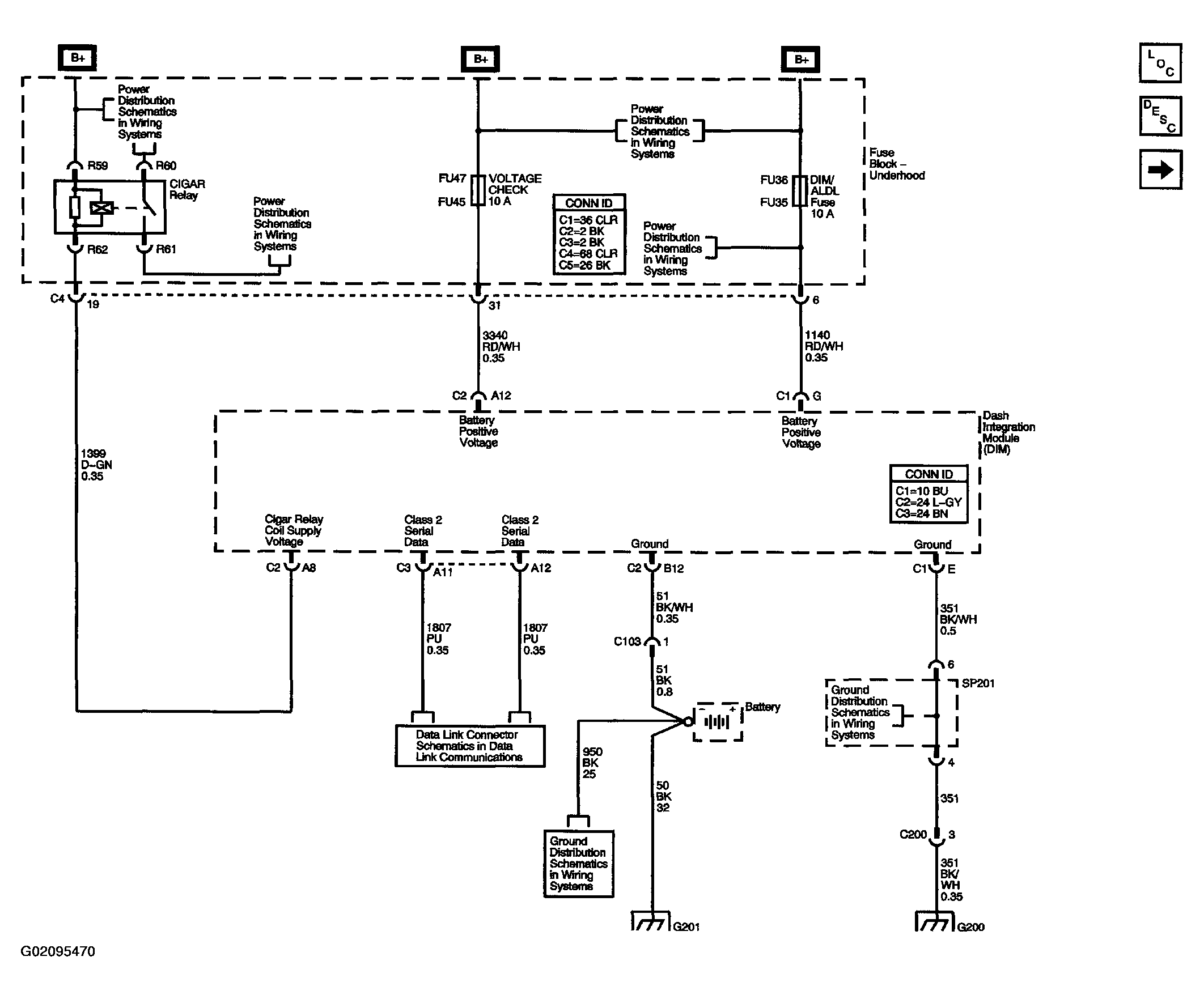

Fig 1: Body Control System Schematics (Power, Grounds And Class 2)
Courtesy of GENERAL MOTORS CORP.

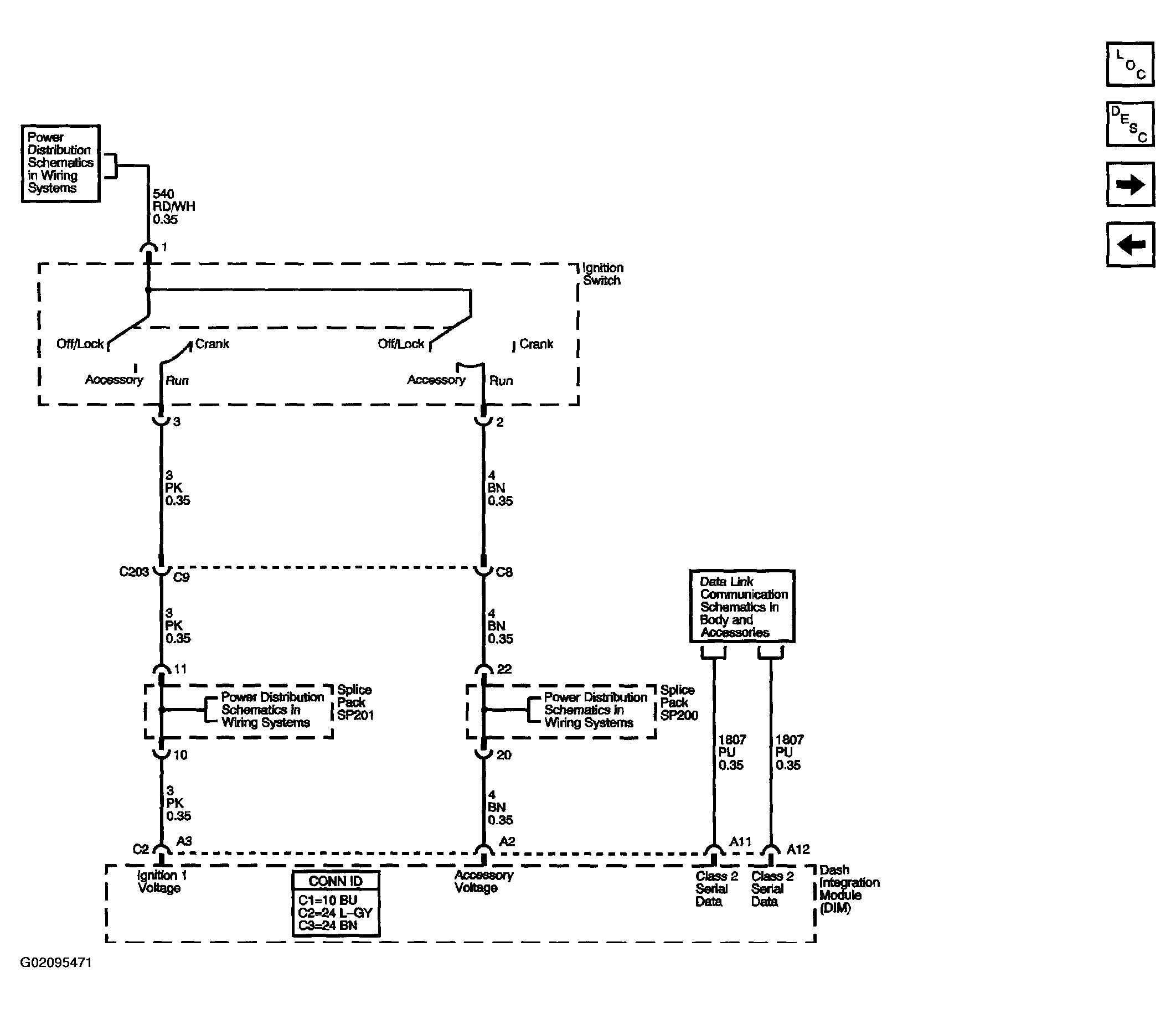

Fig 2: Body Control System Schematics (Ignition Switch)
Courtesy of GENERAL MOTORS CORP.

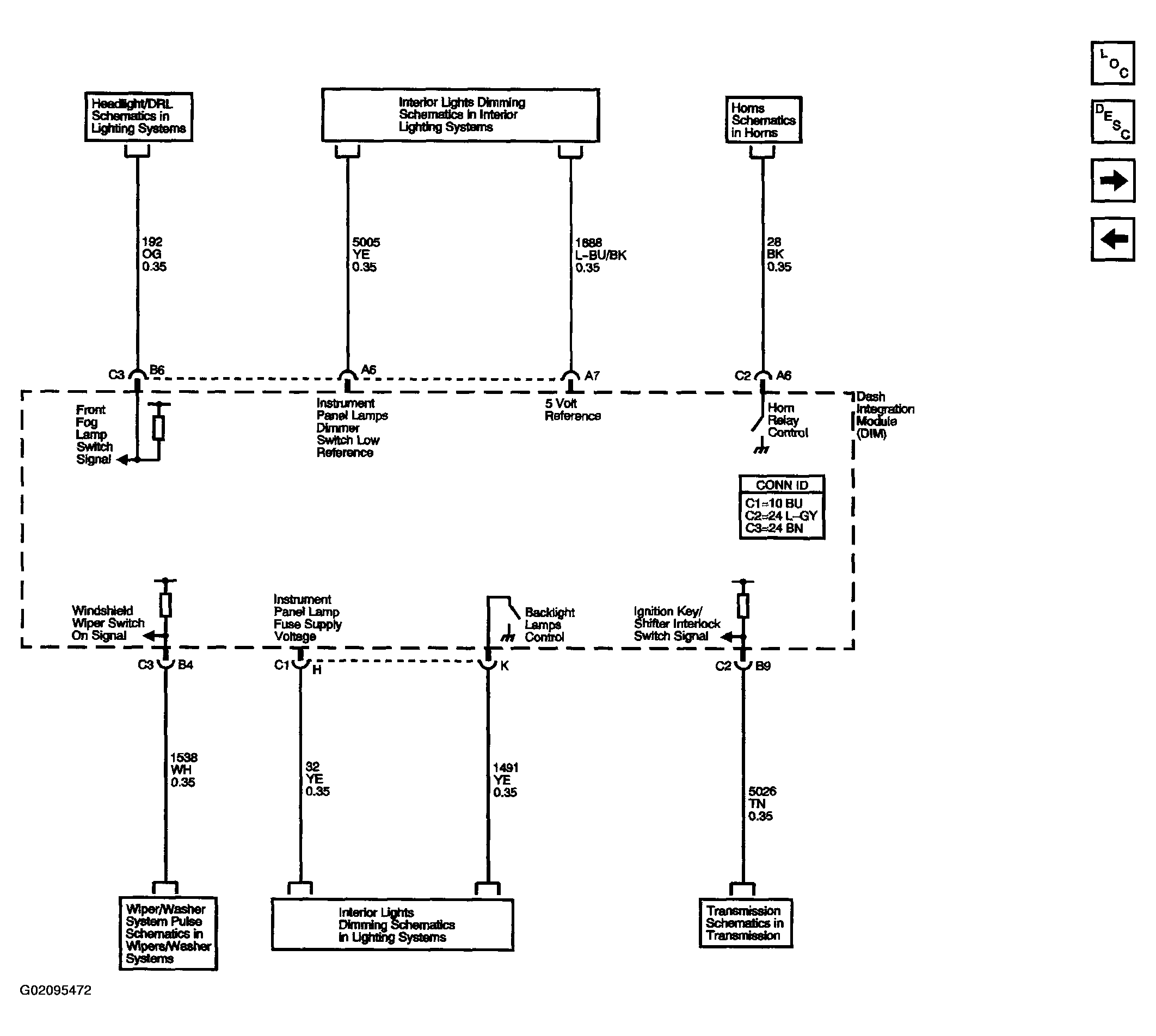

Fig 3: Body Control System Schematics (DIM Inputs And Outputs (1 Of 3))
Courtesy of GENERAL MOTORS CORP.

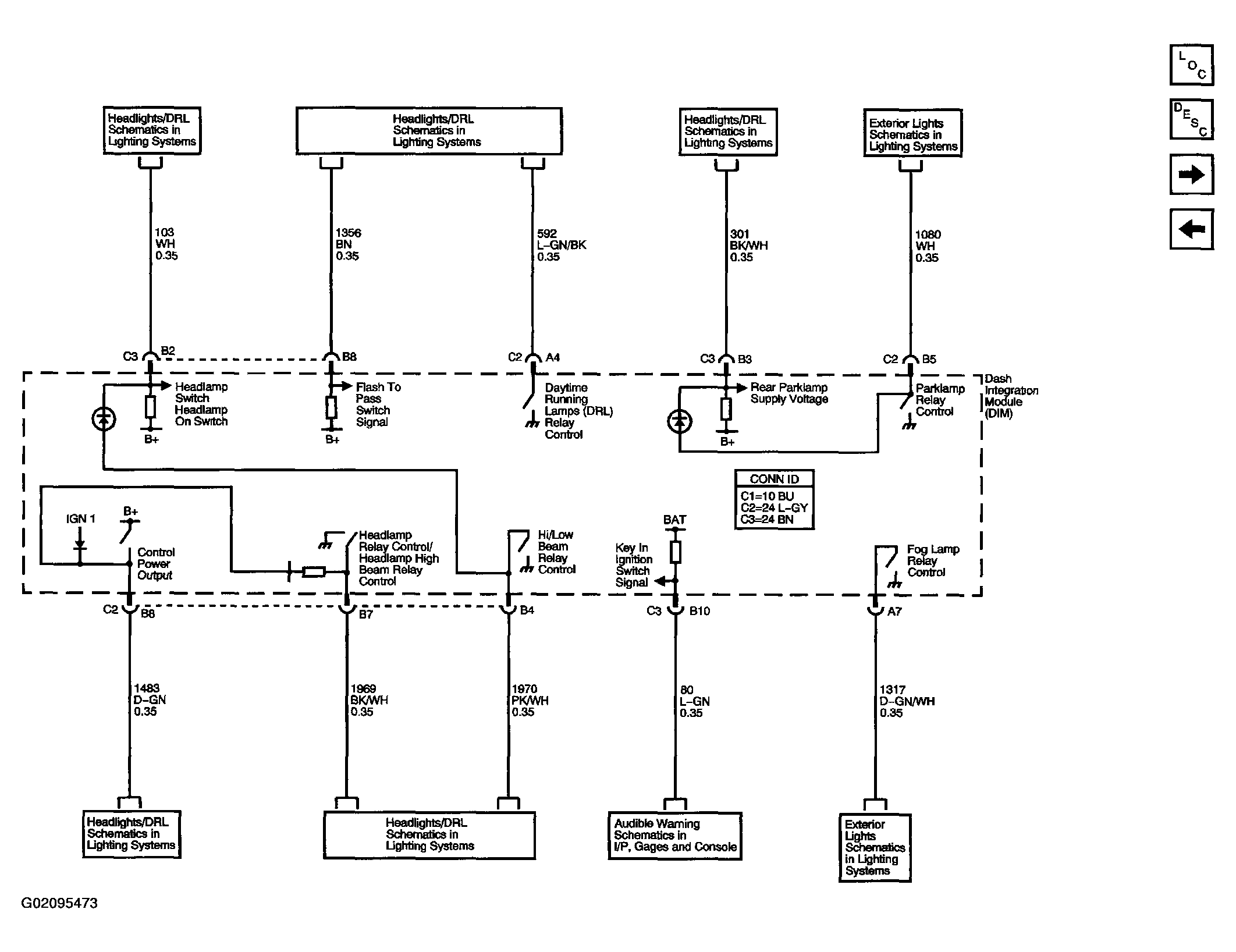

Fig 4: Body Control System Schematics (DIM Inputs And Outputs (2 Of 3))
Courtesy of GENERAL MOTORS CORP.

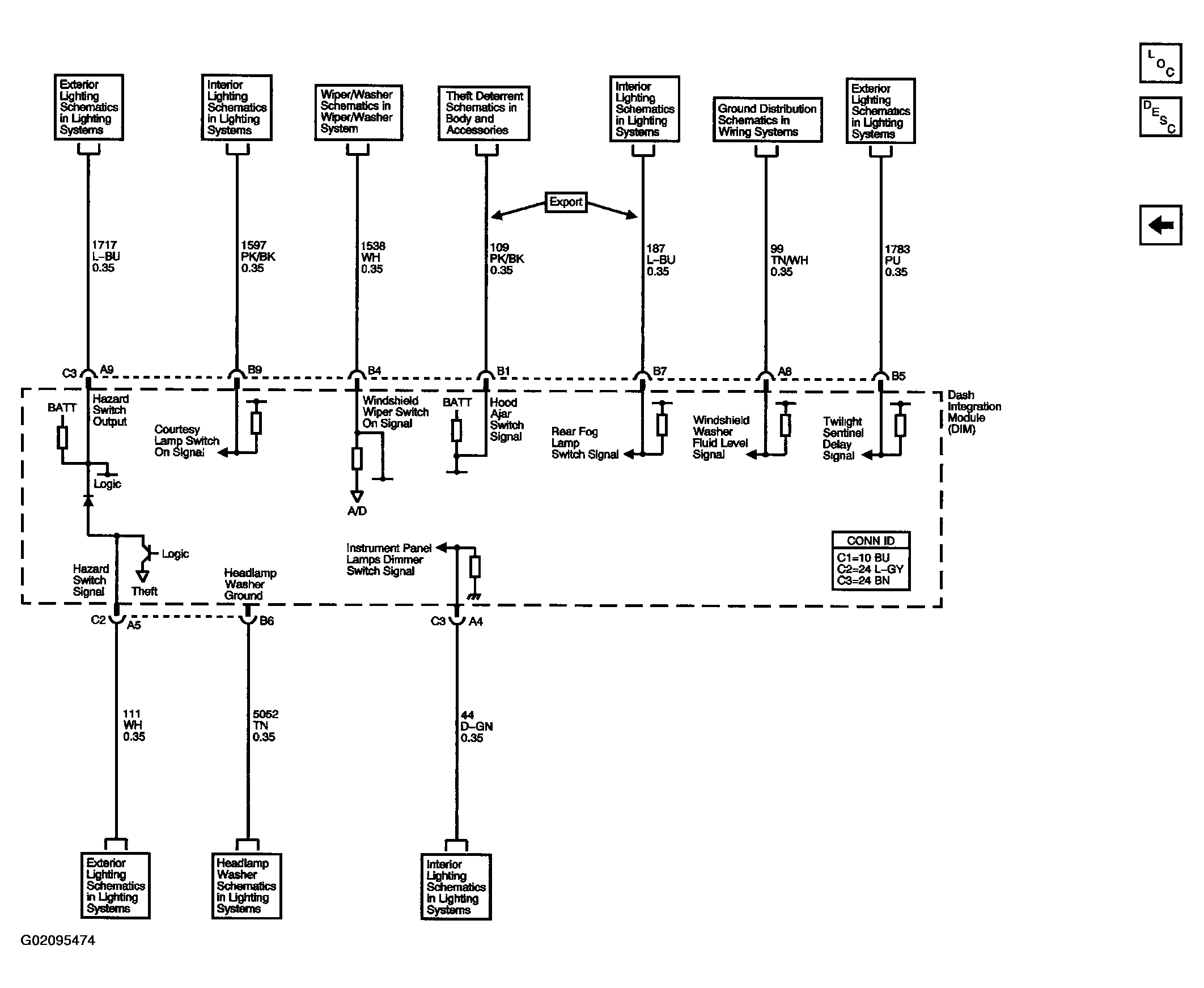

Fig 5: Body Control System Schematics (DIM Inputs And Outputs (3 Of 3))
Courtesy of GENERAL MOTORS CORP.

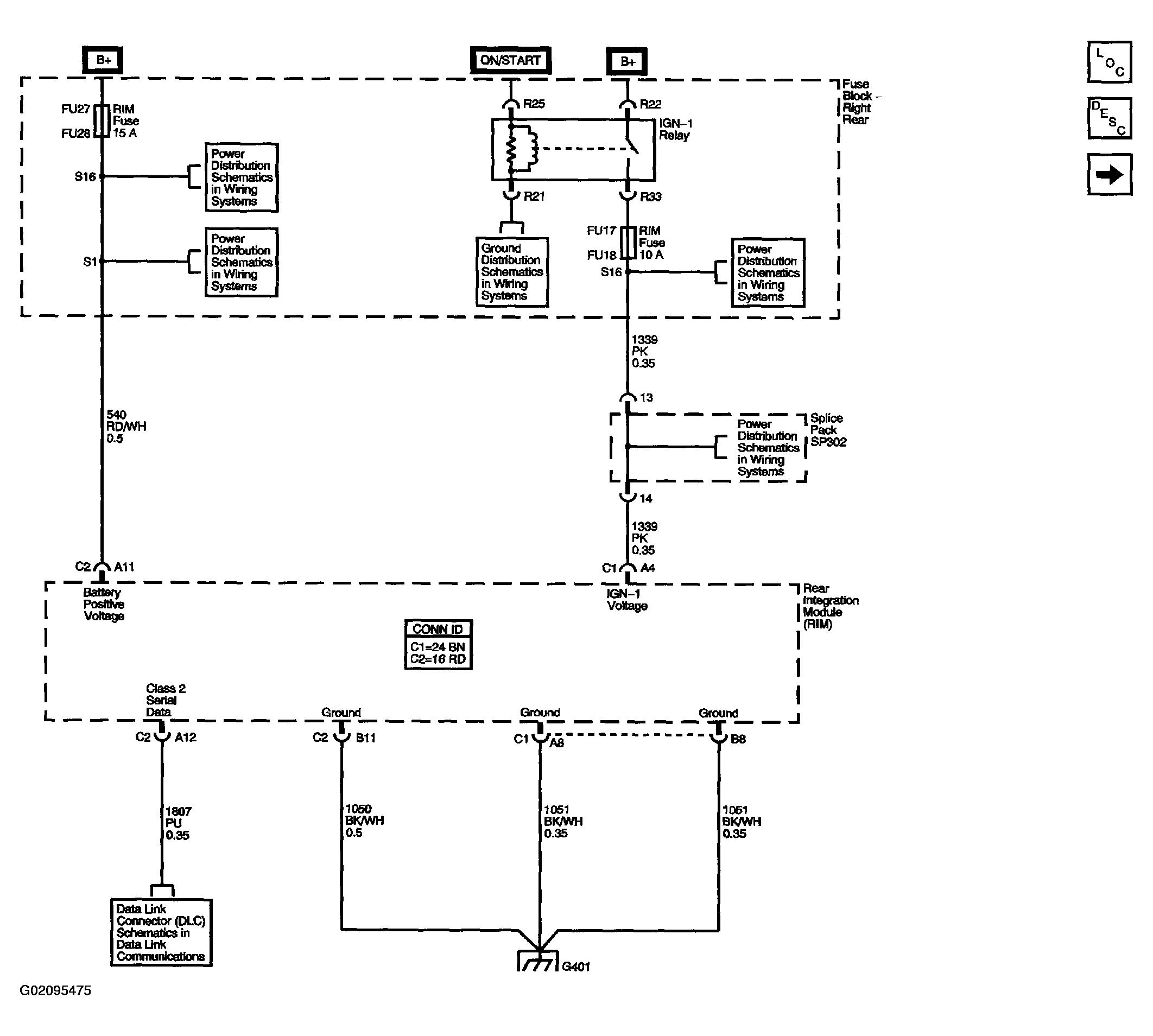

Fig 6: Body Control System Schematics (RIM Power, Grounds And Class 2)
Courtesy of GENERAL MOTORS CORP.

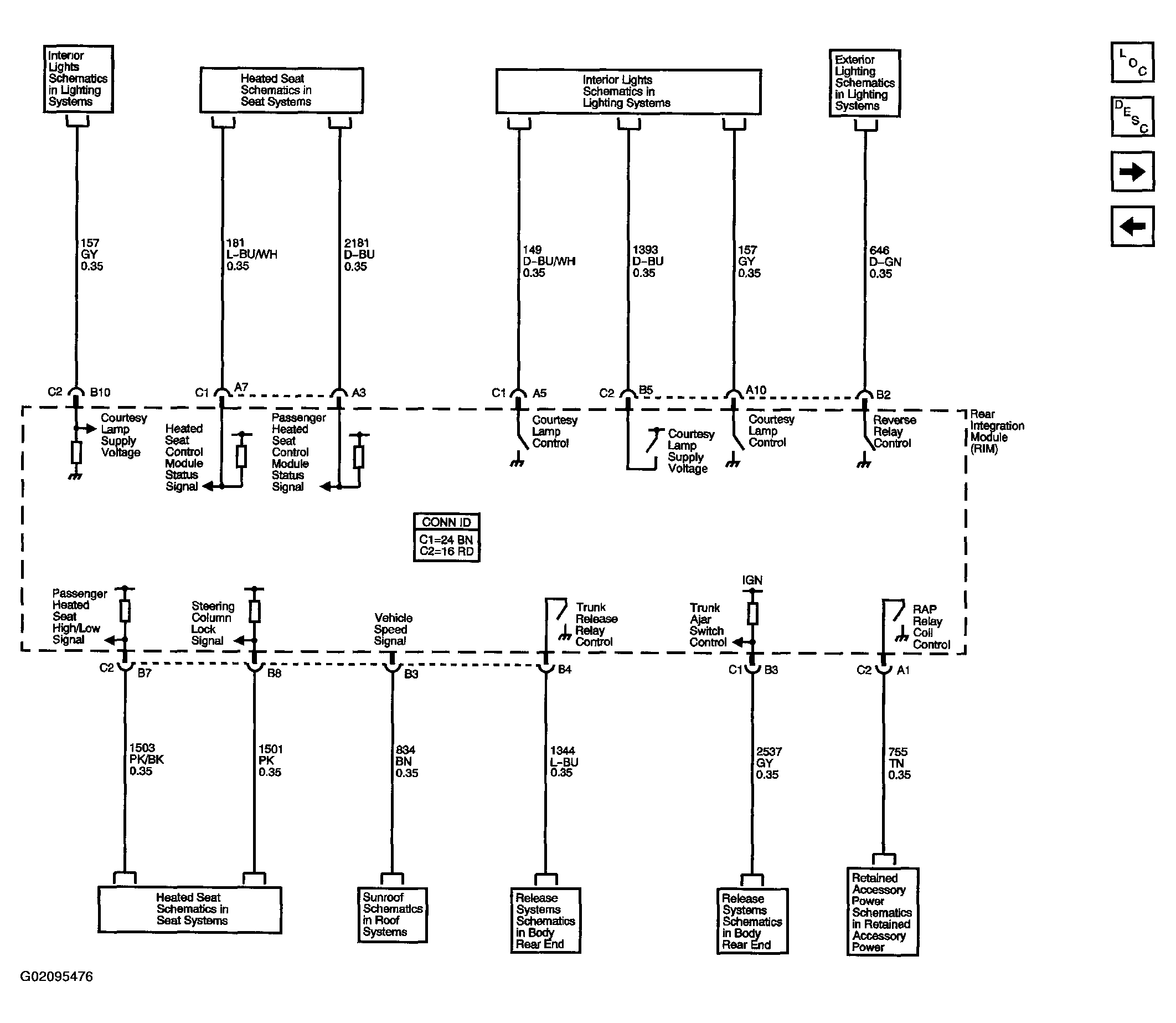

Fig 7: Body Control System Schematics (RIM Inputs And Outputs (1 Of 2))
Courtesy of GENERAL MOTORS CORP.

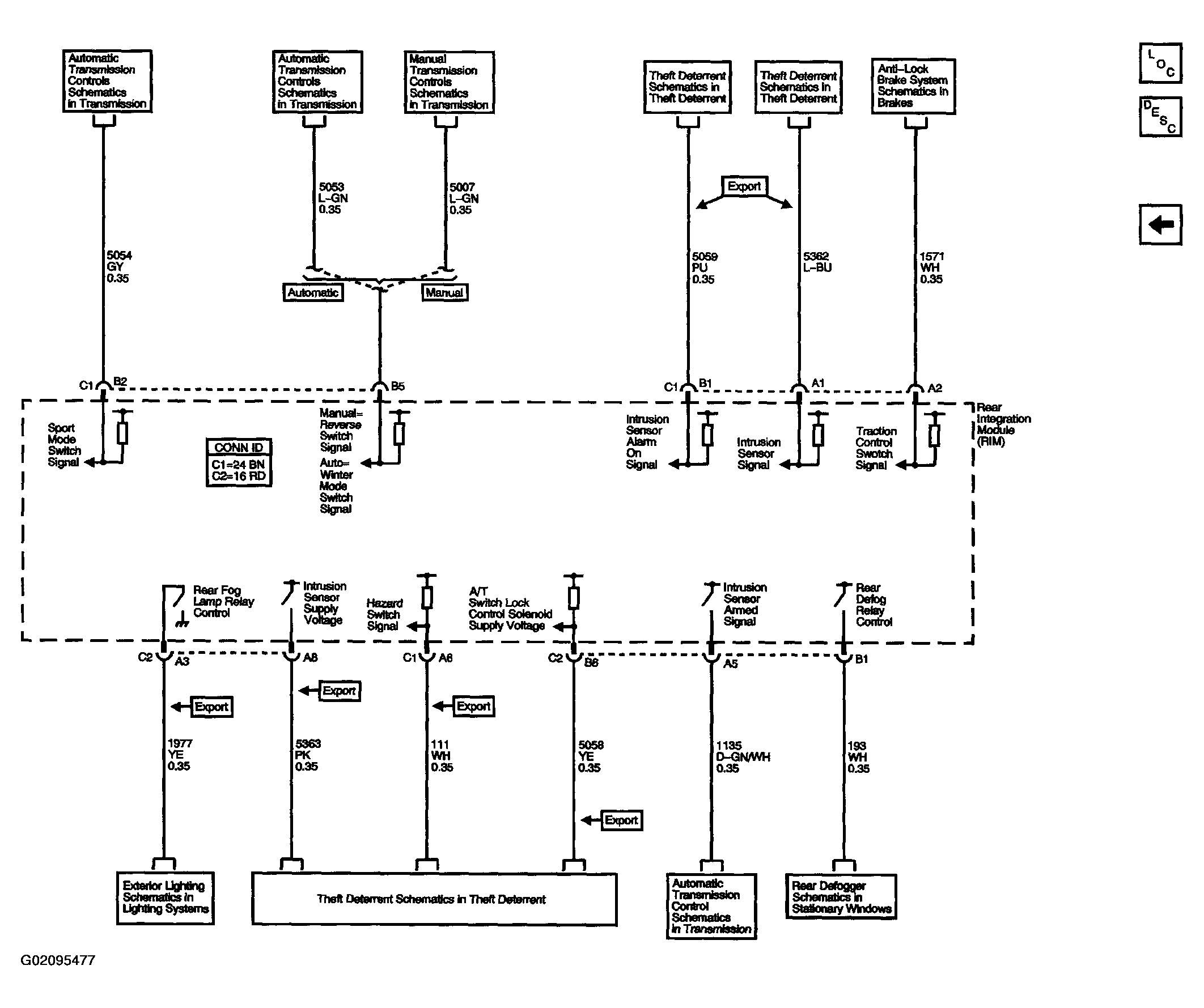

Fig 8: Body Control System Schematics (RIM Inputs And Outputs (2 Of 2))
