Body Control System Component Views
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

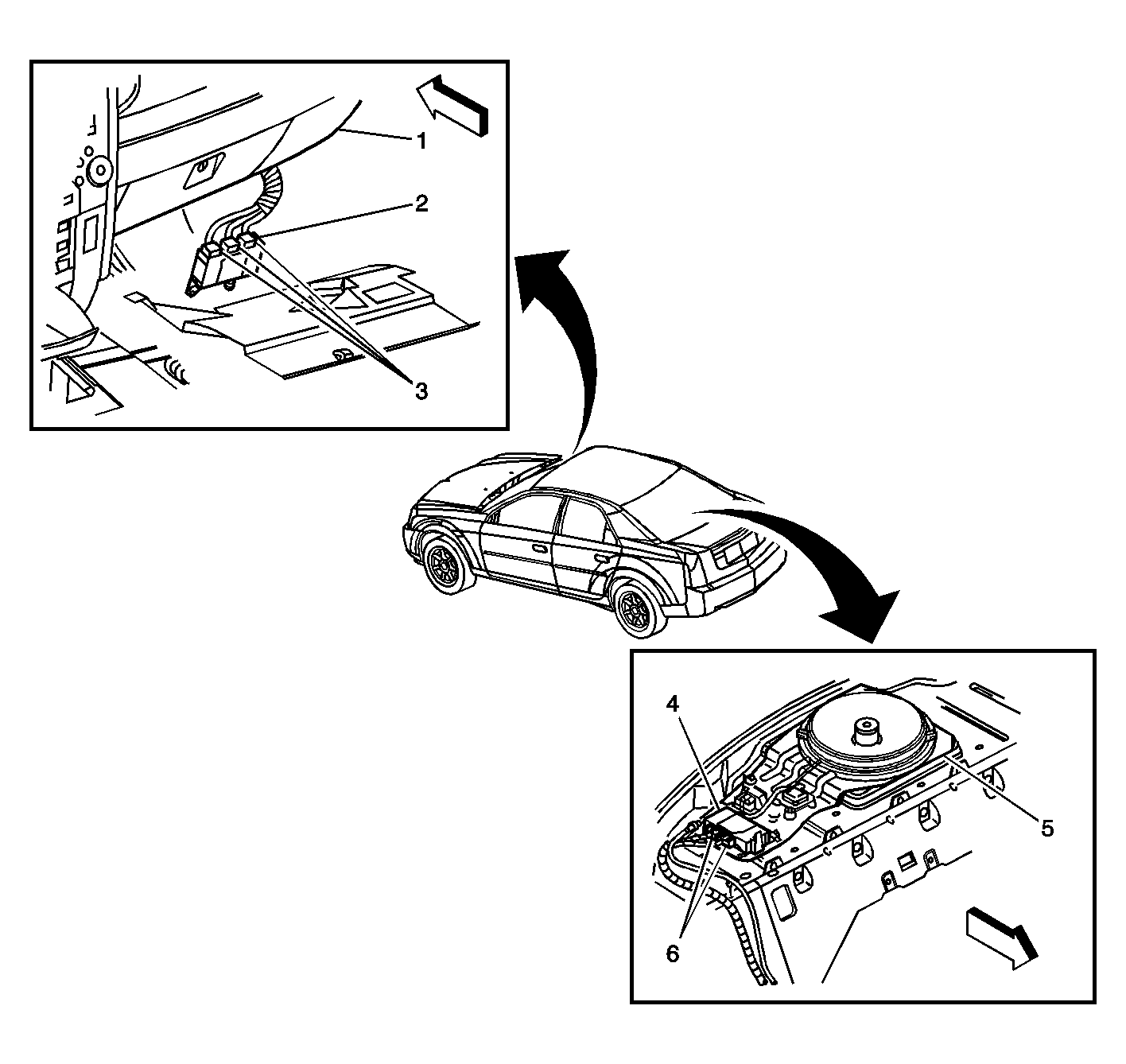

| Callout |
Component Name |
| 1 |
Instrument Panel |
| 2 |
Dash Integration Module (DIM) |
| 3 |
Dash Integration Module (DIM) Connectors |
| 4 |
Rear Integration Module (RIM) |
| 5 |
Speaker-Rear (Subwoofer) |
| 6 |
Rear Integration Module (RIM) Connectors |
