Removal Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the I/P closeout panel. Refer to Closeout/Insulator Panel Replacement - Right .
Disconnect the closeout panel light electrical connector (1).

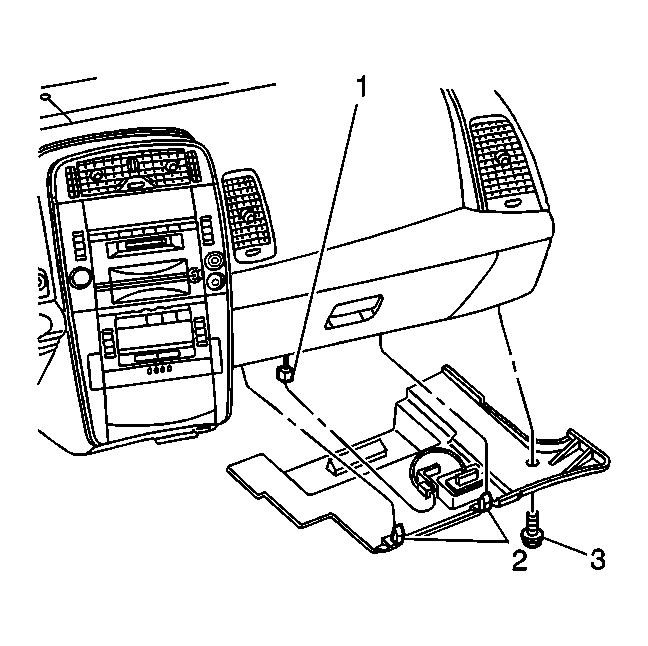

Fig 1: Locating Closeout Panel Light Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the screws securing the dash integration module (DIM) to the I/P.
Disconnect the electrical connectors.
