Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the RIM (1) to the electrical carrier.

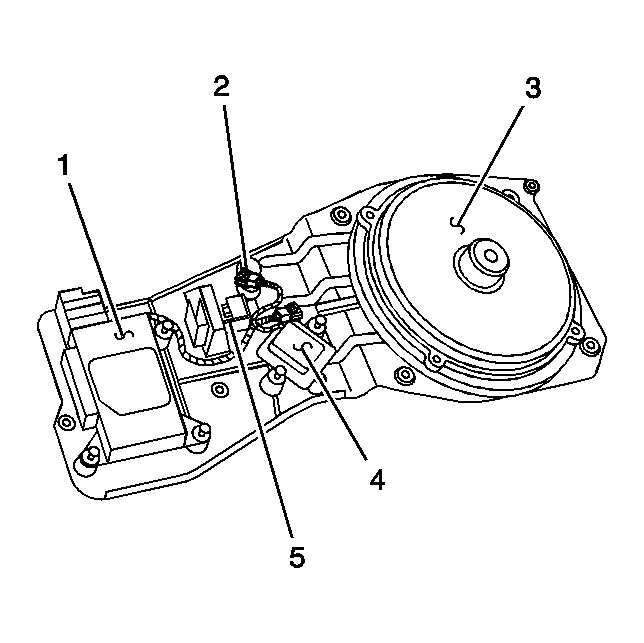

Fig 1: Identifying Rear Integration Module
Courtesy of GENERAL MOTORS CORP.
Reinstall the push pin fasteners.
Reinstall the rear shelf. Refer to Shelf Carrier Replacement - Rear
Program the module. Refer to Body Control Module (BCM) Programming/RPO Configuration (RIM) or Body Control Module (BCM) Programming/RPO Configuration (DIM) .
