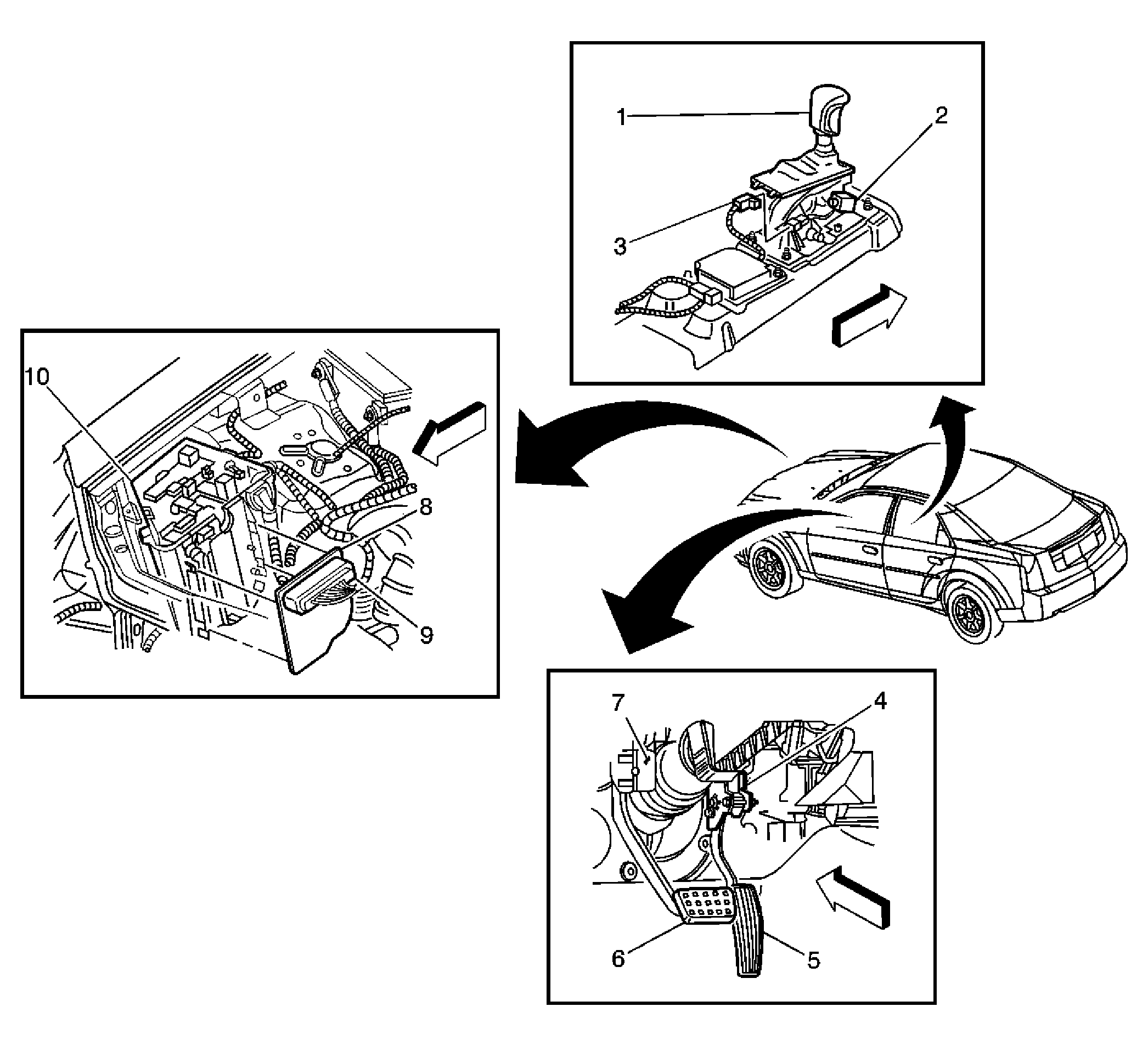

Automatic Transmission Shift Lock Control Component Views
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | A/T Shift Control Assembly |
| 2 | A/T Shift Lock Control Solenoid Assembly |
| 3 | A/T Shift Lock Control Solenoid Assembly Connector |
| 4 | Accelerator Pedal Position (APP) Sensor |
| 5 | Accelerator Pedal |
| 6 | Brake Pedal |
| 7 | Brake Pedal Position (BPP) Sensor |
| 8 | Transmission Control Module (TCM) |
| 9 | Transmission Control Module (TCM) Connector |
| 10 | Fuse Block - Underhood |
