Installation Procedure

  1. Install the seat belt buckle in the vehicle.
  2. Connect the electrical connection (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the front seat belt buckle nut (1).

    Tighten

    1. Tighten the nut to 53 N.m (39 lb ft).

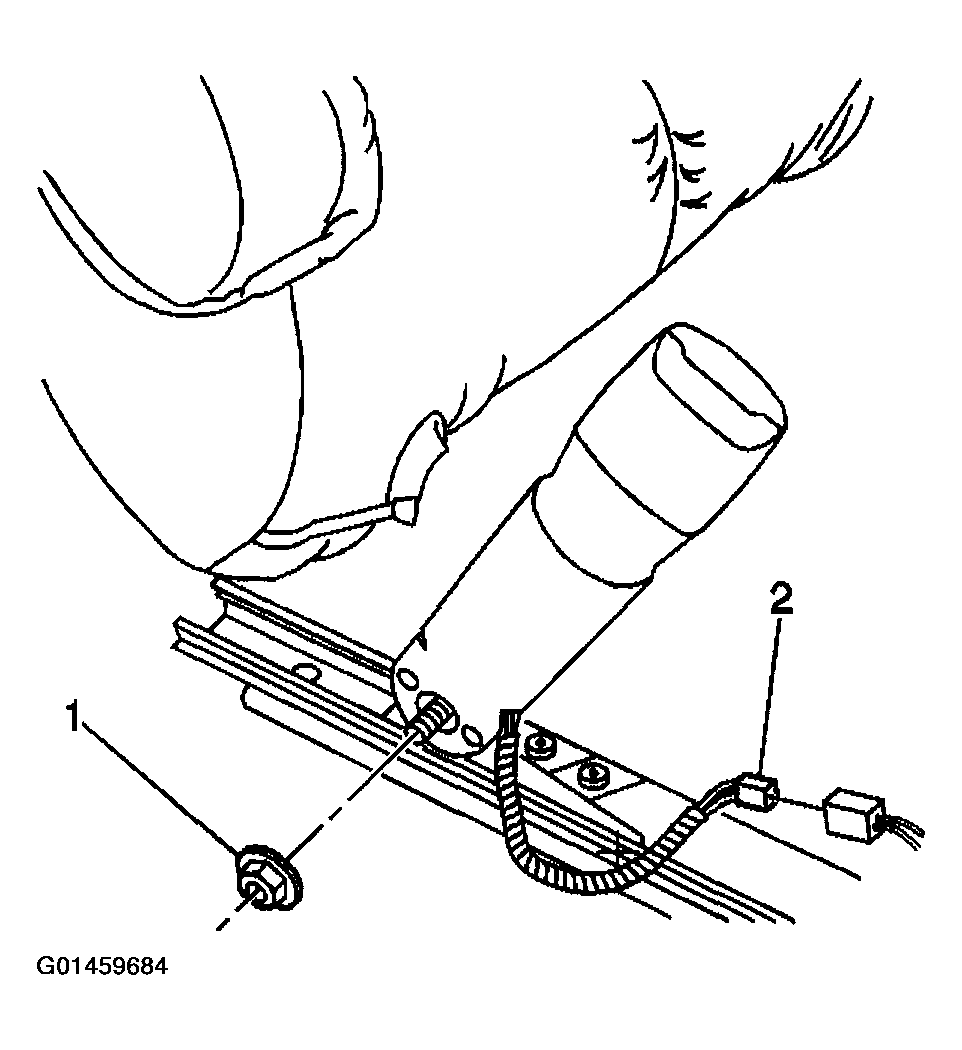

    Fig 1: Installing Front Seat Belt Buckle Nut
    G01459684Courtesy of GENERAL MOTORS CORP.
