Installation Procedure

  1. Install the seat belt buckle assembly to the center front seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat belt buckle bolt.

    Tighten

    1. Tighten the bolt to 53 N.m (39 lb ft).
  3. Install the seat belt latch assembly to the center front seat.
    Fig 1: Installing Seat Belt Buckle Bolt
    G01459697Courtesy of GENERAL MOTORS CORP.
  4. Install the seat belt latch bolt.

    Tighten

    1. Tighten the bolt to 53 N.m (39 lb ft).

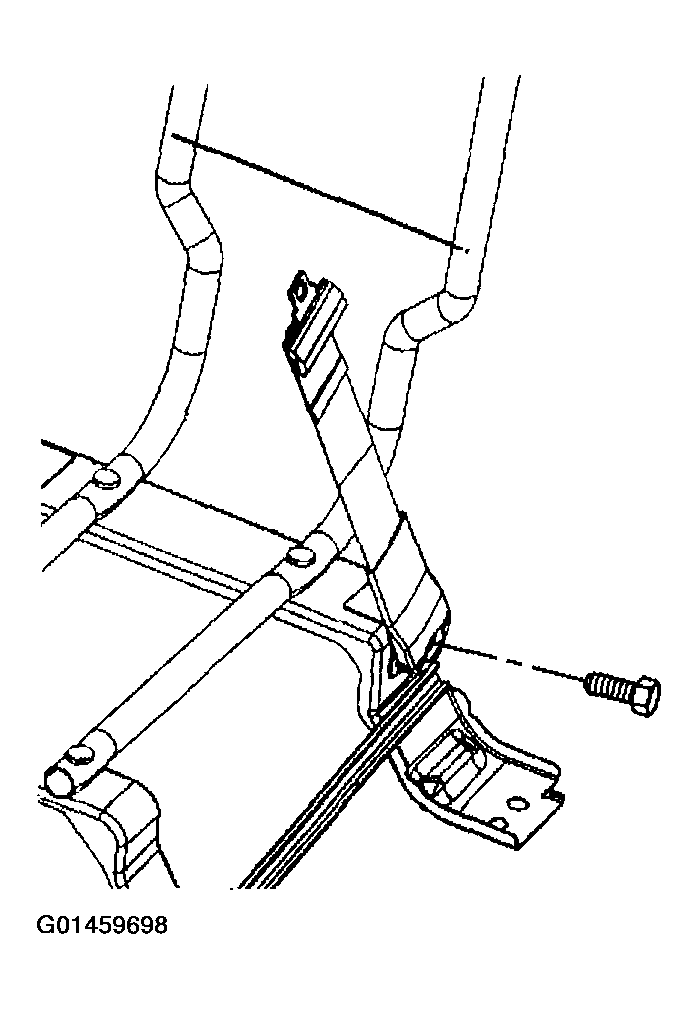

    Fig 2: Installing Seat Belt Latch Bolt
    G01459698Courtesy of GENERAL MOTORS CORP.
